Flat head self-drilling sheet metal screw with wings

23
.
19
BSZ

Flat head self-drilling sheet metal screw with wings is an advanced fastening component designed for quick and secure attachment in various materials. Its unique design combines the functions of a self-drilling screw and a drill bit, allowing for simultaneous hole creation and fastening in a single step.

Applications:

Flat head self-drilling sheet metal screw with wings is widely used in industries such as construction, metalworking, carpentry, and many others. It is ideal for fastening in a range of materials, including steel, aluminum, wood, plastics, and more.

Features and Benefits:

  • Combination of Self-Drilling and Drilling Functions: Enables both hole creation and fastening in one operation.
  • High-Quality Construction: Ensures durability and long-lasting performance.
  • Efficient and Rapid Fastening: Allows for quick and effective fastening and drilling in various materials.
View in store
DOWNLOADABLE DOCUMENTS
Declarations of conformity
ETA

Recommended

Group
2319

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

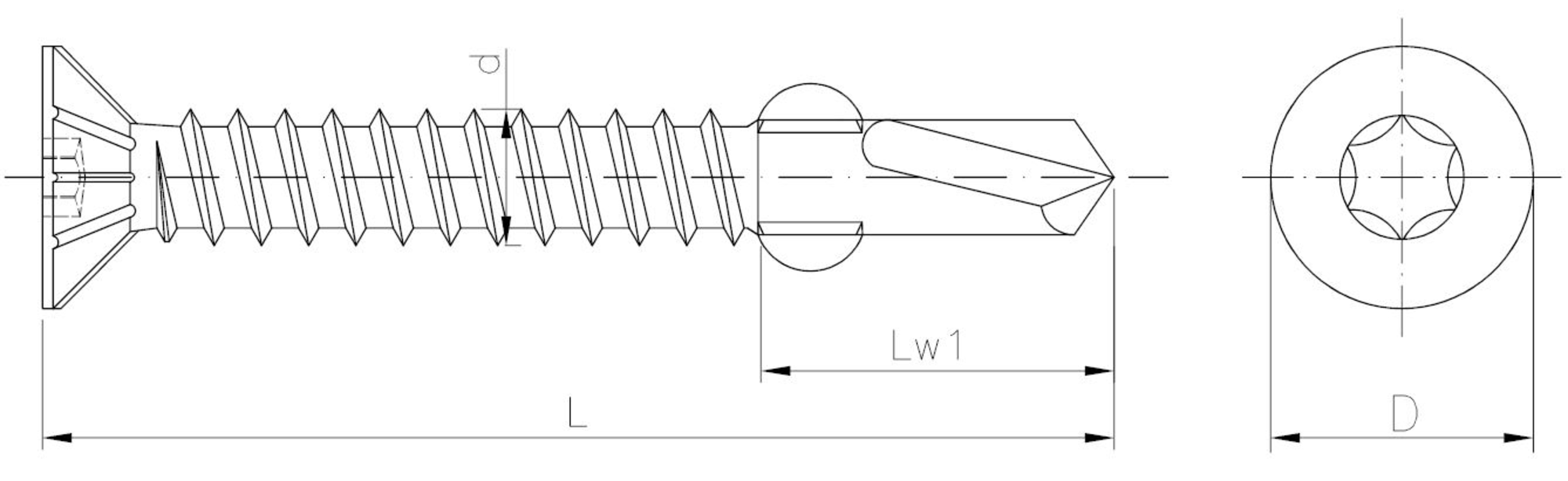

Diameter d [mm]
Length L [mm]
Drill length Lw1 [mm]
Variety of coating
Socket type and size
Diameter d [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Drill length Lw1 [mm] Variety of coating Socket type and size Diameter d [mm] Unit of measure Availability Show More
23190480250TXRYDXT
4.8 25 Y geomet TX 9.3 THS
23190480320TXBYT
4.8 32 Y white zinc plating TX 9.3 THS
23190480320TXRYDXT
4.8 32 Y geomet TX 9.3 THS
23190480380PHBYT
4.8 38 Y white zinc plating PH 9.3 THS
23190480380TXBYT
4.8 38 Y white zinc plating TX 9.3 THS
23190480380TXRYDXT
4.8 38 Y geomet TX 9.3 THS
23190480450PHBYT
4.8 45 Y white zinc plating PH 9.3 THS
23190480450TXBYT
4.8 45 Y white zinc plating TX 9.3 THS
23190480450TXRYDXT
4.8 45 Y geomet TX 9.3 THS
23190480500PHBYT
4.8 50 Y white zinc plating PH 9.3 THS
23190480500TXRYDXT
4.8 50 Y geomet TX 9.3 THS
23190480550TXBYT
4.8 55 Y white zinc plating TX 9.3 THS
23190550380TXBYT
5.5 38 Y white zinc plating TX 10.3 THS
23190550450PHBYT
5.5 45 Y white zinc plating PH 10.3 THS
23190550450TXBYT
5.5 45 Y white zinc plating TX 10.3 THS
23190550500PHBYT
5.5 50 Y white zinc plating PH 10.3 THS
23190550500TXBYT
5.5 50 Y white zinc plating TX 10.3 THS
23190550500TXRYDXT
5.5 50 Y geomet TX 10.3 THS
23190550550TXBYT
5.5 55 Y white zinc plating TX 10.3 THS
23190550700TXBYT
5.5 70 Y white zinc plating TX 10.3 THS
23190630450TXBYT
6.3 45 Y white zinc plating TX 11.3 THS
23190630450TXRYDXT
6.3 45 Y geomet TX 11.3 THS
23190630500TXBYT
6.3 50 Y white zinc plating TX 11.3 THS
23190630500TXRYDXT
6.3 50 Y geomet TX 11.3 THS
23190630600TXBYT
6.3 60 Y white zinc plating TX 11.3 THS
23190630600TXRYDXT
6.3 60 Y white zinc plating TX 11.3 THS
23190630700TXBYT
6.3 70 Y white zinc plating TX 11.3 THS
23190630700TXRYDXT
6.3 70 Y white zinc plating TX 11.3 THS
23190800650TXRYDXT
8.0 65 Y white zinc plating TX THS
23190800800TXRYDXT
8.0 60 Y white zinc plating TX THS
