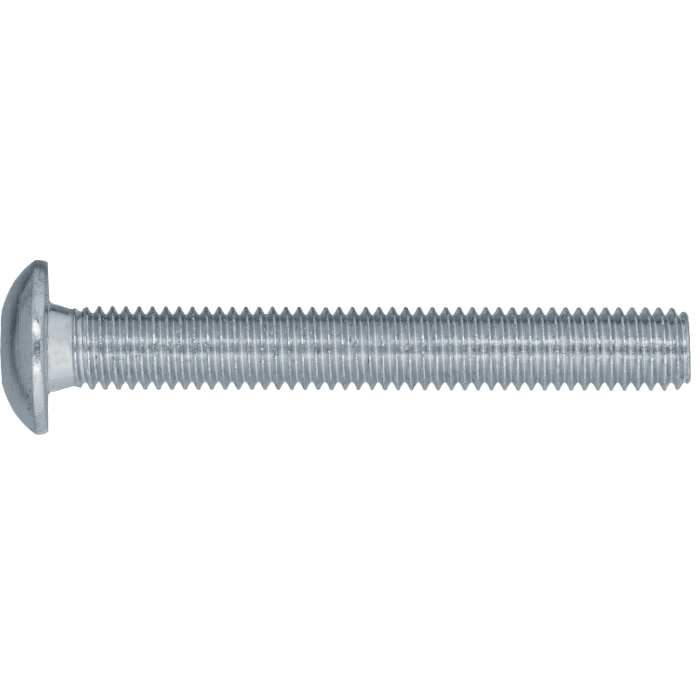

Hex socket round head screw with metric thread, fully threaded

13
.
01
WKIM

A metric screw with a button head and hex socket is an advanced fastening element that combines the distinctive shape of a button head with the functionality of a hex socket. Thanks to these features, it ensures secure and efficient fastening while providing an aesthetically pleasing appearance of the connection.

Application:

A metric screw with a button head and hex socket is used wherever both the aesthetics and durability of the connection are important. It performs excellently in furniture, decorative, and structural projects, as well as anywhere a reliable fastening is required without compromising appearance.

Features and benefits:

  • Combines the unique form of a button head with the functionality of a hex socket

  • Solid construction and high-quality materials ensure reliability

  • Available in various sizes and strength classes to suit different needs

  • Provides an attractive appearance of the connection while maintaining durability

  • Easy installation using standard tools

Ask for product

Product inquiry form

Recommended

Group
1301

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

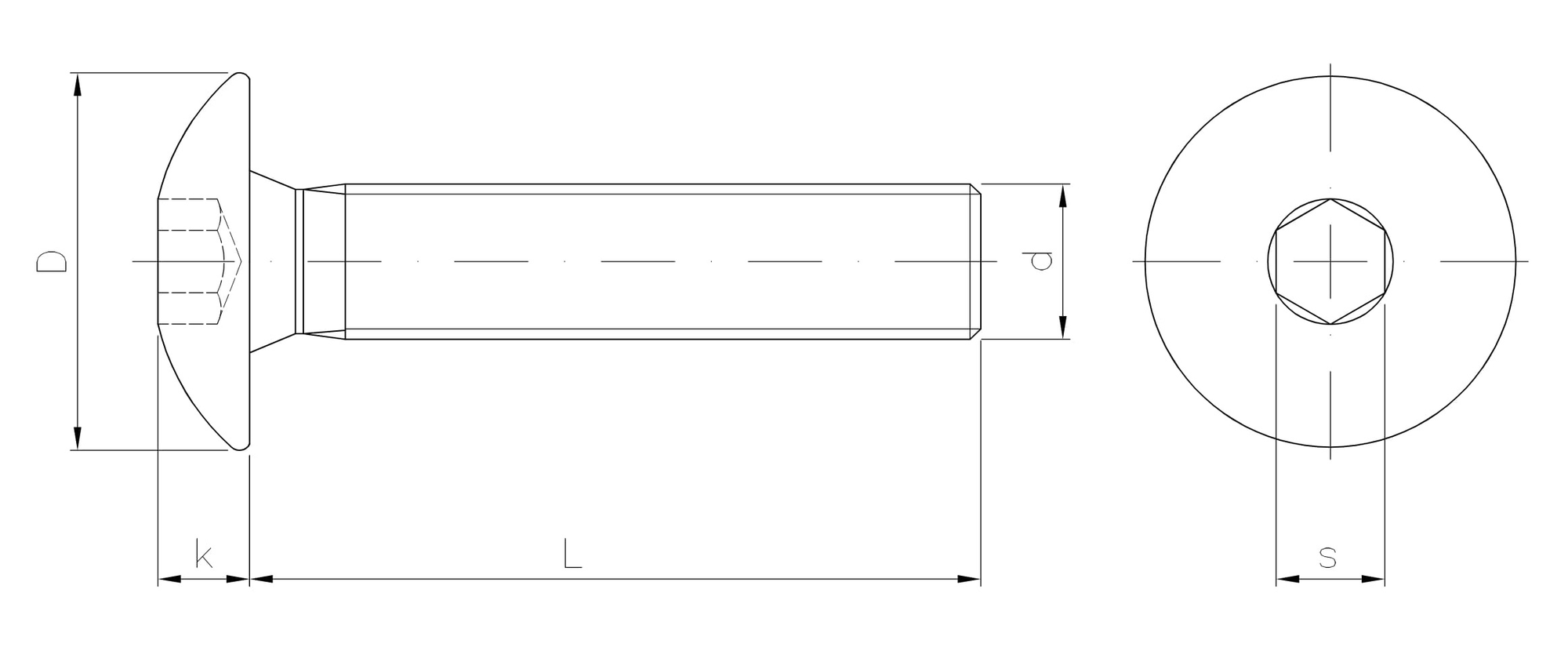

Dimension d [mm]
Dimension L [mm]
Class of mechanical properties
Variety of coating
Threading
Recess
Thread ending
Dimension D [mm]
Dimension k [mm]
Dimension s [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Class of mechanical properties Variety of coating Threading Recess Thread ending Dimension D [mm] Dimension k [mm] Dimension s [mm] Unit of measure Availability Show More
1301060015IM5CT
white zinc plating Fully threaded IM Cut THS
1301060020IM5BT
M6 20 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301060025IM5BT
M6 25 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301060030IM5BT
M6 30 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301060035IM5BT
M6 35 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301060040IM4B10T
M6 40 10.9 white zinc plating Fully threaded IM Cut 15 4 4 THS
1301060040IM5BT
M6 40 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301060045IM5BT
M6 45 4.8 white zinc plating Fully threaded IM Cut 15 4 5 THS
1301080016IM5BMRPT
M8 16 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080020IM5BMRPT
M8 20 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080025IM5BMRPT
M8 25 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080030IM5BMRPT
M8 30 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080030IM5CMRPT
M8 30 4.8 black zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080040IM5BMRPT
M8 40 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080045IM5BMRPT
M8 45 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080045IM5BT
M8 45 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080050IM5BMRPT
M8 50 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
1301080060IM5BF07T
M8 60 4.8 white zinc plating Fully threaded IM Cut 16.5 4.4 5 THS
