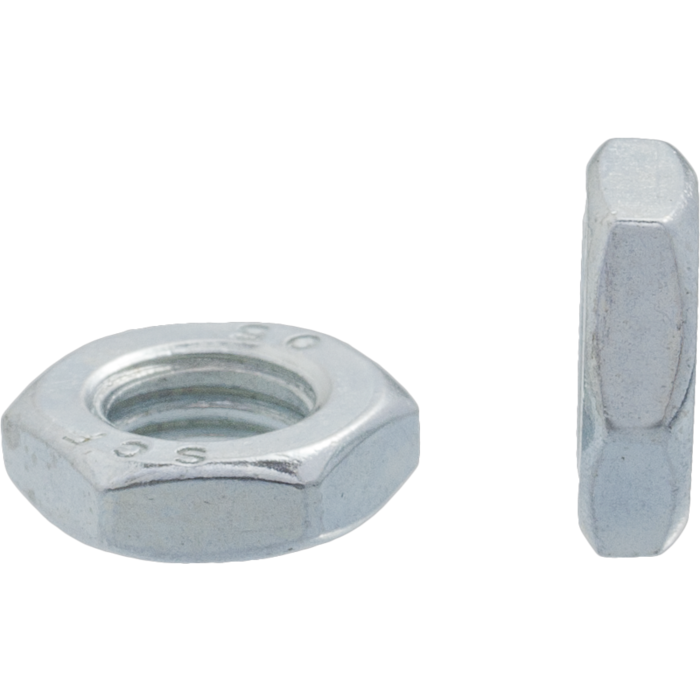

Low hex nut

N6N

The low-profile hex nut is a specially designed fastening element with a reduced height compared to a standard hex nut. Its hexagonal shape facilitates easy installation and ensures durable and stable connections in situations where space constraints are critical.

Applications:

The low-profile hex nut is ideal for applications where limited space makes it difficult to install a standard hex nut. It is widely used in industries such as manufacturing, construction, mechanics, and others, where a durable, stable, and compact connection is essential.

Features and Benefits:

Reduced height allows installation in confined spaces.
The hexagonal shape facilitates easy installation, removal, and access to connections.
Provides stable, durable, and secure connections in tight spaces.
Made from robust material, offering resistance to loads and environmental conditions.
Available in various sizes and strength grades to suit different applications.
Easy to install and integrate with other fastening components.
Excellent craftsmanship and durability.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

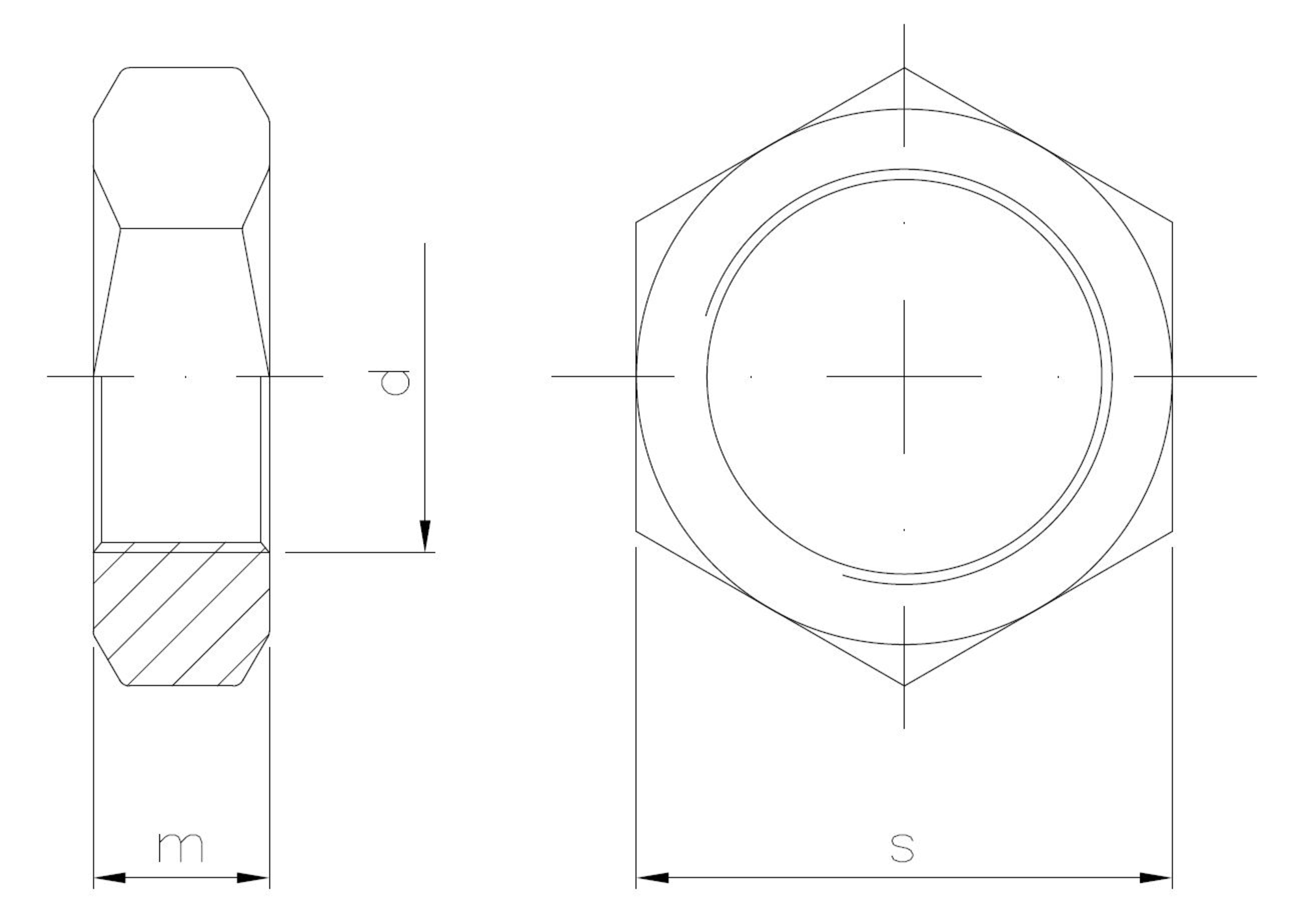

Diameter d [mm]

Height m [mm]

Thread direction

Class of mechanical properties

Variety of coating

Key size s [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Diameter d [mm]	Height m [mm]	Thread direction	Class of mechanical properties	Variety of coating	Key size s [mm]	Standard	Unit of measure	Availability

1503020B04D439T	M2	1.2	Clockwise	4	white zinc plating	4.0	DIN 439	THS	Product on request
1503020MD439T	M2	1.2	Clockwise	5	brass plating	4.0	DIN 439	THS	Product on request
1503020S04D439T	M2	1.2	Clockwise	4	raw	4.0	DIN 439	THS	Product on request
1503025B04D439T	M2.5	1.6	Clockwise	4	white zinc plating	5.0	DIN 439	THS	Product on request
1503025S04D439T	M2.5	1.6	Clockwise	4	raw	5.0	DIN 439	THS	Product on request
1503030B04D439T	M3	1.8	Clockwise	4	white zinc plating	5.5	DIN 439	THS	Product on request
1503030BG804D439T	M3	1.8	Clockwise	4	BG8 - ocynk biały 8 mikronów	5.5	DIN 439	THS	Product on request
1503030MD439T	M3	1.8	Clockwise	6	brass plating	5.5	DIN 439	THS	Product on request
1503030MND439T	M3	1.8	Clockwise	5	MN - nickel plated brass	5.5	DIN 439	THS	Product on request
1503030S04D439T	M3	1.8	Clockwise	4	raw	5.5	DIN 439	THS	Product on request
1503040B04D439T	M4	2.2	Clockwise	4	white zinc plating	7.0	DIN 439	THS	Product on request
1503040BG804D439T	M4	2.2	Clockwise	4	BG8 - ocynk biały 8 mikronów	7.0	DIN 439	THS	Product on request
1503040MD439T	M4	2.2	Clockwise	5	brass plating	7.0	DIN 439	THS	Product on request
1503040MND439T	M4	2.2	Clockwise	5	MN - nickel plated brass	7.0	DIN 439	THS	Product on request
1503040S04D439T	M4	2.2	Clockwise	4	raw	7.0	DIN 439	THS	Product on request
1503050B04D439T	M5	2.7	Clockwise	4	white zinc plating	8.0	DIN 439	THS	Product on request
1503050BD439T	M5	2.7	Clockwise	6	white zinc plating	8.0	DIN 439	THS	The product is available
1503050BG804D439T	M5	2.7	Clockwise	4	BG8 - ocynk biały 8 mikronów	8.0	DIN 439	THS	Product on request
1503050MD439T	M5	2.7	Clockwise	6	brass plating	8.0	DIN 439	THS	Product on request
1503050MND439T	M5	2.7	Clockwise	5	MN - nickel plated brass	8.0	DIN 439	THS	Product on request
1503050S04D439T	M5	2.7	Clockwise	4	raw	8.0	DIN 439	THS	Product on request
1503060B04D439T	M6	3.2	Clockwise	4	white zinc plating	10.0	DIN 439	THS	Product on request
1503060B04LD934T	M6	3.2	Counterclockwise	4	white zinc plating	10.0	DIN 439	THS	Product on request
1503060BD439T	M6	3.2	Clockwise	6	white zinc plating	10.0	DIN 439	THS	The product is available
1503060BG804D439T	M6	3.2	Clockwise	4	BG8 - ocynk biały 8 mikronów	10.0	DIN 439	THS	Product on request
1503060MD439T	M6	3.2	Clockwise	6	brass plating	10.0	DIN 439	THS	Product on request
1503060MND439T	M6	3.2	Clockwise	5	MN - nickel plated brass	10.0	DIN 439	THS	Product on request
1503060R404D439T	M6	3.2	Clockwise	4	R4 - flake galvanizing	10.0	DIN 439	THS	Product on request
1503060S04D439T	M6	3.2	Clockwise	4	raw	10.0	DIN 439	THS	Product on request
1503080B04D439T	M8	4.0	Clockwise	4	white zinc plating	13.0	DIN 439	THS	Product on request
1503080B04LD934T	M8	4.0	Counterclockwise	4	white zinc plating	13.0	DIN 439	THS	Product on request
1503080B05D439T	M8	4.0	Clockwise	5	white zinc plating	13.0	DIN 439	THS	Product on request
1503080BD439T	M8	4.0	Clockwise	6	white zinc plating	13.0	DIN 439	THS	The product is available
1503080BG804D439T	M8	4.0	Clockwise	4	BG8 - ocynk biały 8 mikronów	13.0	DIN 439	THS	Product on request
1503080G04D439T	M8	4.0	Clockwise	4	hot-dip galvanized	13.0	DIN 439	THS	Product on request
1503080MD439T	M8	4.0	Clockwise	6	brass plating	13.0	DIN 439	THS	Product on request
1503080MND439T	M8	4.0	Clockwise	5	MN - nickel plated brass	13.0	DIN 439	THS	Product on request
1503080R404D439T	M8	4.0	Clockwise	4	R4 - flake galvanizing	13.0	DIN 439	THS	Product on request
1503080S04D439T	M8	4.0	Clockwise	4	raw	13.0	DIN 439	THS	Product on request
1503100B04D439T	M10	5.0	Clockwise	4	white zinc plating	17.0	DIN 439	THS	Product on request
1503100B04LD439T	M10	5.0	Counterclockwise	4	white zinc plating	17.0	DIN 439	THS	Product on request
1503100B04LD934T	M10	5.0	Counterclockwise	4	white zinc plating	17.0	DIN 439	THS	Product on request
1503100B05D439T	M10	5.0	Clockwise	5	white zinc plating	17.0	DIN 439	THS	Product on request
1503100BD439T	M10	5.0	Clockwise	6	white zinc plating	17.0	DIN 439	THS	The product is available
1503100BG804D439T	M10	5.0	Clockwise	4	BG8 - ocynk biały 8 mikronów	17.0	DIN 439	THS	Product on request
1503100G04D439T	M10	5.0	Clockwise	4	hot-dip galvanized	17.0	DIN 439	THS	Product on request
1503100MD439T	M10	5.0	Clockwise	6	brass plating	17.0	DIN 439	THS	Product on request
1503100MND439T	M10	5.0	Clockwise	5	MN - nickel plated brass	17.0	DIN 439	THS	Product on request
1503100R404D439T	M10	5.0	Clockwise	4	R4 - flake galvanizing	17.0	DIN 439	THS	Product on request
1503100S04D439T	M10	5.0	Clockwise	4	raw	17.0	DIN 439	THS	Product on request
1503120B04D439T	M12	6.0	Clockwise	4	white zinc plating	19.0	DIN 439	THS	Product on request
1503120B04LD439T	M12	6.0	Counterclockwise	4	white zinc plating	19.0	DIN 439	THS	Product on request
1503120B04LD934T	M12	6.0	Counterclockwise	4	white zinc plating	19.0	DIN 439	THS	Product on request
1503120B05D439T	M12	6.0	Clockwise	5	white zinc plating	19.0	DIN 439	THS	Product on request
1503120BD439T	M12	6.0	Clockwise	6	white zinc plating	19.0	DIN 439	THS	The product is available
1503120BG804D439T	M12	6.0	Clockwise	4	BG8 - ocynk biały 8 mikronów	19.0	DIN 439	THS	Product on request
1503120G04D439T	M12	6.0	Clockwise	4	hot-dip galvanized	19.0	DIN 439	THS	Product on request
1503120MD439T	M12	6.0	Clockwise	6	brass plating	19.0	DIN 439	THS	Product on request
1503120MND439T	M12	6.0	Clockwise	5	MN - nickel plated brass	19.0	DIN 439	THS	Product on request
1503120R404D439T	M12	6.0	Clockwise	4	R4 - flake galvanizing	19.0	DIN 439	THS	Product on request
1503120S04D439T	M12	6.0	Clockwise	4	raw	19.0	DIN 439	THS	Product on request
1503140B04D439T	M14	7.0	Clockwise	4	white zinc plating	22.0	DIN 439	THS	Product on request
1503140B04LD439T	M14	7.0	Counterclockwise	4	white zinc plating	22.0	DIN 439	THS	Product on request
1503140B05D439T	M14	7.0	Clockwise	5	white zinc plating	22.0	DIN 439	THS	Product on request
1503140S04D439T	M14	7.0	Clockwise	4	raw	22.0	DIN 439	THS	Product on request
1503160B04D439T	M16	8.0	Clockwise	4	white zinc plating	24.0	DIN 439	THS	Product on request
1503160B04LD439T	M16	8.0	Counterclockwise	4	white zinc plating	24.0	DIN 439	THS	Product on request
1503160B04LD934T	M16	8.0	Counterclockwise	4	white zinc plating	24.0	DIN 439	THS	Product on request
1503160B05D439T	M16	8.0	Clockwise	5	white zinc plating	24.0	DIN 439	THS	Product on request
1503160BD439T	M16	8.0	Clockwise	6	white zinc plating	24.0	DIN 439	THS	The product is available
1503160BG804D439T	M16	8.0	Clockwise	4	BG8 - ocynk biały 8 mikronów	24.0	DIN 439	THS	Product on request
1503160G04D439T	M16	8.0	Clockwise	4	hot-dip galvanized	24.0	DIN 439	THS	Product on request
1503160MD439T	M16	8.0	Clockwise	5	brass plating	24.0	DIN 439	THS	Product on request
1503160MND439T	M16	8.0	Clockwise	5	MN - nickel plated brass	24.0	DIN 439	THS	Product on request
1503160R404D439T	M16	8.0	Clockwise	4	R4 - flake galvanizing	24.0	DIN 439	THS	Product on request
1503160S04D439T	M16	8.0	Clockwise	4	raw	24.0	DIN 439	THS	Product on request
1503180B04D439T	M18	9.0	Clockwise	4	white zinc plating	27.0	DIN 439	THS	Product on request
1503180S04D439T	M18	9.0	Clockwise	4	raw	27.0	DIN 439	THS	Product on request
1503200B04D439T	M20	10.0	Clockwise	4	white zinc plating	30.0	DIN 439	THS	Product on request
1503200B04LD439T	M20	10.0	Counterclockwise	4	white zinc plating	30.0	DIN 439	THS	Product on request
1503200B04LD934T	M20	10.0	Counterclockwise	4	white zinc plating	30.0	DIN 439	THS	Product on request
1503200B05D439T	M20	10.0	Clockwise	5	white zinc plating	30.0	DIN 439	THS	Product on request
1503200BD439T	M20	10.0	Clockwise	6	white zinc plating	30.0	DIN 439	THS	The product is available
1503200G04D439T	M20	10.0	Clockwise	4	hot-dip galvanized	30.0	DIN 439	THS	Product on request
1503200MD439T	M20	10.0	Clockwise	5	brass plating	30.0	DIN 439	THS	Product on request
1503200MND439T	M20	10.0	Clockwise	5	MN - nickel plated brass	30.0	DIN 439	THS	Product on request
1503200R404D439T	M20	10.0	Clockwise	4	R4 - flake galvanizing	30.0	DIN 439	THS	Product on request
1503200S04D439T	M20	10.0	Clockwise	4	raw	30.0	DIN 439	THS	Product on request
1503220B04D439T	M22	11.0	Clockwise	4	white zinc plating	32.0	DIN 439	THS	Product on request
1503220S04D439T	M22	11.0	Clockwise	4	raw	32.0	DIN 439	THS	Product on request
1503240B04D439T	M24	12.0	Clockwise	4	white zinc plating	36.0	DIN 439	THS	Product on request
1503240B04LD439T	M24	12.0	Counterclockwise	4	white zinc plating	36.0	DIN 439	THS	Product on request
1503240B04LD934T	M24	12.0	Counterclockwise	4	white zinc plating	36.0	DIN 439	THS	Product on request
1503240B05D439T	M24	12.0	Clockwise	5	white zinc plating	36.0	DIN 439	THS	Product on request
1503240BD439S	M24	12.0	Clockwise	6	white zinc plating	36.0	DIN 439	PCS	The product is available
1503240G04D439T	M24	12.0	Clockwise	4	hot-dip galvanized	36.0	DIN 439	THS	Product on request
1503240R404D439T	M24	12.0	Clockwise	4	R4 - flake galvanizing	36.0	DIN 439	THS	Product on request
1503240S04D439T	M24	12.0	Clockwise	4	raw	36.0	DIN 439	THS	Product on request
1503270B04D439T	M27	13.5	Clockwise	4	white zinc plating	41.0	DIN 439	THS	Product on request
1503270G04D439T	M27	13.5	Clockwise	4	hot-dip galvanized	41.0	DIN 439	THS	Product on request
1503270S04D439T	M27	13.5	Clockwise	4	raw	41.0	DIN 439	THS	Product on request
1503300B04D439T	M30	15.0	Clockwise	4	white zinc plating	46.0	DIN 439	THS	Product on request
1503300B04LD439T	M30	15.0	Counterclockwise	4	white zinc plating	46.0	DIN 439	THS	Product on request
1503300B04LD934T	M30	15.0	Counterclockwise	4	white zinc plating	46.0	DIN 439	THS	Product on request
1503300B05D439T	M30	15.0	Clockwise	5	white zinc plating	46.0	DIN 439	THS	Product on request
1503300G04D439T	M30	15.0	Clockwise	4	hot-dip galvanized	46.0	DIN 439	THS	Product on request
1503300R404D439T	M30	15.0	Clockwise	4	R4 - flake galvanizing	46.0	DIN 439	THS	Product on request
1503300S04D439T	M30	15.0	Clockwise	4	raw	46.0	DIN 439	THS	Product on request
1503330B04D439T	M33	16.5	Clockwise	4	white zinc plating	50.0	DIN 439	THS	Product on request
1503330S04D439T	M33	16.5	Clockwise	4	raw	50.0	DIN 439	THS	Product on request
1503360B04D439T	M36	18.0	Clockwise	4	white zinc plating	55.0	DIN 439	THS	Product on request
1503360B04LD934T	M36	18.0	Counterclockwise	4	white zinc plating	55.0	DIN 439	THS	Product on request
1503360B05D439T	M36	18.0	Clockwise	5	white zinc plating	55.0	DIN 439	THS	Product on request
1503360S04D439T	M36	18.0	Clockwise	4	raw	55.0	DIN 439	THS	Product on request
1503390B04D439T	M39	19.5	Clockwise	4	white zinc plating	60.0	DIN 439	THS	Product on request
1503420B04D439T	M42	21.0	Clockwise	4	white zinc plating	65.0	DIN 439	THS	Product on request
1503420B04LD934T	M42	21.0	Counterclockwise	4	white zinc plating	65.0	DIN 439	THS	Product on request
1503420S04D439T	M42	21.0	Clockwise	4	raw	65.0	DIN 439	THS	Product on request
1503480B04D439T	M48	24.0	Clockwise	4	white zinc plating	75.0	DIN 439	THS	Product on request
