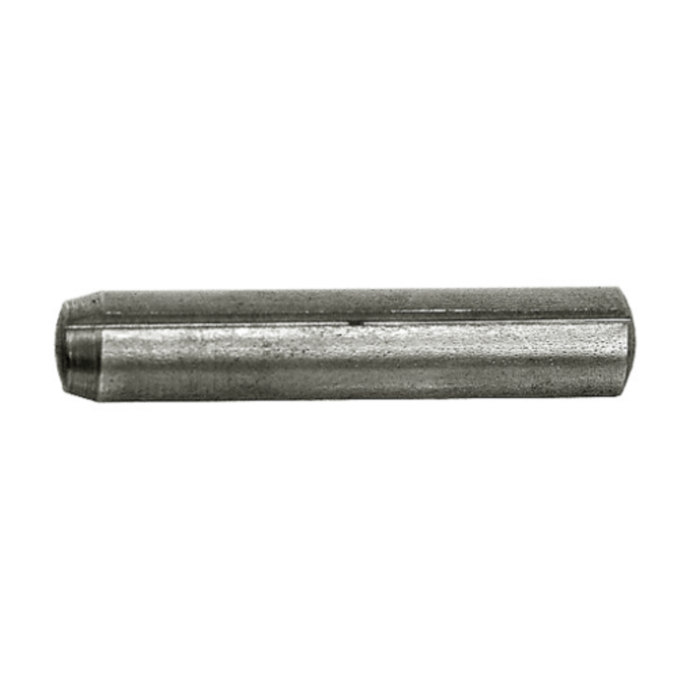

Pins with tapered notches along their entire length with a chamfer

16
.
52
Send product inquiry

Product inquiry form

Recommended

Group
1652

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension d2 [mm]
Dimension c [mm]
Variety of coating
Standard
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension d2 [mm] Dimension c [mm] Variety of coating Standard Availability Show More
1652015006SD1473T
1.5 6 1.60-1.63 0.2 raw DIN 1473
1652015006SI8740T
1.5 6 1.60-1.63 0.2 raw ISO 8740
1652015008SD1473T
1.5 8 1.60-1.63 0.2 raw DIN 1473
1652015008SI8740T
1.5 8 1.60-1.63 0.2 raw ISO 8740
1652015010SD1473T
1.5 10 1.60-1.63 0.2 raw DIN 1473
1652015010SI8740T
1.5 10 1.60-1.63 0.2 raw ISO 8740
1652015012SD1473T
1.5 12 1.60-1.63 0.2 raw DIN 1473
1652015012SI8740T
1.5 12 1.60-1.63 0.2 raw ISO 8740
1652015016SD1473T
1.5 16 1.60-1.63 0.2 raw DIN 1473
1652015016SI8740T
1.5 16 1.60-1.63 0.2 raw ISO 8740
1652020004SD1473T
2.0 4 2.10-2.15 0.25 raw DIN 1473
1652020004SI8740T
2.0 4 2.10-2.15 0.25 raw ISO 8740
1652020006SD1473T
2.0 6 2.10-2.15 0.25 raw DIN 1473
1652020006SI8740T
2.0 6 2.10-2.15 0.25 raw ISO 8740
1652020008SD1473T
2.0 8 2.10-2.15 0.25 raw DIN 1473
1652020008SI8740T
2.0 8 2.10-2.15 0.25 raw ISO 8740
1652020010SD1473T
2.0 10 2.10-2.15 0.25 raw DIN 1473
1652020010SI8740T
2.0 10 2.10-2.15 0.25 raw ISO 8740
1652020012SD1473T
2.0 12 2.10-2.15 0.25 raw DIN 1473
1652020012SI8740T
2.0 12 2.10-2.15 0.25 raw ISO 8740
1652020014SD1473T
2.0 14 2.10-2.15 0.25 raw DIN 1473
1652020014SI8740T
2.0 14 2.10-2.15 0.25 raw ISO 8740
1652020016SD1473T
2.0 16 2.10-2.15 0.25 raw DIN 1473
1652020016SI8740T
2.0 16 2.10-2.15 0.25 raw ISO 8740
1652020018SD1473T
2.0 18 2.10-2.15 0.25 raw DIN 1473
1652020018SI8740T
2.0 18 2.10-2.15 0.25 raw ISO 8740
1652020020SD1473T
2.0 20 2.10-2.15 0.25 raw DIN 1473
1652020020SI8740T
2.0 20 2.10-2.15 0.25 raw ISO 8740
1652020024SI8740T
2.0 24 2.10-2.15 0.25 raw ISO 8740
1652020030SD1473T
2.0 30 2.10-2.15 0.25 raw DIN 1473
1652025006SD1473T
2.5 6 2.60-2.70 0.3 raw DIN 1473
1652025006SI8740T
2.5 6 2.60-2.70 0.3 raw ISO 8740
1652025008SD1473T
2.5 8 2.60-2.70 0.3 raw DIN 1473
1652025008SI8740T
2.5 8 2.60-2.70 0.3 raw ISO 8740
1652025010SD1473T
2.5 10 2.60-2.70 0.3 raw DIN 1473
1652025010SI8740T
2.5 10 2.60-2.70 0.3 raw ISO 8740
1652025012SD1473T
2.5 12 2.60-2.70 0.3 raw DIN 1473
1652025012SI8740T
2.5 12 2.60-2.70 0.3 raw ISO 8740
1652025014SD1473T
2.5 14 2.60-2.70 0.3 raw DIN 1473
1652025014SI8740T
2.5 14 2.60-2.70 0.3 raw ISO 8740
1652025016SD1473T
2.5 16 2.60-2.70 0.3 raw DIN 1473
1652025016SI8740T
2.5 16 2.60-2.70 0.3 raw ISO 8740
1652025020SD1473T
2.5 20 2.60-2.70 0.3 raw DIN 1473
1652025020SI8740T
2.5 20 2.60-2.70 0.3 raw ISO 8740
1652025024SD1473T
2.5 24 2.60-2.70 0.3 raw DIN 1473
1652025024SI8740T
2.5 24 2.60-2.70 0.3 raw ISO 8740
1652025030SD1473T
2.5 30 2.60-2.70 0.3 raw DIN 1473
1652025030SI8740T
2.5 30 2.60-2.70 0.3 raw ISO 8740
1652030006SD1473T
3.0 6 3.20-3.30 0.4 raw DIN 1473
1652030006SI8740T
3.0 6 3.20-3.30 0.4 raw ISO 8740
1652030008SD1473T
3.0 8 3.20-3.30 0.4 raw DIN 1473
1652030008SI8740T
3.0 8 3.20-3.30 0.4 raw ISO 8740
1652030010SD1473T
3.0 10 3.20-3.30 0.4 raw DIN 1473
1652030010SI8740T
3.0 10 3.20-3.30 0.4 raw ISO 8740
1652030012SD1473T
3.0 12 3.20-3.30 0.4 raw DIN 1473
1652030012SI8740T
3.0 12 3.20-3.30 0.4 raw ISO 8740
1652030014SD1473T
3.0 14 3.20-3.30 0.4 raw DIN 1473
1652030014SI8740T
3.0 14 3.20-3.30 0.4 raw ISO 8740
1652030016SD1473T
3.0 16 3.20-3.30 0.4 raw DIN 1473
1652030016SI8740T
3.0 16 3.20-3.30 0.4 raw ISO 8740
1652030018SD1473T
3.0 18 3.20-3.30 0.4 raw DIN 1473
1652030018SI8740T
3.0 18 3.20-3.30 0.4 raw ISO 8740
1652030020SD1473T
3.0 20 3.20-3.30 0.4 raw DIN 1473
1652030020SI8740T
3.0 20 3.20-3.30 0.4 raw ISO 8740
1652030022SD1473T
3.0 22 3.20-3.30 0.4 raw DIN 1473
1652030022SI8740T
3.0 22 3.20-3.30 0.4 raw ISO 8740
1652030024SD1473T
3.0 24 3.20-3.30 0.4 raw DIN 1473
1652030024SI8740T
3.0 24 3.20-3.30 0.4 raw ISO 8740
1652030026SD1473T
3.0 26 3.20-3.30 0.4 raw DIN 1473
1652030026SI8740T
3.0 26 3.20-3.30 0.4 raw ISO 8740
1652030028SD1473T
3.0 28 3.20-3.30 0.4 raw DIN 1473
1652030028SI8740T
3.0 28 3.20-3.30 0.4 raw ISO 8740
1652030030SD1473T
3.0 30 3.20-3.30 0.4 raw DIN 1473
1652030030SI8740T
3.0 30 3.20-3.30 0.4 raw ISO 8740
1652030032SD1473T
3.0 32 3.20-3.30 0.4 raw DIN 1473
1652030032SI8740T
3.0 32 3.20-3.30 0.4 raw ISO 8740
1652030036SD1473T
3.0 36 3.20-3.30 0.4 raw DIN 1473
1652030036SI8740T
3.0 36 3.20-3.30 0.4 raw ISO 8740
1652030040SD1473T
3.0 40 3.20-3.30 0.4 raw DIN 1473
1652030040SI8740T
3.0 40 3.20-3.30 0.4 raw ISO 8740
1652040006SD1473T
4.0 6 4.15-4.30 0.5 raw DIN 1473
1652040006SI8740T
4.0 6 4.15-4.30 0.5 raw ISO 8740
1652040008SD1473T
4.0 8 4.15-4.30 0.5 raw DIN 1473
1652040008SI8740T
4.0 8 4.15-4.30 0.5 raw ISO 8740
1652040010SD1473T
4.0 10 4.15-4.30 0.5 raw DIN 1473
1652040010SI8740T
4.0 10 4.15-4.30 0.5 raw ISO 8740
1652040012SD1473T
4.0 12 4.15-4.30 0.5 raw DIN 1473
1652040012SI8740T
4.0 12 4.15-4.30 0.5 raw ISO 8740
1652040014SD1473T
4.0 14 4.15-4.30 0.5 raw DIN 1473
1652040014SI8740T
4.0 14 4.15-4.30 0.5 raw ISO 8740
1652040016SD1473T
4.0 16 4.15-4.30 0.5 raw DIN 1473
1652040016SI8740T
4.0 16 4.15-4.30 0.5 raw ISO 8740
1652040018SD1473T
4.0 18 4.15-4.30 0.5 raw DIN 1473
1652040018SI8740T
4.0 18 4.15-4.30 0.5 raw ISO 8740
1652040020SD1473T
4.0 20 4.15-4.30 0.5 raw DIN 1473
1652040020SI8740T
4.0 20 4.15-4.30 0.5 raw ISO 8740
1652040022SD1473T
4.0 22 4.15-4.30 0.5 raw DIN 1473
1652040022SI8740T
4.0 22 4.15-4.30 0.5 raw ISO 8740
1652040024SD1473T
4.0 24 4.15-4.30 0.5 raw DIN 1473
1652040024SI8740T
4.0 24 4.15-4.30 0.5 raw ISO 8740
1652040026SD1473T
4.0 26 4.15-4.30 0.5 raw DIN 1473
1652040026SI8740T
4.0 26 4.15-4.30 0.5 raw ISO 8740
1652040028SD1473T
4.0 28 4.15-4.30 0.5 raw DIN 1473
1652040028SI8740T
4.0 28 4.15-4.30 0.5 raw ISO 8740
1652040030SD1473T
4.0 30 4.15-4.30 0.5 raw DIN 1473
1652040030SI8740T
4.0 30 4.15-4.30 0.5 raw ISO 8740
1652040032SD1473T
4.0 32 4.15-4.30 0.5 raw DIN 1473
1652040032SI8740T
4.0 32 4.15-4.30 0.5 raw ISO 8740
1652040036SD1473T
4.0 36 4.15-4.30 0.5 raw DIN 1473
1652040036SI8740T
4.0 36 4.15-4.30 0.5 raw ISO 8740
1652040040SD1473T
4.0 40 4.15-4.30 0.5 raw DIN 1473
1652040040SI8740T
4.0 40 4.15-4.30 0.5 raw ISO 8740
1652040045SD1473T
4.0 45 4.15-4.30 0.5 raw DIN 1473
1652040045SI8740T
4.0 45 4.15-4.30 0.5 raw ISO 8740
1652040050SD1473T
4.0 50 4.15-4.30 0.5 raw DIN 1473
1652040050SI8740T
4.0 50 4.15-4.30 0.5 raw ISO 8740
1652040060SD1473T
4.0 60 4.15-4.30 0.5 raw DIN 1473
1652040060SI8740T
4.0 60 4.15-4.30 0.5 raw ISO 8740
1652050008SD1473T
5.0 8 5.15-5.30 0.63 raw DIN 1473
1652050008SI8740T
5.0 8 5.15-5.30 0.63 raw ISO 8740
1652050010SD1473T
5.0 10 5.15-5.30 0.63 raw DIN 1473
1652050010SI8740T
5.0 10 5.15-5.30 0.63 raw ISO 8740
1652050012SD1473T
5.0 12 5.15-5.30 0.63 raw DIN 1473
1652050012SI8740T
5.0 12 5.15-5.30 0.63 raw ISO 8740
1652050014SD1473T
5.0 14 5.15-5.30 0.63 raw DIN 1473
1652050014SI8740T
5.0 14 5.15-5.30 0.63 raw ISO 8740
1652050016SD1473T
5.0 16 5.15-5.30 0.63 raw DIN 1473
1652050016SI8740T
5.0 16 5.15-5.30 0.63 raw ISO 8740
1652050018SD1473T
5.0 18 5.15-5.30 0.63 raw DIN 1473
1652050018SI8740T
5.0 18 5.15-5.30 0.63 raw ISO 8740
1652050020SD1473T
5.0 20 5.15-5.30 0.63 raw DIN 1473
1652050020SI8740T
5.0 20 5.15-5.30 0.63 raw ISO 8740
1652050022SD1473T
5.0 22 5.15-5.30 0.63 raw DIN 1473
1652050022SI8740T
5.0 22 5.15-5.30 0.63 raw ISO 8740
1652050024SD1473T
5.0 24 5.15-5.30 0.63 raw DIN 1473
1652050024SI8740T
5.0 24 5.15-5.30 0.63 raw ISO 8740
1652050026SD1473T
5.0 26 5.15-5.30 0.63 raw DIN 1473
1652050026SI8740T
5.0 26 5.15-5.30 0.63 raw ISO 8740
1652050028SD1473T
5.0 28 5.15-5.30 0.63 raw DIN 1473
1652050028SI8740T
5.0 28 5.15-5.30 0.63 raw ISO 8740
1652050030SD1473T
5.0 30 5.15-5.30 0.63 raw DIN 1473
1652050030SI8740T
5.0 30 5.15-5.30 0.63 raw ISO 8740
1652050032SD1473T
5.0 32 5.15-5.30 0.63 raw DIN 1473
1652050032SI8740T
5.0 32 5.15-5.30 0.63 raw ISO 8740
1652050036SD1473T
5.0 36 5.15-5.30 0.63 raw DIN 1473
1652050036SI8740T
5.0 36 5.15-5.30 0.63 raw ISO 8740
1652050040SD1473T
5.0 40 5.15-5.30 0.63 raw DIN 1473
1652050040SI8740T
5.0 40 5.15-5.30 0.63 raw ISO 8740
1652050045SD1473T
5.0 45 5.15-5.30 0.63 raw DIN 1473
1652050045SI8740T
5.0 45 5.15-5.30 0.63 raw ISO 8740
1652050050SD1473T
5.0 50 5.15-5.30 0.63 raw DIN 1473
1652050050SI8740T
5.0 50 5.15-5.30 0.63 raw ISO 8740
1652050055SD1473T
5.0 55 5.15-5.30 0.63 raw DIN 1473
1652050055SI8740T
5.0 55 5.15-5.30 0.63 raw ISO 8740
1652050060SD1473T
5.0 60 5.15-5.30 0.63 raw DIN 1473
1652050060SI8740T
5.0 60 5.15-5.30 0.63 raw ISO 8740
1652060010SD1473T
6.0 10 6.15-6.35 0.85 raw DIN 1473
1652060010SI8740T
6.0 10 6.15-6.35 0.85 raw ISO 8740
1652060012SD1473T
6.0 12 6.15-6.35 0.85 raw DIN 1473
1652060012SI8740T
6.0 12 6.15-6.35 0.85 raw ISO 8740
1652060014SD1473T
6.0 14 6.15-6.35 0.85 raw DIN 1473
1652060014SI8740T
6.0 14 6.15-6.35 0.85 raw ISO 8740
1652060016SD1473T
6.0 16 6.15-6.35 0.85 raw DIN 1473
1652060016SI8740T
6.0 16 6.15-6.35 0.85 raw ISO 8740
1652060018SD1473T
6.0 18 6.15-6.35 0.85 raw DIN 1473
1652060018SI8740T
6.0 18 6.15-6.35 0.85 raw ISO 8740
1652060020SD1473T
6.0 20 6.15-6.35 0.85 raw DIN 1473
1652060020SI8740T
6.0 20 6.15-6.35 0.85 raw ISO 8740
1652060022SD1473T
6.0 22 6.15-6.35 0.85 raw DIN 1473
1652060022SI8740T
6.0 22 6.15-6.35 0.85 raw ISO 8740
1652060024SD1473T
6.0 24 6.15-6.35 0.85 raw DIN 1473
1652060024SI8740T
6.0 24 6.15-6.35 0.85 raw ISO 8740
1652060026SD1473T
6.0 26 6.15-6.35 0.85 raw DIN 1473
1652060026SI8740T
6.0 26 6.15-6.35 0.85 raw ISO 8740
1652060028SD1473T
6.0 28 6.15-6.35 0.85 raw DIN 1473
1652060028SI8740T
6.0 28 6.15-6.35 0.85 raw ISO 8740
1652060030SD1473T
6.0 30 6.15-6.35 0.85 raw DIN 1473
1652060030SI8740T
6.0 30 6.15-6.35 0.85 raw ISO 8740
1652060032SD1473T
6.0 32 6.15-6.35 0.85 raw DIN 1473
1652060032SI8740T
6.0 32 6.15-6.35 0.85 raw ISO 8740
1652060036SD1473T
6.0 36 6.15-6.35 0.85 raw DIN 1473
1652060036SI8740T
6.0 36 6.15-6.35 0.85 raw ISO 8740
1652060040SD1473T
6.0 40 6.15-6.35 0.85 raw DIN 1473
1652060040SI8740T
6.0 40 6.15-6.35 0.85 raw ISO 8740
1652060045SD1473T
6.0 45 6.15-6.35 0.85 raw DIN 1473
1652060045SI8740T
6.0 45 6.15-6.35 0.85 raw ISO 8740
1652060050SD1473T
6.0 50 6.15-6.35 0.85 raw DIN 1473
1652060050SI8740T
6.0 50 6.15-6.35 0.85 raw ISO 8740
1652060055SD1473T
6.0 55 6.15-6.35 0.85 raw DIN 1473
1652060055SI8740T
6.0 55 6.15-6.35 0.85 raw ISO 8740
1652060060SD1473T
6.0 60 6.15-6.35 0.85 raw DIN 1473
1652060060SI8740T
6.0 60 6.15-6.35 0.85 raw ISO 8740
1652060065SD1473T
6.0 65 6.15-6.35 0.85 raw DIN 1473
1652060065SI8740T
6.0 65 6.15-6.35 0.85 raw ISO 8740
1652060070SD1473T
6.0 70 6.15-6.35 0.85 raw DIN 1473
1652060070SI8740T
6.0 70 6.15-6.35 0.85 raw ISO 8740
1652060080SD1473T
6.0 80 6.15-6.35 0.85 raw DIN 1473
1652060080SI8740T
6.0 80 6.15-6.35 0.85 raw ISO 8740
1652080012SD1473T
8.0 12 8.20-8.40 1 raw DIN 1473
1652080012SI8740T
8.0 12 8.20-8.40 1 raw ISO 8740
1652080014SD1473T
8.0 14 8.20-8.40 1 raw DIN 1473
1652080014SI8740T
8.0 14 8.20-8.40 1 raw ISO 8740
1652080016SD1473T
8.0 16 8.20-8.40 1 raw DIN 1473
1652080016SI8740T
8.0 16 8.20-8.40 1 raw ISO 8740
1652080020SD1473T
8.0 20 8.20-8.40 1 raw DIN 1473
1652080020SI8740T
8.0 20 8.20-8.40 1 raw ISO 8740
1652080022SD1473T
8.0 22 8.20-8.40 1 raw DIN 1473
1652080022SI8740T
8.0 22 8.20-8.40 1 raw ISO 8740
1652080024SD1473T
8.0 24 8.20-8.40 1 raw DIN 1473
1652080024SI8740T
8.0 24 8.20-8.40 1 raw ISO 8740
1652080026SD1473T
8.0 26 8.20-8.40 1 raw DIN 1473
1652080026SI8740T
8.0 26 8.20-8.40 1 raw ISO 8740
1652080028SD1473T
8.0 28 8.20-8.40 1 raw DIN 1473
1652080028SI8740T
8.0 28 8.20-8.40 1 raw ISO 8740
1652080030SD1473T
8.0 30 8.20-8.40 1 raw DIN 1473
1652080030SI8740T
8.0 30 8.20-8.40 1 raw ISO 8740
1652080032SD1473T
8.0 32 8.20-8.40 1 raw DIN 1473
1652080032SI8740T
8.0 32 8.20-8.40 1 raw ISO 8740
1652080036SD1473T
8.0 36 8.20-8.40 1 raw DIN 1473
1652080036SI8740T
8.0 36 8.20-8.40 1 raw ISO 8740
1652080040SD1473T
8.0 40 8.20-8.40 1 raw DIN 1473
1652080040SI8740T
8.0 40 8.20-8.40 1 raw ISO 8740
1652080045SD1473T
8.0 45 8.20-8.40 1 raw DIN 1473
1652080045SI8740T
8.0 45 8.20-8.40 1 raw ISO 8740
1652080050SD1473T
8.0 50 8.20-8.40 1 raw DIN 1473
1652080050SI8740T
8.0 50 8.20-8.40 1 raw ISO 8740
1652080055SD1473T
8.0 55 8.20-8.40 1 raw DIN 1473
1652080055SI8740T
8.0 55 8.20-8.40 1 raw ISO 8740
1652080060SD1473T
8.0 60 8.20-8.40 1 raw DIN 1473
1652080060SI8740T
8.0 60 8.20-8.40 1 raw ISO 8740
1652080070SD1473T
8.0 70 8.20-8.40 1 raw DIN 1473
1652080070SI8740T
8.0 70 8.20-8.40 1 raw ISO 8740
1652080080SD1473T
8.0 80 8.20-8.40 1 raw DIN 1473
1652080080SI8740T
8.0 80 8.20-8.40 1 raw ISO 8740
1652080090SD1473T
8.0 90 8.20-8.40 1 raw DIN 1473
1652080090SI8740T
8.0 90 8.20-8.40 1 raw ISO 8740
1652080100SD1473T
8.0 100 8.20-8.40 1 raw DIN 1473
1652100016SD1473T
10.0 16 10.20-10.45 1.2 raw DIN 1473
1652100016SI8740T
10.0 16 10.20-10.45 1.2 raw ISO 8740
1652100020SD1473T
10.0 20 10.20-10.45 1.2 raw DIN 1473
1652100020SI8740T
10.0 20 10.20-10.45 1.2 raw ISO 8740
1652100024SD1473T
10.0 24 10.20-10.45 1.2 raw DIN 1473
1652100024SI8740T
10.0 24 10.20-10.45 1.2 raw ISO 8740
1652100026SD1473T
10.0 26 10.20-10.45 1.2 raw DIN 1473
1652100026SI8740T
10.0 26 10.20-10.45 1.2 raw ISO 8740
1652100030SD1473T
10.0 30 10.20-10.45 1.2 raw DIN 1473
1652100030SI8740T
10.0 30 10.20-10.45 1.2 raw ISO 8740
1652100032SD1473T
10.0 32 10.20-10.45 1.2 raw DIN 1473
1652100032SI8740T
10.0 32 10.20-10.45 1.2 raw ISO 8740
1652100036SD1473T
10.0 36 10.20-10.45 1.2 raw DIN 1473
1652100036SI8740T
10.0 36 10.20-10.45 1.2 raw ISO 8740
1652100040SD1473T
10.0 40 10.20-10.45 1.2 raw DIN 1473
1652100040SI8740T
10.0 40 10.20-10.45 1.2 raw ISO 8740
1652100045SD1473T
10.0 45 10.20-10.45 1.2 raw DIN 1473
1652100045SI8740T
10.0 45 10.20-10.45 1.2 raw ISO 8740
1652100050SD1473T
10.0 50 10.20-10.45 1.2 raw DIN 1473
1652100050SI8740T
10.0 50 10.20-10.45 1.2 raw ISO 8740
1652100060SD1473T
10.0 60 10.20-10.45 1.2 raw DIN 1473
1652100060SI8740T
10.0 60 10.20-10.45 1.2 raw ISO 8740
1652100065SD1473T
10.0 65 10.20-10.45 1.2 raw DIN 1473
1652100065SI8740T
10.0 65 10.20-10.45 1.2 raw ISO 8740
1652100070SD1473T
10.0 70 10.20-10.45 1.2 raw DIN 1473
1652100070SI8740T
10.0 70 10.20-10.45 1.2 raw ISO 8740
1652100080SD1473T
10.0 80 10.20-10.45 1.2 raw DIN 1473
1652100080SI8740T
10.0 80 10.20-10.45 1.2 raw ISO 8740
1652100090SD1473T
10.0 90 10.20-10.45 1.2 raw DIN 1473
1652100090SI8740T
10.0 90 10.20-10.45 1.2 raw ISO 8740
1652100100SD1473T
10.0 100 10.20-10.45 1.2 raw DIN 1473
1652100100SI8740T
10.0 100 10.20-10.45 1.2 raw ISO 8740
1652100120SD1473T
10.0 120 10.20-10.45 1.2 raw DIN 1473
1652120020SD1473T
12.0 20 12.25-12.50 1.6 raw DIN 1473
1652120020SI8740T
12.0 20 12.25-12.50 1.6 raw ISO 8740
1652120024SD1473T
12.0 24 12.25-12.50 1.6 raw DIN 1473
1652120024SI8740T
12.0 24 12.25-12.50 1.6 raw ISO 8740
1652120026SD1473T
12.0 26 12.25-12.50 1.6 raw DIN 1473
1652120026SI8740T
12.0 26 12.25-12.50 1.6 raw ISO 8740
1652120028SD1473T
12.0 28 12.25-12.50 1.6 raw DIN 1473
1652120028SI8740T
12.0 28 12.25-12.50 1.6 raw ISO 8740
1652120030SD1473T
12.0 30 12.25-12.50 1.6 raw DIN 1473
1652120030SI8740T
12.0 30 12.25-12.50 1.6 raw ISO 8740
1652120032SD1473T
12.0 32 12.25-12.50 1.6 raw DIN 1473
1652120032SI8740T
12.0 32 12.25-12.50 1.6 raw ISO 8740
1652120036SD1473T
12.0 36 12.25-12.50 1.6 raw DIN 1473
1652120036SI8740T
12.0 36 12.25-12.50 1.6 raw ISO 8740
1652120040SD1473T
12.0 40 12.25-12.50 1.6 raw DIN 1473
1652120040SI8740T
12.0 40 12.25-12.50 1.6 raw ISO 8740
1652120045SD1473T
12.0 45 12.25-12.50 1.6 raw DIN 1473
1652120045SI8740T
12.0 45 12.25-12.50 1.6 raw ISO 8740
1652120050SD1473T
12.0 50 12.25-12.50 1.6 raw DIN 1473
1652120050SI8740T
12.0 50 12.25-12.50 1.6 raw ISO 8740
1652120055SD1473T
12.0 55 12.25-12.50 1.6 raw DIN 1473
1652120055SI8740T
12.0 55 12.25-12.50 1.6 raw ISO 8740
1652120060SD1473T
12.0 60 12.25-12.50 1.6 raw DIN 1473
1652120060SI8740T
12.0 60 12.25-12.50 1.6 raw ISO 8740
1652120070SD1473T
12.0 70 12.25-12.50 1.6 raw DIN 1473
1652120070SI8740T
12.0 70 12.25-12.50 1.6 raw ISO 8740
1652120080SD1473T
12.0 80 12.25-12.50 1.6 raw DIN 1473
1652120080SI8740T
12.0 80 12.25-12.50 1.6 raw ISO 8740
1652120090SD1473T
12.0 90 12.25-12.50 1.6 raw DIN 1473
1652120090SI8740T
12.0 90 12.25-12.50 1.6 raw ISO 8740
1652120100SD1473T
12.0 100 12.25-12.50 1.6 raw DIN 1473
1652120100SI8740T
12.0 100 12.25-12.50 1.6 raw ISO 8740
1652120120SD1473T
12.0 120 12.25-12.50 1.6 raw DIN 1473
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
