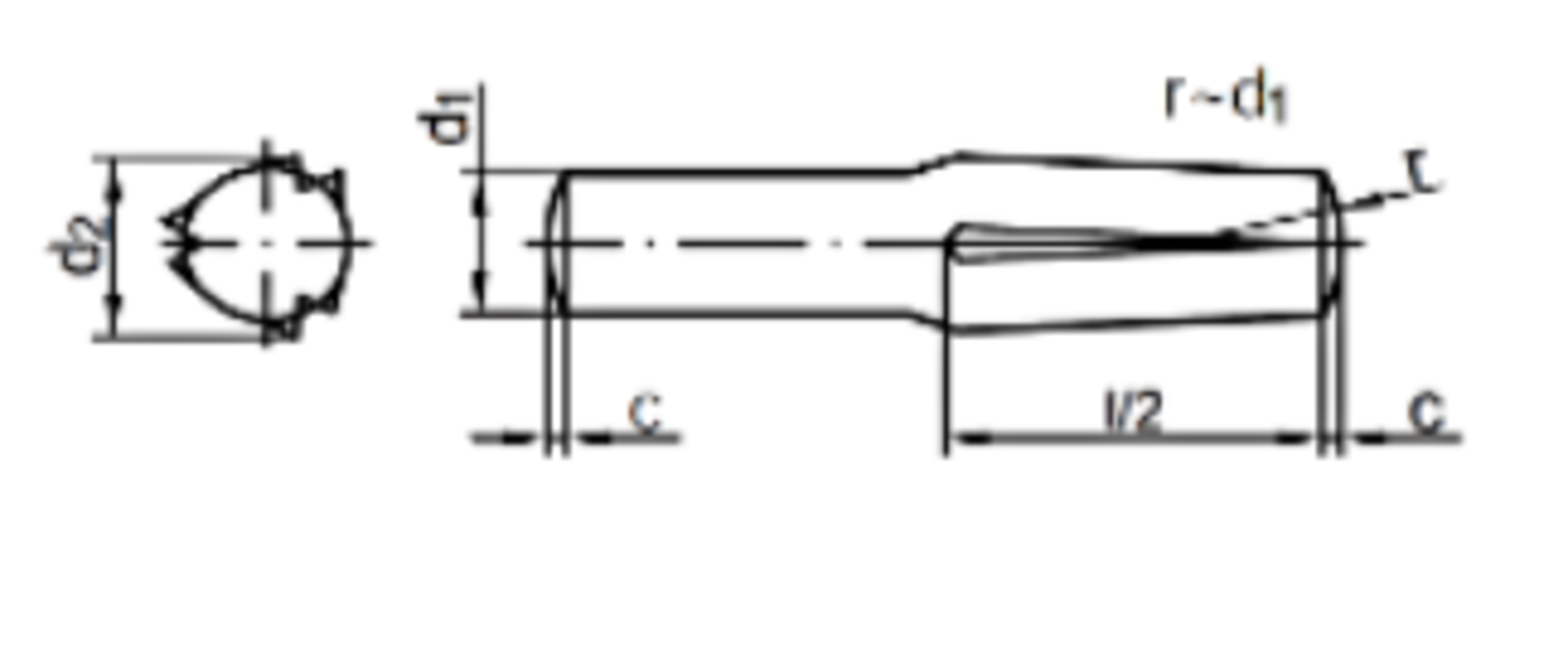

A pin with notches on half its length, tapering to the front

16
.
53
View in store

Recommended

Group
1653

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension d2 [mm]
Dimension c [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension d2 [mm] Dimension c [mm] Variety of coating Standard Unit of measure Availability Show More
1653015005SIT
1.5 5 1.60-1.63 0.2 raw ISO 8741 THS
1653015006SDT
1.5 6 1.60-1.63 0.2 raw DIN 1474 THS
1653015006SIT
1.5 6 1.60-1.63 0.2 raw ISO 8741 THS
1653020006SDT
2 6 2.10-2.15 0.25 raw DIN 1474 THS
1653020006SIT
2 6 2.10-2.15 0.25 raw ISO 8741 THS
1653020008SDT
2 8 2.10-2.15 0.25 raw DIN 1474 THS
1653020008SIT
2 8 2.10-2.15 0.25 raw ISO 8741 THS
1653020010SDT
2 10 2.10-2.15 0.25 raw DIN 1474 THS
1653020010SIT
2 10 2.10-2.15 0.25 raw ISO 8741 THS
1653020012SDT
2 12 2.10-2.15 0.25 raw DIN 1474 THS
1653020012SIT
2 12 2.10-2.15 0.25 raw ISO 8741 THS
1653020016SDT
2 16 2.10-2.15 0.25 raw DIN 1474 THS
1653020016SIT
2 16 2.10-2.15 0.25 raw ISO 8741 THS
1653020020SDT
2 20 2.10-2.15 0.25 raw DIN 1474 THS
1653020020SIT
2 20 2.10-2.15 0.25 raw ISO 8741 THS
1653025010SDT
2.5 10 2.60-2.70 0.3 raw DIN 1474 THS
1653025010SIT
2.5 10 2.60-2.70 0.3 raw ISO 8741 THS
1653025012SDT
2.5 12 2.60-2.70 0.3 raw DIN 1474 THS
1653025012SIT
2.5 12 2.60-2.70 0.3 raw ISO 8741 THS
1653025016SDT
2.5 16 2.60-2.70 0.3 raw DIN 1474 THS
1653025016SIT
2.5 16 2.60-2.70 0.3 raw ISO 8741 THS
1653030008SDT
3 8 3.20-3.30 0.4 raw DIN 1474 THS
1653030008SIT
3 8 3.20-3.30 0.4 raw ISO 8741 THS
1653030010SDT
3 10 3.20-3.30 0.4 raw DIN 1474 THS
1653030010SIT
3 10 3.20-3.30 0.4 raw ISO 8741 THS
1653030012SDT
3 12 3.20-3.30 0.4 raw DIN 1474 THS
1653030012SIT
3 12 3.20-3.30 0.4 raw ISO 8741 THS
1653030016SDT
3 16 3.20-3.30 0.4 raw DIN 1474 THS
1653030016SIT
3 16 3.20-3.30 0.4 raw ISO 8741 THS
1653030020SDT
3 20 3.20-3.30 0.4 raw DIN 1474 THS
1653030020SIT
3 20 3.20-3.30 0.4 raw ISO 8741 THS
1653030030SDT
3 30 3.20-3.30 0.4 raw DIN 1474 THS
1653030030SIT
3 30 3.20-3.30 0.4 raw ISO 8741 THS
1653040008SDT
4 8 4.15-4.30 0.5 raw DIN 1474 THS
1653040008SIT
4 8 4.15-4.30 0.5 raw ISO 8741 THS
1653040010SDT
4 10 4.15-4.30 0.5 raw DIN 1474 THS
1653040010SIT
4 10 4.15-4.30 0.5 raw ISO 8741 THS
1653040012SDT
4 12 4.15-4.30 0.5 raw DIN 1474 THS
1653040012SIT
4 12 4.15-4.30 0.5 raw ISO 8741 THS
1653040016SDT
4 16 4.15-4.30 0.5 raw DIN 1474 THS
1653040016SIT
4 16 4.15-4.30 0.5 raw ISO 8741 THS
1653040018SDT
4 18 4.15-4.30 0.5 raw DIN 1474 THS
1653040018SIT
4 18 4.15-4.30 0.5 raw ISO 8741 THS
1653040020SDT
4 20 4.15-4.30 0.5 raw DIN 1474 THS
1653040020SIT
4 20 4.15-4.30 0.5 raw ISO 8741 THS
1653040024SDT
4 24 4.15-4.30 0.5 raw DIN 1474 THS
1653040024SIT
4 24 4.15-4.30 0.5 raw ISO 8741 THS
1653040030SDT
4 30 4.15-4.30 0.5 raw DIN 1474 THS
1653040030SIT
4 30 4.15-4.30 0.5 raw ISO 8741 THS
1653040040SDT
4 40 4.15-4.30 0.5 raw DIN 1474 THS
1653040040SIT
4 40 4.15-4.30 0.5 raw ISO 8741 THS
1653050010SDT
5 10 5.15-5.30 0.63 raw DIN 1474 THS
1653050010SIT
5 10 5.15-5.30 0.63 raw ISO 8741 THS
1653050012SDT
5 12 5.15-5.30 0.63 raw DIN 1474 THS
1653050012SIT
5 12 5.15-5.30 0.63 raw ISO 8741 THS
1653050014SDT
5 14 5.15-5.30 0.63 raw DIN 1474 THS
1653050014SIT
5 14 5.15-5.30 0.63 raw ISO 8741 THS
1653050016SDT
5 16 5.15-5.30 0.63 raw DIN 1474 THS
1653050016SIT
5 16 5.15-5.30 0.63 raw ISO 8741 THS
1653050020SDT
5 20 5.15-5.30 0.63 raw DIN 1474 THS
1653050020SIT
5 20 5.15-5.30 0.63 raw ISO 8741 THS
1653050024SDT
5 24 5.15-5.30 0.63 raw DIN 1474 THS
1653050024SIT
5 24 5.15-5.30 0.63 raw ISO 8741 THS
1653050028SDT
5 28 5.15-5.30 0.63 raw DIN 1474 THS
1653050028SIT
5 28 5.15-5.30 0.63 raw ISO 8741 THS
1653050036SDT
5 36 5.15-5.30 0.63 raw DIN 1474 THS
1653050036SIT
5 36 5.15-5.30 0.63 raw ISO 8741 THS
1653050040SDT
5 40 5.15-5.30 0.63 raw DIN 1474 THS
1653050040SIT
5 40 5.15-5.30 0.63 raw ISO 8741 THS
1653060012SDT
6 12 6.15-6.35 0.85 raw DIN 1474 THS
1653060012SIT
6 12 6.15-6.35 0.85 raw ISO 8741 THS
1653060014SDT
6 14 6.15-6.35 0.85 raw DIN 1474 THS
1653060014SIT
6 14 6.15-6.35 0.85 raw ISO 8741 THS
1653060016SDT
6 16 6.15-6.35 0.85 raw DIN 1474 THS
1653060016SIT
6 16 6.15-6.35 0.85 raw ISO 8741 THS
1653060018SDT
6 18 6.15-6.35 0.85 raw DIN 1474 THS
1653060020SDT
6 20 6.15-6.35 0.85 raw DIN 1474 THS
1653060020SIT
6 20 6.15-6.35 0.85 raw ISO 8741 THS
1653060022SDT
6 22 6.15-6.35 0.85 raw DIN 1474 THS
1653060022SIT
6 22 6.15-6.35 0.85 raw ISO 8741 THS
1653060024SDT
6 24 6.15-6.35 0.85 raw DIN 1474 THS
1653060024SIT
6 24 6.15-6.35 0.85 raw ISO 8741 THS
1653060026SDT
6 26 6.15-6.35 0.85 raw DIN 1474 THS
1653060026SIT
6 26 6.15-6.35 0.85 raw ISO 8741 THS
1653060028SDT
6 28 6.15-6.35 0.85 raw DIN 1474 THS
1653060028SIT
6 28 6.15-6.35 0.85 raw ISO 8741 THS
1653060030SDT
6 30 6.15-6.35 0.85 raw DIN 1474 THS
1653060030SIT
6 30 6.15-6.35 0.85 raw ISO 8741 THS
1653060032SDT
6 32 6.15-6.35 0.85 raw DIN 1474 THS
1653060032SIT
6 32 6.15-6.35 0.85 raw ISO 8741 THS
1653060040SDT
6 40 6.15-6.35 0.85 raw DIN 1474 THS
1653060040SIT
6 40 6.15-6.35 0.85 raw ISO 8741 THS
1653060060SDT
6 60 6.15-6.35 0.85 raw DIN 1474 THS
1653060060SIT
6 60 6.15-6.35 0.85 raw ISO 8741 THS
1653060070SDT
6 70 6.15-6.35 0.85 raw DIN 1474 THS
1653060070SIT
6 70 6.15-6.35 0.85 raw ISO 8741 THS
1653080016SDT
8 16 8.20-8.40 1 raw DIN 1474 THS
1653080016SIT
8 16 8.20-8.40 1 raw ISO 8741 THS
1653080020SDT
8 20 8.20-8.40 1 raw DIN 1474 THS
1653080020SIT
8 20 8.20-8.40 1 raw ISO 8741 THS
1653080024SDT
8 24 8.20-8.40 1 raw DIN 1474 THS
1653080024SIT
8 24 8.20-8.40 1 raw ISO 8741 THS
1653080026SDT
8 26 8.20-8.40 1 raw DIN 1474 THS
1653080026SIT
8 26 8.20-8.40 1 raw ISO 8741 THS
1653080030SDT
8 30 8.20-8.40 1 raw DIN 1474 THS
1653080030SIT
8 30 8.20-8.40 1 raw ISO 8741 THS
1653080032SDT
8 32 8.20-8.40 1 raw DIN 1474 THS
1653080032SIT
8 32 8.20-8.40 1 raw ISO 8741 THS
1653080040SDT
8 40 8.20-8.40 1 raw DIN 1474 THS
1653080040SIT
8 40 8.20-8.40 1 raw ISO 8741 THS
1653080045SDT
8 45 8.20-8.40 1 raw DIN 1474 THS
1653080045SIT
8 45 8.20-8.40 1 raw ISO 8741 THS
1653080050SDT
8 50 8.20-8.40 1 raw DIN 1474 THS
1653080050SIT
8 50 8.20-8.40 1 raw ISO 8741 THS
1653100020SDT
10 20 10.20-10.45 1.2 raw DIN 1474 THS
1653100020SIT
10 20 10.20-10.45 1.2 raw ISO 8741 THS
1653100024SDT
10 24 10.20-10.45 1.2 raw DIN 1474 THS
1653100024SIT
10 24 10.20-10.45 1.2 raw ISO 8741 THS
1653100025SDT
10 25 10.20-10.45 1.2 raw DIN 1474 THS
1653100025SIT
10 25 10.20-10.45 1.2 raw ISO 8741 THS
1653100030SDT
10 30 10.20-10.45 1.2 raw DIN 1474 THS
1653100030SIT
10 30 10.20-10.45 1.2 raw ISO 8741 THS
1653100036SDT
10 36 10.20-10.45 1.2 raw DIN 1474 THS
1653100036SIT
10 36 10.20-10.45 1.2 raw ISO 8741 THS
1653100040SDT
10 40 10.20-10.45 1.2 raw DIN 1474 THS
1653100040SIT
10 40 10.20-10.45 1.2 raw ISO 8741 THS
1653100045SDT
10 45 10.20-10.45 1.2 raw DIN 1474 THS
1653100045SIT
10 45 10.20-10.45 1.2 raw ISO 8741 THS
1653100060SDT
10 60 10.20-10.45 1.2 raw DIN 1474 THS
1653100060SIT
10 50 10.20-10.45 1.2 raw ISO 8741 THS
1653120032SDT
12 32 12.25-12.50 1.6 raw DIN 1474 THS
1653120032SIT
12 32 12.25-12.50 1.6 raw ISO 8741 THS
1653120040SDT
12 40 12.25-12.50 1.6 raw DIN 1474 THS
1653120040SIT
12 40 12.25-12.50 1.6 raw ISO 8741 THS
1653120050SDT
12 50 12.25-12.50 1.6 raw DIN 1474 THS
1653120050SIT
12 50 12.25-12.50 1.6 raw ISO 8741 THS
1653120055SDT
12 55 12.25-12.50 1.6 raw DIN 1474 THS
1653120055SIT
12 55 12.25-12.50 1.6 raw ISO 8741 THS
