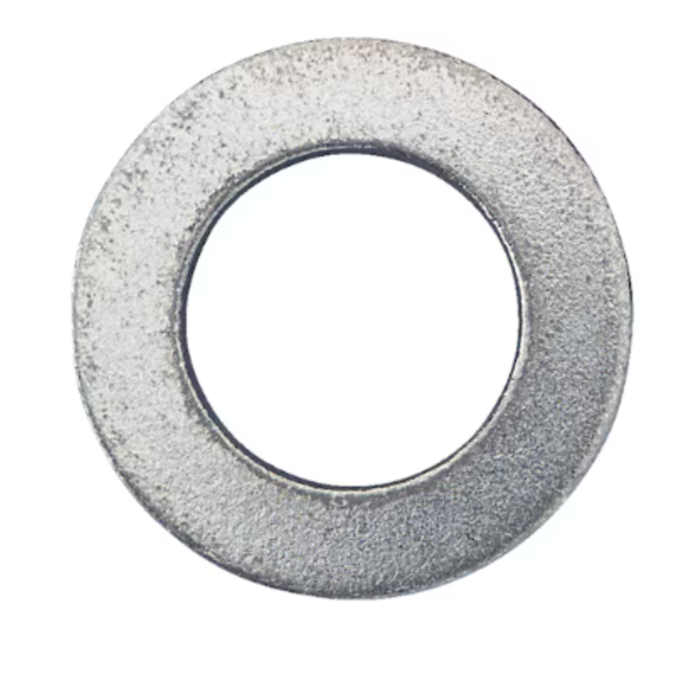

Accurate pin washer

14
.
25

Accurate pin washer is a mounting element with special accuracy properties, used in various mechanical constructions for even load distribution and ensuring precise positioning of the pin in connections. Its design and manufacturing precision make it an essential component in applications where a precise and stable connection is required.

Applications

Precision pin washers find application in many fields of industry, such as:

  • Automotive Industry: In the assembly of suspensions, steering systems, steering mechanisms, etc.

  • Machine Industry: In the assembly of drive mechanisms, transmission mechanisms, suspension systems, etc.

  • Construction Industry: In the assembly of various types of steel, concrete, and wooden structures.

Benefits

  • Assembly Precision: With the highest manufacturing accuracy, the precision pin washer ensures the precise positioning of the pin, eliminating play and unwanted movement in the connection.

  • Connection Stability: The stable and precise seating of the pin due to the precision washer contributes to the overall stability and durability of the connection.

  • Resistance to Environmental Conditions: The precision pin washer is resistant to corrosion and other external factors, ensuring long-lasting performance in various environmental conditions.

Send product inquiry

Product inquiry form

Recommended

Group
1425

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

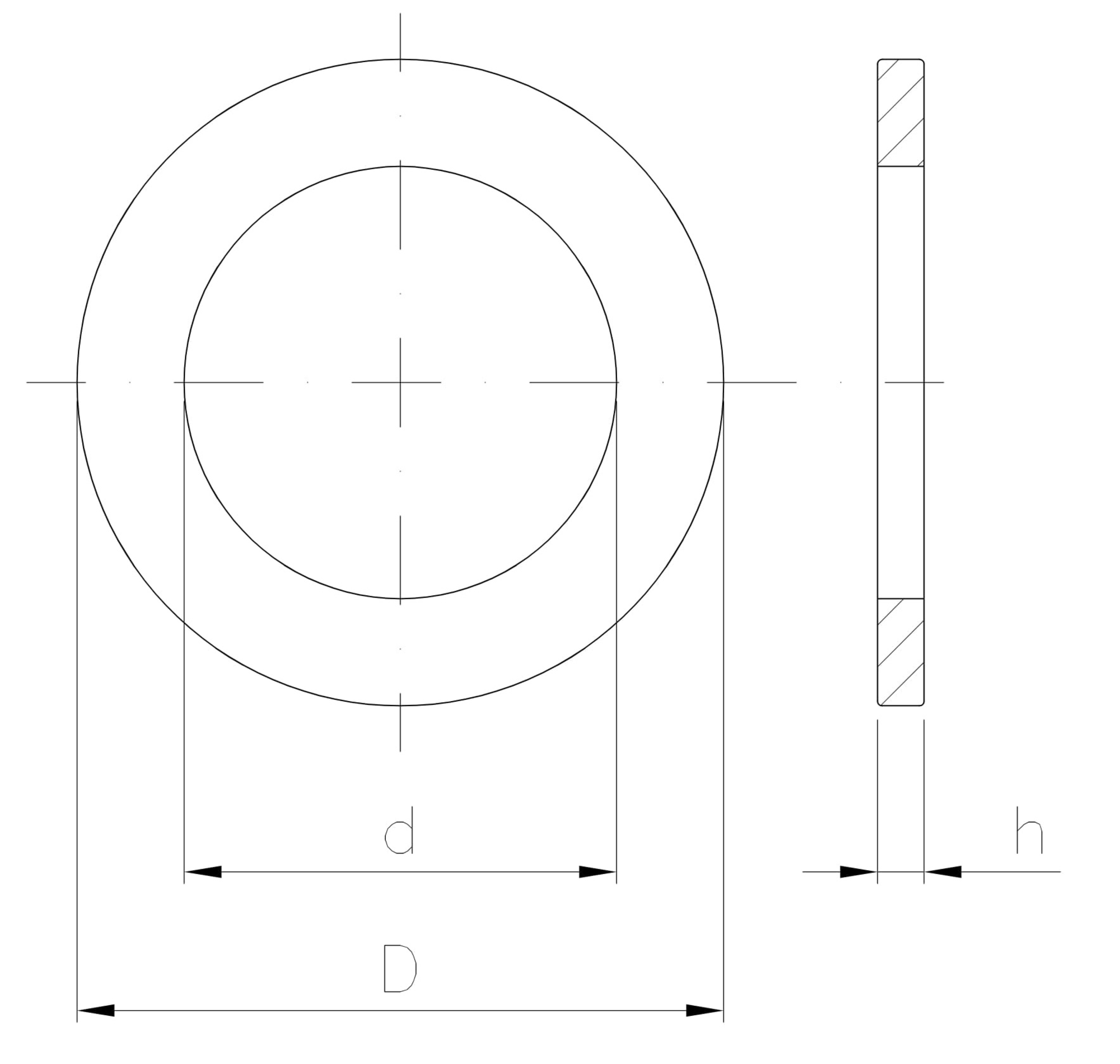

Hole diameter M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Thickness h [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Hole diameter M [mm] Outer diameter D [mm] Inner diameter d [mm] Thickness h [mm] Variety of coating Standard Unit of measure Availability Show More
1425030060BD1440T
M3 6 0.8 white zinc plating DIN 1440 THS
1425030060BI8738T
M3 6 0.8 white zinc plating ISO 8738 THS
1425030060SD1440T
M3 6 0.8 raw DIN 1440 THS
1425030080SI8738T
M3 6 0.8 raw ISO 8738 THS
1425040080BD1440T
M4 8 0.8 white zinc plating DIN 1440 THS
1425040080BI8738T
M4 8 0.8 white zinc plating ISO 8738 THS
1425040080SD1440T
M4 8 0.8 raw DIN 1440 THS
1425040080SI8738T
M4 8 0.8 raw ISO 8738 THS
1425050100BD1440T
M5 10 5.5 0.8 white zinc plating DIN 1440 THS
1425050100BI8738T
M5 10 5 1.0 white zinc plating ISO 8738 THS
1425050100SD1440T
M5 10 5.5 0.8 raw DIN 1440 THS
1425050100SI8738T
M5 10 5 1.0 raw ISO 8738 THS
1425060120BD1440T
M6 12 7 0.8 white zinc plating DIN 1440 THS
1425060120BI8738T
M6 12 6 1.6 white zinc plating ISO 8738 THS
1425060120SD1440T
M6 12 7 1.6 raw DIN 1440 THS
1425060120SI8738T
M6 12 6 1.6 raw ISO 8738 THS
1425070140BD1440T
M7 14 8 1.6 white zinc plating DIN 1440 THS
1425070140SD1440T
M7 14 8 1.6 raw DIN 1440 THS
1425080150BI8738T
M8 15 8 2.0 white zinc plating ISO 8738 THS
1425080150SI8738T
M8 15 8 2.0 raw ISO 8738 THS
1425080160BD1440T
M8 16 9 2.0 white zinc plating DIN 1440 THS
1425080160SD1440T
M8 16 9 2.0 raw DIN 1440 THS
1425100120BI8738T
M100 120 12 white zinc plating ISO 8738 THS
1425100120SI8738T
M100 120 12 raw ISO 8738 THS
1425100125BD1440T
M100 125 14 white zinc plating DIN 1440 THS
1425100125SD1440T
M100 125 14 raw DIN 1440 THS
1425100180BI8738T
M10 18 10 2.5 white zinc plating ISO 8738 THS
1425100180SI8738T
M10 18 10 2.5 raw ISO 8738 THS
1425100200BD1440T
M10 20 11 2.0 white zinc plating DIN 1440 THS
1425100200SD1440T
M10 20 11 2.5 raw DIN 1440 THS
1425120200BI8738T
M12 20 12 3.0 white zinc plating ISO 8738 THS
1425120200SI8738T
M12 20 12 3.0 raw ISO 8738 THS
1425120250BD1440T
M12 25 13 3.0 white zinc plating DIN 1440 THS
1425120250SD1440T
M12 25 13 3.0 raw DIN 1440 THS
1425130250BD1440T
M13 25 14 3.0 white zinc plating DIN 1440 THS
1425130250SD1440T
M13 25 14 3.0 raw DIN 1440 THS
1425140220BI8738T
M14 22 14 3.0 white zinc plating ISO 8738 THS
1425140220SI8738T
M14 22 14 3.0 raw ISO 8738 THS
1425140280BD1440T
M14 28 15 3.0 white zinc plating DIN 1440 THS
1425140280SD1440T
M14 28 15 3.0 raw DIN 1440 THS
1425160240BI8738T
M16 24 16 3.0 white zinc plating ISO 8738 THS
1425160240SI8738T
M16 24 16 3.0 raw ISO 8738 THS
1425160280BD1440T
M16 28 17 3.0 white zinc plating DIN 1440 THS
1425160280SD1440T
M16 28 17 3.0 raw DIN 1440 THS
1425180280BI8738T
M18 28 18 4.0 white zinc plating ISO 8738 THS
1425180280SI8738T
M18 28 18 4.0 raw ISO 8738 THS
1425180300BD1440T
M18 30 19 4.0 white zinc plating DIN 1440 THS
1425180300SD1440T
M18 30 19 4.0 raw DIN 1440 THS
1425200300BI8738T
M20 30 20 4.0 white zinc plating ISO 8738 THS
1425200300SI8738T
M20 30 20 4.0 raw ISO 8738 THS
1425200320BD1440T
M20 32 21 4.0 white zinc plating DIN 1440 THS
1425200320SD1440T
M20 32 21 4.0 raw DIN 1440 THS
1425220340BD1440T
M22 34 23 4.0 white zinc plating DIN 1440 THS
1425220340BI8738T
M22 34 22 4.0 white zinc plating ISO 8738 THS
1425220340SD1440T
M22 34 23 4.0 raw DIN 1440 THS
1425220340SI8738T
M22 34 22 4.0 raw ISO 8738 THS
1425230360BD1440T
M23 36 24 4.0 white zinc plating DIN 1440 THS
1425230360SD1440T
M23 36 24 4.0 raw DIN 1440 THS
1425240370BI8738T
M24 37 24 4.0 white zinc plating ISO 8738 THS
1425250400BD1440T
M25 40 26 4.0 white zinc plating DIN 1440 THS
1425250400SD1440T
M25 40 26 4.0 raw DIN 1440 THS
1425260390BI8738T
M26 39 26 5.0 white zinc plating ISO 8738 THS
1425260400BD1440T
M26 40 27 5.0 white zinc plating DIN 1440 THS
1425260400SD1440T
M26 40 27 5.0 raw DIN 1440 THS
1425270390BI8738T
M27 39 27 5.0 white zinc plating ISO 8738 THS
1425280420BD1440T
M28 42 29 5.0 white zinc plating DIN 1440 THS
1425280420BI8738T
M28 42 28 5.0 white zinc plating ISO 8738 THS
1425280420SD1440T
M28 42 29 5.0 raw DIN 1440 THS
1425300440BI8738T
M30 44 30 5.0 white zinc plating ISO 8738 THS
1425300440SI8738T
M30 44 30 5.0 raw ISO 8738 THS
1425300450BD1440T
M30 45 31 5.0 white zinc plating DIN 1440 THS
1425300450SD1440T
M30 45 31 5.0 raw DIN 1440 THS
1425320500BD1440T
M32 50 33 5.0 white zinc plating DIN 1440 THS
1425320500SD1440T
M32 50 33 5.0 raw DIN 1440 THS
1425330470BI8738T
M33 47 33 5.0 white zinc plating ISO 8738 THS
1425330470SI8738T
M33 47 33 5.0 raw ISO 8738 THS
1425330500BD1440T
M33 50 34 5.0 white zinc plating DIN 1440 THS
1425330500SD1440T
M33 50 34 5.0 raw DIN 1440 THS
1425350520BD1440T
M35 52 36 6.0 white zinc plating DIN 1440 THS
1425350520SD1440T
M35 52 36 6.0 raw DIN 1440 THS
1425360500BI8738T
M36 50 36 6.0 white zinc plating ISO 8738 THS
1425360500SI8738T
M36 50 36 6.0 raw ISO 8738 THS
1425360520BD1440T
M36 52 37 6.0 white zinc plating DIN 1440 THS
1425360520SD1440T
M36 52 37 6.0 raw DIN 1440 THS
1425400560BI8738T
M40 56 40 6.0 white zinc plating ISO 8738 THS
1425400560SI8738T
M40 56 40 6.0 raw ISO 8738 THS
1425400580BD1440T
M40 58 41 6.0 white zinc plating DIN 1440 THS
1425400580SD1440T
M40 58 41 6.0 raw DIN 1440 THS
1425450600BI8738T
M45 60 45 6.0 white zinc plating ISO 8738 THS
1425450600SI8738T
M45 60 45 6.0 raw ISO 8738 THS
1425450620BD1440T
M45 62 46 7.0 white zinc plating DIN 1440 THS
1425450620SD1440T
M45 62 46 7.0 raw DIN 1440 THS
1425500660BI8738T
M50 66 50 8.0 white zinc plating ISO 8738 THS
1425500660SI8738T
M50 66 50 8.0 raw ISO 8738 THS
1425500680BD1440T
M50 68 51 8.0 white zinc plating DIN 1440 THS
1425500680SD1440T
M50 68 51 8.0 raw DIN 1440 THS
1425550720BI8738T
M55 72 55 8.0 white zinc plating ISO 8738 THS
1425550720SI8738T
M55 72 55 8.0 raw ISO 8738 THS
1425550750BD1440T
M55 75 56 9.0 white zinc plating DIN 1440 THS
1425550750SD1440T
M55 75 56 9.0 raw DIN 1440 THS
1425600780BI8738T
M60 78 60 10.0 white zinc plating ISO 8738 THS
1425600780SI8738T
M60 78 60 10.0 raw ISO 8738 THS
1425600800BD1440T
M60 80 61 9.0 white zinc plating DIN 1440 THS
1425600800SD1440T
M60 80 61 9.0 raw DIN 1440 THS
1425650850BI8738T
M65 85 65 10.0 white zinc plating ISO 8738 THS
1425650900BD1440T
M65 90 66 9.0 white zinc plating DIN 1440 THS
1425650900SD1440T
M65 90 66 9.0 raw DIN 1440 THS
1425700920BI8738T
M70 92 70 10.0 white zinc plating ISO 8738 THS
1425700920SI8738T
M70 92 70 10.0 raw ISO 8738 THS
1425700950BD1440T
M70 95 71 10.0 white zinc plating DIN 1440 THS
1425700950SD1440T
M70 95 71 10.0 raw DIN 1440 THS
1425750100SD1440T
M75 100 101 10.0 raw DIN 1440 THS
1425800110BD1440T
M80 110 81 12.0 white zinc plating DIN 1440 THS
1425800110SD1440T
M80 110 81 12.0 raw DIN 1440 THS
1425800980BI8738T
M80 98 80 12.0 white zinc plating ISO 8738 THS
1425800980SI8738T
M80 98 80 12.0 raw ISO 8738 THS
1425900110SI8738T
M90 110 90 12.0 raw ISO 8738 THS
1425900115SD1440T
M90 115 91 12.0 raw DIN 1440 THS
