Aluminium rivet nut with reduced countersunk flat head

25
.
23
NKSMA

Aluminium rivet nut with reduced countersunk flat head are used without the need for chamfering the hole on very thin surfaces that do not allow for this due to their structure.

View in store

Recommended

Group
2523

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

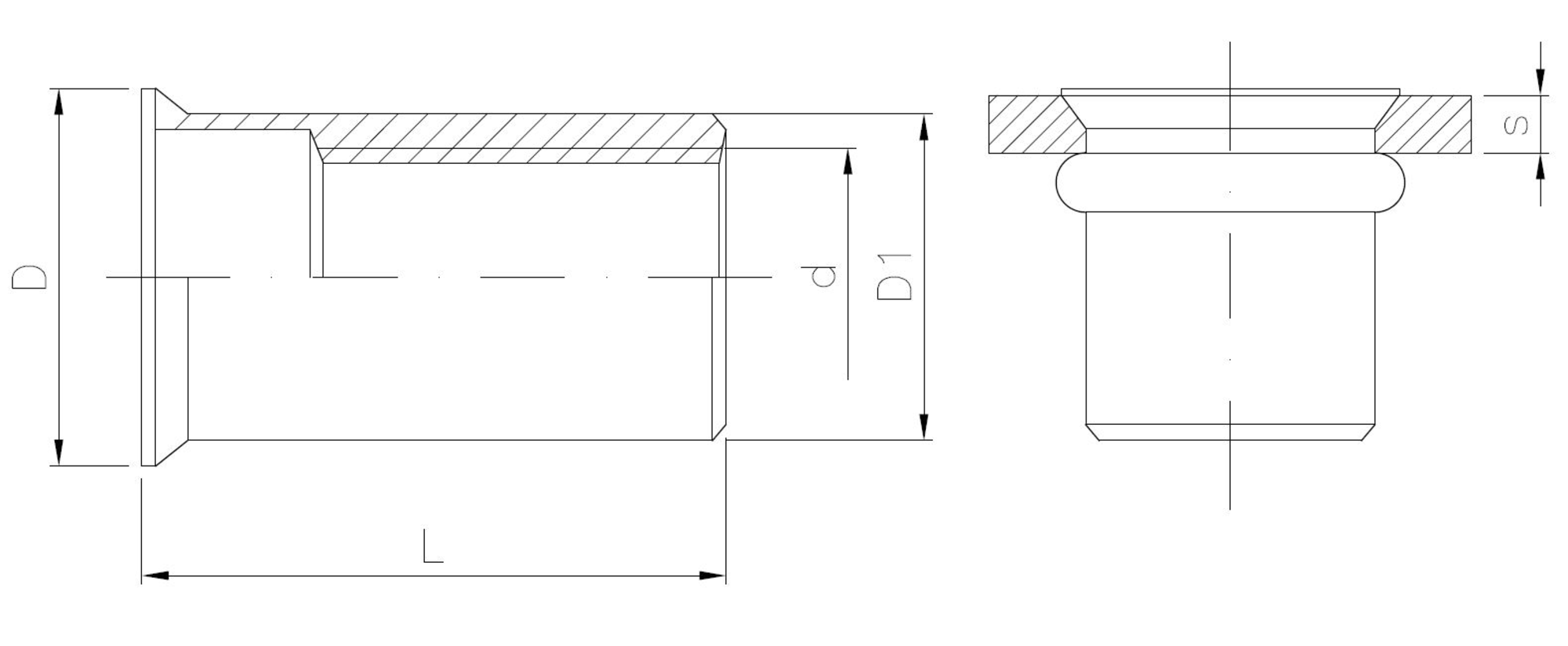

Thread diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Sleeve diameter d1 [mm]
Riveting range s [mm]
Flange height k [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Thread diameter d [mm] Length L [mm] Flange diameter D [mm] Sleeve diameter d1 [mm] Riveting range s [mm] Flange height k [mm] Variety of coating Unit of measure Availability Show More
2523040105ALT
M4 10.5 7 5.9 0.5-2.0 0.5 white zinc plating THS
2523050115ALT
M5 11.5 8 6.9 0.5-2.0 0.5 white zinc plating THS
2523060140ALT
M6 14.0 10 8.9 0.5-2.5 0.6 white zinc plating THS
