Anchor for FHY Fischer hollow core slabs

Anchor with internal thread for easy fixing in prestressed hollow core slabs.

Advantages
The operating principle of the FHY anchor allows it to be used in both hollow and solid substrates, at a distance of at least 5 cm from the metal tension member. Convenient installation is ensured.

The embossing on the edge prevents the anchor from falling into the hollow space, which allows for trouble-free installation.

The optimal geometry minimises the effort during installation and allows for convenient installation in narrow spaces.

The internal metric thread enables the use of standard screws or threaded rods.

An independent expert opinion approves the use of FHY anchors in seismic zones.

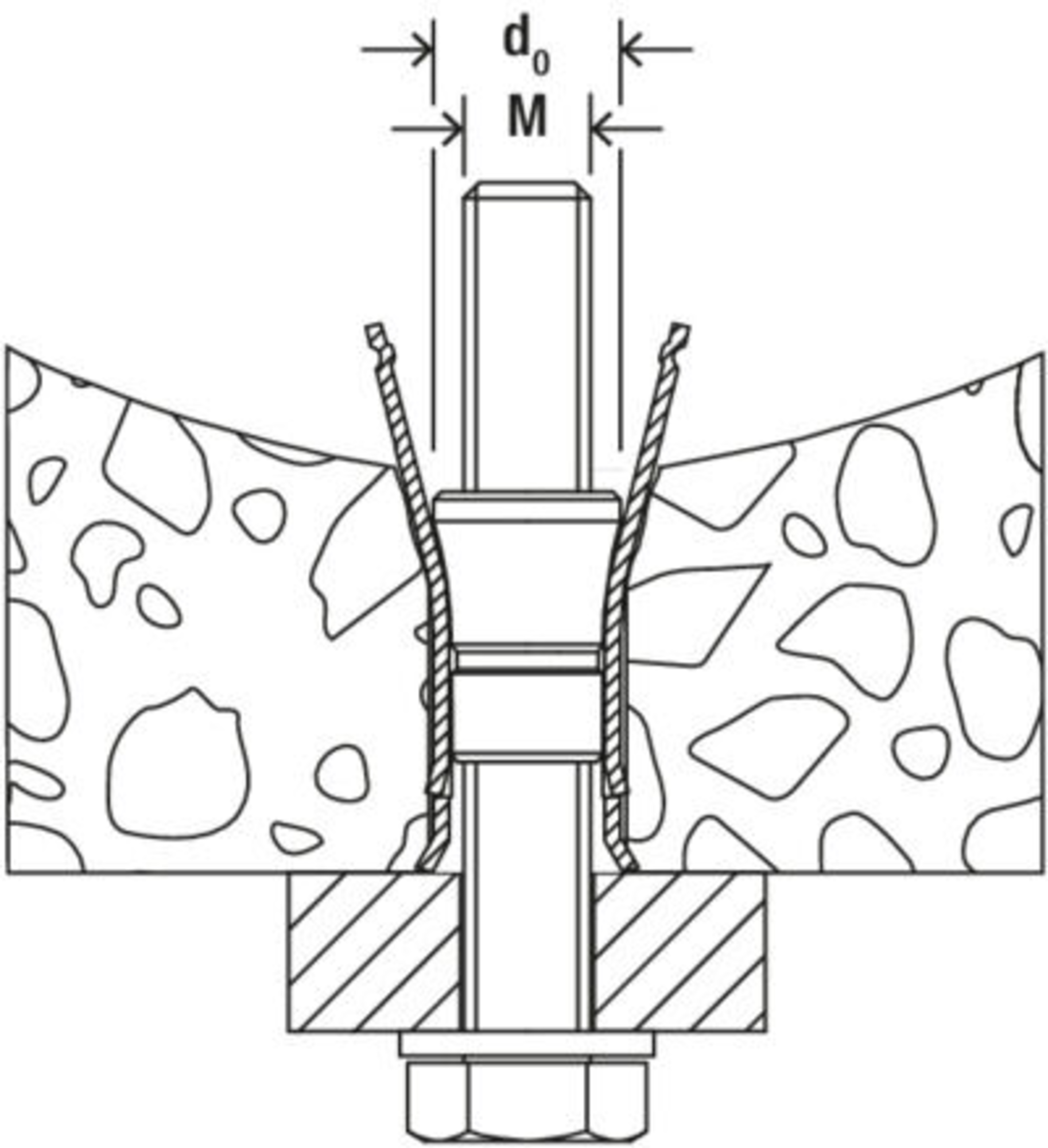

The fischer FHY ceiling anchor for hollow core slabs with internal thread is made of galvanised steel. The FHY anchor is ideally suited for fixing in prestressed concrete hollow core slabs. The General Technical Assessment and the confirmed fire resistance R 120 ensure functional safety. The anchor for hollow core slabs is set in the hole manually using a hammer using the pre-assembly method with flush mounting to the substrate surface. Easy assembly reduces work time. The thickening on the edge prevents the anchor from falling in, which facilitates the assembly process. When tightening, the cone is pulled into the sleeve, and the sleeve is expanded and pressed against the wall of the hole. The FHY ceiling anchor is suitable for attaching pipelines, cable routes and ventilation ducts to prestressed hollow core slabs, inside buildings.
