Arc washer INOX

I14
.
32

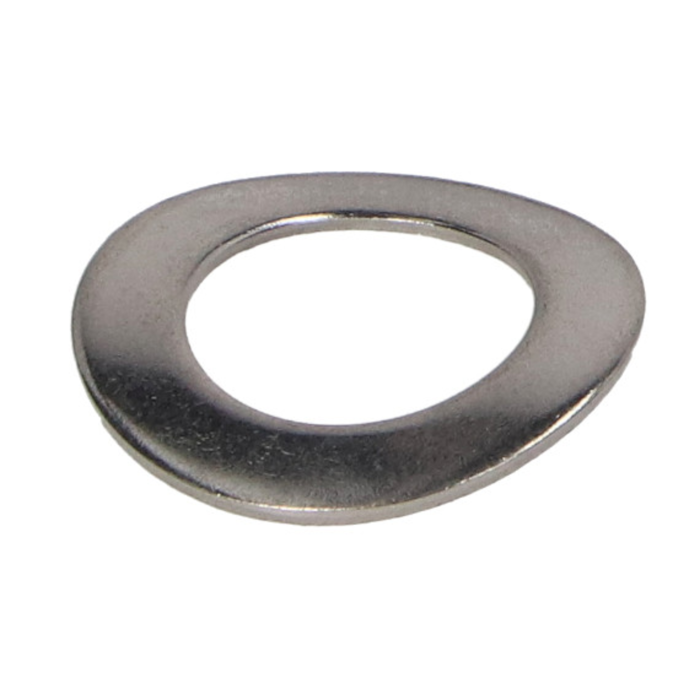

The curved washer (inox) is a specialized fastener component made of high-quality stainless steel (inox), designed for use in constructions requiring compensation for surface irregularities or fastening on curved surfaces. The curved washer features an arched profile, allowing it to better fit mounting surfaces, particularly in cylindrical or arched constructions. Made from stainless steel, the washer is corrosion-resistant, ensuring long-term durability even in challenging environmental conditions.

Applications:

  • Steel constructions: Ideal for mounting components in areas where fitting to curved surfaces is required.
  • Automotive industry: Used in metal connections, such as frames or mechanical parts.
  • Construction: Utilized in both outdoor and indoor applications, particularly in environments with high humidity or where high corrosion resistance is needed.

Benefits:

  • Corrosion resistance: Made from stainless steel (inox), the curved washer provides excellent resistance to rust and harsh weather conditions.
  • Perfect fit: The curved profile allows for easier installation on uneven or curved surfaces.
  • Durability: Thanks to its material properties, the washer is robust and long-lasting, ensuring reliability in long-term applications.
Send product inquiry

Product inquiry form

Recommended

Group
I1432

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

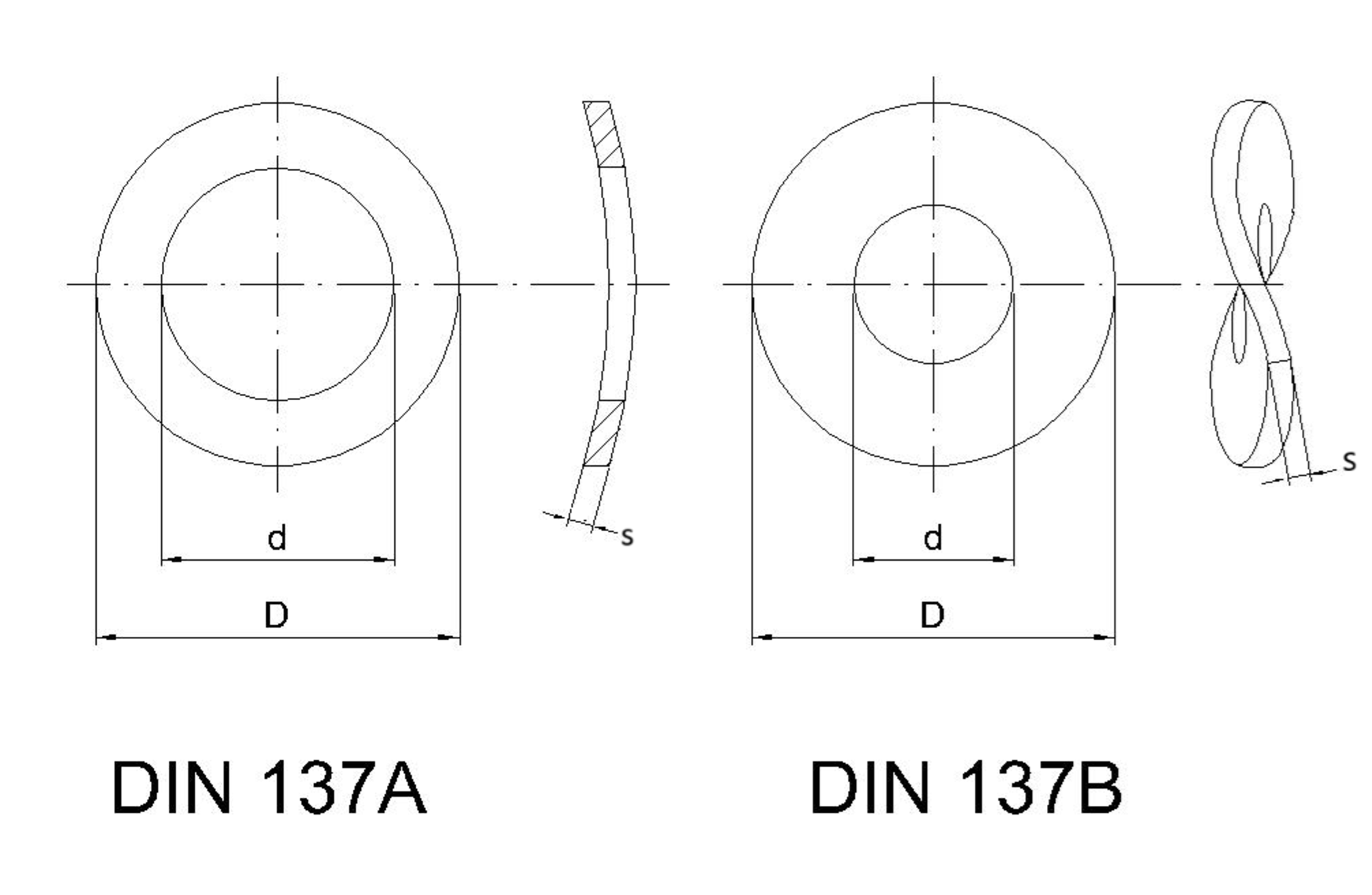

Screw thread M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Dimension h [mm]
Thickness s [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes
Screw thread M [mm] Outer diameter D [mm] Inner diameter d [mm] Dimension h [mm] Thickness s [mm] Standard Material Unit of measure Availability Show More
I1432020A1D137AT
M2 2.2 4.5 1.0 0.3 DIN 137A A1 THS
I1432023A1D137AT
M2.3 2.5 5 1.0 0.3 DIN 137A A1 THS
I1432026A1D137AT
M2.6 2.8 5.5 1.1 0.3 DIN 137A A1 THS
I1432030A1D137AT
M3 3.2 6 1.3 0.4 DIN 137A A1 THS
I1432030A1D137BT
M3 3.2 6 1.3 0.4 DIN 137B A1 THS
I1432030A2D137AT
M3 3.2 6 1.1 0.4 DIN 137A A2 THS
I1432030A4D137BT
M3 3.2 6 1.3 0.4 DIN 137B A4 THS
I1432035A1D137AT
M3.5 3.7 7 1.4 0.4 DIN 137A A1 THS
I1432040A1D137AT
M4 4.3 8 1.6 0.4 DIN 137A A1 THS
I1432040A1D137BT
M4 4.3 8 1.6 0.4 DIN 137B A1 THS
I1432040A2D137AT
M4 4.3 8 1.6 0.5 DIN 137A A2 THS
I1432040A4D137AT
M4 4.3 8 1.6 0.4 DIN 137A A4 THS
I1432040A4D137BT
M4 4.3 8 1.6 0.4 DIN 137B A4 THS
I1432050A1D137AT
M5 5.3 10 1.8 0.5 DIN 137A A1 THS
I1432050A1D137BT
M5 5.3 10 1.8 0.5 DIN 137B A1 THS
I1432050A2D137AT
M5 5.3 10 1.8 0.5 DIN 137A A2 THS
I1432050A4D137AT
M5 5.3 10 1.8 0.5 DIN 137A A4 THS
I1432050A4D137BT
M5 5.3 10 1.8 0.5 DIN 137B A4 THS
I1432060A1D137AT
M6 6.4 11 2.2 0.5 DIN 137A A1 THS
I1432060A1D137BT
M6 6.4 11 2.2 0.6 DIN 137B A1 THS
I1432060A2D137AT
M6 6.4 11 2.2 0.5 DIN 137A A2 THS
I1432060A4D137AT
M6 6.4 11 2.2 0.6 DIN 137A A4 THS
I1432060A4D137BT
M6 6.4 11 2.2 0.6 DIN 137B A4 THS
I1432080A1D137AT
M8 8.4 15 3.4 0.5 DIN 137A A1 THS
I1432080A1D137BT
M8 8.4 15 3.4 0.5 DIN 137B A1 THS
I1432080A2D137AT
M8 8.4 15 3.4 0.5 DIN 137A A2 THS
I1432080A4D137AT
M8 8.4 15 3.4 0.5 DIN 137A A4 THS
I1432080A4D137BT
M8 8.4 15 3.4 0.5 DIN 137B A4 THS
I1432100A1D137AT
M10 10.5 18 4.0 0.8 DIN 137A A1 THS
I1432100A1D137BT
M10 10.5 18 4.0 0.8 DIN 137B A1 THS
I1432100A2D137AT
M10 10.5 18 4.0 0.8 DIN 137A A2 THS
I1432100A4D137AT
M10 10.5 18 4.0 0.8 DIN 137A A4 THS
I1432100A4D137BT
M10 10.5 18 4.0 0.8 DIN 137B A4 THS
I1432120A1D137BT
M12 13 24 5.0 1.2 DIN 137B A1 THS
I1432120A4D137BT
M12 13 24 5.0 1.2 DIN 137B A4 THS
I1432140A4D137BT
M14 15 28 6.0 1.6 DIN 137B A4 THS
I1432160A1D137BT
M16 17 30 6.4 1.6 DIN 137B A1 THS
I1432160A4D137BT
M16 17 30 6.4 1.6 DIN 137B A4 THS
I1432200A1D137BT
M20 21 36 7.4 1.6 DIN 137B A1 THS
I1432200A4D137BT
M20 21 36 7.4 1.6 DIN 137B A4 THS
I1432240A1D137BT
M24 25 44 8.2 1.8 DIN 137B A1 THS
I1432300A1D137BT
M30 31 56 10 2.2 DIN 137B A1 THS
