Blind steel grooved rivet nut with flat head

25
.
03
NKPRZ

Blind steel grooved rivet nut with flat head is used in applications where material sealing is required. Knurled rivet nuts provide better grip on the material to which they are fastened. The use of this product requires prior chamfering of the hole in which the rivet nut will be "embedded." The flat flange ensures a stable connection and firm contact with the surface.

View in store

Recommended

Group
2503

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Thread diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Sleeve diameter d1 [mm]
Riveting range s [mm]
Flange height k [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes

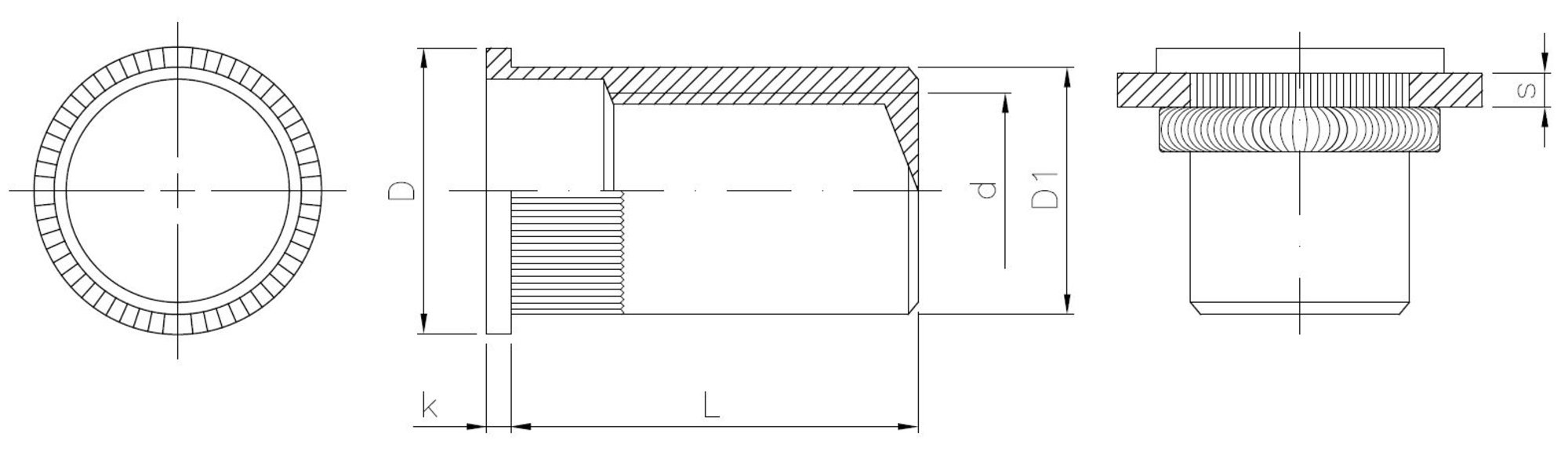

Thread diameter d [mm] Length L [mm] Flange diameter D [mm] Sleeve diameter d1 [mm] Riveting range s [mm] Flange height k [mm] Variety of coating Unit of measure Availability Show More
2503060175STZT
M6 17.5 12.3 8.9 0.5-3.0 1.3 white zinc plating THS
2503080200STZT
M8 20.0 15.0 10.9 0.5-3.0 1.5 white zinc plating THS
2503100255STZT
M10 25.5 17.0 12.9 1.0-4.0 1.6 white zinc plating THS
