Breakaway nut INOX

I15
.
61

The INOX breakaway nut is a specialized security fastener designed to prevent removal after installation.
Made of high-quality stainless steel, it combines corrosion resistance with mechanical durability.
During tightening, once the specified torque is reached, the hexagonal head breaks off, leaving a smooth conical surface that cannot be gripped with standard tools.

Applications:
Used wherever a permanent and reliable protection against unauthorized disassembly is required:

  • urban infrastructure (traffic signs, lighting),

  • fences and gates,

  • industrial equipment,

  • public devices and outdoor installations.

Benefits:

  • Permanent protection – cannot be removed with standard tools after installation.

  • Corrosion resistance – stainless steel INOX ensures long service life.

  • Easy installation – mounted with a standard wrench until the breakaway head separates.

  • Anti-theft and anti-vandal protection – effective in public and industrial environments.



Send product inquiry

Product inquiry form

Recommended

Group
I1561

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

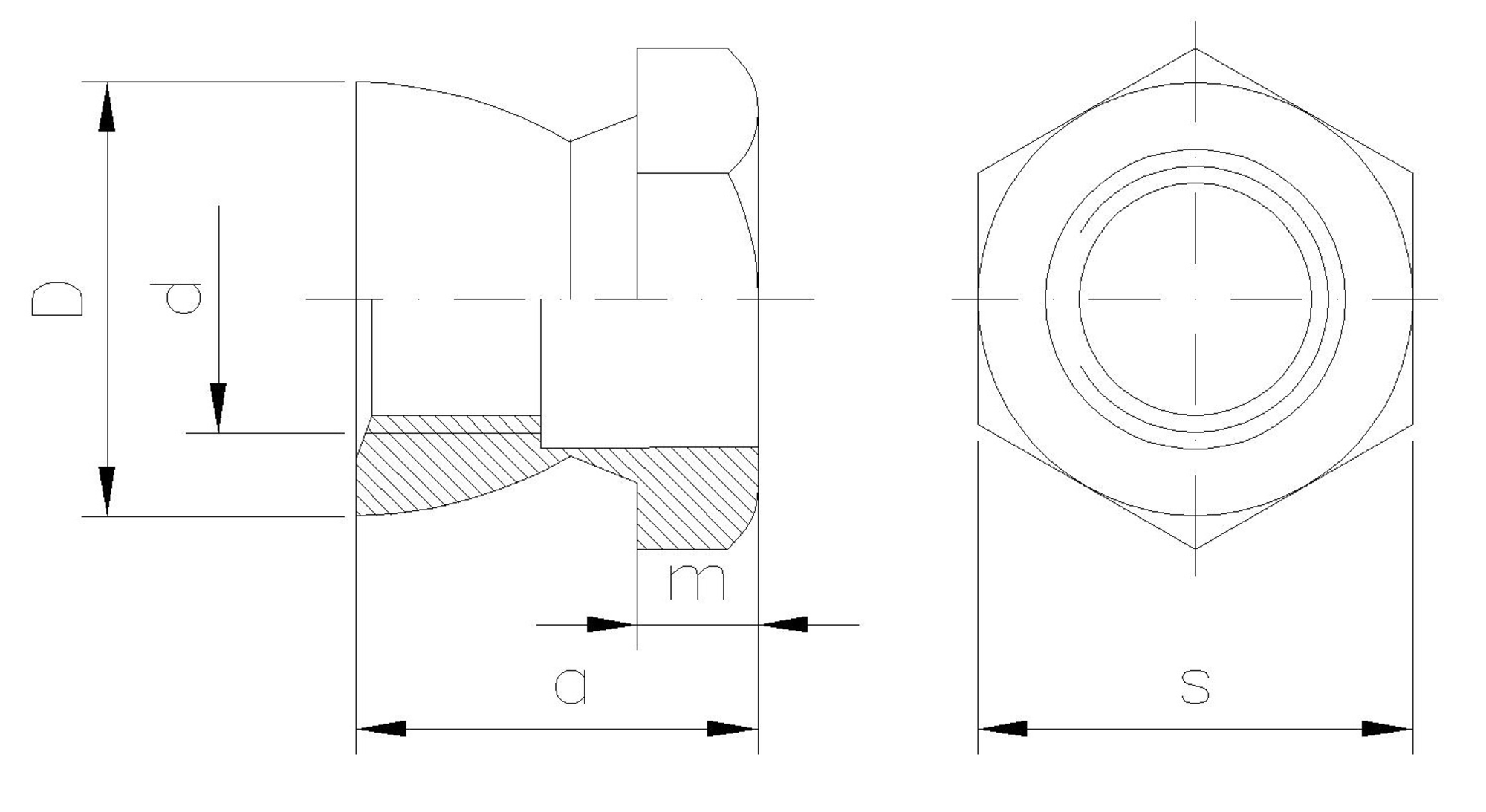

Dimension d [mm]
Dimension m [mm]
Dimension D [mm]
Dimension s [mm]
Dimension a [mm]
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension m [mm] Dimension D [mm] Dimension s [mm] Dimension a [mm] Material Unit of measure Availability Show More
I1561040A2ZRT
M4 3.0 6.8 7.0 9.0 A2 THS
I1561040A4ZRT
M4 3.0 6.8 7.0 9.0 A4 THS
I1561050A2ZRT
M5 3.2 7.8 8.0 9.2 A2 THS
I1561050A4ZRT
M5 3.2 7.8 8.0 9.2 A4 THS
I1561060A2ZRT
M6 3.5 9.8 10.0 9.5 A2 THS
I1561060A4ZRT
M6 3.5 9.8 10.0 9.5 A4 THS
I1561080A2ZRT
M8 4.0 12.8 13.0 12.0 A2 THS
I1561080A4ZRT
M8 4.0 12.8 13.0 12.0 A4 THS
I1561100A2ZRT
M10 5.0 16.8 17.0 15.0 A2 THS
I1561100A4ZRT
M10 5.0 16.8 17.0 15.0 A4 THS
I1561120A2ZRT
M12 5.5 18.8 19.0 16.0 A2 THS
I1561120A4ZRT
M12 5.5 18.8 19.0 16.0 A4 THS
I1561160A2ZRT
M16 7.0 23.8 24.0 22.0 A2 THS
I1561160A4ZRT
M16 7.0 23.8 24.0 22.0 A4 THS
I1561200A2ZRT
M20 8.0 29.8 30.0 29.0 A2 THS
I1561200A4ZRT
M20 8.0 29.8 30.0 29.0 A4 THS
