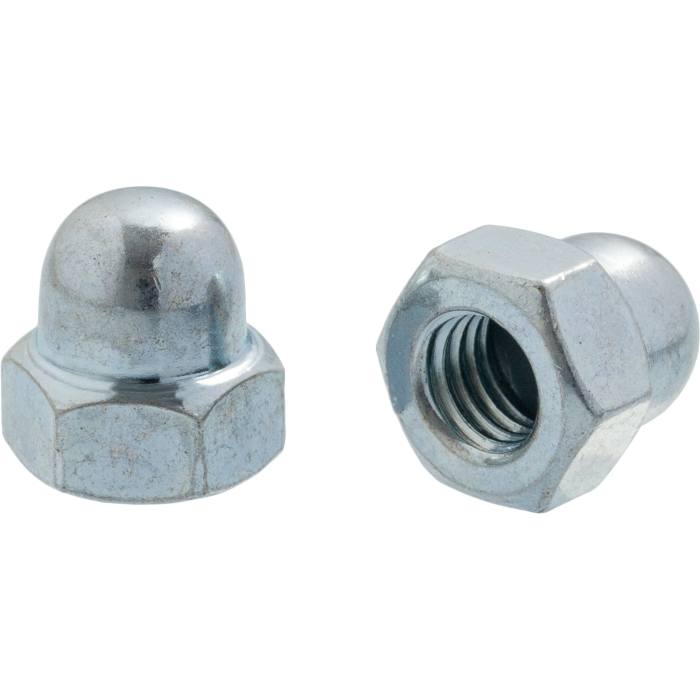

Cap nut with fine thread

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

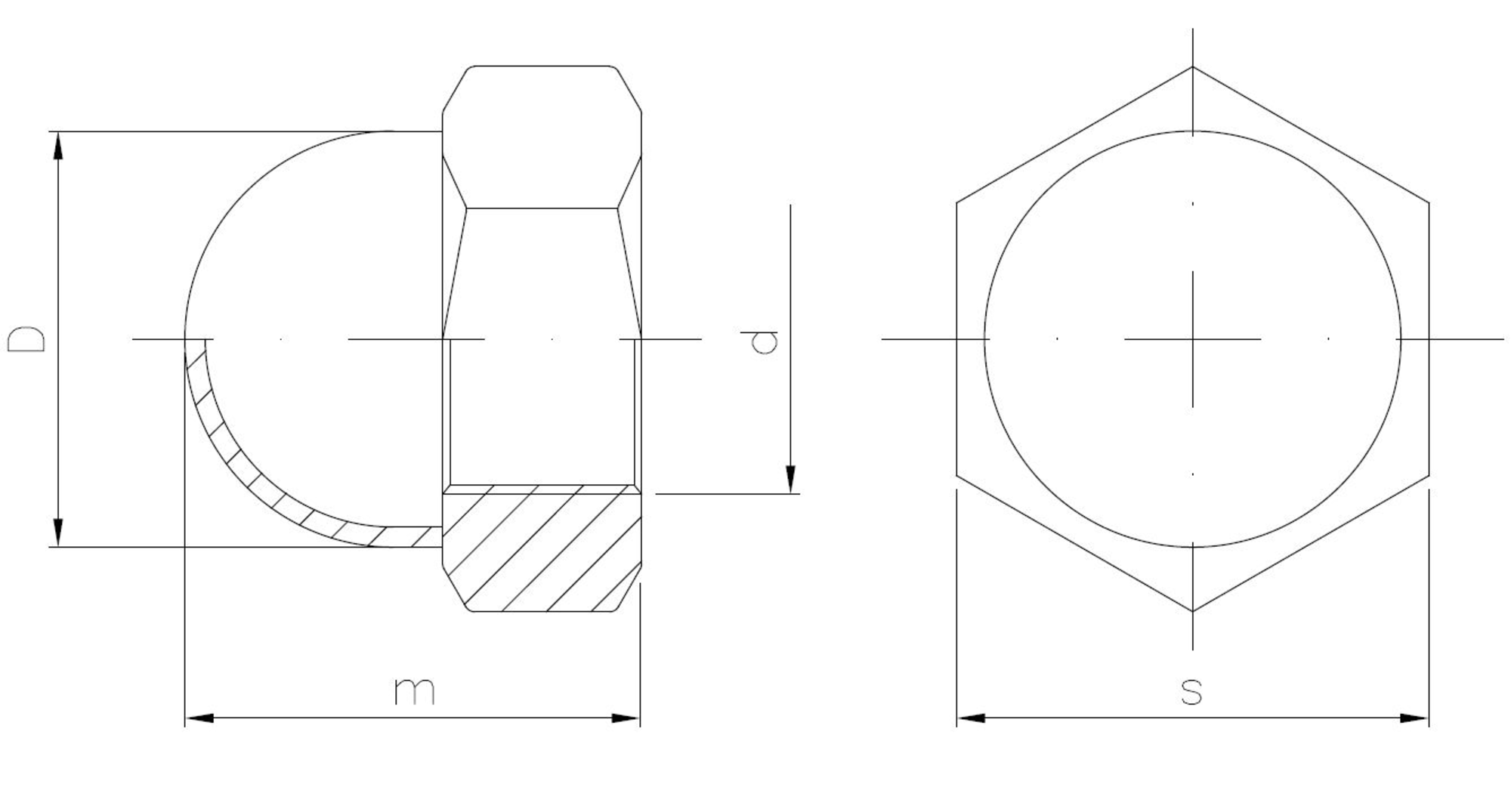

Dimension d [mm]

Dimension m [mm]

Class of mechanical properties

Variety of coating

Dimension s [mm]

Thread pitch

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Class of mechanical properties	Variety of coating	Dimension s [mm]	Thread pitch	Standard	Unit of measure	Availability

1544100100SD1587T	M10	18.0	6	raw	17.0	1.00	DIN 1587	THS	Product on request
1544120125BD1587T	M12	22.0	6	white zinc plating	19.0	1.25	DIN 1587	THS	Product on request
1544120150BD1587T	M12	22.0	6	white zinc plating	19.0	1.50	DIN 1587	THS	Product on request
1544160150BD1587T	M16	28.0	6	white zinc plating	24.0	1.50	DIN 1587	THS	Product on request
1544160150SD1587T	M16	28.0	6	raw	24.0	1.50	DIN 1587	THS	Product on request
1544200150BD1587T	M20	34.0	6	white zinc plating	30.0	1.50	DIN 1587	THS	Product on request
