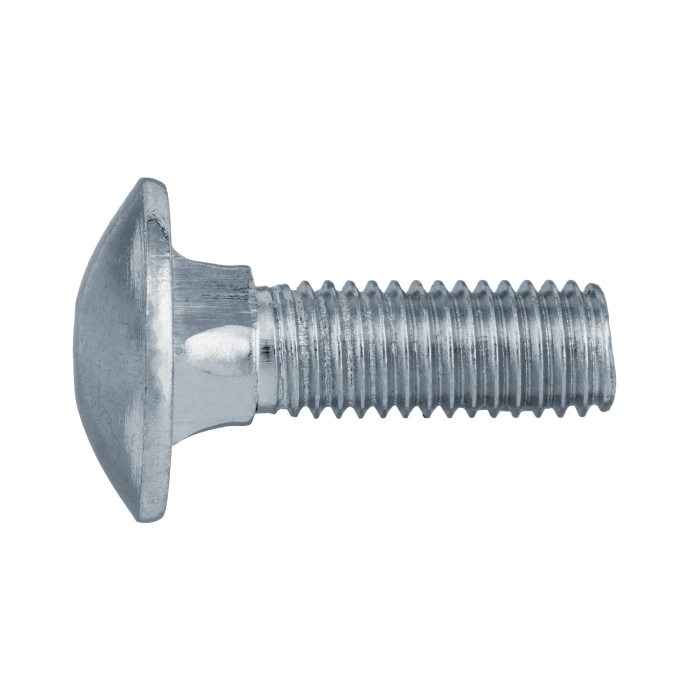

Carriage bolt, fully threaded

11
.
08
SZG

A carriage bolt with a mushroom head and full thread is an advanced fastening solution designed to provide secure, durable, and reliable connections. Its distinctive mushroom-shaped head offers additional security, making it particularly valuable in applications where resistance to self-loosening or vibrations is critical.

Applications:

The carriage bolt with a mushroom head and full thread is ideal for situations where secure and long-lasting connections are essential, and where resistance to self-loosening or vibrations is required. It is perfect for use in metal, wooden, and other material constructions that demand strong and dependable fastening.

Features and Benefits:

  • Robust construction and high-quality material ensure reliability
  • Distinctive mushroom head provides additional connection security
  • Full thread allows for strong and secure fastening
  • Available in various sizes and strength grades to suit different applications
  • Easy installation with standard tools
DOWNLOADABLE DOCUMENTS

Recommended

Group
1108

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

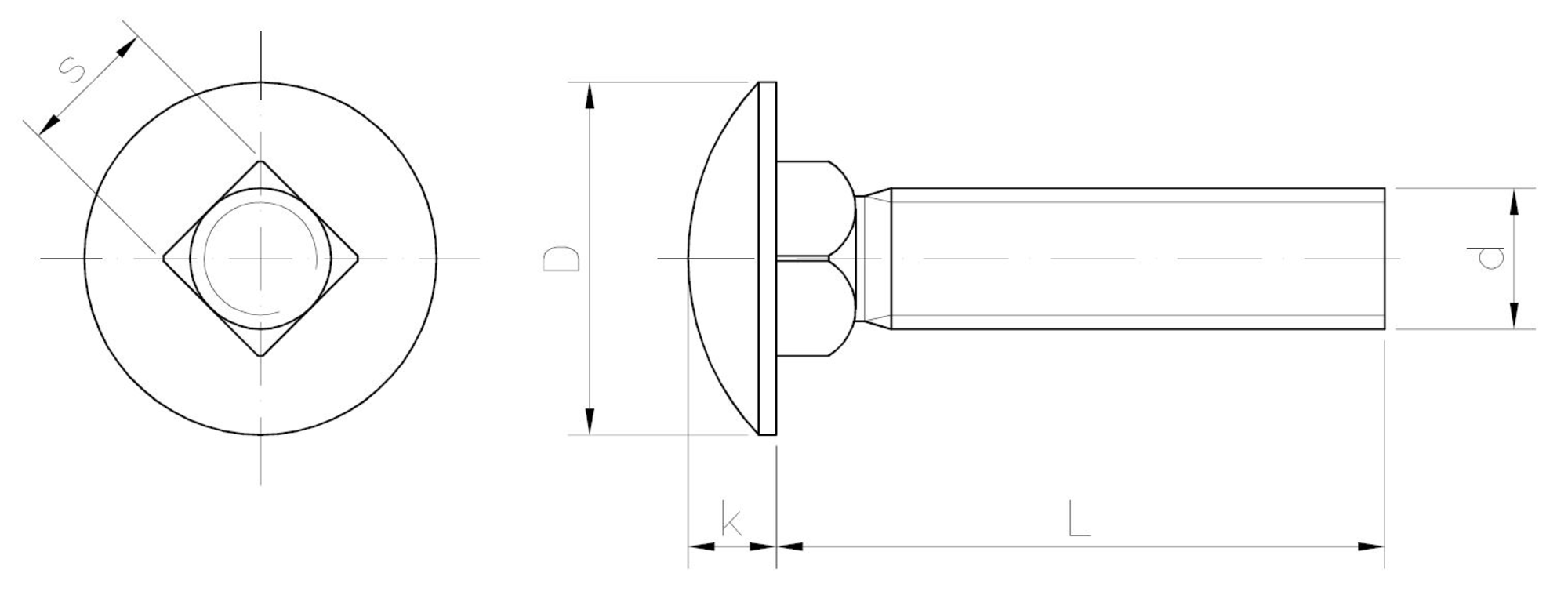

Thread diameter d
Length L [mm]
Class of mechanical properties
Variety of coating
Underlay width s [mm]
Head height k [mm]
Head diameter D [mm]
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Thread diameter d Length L [mm] Class of mechanical properties Variety of coating Underlay width s [mm] Head height k [mm] Head diameter D [mm] Standard Unit of measure Availability Show More
1108050016B88D603T
M5 16 8.8 white zinc plating 5.0 3.0 13.0 THS
1108050016BD603K
M5 16 4.8 white zinc plating 5.0 3.0 13.0 KG
1108050016MD603T
M5 16 brass plating 5.0 3.0 13.0 KG
1108050020B88D603T
M5 20 8.8 white zinc plating 5.0 3.0 13.0 THS
1108050020BD603K
M5 20 4.8 white zinc plating 5.0 3.0 13.0 KG
1108050020BD603T
M5 20 4.8 white zinc plating 5.0 3.0 13.0 THS
1108050020MD603T
M5 20 brass plating 5.0 3.0 13.0 KG
1108050025B88D603T
M5 25 8.8 white zinc plating 5.0 3.0 13.0 THS
1108050025BD603K
M5 25 4.8 white zinc plating 5.0 3.0 13.0 KG
1108050025MD603T
M5 25 brass plating 5.0 3.0 13.0 KG
1108050030B88D603T
M5 30 8.8 white zinc plating 5.0 3.0 13.0 THS
1108050030BD603K
M5 30 4.8 white zinc plating 5.0 3.0 13.0 KG
1108050030MD603T
M5 30 brass plating 5.0 3.0 13.0 KG
1108050040BD603T
M5 40 4.8 white zinc plating 5.0 3.0 13.0 THS
1108050045BD603K
M5 45 4.8 white zinc plating 5.0 3.0 13.0 KG
1108060010B88D603T
M6 10 8.8 white zinc plating 6.0 3.5 16.0 KG
1108060016B88D603T
M6 16 8.8 white zinc plating 6.0 3.5 16.0 THS
1108060016BD603K
M6 16 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060016MD603T
M6 16 brass plating 6.0 3.5 16.0 KG
1108060016R88D603T
M6 16 8.8 geomet 6.0 3.5 16.0 THS
1108060020B88D603T
M6 20 8.8 white zinc plating 6.0 3.5 16.0 THS
1108060020BD603K
M6 20 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060020MD603T
M6 20 brass plating 6.0 3.5 16.0 KG
1108060020R88D603T
M6 20 8.8 geomet 6.0 3.5 16.0 THS
1108060025B88603T
M6 25 8.8 white zinc plating 6.0 3.5 16.0 THS
1108060025B88D603T
M6 25 8.8 white zinc plating 6.0 3.5 16.0 THS
1108060025BD603K
M6 25 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060025BD603T
M6 25 4.8 white zinc plating 6.0 3.5 16.0 THS
1108060025MD603T
M6 25 brass plating 6.0 3.5 16.0 KG
1108060025R88D603T
M6 25 8.8 geomet 6.0 3.5 16.0 THS
1108060030B88D603T
M6 30 8.8 white zinc plating 6.0 3.5 16.0 THS
1108060030BD603K
M6 30 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060030BD603T
M6 30 4.8 white zinc plating 6.0 3.5 16.0 THS
1108060030MD603T
M6 30 brass plating 6.0 3.5 16.0 KG
1108060030R88D603T
M6 30 8.8 geomet 6.0 3.5 16.0 THS
1108060032BD603T
M6 32 4.8 white zinc plating 6.0 3.5 16.0 THS
1108060035BD603K
M6 35 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060040BD603K
M6 40 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060050BD603K
M6 50 4.8 white zinc plating 6.0 3.5 16.0 KG
1108060060BD603T
M6 60 4.8 white zinc plating 6.0 3.5 16.0 THS
1108060070BD603T
M6 70 4.8 white zinc plating 6.0 3.5 16.0 THS
1108080016B88D603T
M8 16 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080016BD603K
M8 16 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080016R88D603T
M8 16 8.8 geomet 8.0 5.0 20.0 THS
1108080020B88603T
M8 20 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080020B88D603K
M8 20 8.8 white zinc plating 8.0 5.0 20.0 KG
1108080020B88D603T
M8 20 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080020BD603K
M8 20 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080020R88D603T
M8 20 8.8 geomet 8.0 5.0 20.0 THS
1108080025B88603T
M8 25 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080025B88D603K
M8 25 8.8 white zinc plating 8.0 5.0 20.0 KG
1108080025B88D603T
M8 25 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080025BD603K
M8 25 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080025BD603T
M8 25 4.8 white zinc plating 8.0 5.0 20.0 THS
1108080025MD603T
M8 25 brass plating 8.0 5.0 20.0 KG
1108080025R88D603T
M8 25 8.8 geomet 8.0 5.0 20.0 THS
1108080030B88603K
M8 30 8.8 white zinc plating 8.0 5.0 20.0 KG
1108080030B88603T
M8 30 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080030B88D603K
M8 30 8.8 white zinc plating 8.0 5.0 20.0 KG
1108080030B88D603T
M8 30 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080030BD603K
M8 30 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080030MD603T
M8 30 brass plating 8.0 5.0 20.0 KG
1108080030R88D603T
M8 30 8.8 geomet 8.0 5.0 20.0 THS
1108080035B88D603T
M8 35 8.8 white zinc plating 8.0 5.0 20.0 THS
1108080035BD603K
M8 35 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080035BD603T
M8 35 4.8 white zinc plating 8.0 5.0 20.0 THS
1108080035R88D603T
M8 35 8.8 geomet 8.0 5.0 20.0 THS
1108080040BD603K
M8 40 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080045BD603T
M8 45 4.8 white zinc plating 8.0 5.0 20.0 THS
1108080050BD603K
M8 50 4.8 white zinc plating 8.0 5.0 20.0 KG
1108080070R88D603T
M8 70 8.8 geomet 8.0 5.0 20.0 THS
1108080090BD603T
M8 90 4.8 white zinc plating 8.0 5.0 20.0 THS
1108100020B88603T
M10 20 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100020B88D603T
M10 20 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100020BD603K
M10 20 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100020R88D603T
M10 20 8.8 geomet 10.0 6.0 24.0 THS
1108100025B58D603K
M10 25 5.8 white zinc plating 10.0 6.0 24.0 KG
1108100025B88603T
M10 25 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100025B88D603T
M10 25 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100025BD603K
M10 25 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100025G88D603T
M10 25 8.8 hot-dip galvanized 10.0 6.0 24.0 KG
1108100025R88D603T
M10 25 8.8 geomet 10.0 6.0 24.0 THS
1108100030B88603T
M10 30 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100030B88D603K
M10 30 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100030B88D603T
M10 30 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100030BD603K
M10 30 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100030C88D603K
M10 30 8.8 black zinc plating 10.0 6.0 24.0 DIN 603 KG
1108100030G88D603T
M10 30 8.8 hot-dip galvanized 10.0 6.0 24.0 KG
1108100030R88D603T
M10 30 8.8 geomet 10.0 6.0 24.0 THS
1108100035B88D603K
M10 35 8.8 white zinc plating 10.0 6.0 24.0 KG
1108100035B88D603T
M10 35 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100035BD603K
M10 35 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100035G88D603T
M10 35 8.8 hot-dip galvanized 10.0 6.0 24.0 KG
1108100035R88D603T
M10 35 8.8 geomet 10.0 6.0 24.0 THS
1108100040B88603T
M10 40 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100040B88D603K
M10 40 8.8 white zinc plating 10.0 6.0 24.0 KG
1108100040B88D603T
M10 40 8.8 white zinc plating 10.0 6.0 24.0 THS
1108100040BD603K
M10 40 4.8 white zinc plating 10.0 6.0 24.0 KG
1108100040G88D603T
M10 40 8.8 hot-dip galvanized 10.0 6.0 24.0 KG
1108100040R88D603T
M10 40 8.8 geomet 10.0 6.0 24.0 THS
1108100090B88D603T
M10 90 8.8 white zinc plating 10.0 6.0 24.0 THS
1108120025B88603T
M12 25 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120025B88D603T
M12 25 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120025BD603K
M12 25 4.8 white zinc plating 12.0 8.0 30.0 KG
1108120025G88D603T
M12 25 8.8 hot-dip galvanized 12.0 8.0 30.0 KG
1108120025R88D603T
M12 25 8.8 geomet 12.0 8.0 30.0 THS
1108120030B88603T
M12 30 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120030B88D603K
M12 30 8.8 white zinc plating 12.0 8.0 30.0 KG
1108120030B88D603T
M12 30 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120030BD603K
M12 30 4.8 white zinc plating 12.0 8.0 30.0 KG
1108120030G88D603T
M12 30 8.8 hot-dip galvanized 12.0 8.0 30.0 KG
1108120030R88D603T
M12 30 8.8 geomet 12.0 8.0 30.0 THS
1108120035B88603T
M12 35 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120035B88D603K
M12 35 8.8 white zinc plating 12.0 8.0 30.0 KG
1108120035B88D603T
M12 35 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120035BD603K
M12 35 4.8 white zinc plating 12.0 8.0 30.0 KG
1108120035G88D603T
M12 35 8.8 hot-dip galvanized 12.0 8.0 30.0 KG
1108120035R88D603T
M12 35 8.8 geomet 12.0 8.0 30.0 THS
1108120040B88603T
M12 40 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120040B88D603K
M12 40 8.8 white zinc plating 12.0 8.0 30.0 KG
1108120040B88D603T
M12 40 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120040BD603K
M12 40 4.8 white zinc plating 12.0 8.0 30.0 KG
1108120040G88D603T
M12 40 8.8 hot-dip galvanized 12.0 8.0 30.0 KG
1108120040R88D603T
M12 40 8.8 geomet 12.0 8.0 30.0 THS
1108120045B88D603T
M12 45 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120050B88603T
M12 50 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120050B88D603T
M12 50 8.8 white zinc plating 12.0 8.0 30.0 THS
1108120050R88D603T
M12 50 8.8 geomet 12.0 8.0 30.0 THS
1108120060B10D603K
M12 60 10.9 white zinc plating 12.0 8.0 30.0 KG
1108160040B88D603T
M16 40 8.8 white zinc plating 16.0 8.0 38.0 THS
1108160040G88D603T
M16 40 8.8 hot-dip galvanized 16.0 8.0 38.0 KG
1108160040R88D603T
M16 40 8.8 geomet 16.0 8.0 38.0 THS
1108160045R88D603T
M16 45 8.8 geomet 16.0 8.0 38.0 THS
1108160050B88D603T
M16 50 8.8 white zinc plating 16.0 8.0 38.0 THS
1108160050G88D603T
M16 50 8.8 hot-dip galvanized 16.0 8.0 38.0 KG
1108160060B88D603T
M16 60 8.8 white zinc plating 16.0 8.0 38.0 THS
1108160060G88D603T
M16 60 8.8 hot-dip galvanized 16.0 8.0 38.0 KG
1108160060R88D603T
M16 60 8.8 geomet 16.0 8.0 38.0 THS
1108200070B88D603T
M20 70 8.8 white zinc plating 20.0 11.0 46.0 THS
1108200070R88D603T
M20 70 8.8 geomet 20.0 11.0 46.0 THS
1108200080B88D603T
M20 80 8.8 white zinc plating 20.0 11.0 46.0 THS
1108200080R88D603T
M20 80 8.8 geomet 20.0 11.0 46.0 DIN 603 THS
