Cylindrical pin

16
.
40

A cylindrical pin is a mechanical component with a cylindrical shape that is widely used in the construction of machines, tools, and various other industrial fields. Its main function is to maintain connections between structural elements, ensuring stability and durability.

Applications:

Cylindrical pins are utilized across a broad range of fields, including:

  • Machine and mechanical device construction
  • Automotive industry
  • Construction
  • Electronics
  • Furniture industry
  • Repairs and maintenance

Benefits:

  • Connection Stability:
    Cylindrical pins ensure durable and stable connections between structural elements, eliminating play or unwanted movement.

  • Versatility:
    Available in a variety of materials and dimensions, cylindrical pins offer a versatile solution for various applications.

  • Ease of Installation:
    Easy to install, which speeds up production and construction processes.

  • Load Resistance:
    Their mechanical strength makes cylindrical pins resistant to high dynamic and static loads.

View in store

Recommended

Group
1640

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

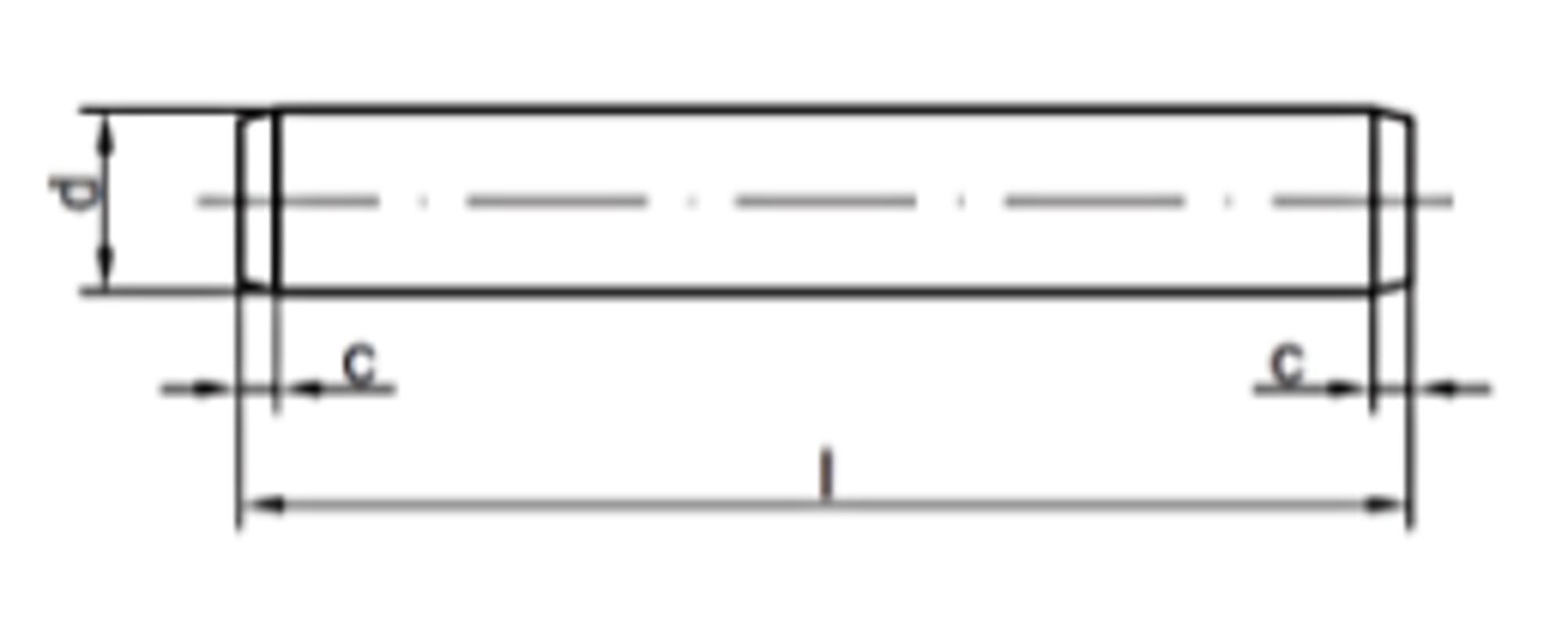

Dimension d [mm]
Dimension L [mm]
Dimension c [mm]
Size r [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension c [mm] Size r [mm] Variety of coating Standard Unit of measure Availability Show More
1640010003SD7T
1 3 0.15 1 raw DIN 7 THS
1640010003SIT
1 3 0.2 1 raw ISO 2338 THS
1640010004SD7T
1 4 0.15 1 raw DIN 7 THS
1640010004SIT
1 4 0.2 1 raw ISO 2338 THS
1640010005SD7T
1 5 0.15 1 raw DIN 7 THS
1640010005SIT
1 5 0.2 1 raw ISO 2338 THS
1640010006SD7T
1 6 0.15 1 raw DIN 7 THS
1640010006SIT
1 6 0.2 1 raw ISO 2338 THS
1640010008SD7T
1 8 0.15 1 raw DIN 7 THS
1640010008SIT
1 8 0.2 1 raw ISO 2338 THS
1640010010SD7T
1 10 0.15 1 raw DIN 7 THS
1640010010SIT
1 10 0.2 1 raw ISO 2338 THS
1640010012SD7T
1 12 0.15 1 raw DIN 7 THS
1640010012SIT
1 12 0.2 1 raw ISO 2338 THS
1640015003SIT
1.5 3 0.3 1.6 raw ISO 2338 THS
1640015004SD7T
1.5 4 0.23 1.6 raw DIN 7 THS
1640015004SIT
1.5 4 0.3 1.6 raw ISO 2338 THS
1640015005SD7T
1.5 5 0.23 1.6 raw DIN 7 THS
1640015005SIT
1.5 5 0.3 1.6 raw ISO 2338 THS
1640015006SD7T
1.5 6 0.23 1.6 raw DIN 7 THS
1640015006SIT
1.5 6 0.3 1.6 raw ISO 2338 THS
1640015008SD7T
1.5 8 0.23 1.6 raw DIN 7 THS
1640015008SIT
1.5 8 0.3 1.6 raw ISO 2338 THS
1640015010SD7T
1.5 10 0.23 1.6 raw DIN 7 THS
1640015010SIT
1.5 10 0.3 1.6 raw ISO 2338 THS
1640015012SD7T
1.5 12 0.23 1.6 raw DIN 7 THS
1640015012SIT
1.5 12 0.3 1.6 raw ISO 2338 THS
1640015014SD7T
1.5 14 0.23 1.6 raw DIN 7 THS
1640015014SIT
1.5 14 0.3 1.6 raw ISO 2338 THS
1640015016SD7T
1.5 16 0.23 1.6 raw DIN 7 THS
1640015016SIT
1.5 16 0.3 1.6 raw ISO 2338 THS
1640015018SD7T
1.5 18 0.23 1.6 raw DIN 7 THS
1640015018SIT
1.5 18 0.3 1.6 raw ISO 2338 THS
1640015020SD7T
1.5 20 0.23 1.6 raw DIN 7 THS
1640015020SIT
1.5 20 0.3 1.6 raw ISO 2338 THS
1640020004SD7T
2 4 0.30 2 raw DIN 7 THS
1640020004SIT
2 4 0.35 2 raw ISO 2338 THS
1640020005SD7T
2 5 0.30 2 raw DIN 7 THS
1640020005SIT
2 5 0.35 2 raw ISO 2338 THS
1640020006SD7T
2 6 0.30 2 raw DIN 7 THS
1640020006SIT
2 6 0.35 2 raw ISO 2338 THS
1640020008SD7T
2 8 0.30 2 raw DIN 7 THS
1640020008SIT
2 8 0.35 2 raw ISO 2338 THS
1640020010SD7T
2 10 0.30 2 raw DIN 7 THS
1640020010SIT
2 10 0.35 2 raw ISO 2338 THS
1640020012SD7T
2 12 0.30 2 raw DIN 7 THS
1640020012SIT
2 12 0.35 2 raw ISO 2338 THS
1640020014SD7T
2 14 0.30 2 raw DIN 7 THS
1640020014SIT
2 14 0.35 2 raw ISO 2338 THS
1640020016SD7T
2 16 0.30 2 raw DIN 7 THS
1640020016SIT
2 16 0.35 2 raw ISO 2338 THS
1640020018SD7T
2 18 0.30 2 raw DIN 7 THS
1640020018SIT
2 18 0.35 2 raw ISO 2338 THS
1640020020SD7T
2 20 0.30 2 raw DIN 7 THS
1640020020SIT
2 20 0.35 2 raw ISO 2338 THS
1640020024SD7T
2 24 0.30 2 raw DIN 7 THS
1640020024SIT
2 24 0.35 2 raw ISO 2338 THS
1640020028SD7T
2 28 0.30 2 raw DIN 7 THS
1640020028SIT
2 28 0.35 2 raw ISO 2338 THS
1640020030SD7T
2 30 0.30 2 raw DIN 7 THS
1640020030SIT
2 30 0.35 2 raw ISO 2338 THS
1640025005SD7T
2.5 5 0.4 2.5 raw DIN 7 THS
1640025005SIT
2.5 5 0.4 2.5 raw ISO 2338 THS
1640025006SD7T
2.5 6 0.4 2.5 raw DIN 7 THS
1640025006SIT
2.5 6 0.4 2.5 raw ISO 2338 THS
1640025008SD7T
2.5 8 0.40 2.5 raw DIN 7 THS
1640025008SIT
2.5 8 0.4 2.5 raw ISO 2338 THS
1640025010SD7T
2.5 10 0.40 2.5 raw DIN 7 THS
1640025010SIT
2.5 10 0.4 2.5 raw ISO 2338 THS
1640025012SD7T
2.5 12 0.40 2.5 raw DIN 7 THS
1640025012SIT
2.5 12 0.4 2.5 raw ISO 2338 THS
1640025014SD7T
2.5 14 0.4 2.5 raw DIN 7 THS
1640025014SIT
2.5 14 0.4 2.5 raw ISO 2338 THS
1640025016SD7T
2.5 16 0.40 2.5 raw DIN 7 THS
1640025016SIT
2.5 16 0.4 2.5 raw ISO 2338 THS
1640025018SD7T
2.5 18 0.4 2.5 raw DIN 7 THS
1640025018SIT
2.5 18 0.4 2.5 raw ISO 2338 THS
1640025020SD7T
2.5 20 0.40 2.5 raw DIN 7 THS
1640025020SIT
2.5 20 0.4 2.5 raw ISO 2338 THS
1640025024SD7T
2.5 24 0.4 2.5 raw DIN 7 THS
1640025024SIT
2.5 24 0.4 2.5 raw ISO 2338 THS
1640025028SD7T
2.5 28 0.4 2.5 raw DIN 7 THS
1640025028SIT
2.5 28 0.4 2.5 raw ISO 2338 THS
1640025030SD7T
2.5 30 0.40 2.5 raw DIN 7 THS
1640025030SIT
2.5 30 0.4 2.5 raw ISO 2338 THS
1640025032SD7T
2.5 32 0.4 2.5 raw DIN 7 THS
1640025032SIT
2.5 32 0.4 2.5 raw ISO 2338 THS
1640030005SD7T
3 5 0.45 3 raw DIN 7 THS
1640030005SIT
3 5 0.5 3 raw ISO 2338 THS
1640030006SD7T
3 6 0.45 3 raw DIN 7 THS
1640030006SIT
3 6 0.5 3 raw ISO 2338 THS
1640030008SD7T
3 8 0.45 3 raw DIN 7 THS
1640030008SIT
3 8 0.5 3 raw ISO 2338 THS
1640030010SD7T
3 10 0.45 3 raw DIN 7 THS
1640030010SIT
3 10 0.5 3 raw ISO 2338 THS
1640030012SD7T
3 12 0.45 3 raw DIN 7 THS
1640030012SIT
3 12 0.5 3 raw ISO 2338 THS
1640030012ST
3 12 0.45 3 raw DIN 7 THS
1640030014SD7T
3 14 0.45 3 raw DIN 7 THS
1640030014SIT
3 14 0.5 3 raw ISO 2338 THS
1640030016SD7T
3 16 0.45 3 raw DIN 7 THS
1640030016SIT
3 16 0.5 3 raw ISO 2338 THS
1640030018SD7T
3 18 0.45 3 raw DIN 7 THS
1640030018SIT
3 18 0.5 3 raw ISO 2338 THS
1640030020SD7T
3 20 0.45 3 raw DIN 7 THS
1640030020SIT
3 20 0.5 3 raw ISO 2338 THS
1640030022SD7T
3 22 0.45 3 raw DIN 7 THS
1640030024SD7T
3 24 0.45 3 raw DIN 7 THS
1640030024SIT
3 24 0.5 3 raw ISO 2338 THS
1640030028SD7T
3 28 0.45 3 raw DIN 7 THS
1640030028SIT
3 28 0.5 3 raw ISO 2338 THS
1640030030SD7T
3 30 0.45 3 raw DIN 7 THS
1640030030SIT
3 30 0.5 3 raw ISO 2338 THS
1640030032SD7T
3 32 0.45 3 raw DIN 7 THS
1640030032SIT
3 32 0.5 3 raw ISO 2338 THS
1640030036SD7T
3 36 0.45 3 raw DIN 7 THS
1640030036SIT
3 36 0.5 3 raw ISO 2338 THS
1640030040SD7T
3 40 0.45 3 raw DIN 7 THS
1640030040SIT
3 40 0.5 3 raw ISO 2338 THS
1640030045SIT
3 45 0.5 3 raw ISO 2338 THS
1640030050SD7T
3 50 0.45 3 raw DIN 7 THS
1640030050SIT
3 50 0.5 3 raw ISO 2338 THS
1640040005SD7T
4 5 0.60 4 raw DIN 7 THS
1640040005SIT
4 5 0.63 4 raw ISO 2338 THS
1640040006SD7T
4 6 0.60 4 raw DIN 7 THS
1640040006SIT
4 6 0.63 4 raw ISO 2338 THS
1640040008SD7T
4 8 0.60 4 raw DIN 7 THS
1640040008SIT
4 8 0.63 4 raw ISO 2338 THS
1640040010SD7T
4 10 0.60 4 raw DIN 7 THS
1640040010SIT
4 10 0.63 4 raw ISO 2338 THS
1640040012SD7T
4 12 0.60 4 raw DIN 7 THS
1640040012SIT
4 12 0.63 4 raw ISO 2338 THS
1640040014SD7T
4 14 0.60 4 raw DIN 7 THS
1640040014SIT
4 14 0.63 4 raw ISO 2338 THS
1640040016SD7T
4 16 0.60 4 raw DIN 7 THS
1640040016SIT
4 16 0.63 4 raw ISO 2338 THS
1640040018SD7T
4 18 0.60 4 raw DIN 7 THS
1640040018SIT
4 18 0.63 4 raw ISO 2338 THS
1640040020SD7T
4 20 0.60 4 raw DIN 7 THS
1640040020SIT
4 20 0.63 4 raw ISO 2338 THS
1640040022SD7T
4 22 0.60 4 raw DIN 7 THS
1640040024SD7T
4 24 0.60 4 raw DIN 7 THS
1640040024SIT
4 24 0.63 4 raw ISO 2338 THS
1640040024ST
4 24 0.60 4 raw DIN 7 THS
1640040026SD7T
4 26 0.60 4 raw DIN 7 THS
1640040026SIT
4 26 0.63 4 raw ISO 2338 THS
1640040028SD7T
4 28 0.60 4 raw DIN 7 THS
1640040028SIT
4 28 0.63 4 raw ISO 2338 THS
1640040030SD7T
4 30 0.60 4 raw DIN 7 THS
1640040030SIT
4 30 0.63 4 raw ISO 2338 THS
1640040032SD7T
4 32 0.60 4 raw DIN 7 THS
1640040032SIT
4 32 0.63 4 raw ISO 2338 THS
1640040036SD7T
4 36 0.60 4 raw DIN 7 THS
1640040036SIT
4 36 0.63 4 raw ISO 2338 THS
1640040040SD7T
4 40 0.60 4 raw DIN 7 THS
1640040040SIT
4 40 0.63 4 raw ISO 2338 THS
1640040045SD7T
4 45 0.60 4 raw DIN 7 THS
1640040045SIT
4 45 0.63 4 raw ISO 2338 THS
1640040045ST
4 45 0.60 4 raw DIN 7 THS
1640040050SD7T
4 50 0.60 4 raw DIN 7 THS
1640040050SIT
4 50 0.63 4 raw ISO 2338 THS
1640050005SD7T
5 5 0.75 5 raw DIN 7 THS
1640050006SD7T
5 6 0.75 5 raw DIN 7 THS
1640050006SIT
5 6 0.8 5 raw ISO 2338 THS
1640050008SD7T
5 8 0.75 5 raw DIN 7 THS
1640050008SIT
5 8 0.8 5 raw ISO 2338 THS
1640050010SD7T
5 10 0.75 5 raw DIN 7 THS
1640050010SIT
5 10 0.8 5 raw ISO 2338 THS
1640050012SD7T
5 12 0.75 5 raw DIN 7 THS
1640050012SIT
5 12 0.8 5 raw ISO 2338 THS
1640050014SD7T
5 14 0.75 5 raw DIN 7 THS
1640050014SIT
5 14 0.8 5 raw ISO 2338 THS
1640050016SD7T
5 16 0.75 5 raw DIN 7 THS
1640050016SIT
5 16 0.8 5 raw ISO 2338 THS
1640050018SD7T
5 18 0.75 5 raw DIN 7 THS
1640050018SIT
5 18 0.8 5 raw ISO 2338 THS
1640050020SD7T
5 20 0.75 5 raw DIN 7 THS
1640050020SIT
5 20 0.8 5 raw ISO 2338 THS
1640050022SD7T
5 22 0.75 5 raw DIN 7 THS
1640050022SIT
5 22 0.8 5 raw ISO 2338 THS
1640050024SD7T
5 24 0.75 5 raw DIN 7 THS
1640050024SIT
5 24 0.8 5 raw ISO 2338 THS
1640050026SD7T
5 26 0.75 5 raw DIN 7 THS
1640050028SD7T
5 28 0.75 5 raw DIN 7 THS
1640050028SIT
5 28 0.8 5 raw ISO 2338 THS
1640050030SD7T
5 30 0.75 5 raw DIN 7 THS
1640050030SIT
5 30 0.8 5 raw ISO 2338 THS
1640050032SD7T
5 32 0.75 5 raw DIN 7 THS
1640050032SIT
5 32 0.8 5 raw ISO 2338 THS
1640050036SD7T
5 36 0.75 5 raw DIN 7 THS
1640050036SIT
5 36 0.8 5 raw ISO 2338 THS
1640050040SD7T
5 40 0.75 5 raw DIN 7 THS
1640050040SIT
5 40 0.8 5 raw ISO 2338 THS
1640050045SD7T
5 45 0.75 5 raw DIN 7 THS
1640050045SIT
5 45 0.8 5 raw ISO 2338 THS
1640050050SD7T
5 50 0.75 5 raw DIN 7 THS
1640050050SIT
5 50 0.8 5 raw ISO 2338 THS
1640050055SD7T
5 55 0.75 5 raw DIN 7 THS
1640050055SIT
5 55 0.8 5 raw ISO 2338 THS
1640050060SD7T
5 60 0.75 5 raw DIN 7 THS
1640050060SIT
5 60 0.8 5 raw ISO 2338 THS
1640060006SD7T
6 6 0.9 6 raw DIN 7 THS
1640060006SIT
6 6 1.2 6 raw ISO 2338 THS
1640060008SD7T
6 8 0.9 6 raw DIN 7 THS
1640060008SIT
6 8 1.2 6 raw ISO 2338 THS
1640060010SD7T
6 10 0.9 6 raw DIN 7 THS
1640060010SIT
6 10 1.2 6 raw ISO 2338 THS
1640060012SD7T
6 12 0.9 6 raw DIN 7 THS
1640060012SIT
6 12 1.2 6 raw ISO 2338 THS
1640060014SD7T
6 14 0.9 6 raw DIN 7 THS
1640060014SIT
6 14 1.2 6 raw ISO 2338 THS
1640060016SD7T
6 16 0.9 6 raw DIN 7 THS
1640060016SIT
6 16 1.2 6 raw ISO 2338 THS
1640060018SD7T
6 18 0.9 6 raw DIN 7 THS
1640060018SIT
6 18 1.2 6 raw ISO 2338 THS
1640060020SD7T
6 20 0.9 6 raw DIN 7 THS
1640060020SIT
6 20 1.2 6 raw ISO 2338 THS
1640060022SD7T
6 22 0.9 6 raw DIN 7 THS
1640060022SIT
6 22 1.2 6 raw ISO 2338 THS
1640060024SD7T
6 24 0.9 6 raw DIN 7 THS
1640060024SIT
6 24 1.2 6 raw ISO 2338 THS
1640060026SD7T
6 26 0.9 6 raw DIN 7 THS
1640060026SIT
6 26 1.2 6 raw ISO 2338 THS
1640060028SD7T
6 28 0.9 6 raw DIN 7 THS
1640060028SIT
6 28 1.2 6 raw ISO 2338 THS
1640060030SD7T
6 30 0.9 6 raw DIN 7 THS
1640060030SIT
6 30 1.2 6 raw ISO 2338 THS
1640060032SD7T
6 32 0.9 6 raw DIN 7 THS
1640060032SIT
6 32 1.2 6 raw ISO 2338 THS
1640060036SD7T
6 36 0.9 6 raw DIN 7 THS
1640060036SIT
6 36 1.2 6 raw ISO 2338 THS
1640060040SD7T
6 40 0.9 6 raw DIN 7 THS
1640060040SIT
6 40 1.2 6 raw ISO 2338 THS
1640060045SD7T
6 45 0.9 6 raw DIN 7 THS
1640060045SIT
6 45 1.2 6 raw ISO 2338 THS
1640060050SD7T
6 50 0.9 6 raw DIN 7 THS
1640060050SIT
6 50 1.2 6 raw ISO 2338 THS
1640060055SD7T
6 55 0.9 6 raw DIN 7 THS
1640060055SIT
6 55 1.2 6 raw ISO 2338 THS
1640060060SD7T
6 60 0.9 6 raw DIN 7 THS
1640060060SIT
6 60 1.2 6 raw ISO 2338 THS
1640060070SD7T
6 70 0.9 6 raw DIN 7 THS
1640060070SIT
6 70 1.2 6 raw ISO 2338 THS
1640060080SD7T
6 80 0.9 6 raw DIN 7 THS
1640060080SIT
6 80 1.2 6 raw ISO 2338 THS
1640060090SD7T
6 90 0.9 6 raw DIN 7 THS
1640060090SIT
6 90 1.2 6 raw ISO 2338 THS
1640060100SD7T
6 100 0.9 6 raw DIN 7 THS
1640060100SIT
6 100 1.2 6 raw ISO 2338 THS
1640080008SD7T
8 8 1.20 8 raw DIN 7 THS
1640080008SIT
8 8 1.6 8 raw ISO 2338 THS
1640080010SD7T
8 10 1.20 8 raw DIN 7 THS
1640080010SIT
8 10 1.6 8 raw ISO 2338 THS
1640080012SD7T
8 12 1.20 8 raw DIN 7 THS
1640080012SIT
8 12 1.6 8 raw ISO 2338 THS
1640080012ST
8 12 1.20 8 raw DIN 7 THS
1640080014SD7T
8 14 1.20 8 raw DIN 7 THS
1640080014SIT
8 14 1.6 8 raw ISO 2338 THS
1640080016SD7T
8 16 1.20 8 raw DIN 7 THS
1640080016SIT
8 16 1.6 8 raw ISO 2338 THS
1640080016ST
8 16 1.20 8 raw DIN 7 THS
1640080018SD7T
8 18 1.20 8 raw DIN 7 THS
1640080018SIT
8 18 1.6 8 raw ISO 2338 THS
1640080020SD7T
8 20 1.20 8 raw DIN 7 THS
1640080020SIT
8 20 1.6 8 raw ISO 2338 THS
1640080022SD7T
8 22 1.20 8 raw DIN 7 THS
1640080022SIT
8 22 1.6 8 raw ISO 2338 THS
1640080024SD7T
8 24 1.20 8 raw DIN 7 THS
1640080024SIT
8 24 1.6 8 raw ISO 2338 THS
1640080026SD7T
8 26 1.20 8 raw DIN 7 THS
1640080026SIT
8 26 1.6 8 raw ISO 2338 THS
1640080028SD7T
8 28 1.20 8 raw DIN 7 THS
1640080028SIT
8 28 1.6 8 raw ISO 2338 THS
1640080030SD7T
8 30 1.20 8 raw DIN 7 THS
1640080030SIT
8 30 1.6 8 raw ISO 2338 THS
1640080030ST
8 30 1.20 8 raw DIN 7 THS
1640080032SD7T
8 32 1.20 8 raw DIN 7 THS
1640080032SIT
8 32 1.6 8 raw ISO 2338 THS
1640080036SD7T
8 36 1.20 8 raw DIN 7 THS
1640080036SIT
8 36 1.6 8 raw ISO 2338 THS
1640080040SD7T
8 40 1.20 8 raw DIN 7 THS
1640080040SIT
8 40 1.6 8 raw ISO 2338 THS
1640080045SD7T
8 45 1.20 8 raw DIN 7 THS
1640080045SIT
8 45 1.6 8 raw ISO 2338 THS
1640080050SD7T
8 50 1.20 8 raw DIN 7 THS
1640080050SIT
8 50 1.6 8 raw ISO 2338 THS
1640080055SD7T
8 55 1.20 8 raw DIN 7 THS
1640080055SIT
8 55 1.6 8 raw ISO 2338 THS
1640080060SD7T
8 60 1.20 8 raw DIN 7 THS
1640080060SIT
8 60 1.6 8 raw ISO 2338 THS
1640080070SD7T
8 70 1.20 8 raw DIN 7 THS
1640080070SIT
8 70 1.6 8 raw ISO 2338 THS
1640080080SD7T
8 80 1.20 8 raw DIN 7 THS
1640080080SIT
8 80 1.6 8 raw ISO 2338 THS
1640080090SD7T
8 90 1.20 8 raw DIN 7 THS
1640080090SIT
8 90 1.6 8 raw ISO 2338 THS
1640080100SD7T
8 100 1.20 8 raw DIN 7 THS
1640080100SIT
8 100 1.6 8 raw ISO 2338 THS
1640100010SD7T
10 10 1.5 10 raw DIN 7 THS
1640100010SIT
10 10 2 10 raw ISO 2338 THS
1640100012SD7T
10 12 1.5 10 raw DIN 7 THS
1640100012SIT
10 12 2 10 raw ISO 2338 THS
1640100014SD7T
10 14 1.5 10 raw DIN 7 THS
1640100014SIT
10 14 2 10 raw ISO 2338 THS
1640100016SD7T
10 16 1.5 10 raw DIN 7 THS
1640100016SIT
10 16 2 10 raw ISO 2338 THS
1640100016ST
10 16 1.5 10 raw DIN 7 THS
1640100018SD7T
10 18 1.5 10 raw DIN 7 THS
1640100018SIT
10 18 2 10 raw ISO 2338 THS
1640100020SD7T
10 20 1.5 10 raw DIN 7 THS
1640100020SIT
10 20 2 10 raw ISO 2338 THS
1640100022SD7T
10 22 1.5 10 raw DIN 7 THS
1640100024SD7T
10 24 1.5 10 raw DIN 7 THS
1640100024SIT
10 24 2 10 raw ISO 2338 THS
1640100026SD7T
10 26 1.5 10 raw DIN 7 THS
1640100028SD7T
10 28 1.5 10 raw DIN 7 THS
1640100028SIT
10 28 2 10 raw ISO 2338 THS
1640100030SD7T
10 30 1.5 10 raw DIN 7 THS
1640100030SIT
10 30 2 10 raw ISO 2338 THS
1640100032SD7T
10 32 1.5 10 raw DIN 7 THS
1640100032SIT
10 32 2 10 raw ISO 2338 THS
1640100036SD7T
10 36 1.5 10 raw DIN 7 THS
1640100036SIT
10 36 2 10 raw ISO 2338 THS
1640100040SD7T
10 40 1.5 10 raw DIN 7 THS
1640100040SIT
10 40 2 10 raw ISO 2338 THS
1640100045SD7T
10 45 1.5 10 raw DIN 7 THS
1640100045SIT
10 45 2 10 raw ISO 2338 THS
1640100050SD7T
10 50 1.5 10 raw DIN 7 THS
1640100050SIT
10 50 2 10 raw ISO 2338 THS
1640100055SD7T
10 55 1.5 10 raw DIN 7 THS
1640100055SIT
10 55 2 10 raw ISO 2338 THS
1640100060SD7T
10 60 1.5 10 raw DIN 7 THS
1640100060SIT
10 60 2 10 raw ISO 2338 THS
1640100065SD7T
10 65 1.5 10 raw DIN 7 THS
1640100065SIT
10 65 2 10 raw ISO 2338 THS
1640100070SD7T
10 70 1.5 10 raw DIN 7 THS
1640100070SIT
10 70 2 10 raw ISO 2338 THS
1640100080SD7T
10 80 1.5 10 raw DIN 7 THS
1640100080SIT
10 80 2 10 raw ISO 2338 THS
1640100090SD7T
10 90 1.5 10 raw DIN 7 THS
1640100090SIT
10 90 2 10 raw ISO 2338 THS
1640100100SD7T
10 100 1.5 10 raw DIN 7 THS
1640100100SIT
10 100 2 10 raw ISO 2338 THS
1640100120SD7T
10 120 1.5 10 raw DIN 7 THS
1640100120SIT
10 120 2 10 raw ISO 2338 THS
1640120012SD7T
12 12 1.8 12 raw DIN 7 THS
1640120012SIT
12 12 2.5 12 raw ISO 2338 THS
1640120014SD7T
12 14 1.8 12 raw DIN 7 THS
1640120014SIT
12 14 2.5 12 raw ISO 2338 THS
1640120016SD7T
12 16 1.8 12 raw DIN 7 THS
1640120016SIT
12 16 2.5 12 raw ISO 2338 THS
1640120018SD7T
12 18 1.8 12 raw DIN 7 THS
1640120018SIT
12 18 2.5 12 raw ISO 2338 THS
1640120020SD7T
12 20 1.8 12 raw DIN 7 THS
1640120020SIT
12 20 2.5 12 raw ISO 2338 THS
1640120022SD7T
12 22 1.8 12 raw DIN 7 THS
1640120024SD7T
12 24 1.8 12 raw DIN 7 THS
1640120024SIT
12 24 2.5 12 raw ISO 2338 THS
1640120028SD7T
12 28 1.8 12 raw DIN 7 THS
1640120028SIT
12 28 2.5 12 raw ISO 2338 THS
1640120030SD7T
12 30 1.8 12 raw DIN 7 THS
1640120030SIT
12 30 2.5 12 raw ISO 2338 THS
1640120032SD7T
12 32 1.8 12 raw DIN 7 THS
1640120032SIT
12 32 2.5 12 raw ISO 2338 THS
1640120036SD7T
12 36 1.8 12 raw DIN 7 THS
1640120036SIT
12 36 2.5 12 raw ISO 2338 THS
1640120040SD7T
12 40 1.8 12 raw DIN 7 THS
1640120040SIT
12 40 2.5 12 raw ISO 2338 THS
1640120045SD7T
12 45 1.8 12 raw DIN 7 THS
1640120045SIT
12 45 2.5 12 raw ISO 2338 THS
1640120050SD7T
12 50 1.8 12 raw DIN 7 THS
1640120050SIT
12 50 2.5 12 raw ISO 2338 THS
1640120055SD7T
12 55 1.8 12 raw DIN 7 THS
1640120055SIT
12 55 2.5 12 raw ISO 2338 THS
1640120060SD7T
12 60 1.8 12 raw DIN 7 THS
1640120060SIT
12 60 2.5 12 raw ISO 2338 THS
1640120070SD7T
12 70 1.8 12 raw DIN 7 THS
1640120070SIT
12 70 2.5 12 raw ISO 2338 THS
1640120080SD7T
12 80 1.8 12 raw DIN 7 THS
1640120080SIT
12 80 2.5 12 raw ISO 2338 THS
1640120090SD7T
12 90 1.8 12 raw DIN 7 THS
1640120090SIT
12 90 2.5 12 raw ISO 2338 THS
1640120100SD7T
12 100 1.8 12 raw DIN 7 THS
1640120100SIT
12 100 2.5 12 raw ISO 2338 THS
1640120120SD7T
12 120 1.8 12 raw DIN 7 THS
1640120120SIT
12 120 2.5 12 raw ISO 2338 THS
1640130014SIT
13 14 14 raw ISO 2338 THS
1640130016SIT
13 16 14 raw ISO 2338 THS
1640130018SIT
13 18 14 raw ISO 2338 THS
1640130020SD7T
13 20 1.9 14 raw DIN 7 THS
1640130020SIT
13 20 14 raw ISO 2338 THS
1640130024SIT
13 24 14 raw ISO 2338 THS
1640130028SD7T
13 28 1.9 14 raw DIN 7 THS
1640130028SIT
13 28 14 raw ISO 2338 THS
1640130030SIT
13 30 14 raw ISO 2338 THS
1640130032SIT
13 32 14 raw ISO 2338 THS
1640130036SIT
13 36 14 raw ISO 2338 THS
1640130040SD7T
13 40 1.9 14 raw DIN 7 THS
1640130040SIT
13 40 14 raw ISO 2338 THS
1640130045SIT
13 45 14 raw ISO 2338 THS
1640130050SD7T
13 50 1.9 14 raw DIN 7 THS
1640130050SIT
13 50 14 raw ISO 2338 THS
1640130055SIT
13 55 14 raw ISO 2338 THS
1640130060SD7T
13 60 1.9 14 raw DIN 7 THS
1640130060SIT
13 60 14 raw ISO 2338 THS
1640130070SD7T
13 70 1.9 14 raw DIN 7 THS
1640130070SIT
13 70 14 raw ISO 2338 THS
1640130080SD7T
13 80 1.9 14 raw DIN 7 THS
1640130080SIT
13 80 14 raw ISO 2338 THS
1640130090SIT
13 90 14 raw ISO 2338 THS
1640130100SIT
13 100 14 raw ISO 2338 THS
1640130120SIT
13 120 14 raw ISO 2338 THS
1640140020SD7T
14 20 2 16 raw DIN 7 THS
1640140020SIT
14 20 16 raw ISO 2338 THS
1640140024SD7T
14 24 2 16 raw DIN 7 THS
1640140024SIT
14 24 16 raw ISO 2338 THS
1640140028SD7T
14 28 2 16 raw DIN 7 THS
1640140028SIT
14 28 16 raw ISO 2338 THS
1640140030SD7T
14 30 2 16 raw DIN 7 THS
1640140030SIT
14 30 16 raw ISO 2338 THS
1640140032SD7T
14 32 2 16 raw DIN 7 THS
1640140032SIT
14 32 16 raw ISO 2338 THS
1640140036SD7T
14 36 2 16 raw DIN 7 THS
1640140036SIT
14 36 16 raw ISO 2338 THS
1640140040SD7T
14 40 2 16 raw DIN 7 THS
1640140040SIT
14 40 16 raw ISO 2338 THS
1640140045SD7T
14 45 2 16 raw DIN 7 THS
1640140045SIT
14 45 16 raw ISO 2338 THS
1640140050SD7T
14 50 2 16 raw DIN 7 THS
1640140050SIT
14 50 16 raw ISO 2338 THS
1640140055SD7T
14 55 2 16 raw DIN 7 THS
1640140055SIT
14 55 16 raw ISO 2338 THS
1640140060SD7T
14 60 2 16 raw DIN 7 THS
1640140060SIT
14 60 16 raw ISO 2338 THS
1640140070SD7T
14 70 2 16 raw DIN 7 THS
1640140070SIT
14 70 16 raw ISO 2338 THS
1640140080SD7T
14 80 2 16 raw DIN 7 THS
1640140080SIT
14 80 16 raw ISO 2338 THS
1640140090SD7T
14 90 2 16 raw DIN 7 THS
1640140090SIT
14 90 16 raw ISO 2338 THS
1640140100SD7T
14 100 2 16 raw DIN 7 THS
1640140100SIT
14 100 16 raw ISO 2338 THS
1640140120SD7T
14 120 2 16 raw DIN 7 THS
1640140120SIT
14 120 16 raw ISO 2338 THS
1640160020SD7T
16 20 2.5 16 raw DIN 7 THS
1640160020SIT
16 20 3 16 raw ISO 2338 THS
1640160024SD7T
16 24 2.5 16 raw DIN 7 THS
1640160024SIT
16 24 3 16 raw ISO 2338 THS
1640160028SD7T
16 28 2.5 16 raw DIN 7 THS
1640160028SIT
16 28 3 16 raw ISO 2338 THS
1640160030SD7T
16 30 2.5 16 raw DIN 7 THS
1640160030SIT
16 30 3 16 raw ISO 2338 THS
1640160032SD7T
16 32 2.5 16 raw DIN 7 THS
1640160032SIT
16 32 3 16 raw ISO 2338 THS
1640160036SD7T
16 36 2.5 16 raw DIN 7 THS
1640160036SIT
16 36 3 16 raw ISO 2338 THS
1640160040SD7T
16 40 2.5 16 raw DIN 7 THS
1640160040SIT
16 40 3 16 raw ISO 2338 THS
1640160045SD7T
16 45 2.5 16 raw DIN 7 THS
1640160045SIT
16 45 3 16 raw ISO 2338 THS
1640160050SD7T
16 50 2.5 16 raw DIN 7 THS
1640160050SIT
16 50 3 16 raw ISO 2338 THS
1640160055SD7T
16 55 2.5 16 raw DIN 7 THS
1640160055SIT
16 55 3 16 raw ISO 2338 THS
1640160060SD7T
16 60 2.5 16 raw DIN 7 THS
1640160060SIT
16 60 3 16 raw ISO 2338 THS
1640160070SD7T
16 70 2.5 16 raw DIN 7 THS
1640160070SIT
16 70 3 16 raw ISO 2338 THS
1640160080SD7T
16 80 2.5 16 raw DIN 7 THS
1640160080SIT
16 80 3 16 raw ISO 2338 THS
1640160090SD7T
16 90 2.5 16 raw DIN 7 THS
1640160090SIT
16 90 3 16 raw ISO 2338 THS
1640160100SD7T
16 100 2.5 16 raw DIN 7 THS
1640160100SIT
16 100 3 16 raw ISO 2338 THS
1640160120SD7T
16 120 2.5 16 raw DIN 7 THS
1640160120SIT
16 120 3 16 raw ISO 2338 THS
1640200024SD7T
20 24 3 20 raw DIN 7 THS
1640200024SIT
20 24 3.5 20 raw ISO 2338 THS
1640200028SD7T
20 28 3 20 raw DIN 7 THS
1640200028SIT
20 28 3.5 20 raw ISO 2338 THS
1640200030SD7T
20 30 3 20 raw DIN 7 THS
1640200030SIT
20 30 3.5 20 raw ISO 2338 THS
1640200032SD7T
20 32 3 20 raw DIN 7 THS
1640200032SIT
20 32 3.5 20 raw ISO 2338 THS
1640200036SD7T
20 36 3 20 raw DIN 7 THS
1640200036SIT
20 36 3.5 20 raw ISO 2338 THS
1640200040SD7T
20 40 3 20 raw DIN 7 THS
1640200040SIT
20 40 3.5 20 raw ISO 2338 THS
1640200045SD7T
20 45 3 20 raw DIN 7 THS
1640200045SIT
20 45 3.5 20 raw ISO 2338 THS
1640200050SD7T
20 50 3 20 raw DIN 7 THS
1640200050SIT
20 50 3.5 20 raw ISO 2338 THS
1640200055SD7T
20 55 3 20 raw DIN 7 THS
1640200055SIT
20 55 3.5 20 raw ISO 2338 THS
1640200060SD7T
20 60 3 20 raw DIN 7 THS
1640200060SIT
20 60 3.5 20 raw ISO 2338 THS
1640200070SD7T
20 70 3 20 raw DIN 7 THS
1640200070SIT
20 70 3.5 20 raw ISO 2338 THS
1640200080SD7T
20 80 3 20 raw DIN 7 THS
1640200080SIT
20 80 3.5 20 raw ISO 2338 THS
1640200090SD7T
20 90 3 20 raw DIN 7 THS
1640200090SIT
20 90 3.5 20 raw ISO 2338 THS
1640200100SD7T
20 100 3 20 raw DIN 7 THS
1640200100SIT
20 100 3.5 20 raw ISO 2338 THS
1640200120SD7T
20 120 3 20 raw DIN 7 THS
1640200120SIT
20 120 3.5 20 raw ISO 2338 THS
1640250040SD7T
25 40 4 25 raw DIN 7 THS
1640250040SIT
25 40 4 25 raw ISO 2338 THS
1640250045SD7T
25 45 4 25 raw DIN 7 THS
1640250045SIT
25 45 4 25 raw ISO 2338 THS
1640250050SD7T
25 50 4 25 raw DIN 7 THS
1640250050SIT
25 50 4 25 raw ISO 2338 THS
1640250055SIT
25 55 4 25 raw ISO 2338 THS
1640250060SD7T
25 60 4 25 raw DIN 7 THS
1640250060SIT
25 60 4 25 raw ISO 2338 THS
1640250070SD7T
25 70 4 25 raw DIN 7 THS
1640250070SIT
25 70 4 25 raw ISO 2338 THS
1640250080SD7T
25 80 4 25 raw DIN 7 THS
1640250080SIT
25 80 4 25 raw ISO 2338 THS
1640250090SD7T
25 90 4 25 raw DIN 7 THS
1640250090SIT
25 90 4 25 raw ISO 2338 THS
1640250100SD7T
25 100 4 25 raw DIN 7 THS
1640250100SIT
25 100 4 25 raw ISO 2338 THS
1640250120SD7T
25 120 4 25 raw DIN 7 THS
1640250120SIT
25 120 4 25 raw ISO 2338 THS
1640300040SIT
30 40 5 32 raw ISO 2338 THS
1640300045SIT
30 45 5 32 raw ISO 2338 THS
1640300050SD7T
30 50 4.5 32 raw DIN 7 THS
1640300050SIT
30 50 5 32 raw ISO 2338 THS
1640300055SIT
30 55 5 32 raw ISO 2338 THS
1640300060SD7T
30 60 4.5 32 raw DIN 7 THS
1640300060SIT
30 60 5 32 raw ISO 2338 THS
1640300070SD7T
30 70 4.5 32 raw DIN 7 THS
1640300070SIT
30 70 5 32 raw ISO 2338 THS
1640300080SD7T
30 80 4.5 32 raw DIN 7 THS
1640300080SIT
30 80 5 32 raw ISO 2338 THS
1640300090SD7T
30 90 4.5 32 raw DIN 7 THS
1640300090SIT
30 90 5 32 raw ISO 2338 THS
1640300100SD7T
30 100 4.5 32 raw DIN 7 THS
1640300100SIT
30 100 5 32 raw ISO 2338 THS
1640300120SD7T
30 120 4.5 32 raw DIN 7 THS
1640300120SIT
30 120 5 32 raw ISO 2338 THS
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
