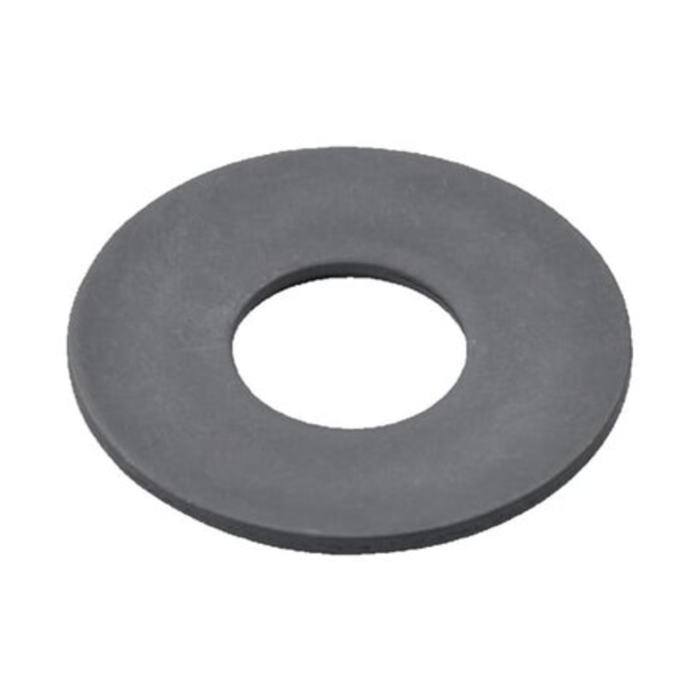

Disc washer INOX

I14
.
47

The Plate Washer is a high-quality structural component designed to increase the contact area between the screw and the material. Made from durable stainless steel, this washer features excellent corrosion resistance, making it an ideal solution for both indoor and outdoor applications. Its specific shape ensures even load distribution, enhancing the stability and longevity of connections.

Applications:
The plate washer finds wide application across various industries, including construction, automotive, and mechanical engineering. It performs exceptionally well in assembling structures where maintaining the correct distribution of forces and protecting the material from damage is crucial.

Benefits:

  • Increased Contact Area: The plate shape of the washer allows for better force distribution, positively impacting the stability of the connection.
  • Corrosion Resistance: Made from stainless steel, it ensures long-lasting functionality in harsh weather conditions.
  • Durability: The robust construction of the washer makes it strong and suitable for demanding applications.
  • Versatility: It is suitable for a wide range of applications, making it a versatile component in fastening systems.
  • Easy Installation: Standard dimensions and shape facilitate the installation process, speeding up construction and repair work.
Send product inquiry

Product inquiry form

Recommended

Group
I1447

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Outer diameter D [mm]
Inner diameter d [mm]
Thickness h [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Outer diameter D [mm] Inner diameter d [mm] Thickness h [mm] Standard Material Unit of measure Availability Show More
I1447010005002A2DT
5.2 10 0.25 DIN 2093 A2 THS
I1447012006003A2DT
6.2 12.5 0.35 DIN 2093 A2 THS
I1447016008004A2DT
8.2 16 0.4 DIN 2093 A2 THS
I1447018009004A2DT
9.2 18 0.45 DIN 2093 A2 THS
I1447020010008A2DT
10.2 20 0.8 DIN 2093 A2 THS
I1447023012010A2DT
12.2 23 1.0 DIN 2093 A2 THS
I1447023012015A2DT
12.2 23 1.5 DIN 2093 A2 THS
I1447025012015A2DT
12.2 25 1.5 DIN 2093 A2 THS
I1447028012010A2DT
12.2 28 1.0 DIN 2093 A2 THS
I1447028014015A2DT
14.2 28 1.5 DIN 2093 A2 THS
I1447031016008A2DT
16.3 31.5 0.8 DIN 2093 A2 THS
I1447031016020A2DT
16.3 31.5 2.0 DIN 2093 A2 THS
I1447040014012A2DT
14.3 40 1.25 DIN 2093 A2 THS
I1447040016015A2DT
16.3 40 1.5 DIN 2093 A2 THS
I1447040020010A2DT
20.4 40 1.0 DIN 2093 A2 THS
I1447050025012A2DT
25.4 50 1.25 DIN 2093 A2 THS
I1447056028015A2DT
28.5 56 1.5 DIN 2093 A2 THS
I1447056028020A2DT
28.5 56 2.0 DIN 2093 A2 THS
I1447071036020A2DT
36 71 2.0 DIN 2093 A2 THS
I1447090046025A2DT
46 90 2.5 DIN 2093 A2 THS
