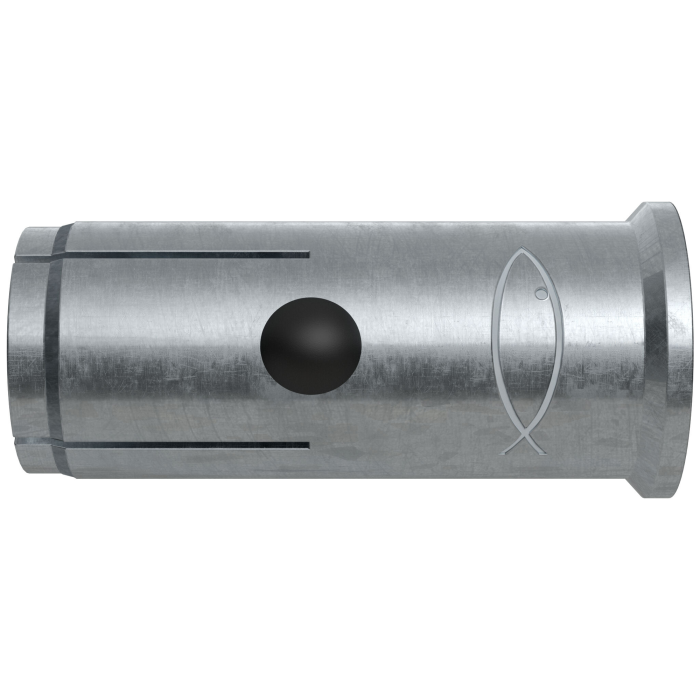

EA II Fischer Driven Anchor

Economical drive-in anchor with collar for quick and easy installation
Advantages
The embossed collar prevents the sleeve from sinking too deep during driving in, ensuring trouble-free installation.
The internal metric thread enables the use of standard screws or threaded rods for the best possible adaptation to the requirements.
The EMS machine setting tool enables easy installation, which is especially important for series fixing.
The embossing achieved with the EHS Plus setting tool allows for simple checking of the correct anchoring and ensures safety.
The anchor attachment point at a distance of 25 mm from the bottom prevents the anchor from falling out of the hole above the head before final installation.
The anchor is suitable for fastening elements with high loads.
The fischer EA II drive-in anchor with internal thread is made of galvanised steel. The anchor is installed by driving in with a hammer until it is flush with the substrate surface. During installation using the EHS Plus hand setting tool or the EMS machine setting tool, the internal pin is sunk while the sleeve is pressed against the borehole walls. No torque is required on the screw or threaded rod for proper expansion. The fischer EA II drop-in anchor is ideal for fixing sprinkler systems, cable trays and brackets inside buildings.
