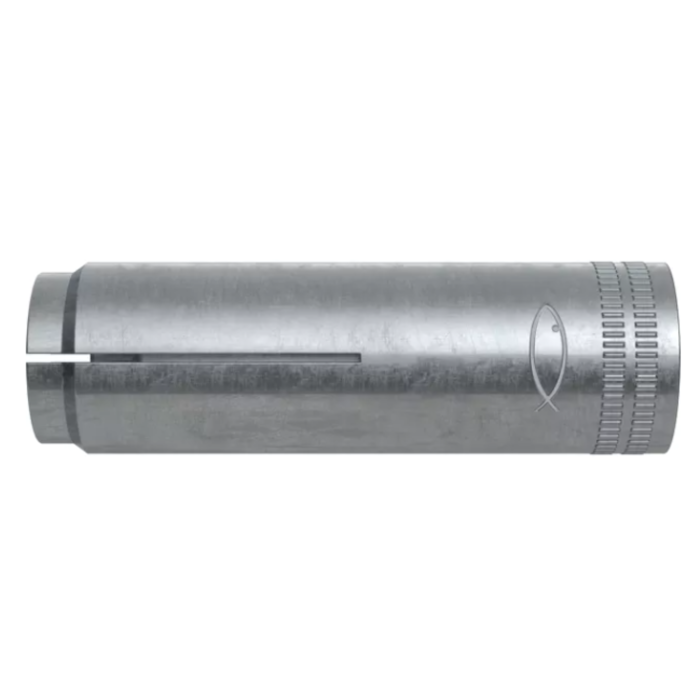

EA N Fischer Driven Anchor

56
.
77

Economical drive-in anchor for multi-point fixing in non-structural systems.
Advantages
Quick drive-in installation.
The metric internal thread enables the use of standard metric screws or threaded rods.
The manual setting tool enables fast EA-ST installation.
The fischer EA N drive-in anchor with internal thread is made of galvanized steel or stainless steel. The drive-in anchor is suitable for multi-point fixing of non-structural systems, in accordance with the requirements of the Technical Assessment. The installation of the anchor with internal thread is very effective and economical, because it does not require a large anchoring depth, the installation is quick due to driving in and screwing in. The EA N drive-in anchor is set flush with the surface of the substrate. The use of the EA-ST setting tool causes the sleeve to expand and lock in the hole by tightening the internal pin. In order to perform the installation correctly, excessive torque should not be applied to the screw.

Send product inquiry

Product inquiry form

Recommended

Group
5677

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Type
Dimension d [mm]
Dimension L [mm]
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Type Dimension d [mm] Dimension L [mm] Availability Show More
5677060025BFISS
M6 25
5677080030BFISS
M8 30
5677100040BFISS
M10 40
5677120050BDFISS
D M12 50
5677120050BFISS
M12 50
5677160065BFISS
M16 65
5677200080BFISS
M20 80
