Enlarged round washer INOX

I14
.
03
PZP

The enlarged round thick washer inox is a robust construction component made from durable stainless steel (inox). Its thick surface and enlarged size make it an ideal solution for applications requiring additional strength and stability.

Applications: The enlarged round thick washer inox is widely used in construction, industry, and woodworking, where solid fastening and extra stability are required.

Benefits:

  • Excellent Corrosion Resistance: Stainless steel inox ensures long-lasting resistance to corrosion, keeping the washer in optimal condition even in harsh weather conditions.
  • Added Strength: The thick surface and enlarged size of the washer provide extra durability to the construction.
  • Stability: The textured surface increases friction, contributing to the stability of the fastened element.
  • Even Force Distribution: The enlarged bearing surface effectively distributes load, which is crucial for structural fastening.
  • Versatile Use: This product is versatile and suitable for a wide range of applications in wooden, steel, and other structures.
  • Easy Installation: The enlarged thick washer inox is easy to install, speeding up construction or repair processes.

Recommended

Group
I1403

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

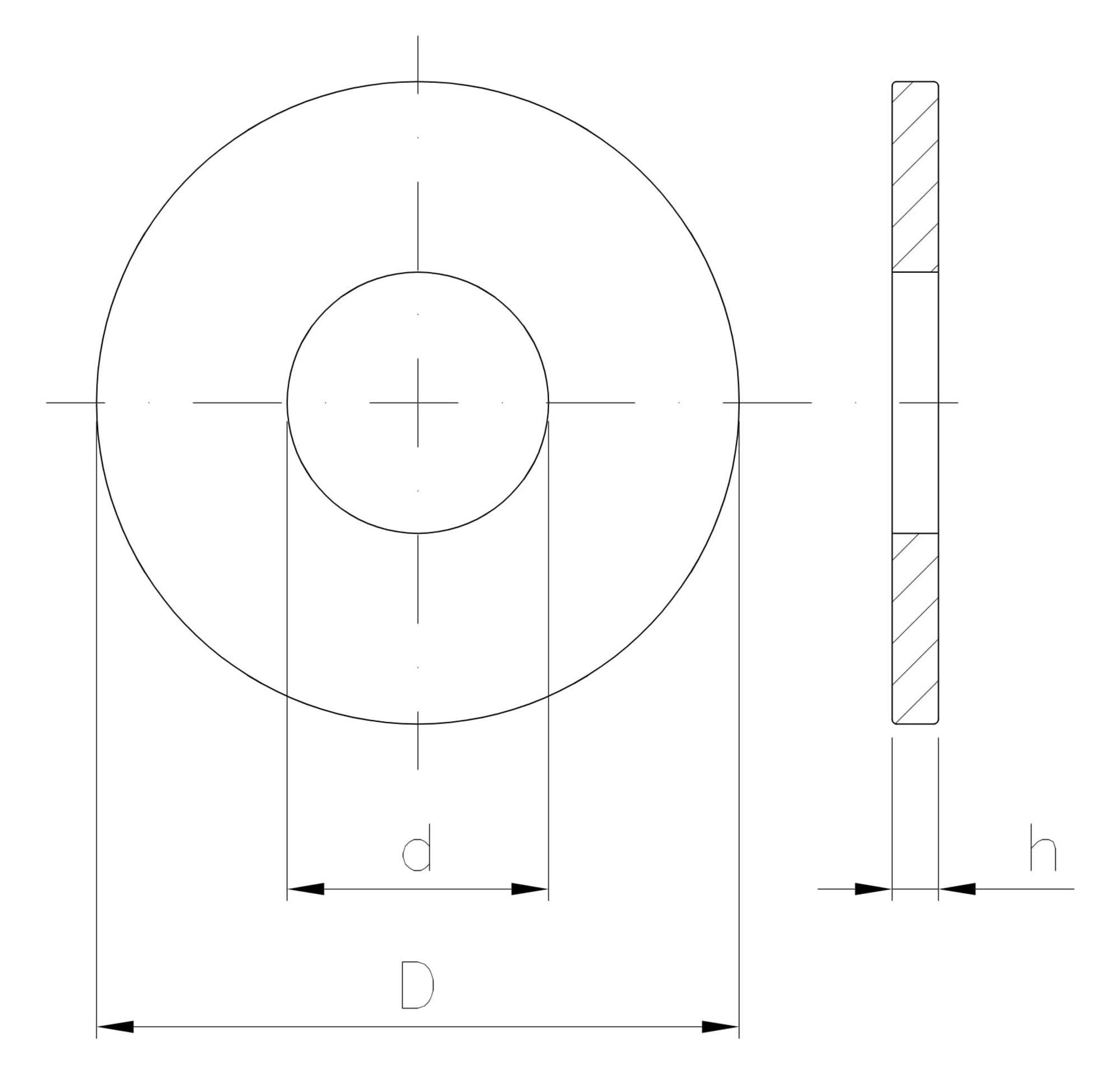

Screw thread M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Height h [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes
Screw thread M [mm] Outer diameter D [mm] Inner diameter d [mm] Height h [mm] Standard Material Unit of measure Availability Show More
I1403020A2D9021T
M2 2.2 6.0 0.8 DIN9021 A2 THS
I1403020A4D9021T
M2 2.2 6.0 0.8 DIN9021 A4 THS
I1403025A2D9021T
M2.5 2.7 8.0 0.8 DIN9021 A2 THS
I1403025A4D9021T
M2.5 2.7 8.0 0.8 DIN9021 A4 THS
I1403030A2D9021T
M3 3.2 9.0 0.8 DIN9021 A2 THS
I1403030A4D9021T
M3 3.2 9.0 0.8 DIN 9021 A4 THS
I1403035A2D9021T
M3.5 3.7 11.0 0.8 DIN9021 A2 THS
I1403035A4D9021T
M3.5 3.7 11.0 0.8 DIN9021 A4 THS
I1403040A2D9021T
M4 4.3 12.0 1.0 DIN9021 A2 THS
I1403040A4D9021T
M4 4.3 12.0 1.0 DIN 9021 A4 THS
I1403050A2D9021T
M5 5.3 15.0 1.2 DIN9021 A2 THS
I1403050A4D9021T
M5 5.3 15.0 1.2 DIN9021 A4 THS
I1403060A2D9021T
M6 6.4 18.0 1.8 DIN9021 A2 THS
I1403060A4D9021T
M6 6.4 18.0 1.8 DIN 9021 A4 THS
I1403070A2D9021T
M7 7.4 22.0 2.0 DIN9021 A2 THS
I1403070A4D9021T
M7 7.4 22.0 2.0 DIN9021 A4 THS
I1403080020A2T
M8 8.4 20.0 1.5 DIN 9021 A2 THS
I1403080A2D9021T
M8 8.4 24.0 2.0 DIN9021 A2 THS
I1403080A4D9021T
M8 8.4 24.0 2.0 DIN9021 A4 THS
I1403100A2D9021T
M10 10.5 30.0 2.5 DIN9021 A2 THS
I1403100A4D9021T
M10 10.5 30.0 2.5 DIN9021 A4 THS
I1403120A2D9021T
M12 13.0 37.0 3.0 DIN 9021 A2 THS
I1403120A4D9021T
M12 13.0 37.0 3.0 DIN 9021 A4 THS
I1403140A2D9021T
M14 15.0 44.0 3.0 DIN 9021 A2 THS
I1403140A4D9021T
M14 15.0 44.0 3.0 DIN 9021 A4 THS
I1403160A2D9021T
M16 17.0 50.0 3.0 DIN9021 A2 THS
I1403160A4D9021T
M16 17.0 50.0 3.0 DIN 9021 A4 THS
I1403180A2D9021T
M18 20.0 56.0 4.0 DIN 9021 A2 THS
I1403180A4D9021T
M18 20.0 56.0 4.0 DIN9021 A4 THS
I1403200A2D9021S
M20 22.0 60.0 4.0 DIN9021 A2 PCS
I1403200A2D9021T
M20 22.0 60.0 4.0 DIN 9021 A2 THS
I1403200A4D9021T
M20 22.0 60.0 4.0 DIN 9021 A4 THS
I1403240A2D9021T
M24 26.0 72.0 5.0 DIN 9021 A2 THS
I1403240A4D9021T
M24 26.0 72.0 5.0 DIN 9021 A4 THS
I1403300A2D9021T
M30 33.0 92.0 6.0 DIN9021 A2 THS
I1403300A4D9021T
M30 33.0 92.0 6.0 DIN9021 A4 THS
I1403360A2D9021T
M36 39.0 110.0 8.0 DIN9021 A2 THS
I1403360A4D9021T
M36 39.0 110.0 8.0 DIN9021 A4 THS
