INOX

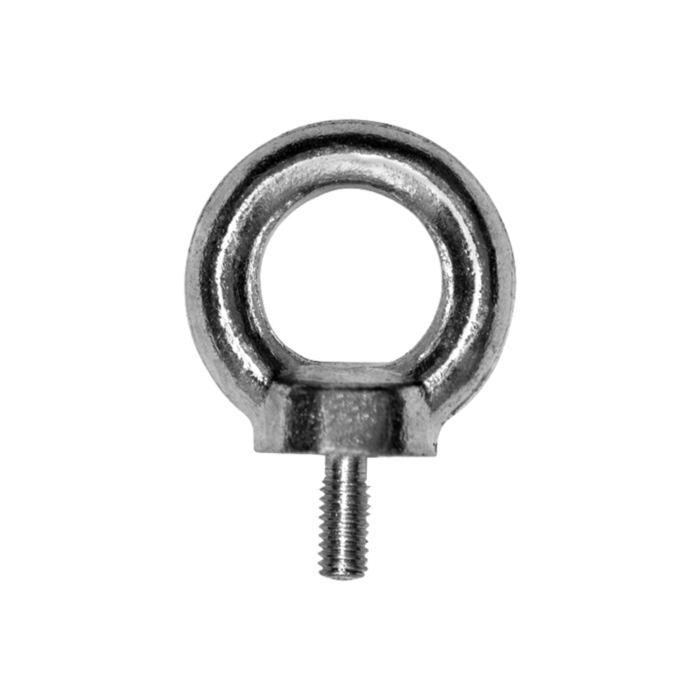

Eye bolt INOX

I63

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension L [mm]

Dimension B [mm]

Material

Dimension A [mm]

Dimension C [mm]

Dimension F [mm]

Dimension H [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

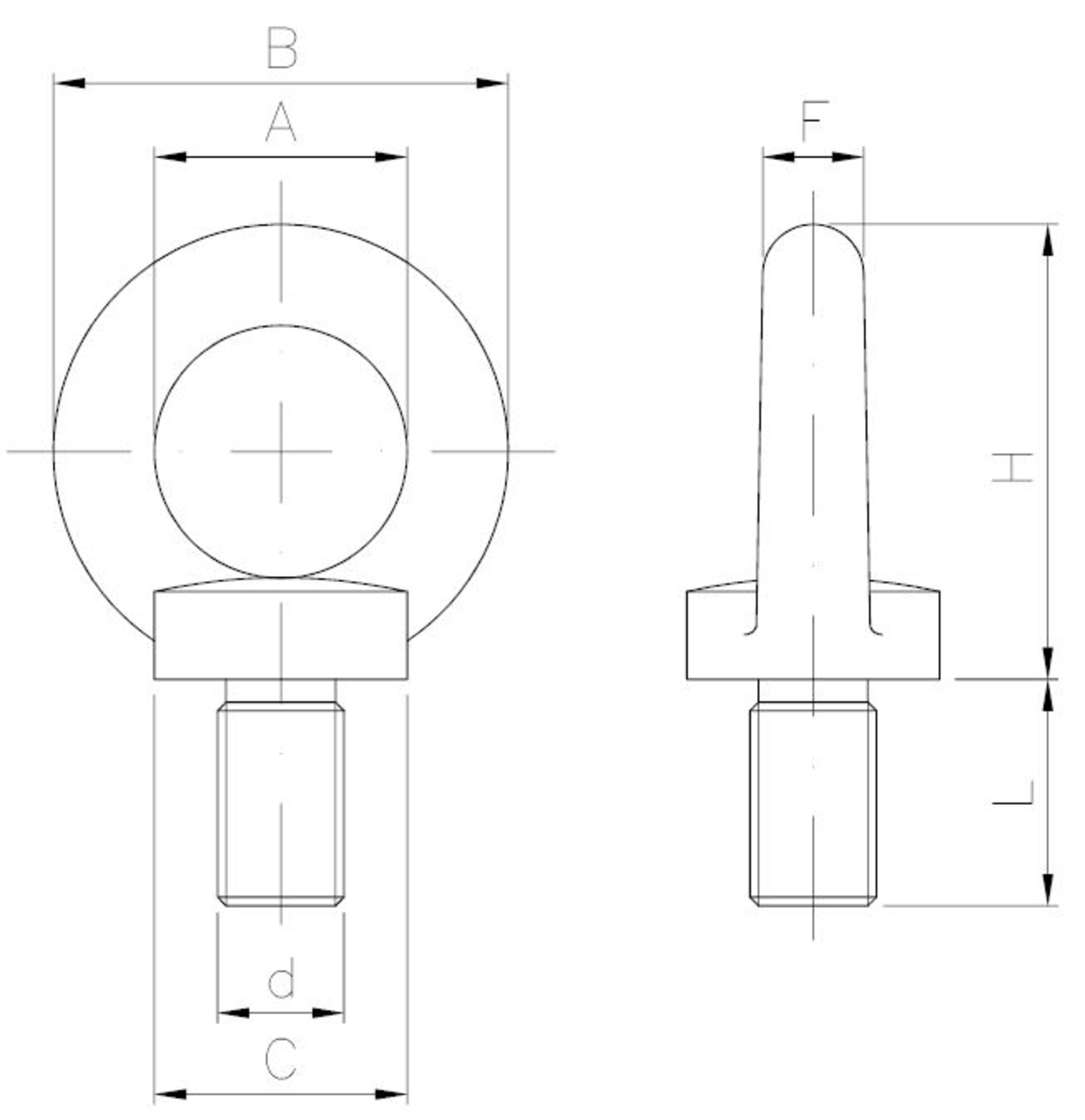

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Dimension B [mm]	Material	Dimension A [mm]	Dimension C [mm]	Dimension F [mm]	Dimension H [mm]	Unit of measure	Availability

I6313060A2580S	M6	13	28	A2	16	17	6	31	PCS	Product on request
I6313060A4580S	M6	13	28	A4	16	17	6	31	PCS	The product is available
I6313060A4S	M6	13	28	A4	16	17	6	31	PCS	Product on request
I6313068A2580S	M6	13	28	A2	16	17	6	31	PCS	Product on request
I6313080A2580S	M8	13	36	A2	20	20	8	36	PCS	Product on request
I6313080A4580S	M8	13	36	A4	20	20	8	36	PCS	The product is available
I6313080A4S	M8	13	36	A4	20	20	8	36	PCS	Product on request
I6313100A2580S	M10	17	45	A2	25	25	10	45	PCS	Product on request
I6313100A4580S	M10	17	45	A4	25	25	10	45	PCS	Product on request
I6313100A4S	M10	17	45	A4	25	25	10	45	PCS	Product on request
I6313120A2580S	M12	20.5	54	A2	30	30	12	53	PCS	Product on request
I6313120A4580S	M12	20.5	54	A4	30	30	12	53	PCS	The product is available
I6313120A4S	M12	20.5	54	A4	30	30	12	53	PCS	Product on request
I6313160A2580S	M16	27	63	A2	35	35	14	62	PCS	Product on request
I6313160A4580S	M16	27	63	A4	35	35	14	62	PCS	Product on request
I6313200A2580S	M20	30	72	A2	40	40	16	71	PCS	Product on request
I6313300A2580S	M30	45	108	A2	60	65	24	109	PCS	Product on request
I6313300A4580S	M30	45	108	A4	60	65	24	109	PCS	Product on request
I6313300A4WLLD580S	M30	45	108	A4	60	65	24	109	PCS	The product is available
