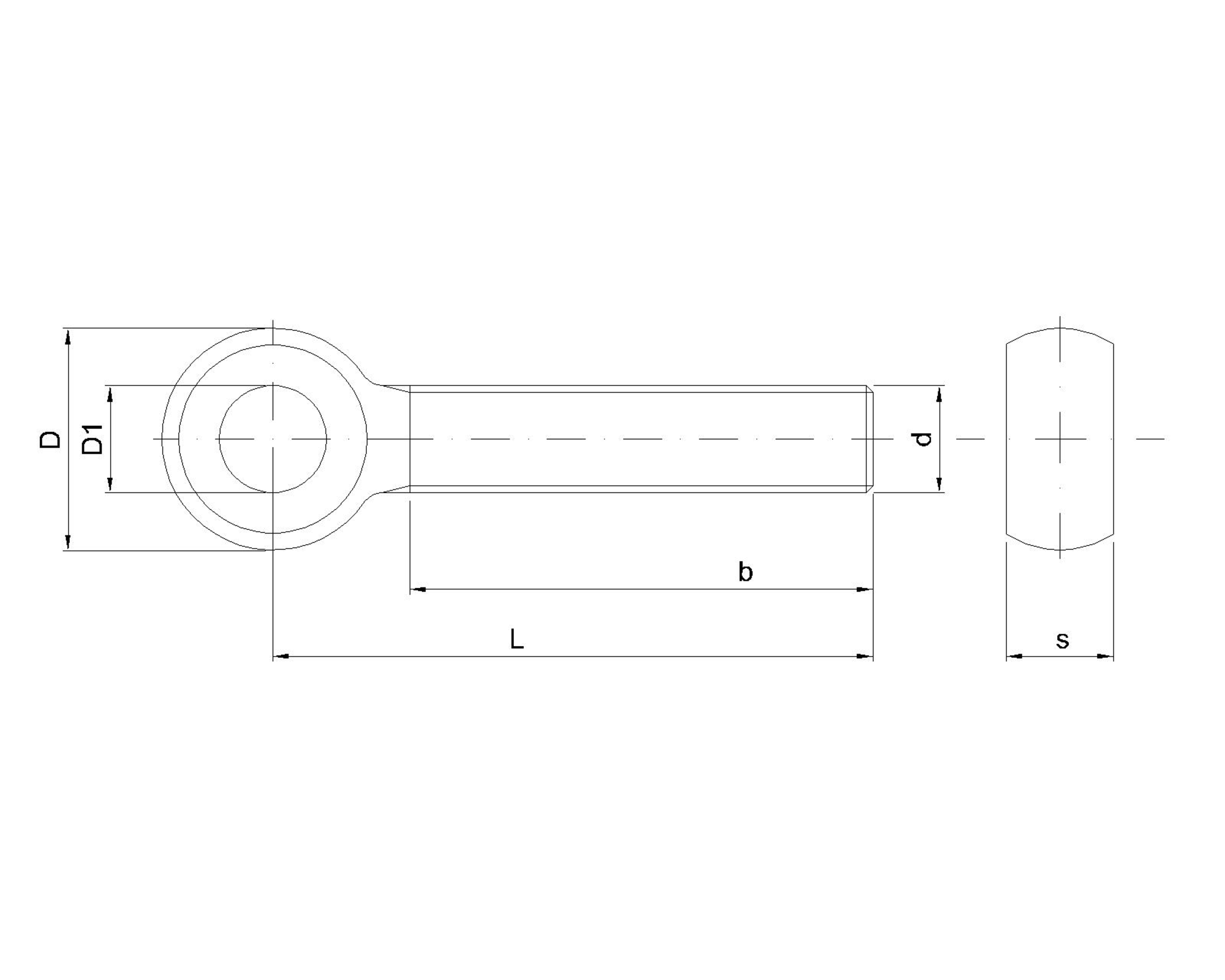

Eye bolt, fully threaded

11
.
18

Eye screw with full thread is a mounting element with a special shape that allows for the creation of secure and strong connections. The characteristic eye design enables the attachment or fastening of elements, providing stability and safety.

Applications:

Eye screws with full threads are used where fastening, attaching, or hanging various elements is required. They can be employed in various industries such as transportation, logistics, construction, as well as in recreational or industrial applications.

Features and Benefits:

  • Solid construction and high-quality material ensure reliability.
  • Characteristic eye design allows for secure fastening and attachment.
  • Full thread along the entire length provides a strong connection.
  • Available in various sizes and strength classes tailored to different applications.
  • Easy installation using standard tools.
View in store

Recommended

Group
1118

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Class of mechanical properties
Variety of coating
Dimension s [mm]
Dimension D [mm]
Dimension D1 [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Class of mechanical properties Variety of coating Dimension s [mm] Dimension D [mm] Dimension D1 [mm] Unit of measure Availability Show More
1118060040B88D444T
M6 40 8.8 white zinc plating 7 14 6 THS
1118060040BD444T
M6 40 4.6 white zinc plating 7 14 6 THS
1118060050BD444T
M6 50 4.6 white zinc plating 7 14 6 THS
1118060060B88D444T
M6 60 8.8 white zinc plating 7 14 6 THS
1118060060BD444T
M6 60 4.6 white zinc plating 7 14 6 THS
1118080040B88D444T
M8 40 8.8 white zinc plating 9 18 8 THS
1118080040BD444T
M8 40 4.6 white zinc plating 9 18 8 THS
1118080050B88D444T
M8 50 8.8 white zinc plating 9 18 8 THS
1118080050BD444T
M8 50 4.6 white zinc plating 9 18 8 THS
1118080060B88D444T
M8 60 8.8 white zinc plating 9 18 8 THS
1118080060BD444T
M8 60 4.6 white zinc plating 9 18 8 THS
1118080070B88D444T
M8 70 8.8 white zinc plating 9 18 8 THS
1118080070BD444T
M8 70 4.6 white zinc plating 9 18 8 THS
1118080080B88D444T
M8 80 8.8 white zinc plating 9 18 8 THS
1118080080BD444T
M8 80 4.6 white zinc plating 9 18 8 THS
1118080090BD444T
M8 90 4.6 white zinc plating 9 18 8 THS
1118080100B88D444T
M8 100 8.8 white zinc plating 9 18 8 THS
1118080100BD444T
M8 100 4.6 white zinc plating 9 18 8 THS
1118080120BD444T
M8 120 4.6 white zinc plating 9 18 8 THS
1118100040BD444T
M10 40 4.6 white zinc plating 12 20 10 THS
1118100050B88D444T
M10 50 8.8 white zinc plating 12 20 10 THS
1118100050BD444T
M10 50 4.6 white zinc plating 12 20 10 THS
1118100060B88D444T
M10 60 8.8 white zinc plating 12 20 10 THS
1118100060BD444T
M10 60 4.6 white zinc plating 12 20 10 THS
1118100070B88D444T
M10 70 8.8 white zinc plating 12 20 10 THS
1118100070BD444T
M10 70 4.6 white zinc plating 12 20 10 THS
1118100080B88D444T
M10 80 8.8 white zinc plating 12 20 10 THS
1118100080BD444T
M10 80 4.6 white zinc plating 12 20 10 THS
1118100080R88D444T
M10 80 8.8 geomet 12 20 10 THS
1118100090BD444T
M10 90 4.6 white zinc plating 12 20 10 THS
1118100100B88D444T
M10 100 8.8 white zinc plating 12 20 10 THS
1118100100BD444T
M10 100 4.6 white zinc plating 12 20 10 THS
1118100120B88D444T
M10 120 8.8 white zinc plating 12 20 10 THS
1118100120BD444T
M10 120 4.6 white zinc plating 12 20 10 THS
1118100140B88D444T
M10 140 8.8 white zinc plating 12 20 10 THS
1118100140BD444T
M10 140 4.6 white zinc plating 12 20 10 THS
1118100160B88D444T
M10 160 8.8 white zinc plating 12 20 10 THS
1118120050B88D444T
M12 50 8.8 white zinc plating 14 25 12 THS
1118120050BD444T
M12 50 4.6 white zinc plating 14 25 12 THS
1118120055BD444T
M12 55 4.6 white zinc plating 14 25 12 THS
1118120060B88D444T
M12 60 8.8 white zinc plating 14 25 12 THS
1118120060BD444T
M12 60 4.6 white zinc plating 14 25 12 THS
1118120070B88D444T
M12 70 8.8 white zinc plating 14 25 12 THS
1118120070BD444T
M12 70 4.6 white zinc plating 14 25 12 THS
1118120080B88D444T
M12 80 8.8 white zinc plating 14 25 12 THS
1118120080BD444T
M12 80 4.6 white zinc plating 14 25 12 THS
1118120090B88D444T
M12 90 8.8 white zinc plating 14 25 12 THS
1118120090BD444T
M12 90 4.6 white zinc plating 14 25 12 THS
1118120100B88D444T
M12 100 8.8 white zinc plating 14 25 12 THS
1118120100BD444T
M12 100 4.6 white zinc plating 14 25 12 THS
1118120120B88D444T
M12 120 8.8 white zinc plating 14 25 12 THS
1118120120BD444T
M12 120 4.6 white zinc plating 14 25 12 THS
1118120140B88D444T
M12 140 8.8 white zinc plating 14 25 12 THS
1118120140BD444T
M12 140 4.6 white zinc plating 14 25 12 THS
1118120160BD444T
M12 160 4.6 white zinc plating 14 25 12 THS
1118160060B88D444T
M16 60 8.8 white zinc plating 17 32 16 THS
1118160060BD444T
M16 60 4.6 white zinc plating 17 32 16 THS
1118160070B88D444T
M16 70 8.8 white zinc plating 17 32 16 THS
1118160070BD444T
M16 70 4.6 white zinc plating 17 32 16 THS
1118160080B88D444T
M16 80 8.8 white zinc plating 17 32 16 THS
1118160080BD444T
M16 80 4.6 white zinc plating 17 32 16 THS
1118160090B88D444T
M16 90 8.8 white zinc plating 17 32 16 THS
1118160090BD444T
M16 90 4.6 white zinc plating 17 32 16 THS
1118160100B88D444T
M16 100 8.8 white zinc plating 17 32 16 THS
1118160100BD444T
M16 100 4.6 white zinc plating 17 32 16 THS
1118160120B88D444T
M16 120 8.8 white zinc plating 17 32 16 THS
1118160120BD444T
M16 120 4.6 white zinc plating 17 32 16 THS
1118160140B88D444T
M16 140 8.8 white zinc plating 17 32 16 THS
1118160140BD444T
M16 140 4.6 white zinc plating 17 32 16 THS
1118160160BD444T
M16 160 4.6 white zinc plating 17 32 16 THS
1118160160R88D444T
M16 160 8.8 geomet 17 32 16 THS
1118160180BD444T
M16 180 4.6 white zinc plating 17 32 16 THS
1118200060BD444T
M20 60 4.6 white zinc plating 22 40 18 THS
1118200070B88D444T
M20 70 8.8 white zinc plating 22 40 18 THS
1118200070BD444T
M20 70 4.6 white zinc plating 22 40 18 THS
1118200080B88D444T
M20 80 8.8 white zinc plating 22 40 18 THS
1118200080BD444T
M20 80 4.6 white zinc plating 22 40 18 THS
1118200100B88D444T
M20 100 8.8 white zinc plating 22 40 18 THS
1118200100BD444T
M20 100 4.6 white zinc plating 22 40 18 THS
1118200120B88D444T
M20 120 8.8 white zinc plating 22 40 18 THS
1118200120BD444T
M20 120 4.6 white zinc plating 22 40 18 THS
1118200130BD444T
M20 130 4.6 white zinc plating 22 40 18 THS
1118200140B88D444T
M20 140 8.8 white zinc plating 22 40 18 THS
1118200140BD444T
M20 140 4.6 white zinc plating 22 40 18 THS
1118200160B88D444T
M20 160 8.8 white zinc plating 22 40 18 THS
1118200160BD444T
M20 160 4.6 white zinc plating 22 40 18 THS
1118240100B88D444T
M24 100 8.8 white zinc plating 25 45 22 THS
1118240100BD444T
M24 100 4.6 white zinc plating 25 45 22 THS
1118240120B88D444T
M24 120 8.8 white zinc plating 25 45 22 THS
1118240120BD444T
M24 120 4.6 white zinc plating 25 45 22 THS
1118240140B88D444T
M24 140 8.8 white zinc plating 25 45 22 THS
1118240140BD444T
M24 140 4.6 white zinc plating 25 45 22 THS
1118240160B88D444T
M24 160 8.8 white zinc plating 25 45 22 THS
1118240160BD444T
M24 160 4.6 white zinc plating 25 45 22 THS
1118240180B88D444T
M24 180 8.8 white zinc plating 25 45 22 THS
1118240200B88D444T
M24 200 8.8 white zinc plating 25 45 22 THS
1118240260BD444T
M24 260 4.6 white zinc plating 25 45 22 THS
1118300160B88D444T
M30 160 8.8 white zinc plating 30 55 28 THS
1118300160BD444T
M30 160 4.6 white zinc plating 30 55 28 THS
1118200160R88D444T
THS
1118160150BD444T
THS
1118160200BD444T
THS
1118200150BD444T
THS
1118240080BD444T
THS
1118240090BD444T
THS
1118240110BD444T
THS
1118240130BD444T
THS
1118240150BD444T
THS
1118240170BD444T
THS
1118240180BD444T
THS
1118240200BD444T
THS
