Eye bolt, partially threaded INOX

I11

The partially threaded eye bolt Inox is an innovative solution in the field of fastening elements, made from high-quality stainless steel (Inox). This product is characterized by a special eye shape, allowing for versatile applications in fastening, especially where an eye element is needed for pulling or securing.

Applications:
The partially threaded eye bolt Inox is used in various industries such as construction, industry, and maritime applications. It is ideal for securing ropes, pulling loads, or fastening components using a steel cable.

Benefits:

Versatility: The eye allows for diverse applications, from pulling to securing ropes or steel cables.
Quick Installation: The partial thread simplifies and speeds up the installation process, which is important in time-sensitive situations.
Durability: Made from high-quality stainless steel (Inox), these bolts are weather-resistant, ensuring long-lasting performance.
Corrosion Resistance: Stainless steel protects against corrosion, making the bolt suitable for outdoor use.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

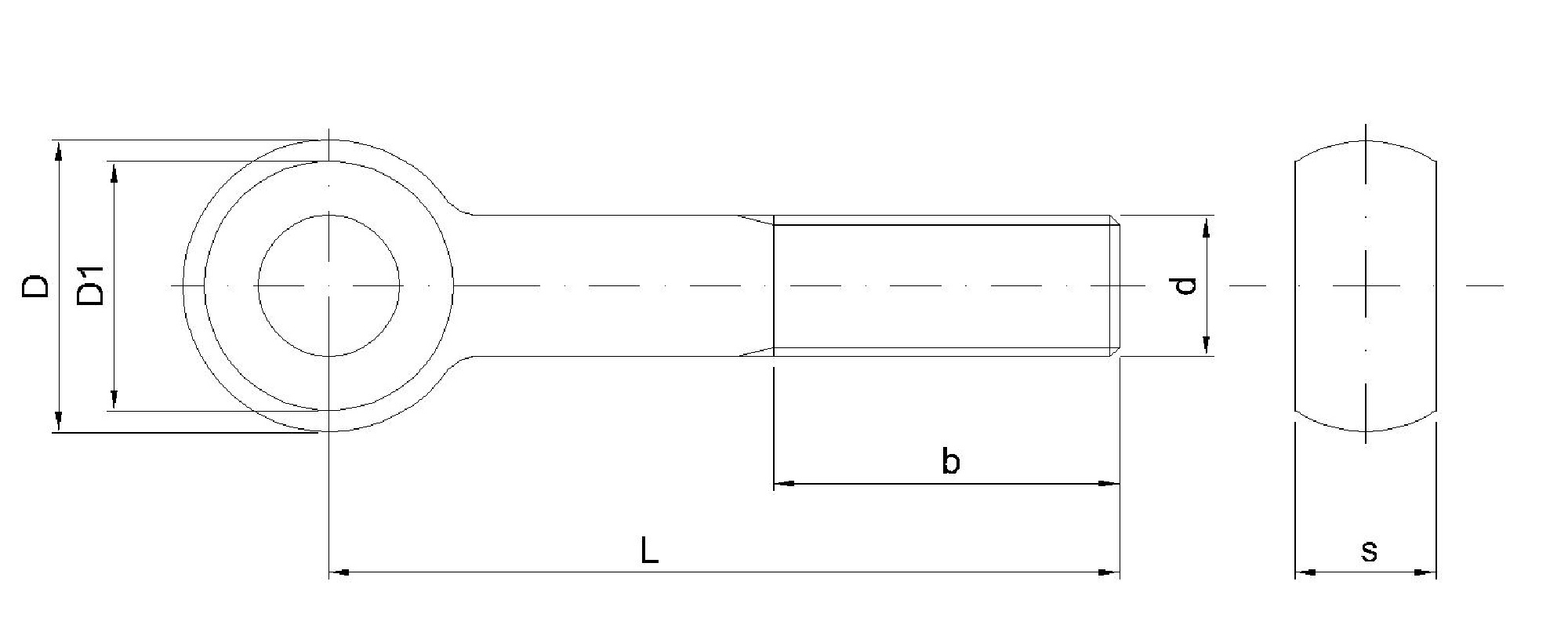

Dimension d [mm]

Dimension L [mm]

Dimension s [mm]

Dimension b [mm]

Dimension D [mm]

Dimension D1 [mm]

Threading

Material

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Dimension s [mm]	Dimension b [mm]	Dimension D [mm]	Dimension D1 [mm]	Threading	Material	Unit of measure	Availability

I1119060030A2D444T	M6	30	7	18	14	6	On a part	A2	THS	Product on request
I1119060030A4D444T	M6	30	7	18	14	6	On a part	A4	THS	Product on request
I1119060035A2D444T	M6	35	7	18	14	6	On a part	A2	THS	Product on request
I1119060035A4D444T	M6	35	7	18	14	6	On a part	A4	THS	Product on request
I1119060040A2D444T	M6	40	7	18	14	6	On a part	A2	THS	Product on request
I1119060040A4D444T	M6	40	7	18	14	6	On a part	A4	THS	Product on request
I1119060045A2D444T	M6	45	7	18	14	6	On a part	A2	THS	Product on request
I1119060045A4D444T	M6	45	7	18	14	6	On a part	A4	THS	Product on request
I1119060050A2D444T	M6	50	7	18	14	6	On a part	A2	THS	Product on request
I1119060050A4D444T	M6	50	7	18	14	6	On a part	A4	THS	Product on request
I1119060055A2D444T	M6	55	7	18	14	6	On a part	A2	THS	Product on request
I1119060055A4D444T	M6	55	7	18	14	6	On a part	A4	THS	Product on request
I1119060060A2D444T	M6	60	7	18	14	6	On a part	A2	THS	Product on request
I1119060060A4D444T	M6	60	7	18	14	6	On a part	A4	THS	Product on request
I1119060070A2D444T	M6	70	7	18	14	6	On a part	A2	THS	Product on request
I1119060070A4D444T	M6	70	7	18	14	6	On a part	A4	THS	Product on request
I1119080030A2D444T	M8	30	9	22	18	8	On a part	A2	THS	Product on request
I1119080030A4D444T	M8	30	9	22	18	8	On a part	A4	THS	Product on request
I1119080035A2D444T	M8	35	9	22	18	8	On a part	A2	THS	Product on request
I1119080035A4D444T	M8	35	9	22	18	8	On a part	A4	THS	Product on request
I1119080040A2D444T	M8	40	9	22	18	8	On a part	A2	THS	Product on request
I1119080040A4D444T	M8	40	9	22	18	8	On a part	A4	THS	Product on request
I1119080045A2D444T	M8	45	9	22	18	8	On a part	A2	THS	Product on request
I1119080045A4D444T	M8	45	9	22	18	8	On a part	A4	THS	Product on request
I1119080050A2D444T	M8	50	9	22	18	8	On a part	A2	THS	Product on request
I1119080050A4D444T	M8	50	9	22	18	8	On a part	A4	THS	Product on request
I1119080055A2D444T	M8	55	9	22	18	8	On a part	A2	THS	Product on request
I1119080055A4D444T	M8	55	9	22	18	8	On a part	A4	THS	Product on request
I1119080060A2D444T	M8	60	9	22	18	8	On a part	A2	THS	Product on request
I1119080060A4D444T	M8	60	9	22	18	8	On a part	A4	THS	Product on request
I1119080065A2D444T	M8	65	9	22	18	8	On a part	A2	THS	Product on request
I1119080065A4D444T	M8	65	9	22	18	8	On a part	A4	THS	Product on request
I1119080070A2D444T	M8	70	9	22	18	8	On a part	A2	THS	Product on request
I1119080070A4D444T	M8	70	9	22	18	8	On a part	A4	THS	Product on request
I1119080075A2D444T	M8	75	9	22	18	8	On a part	A2	THS	Product on request
I1119080075A4D444T	M8	75	9	22	18	8	On a part	A4	THS	Product on request
I1119080080A2D444T	M8	80	9	22	18	8	On a part	A2	THS	Product on request
I1119080090A2D444T	M8	90	9	22	18	8	On a part	A2	THS	Product on request
I1119080090A4D444T	M8	90	9	22	18	8	On a part	A4	THS	Product on request
I1119080100A2D444T	M8	100	9	22	18	8	On a part	A2	THS	Product on request
I1119080100A4D444T	M8	100	9	22	18	8	On a part	A4	THS	Product on request
I1119100040A2D444T	M10	40	12	26	20	10	On a part	A2	THS	Product on request
I1119100040A4D444T	M10	40	12	26	20	10	On a part	A4	THS	Product on request
I1119100045A2D444T	M10	45	12	26	20	10	On a part	A2	THS	Product on request
I1119100045A4D444T	M10	45	12	26	20	10	On a part	A4	THS	Product on request
I1119100050A2D444T	M10	50	12	26	20	10	On a part	A2	THS	Product on request
I1119100050A4D444T	M10	50	12	26	20	10	On a part	A4	THS	Product on request
I1119100055A2D444T	M10	55	12	26	20	10	On a part	A2	THS	Product on request
I1119100055A4D444T	M10	55	12	26	20	10	On a part	A4	THS	Product on request
I1119100060A2D444T	M10	60	12	26	20	10	On a part	A2	THS	Product on request
I1119100060A4D444T	M10	60	12	26	20	10	On a part	A4	THS	Product on request
I1119100065A2D444T	M10	65	12	26	20	10	On a part	A2	THS	Product on request
I1119100065A4D444T	M10	65	12	26	20	10	On a part	A4	THS	Product on request
I1119100070A4D444T	M10	70	12	26	20	10	On a part	A4	THS	Product on request
I1119100075A4D444T	M10	75	12	26	20	10	On a part	A4	THS	Product on request
I1119100080A2D444T	M10	80	12	26	20	10	On a part	A2	THS	Product on request
I1119100080A4D444T	M10	80	12	26	20	10	On a part	A4	THS	Product on request
I1119100090A2D444T	M10	90	12	26	20	10	On a part	A2	THS	Product on request
I1119100090A4D444T	M10	90	12	26	20	10	On a part	A4	THS	Product on request
I1119100100A2D444T	M10	100	12	26	20	10	On a part	A2	THS	Product on request
I1119100100A4D444T	M10	100	12	26	20	10	On a part	A4	THS	Product on request
I1119100110A4D444T	M10	110	12	26	20	10	On a part	A4	THS	Product on request
I1119100120A2D444T	M10	120	12	26	20	10	On a part	A2	THS	Product on request
I1119100120A4D444T	M10	120	12	26	20	10	On a part	A4	THS	Product on request
I1119120050A2D444T	M12	50	14	30	25	12	On a part	A2	THS	Product on request
I1119120050A4D444T	M12	50	14	30	25	12	On a part	A4	THS	Product on request
I1119120055A2D444T	M12	55	14	30	25	12	On a part	A2	THS	Product on request
I1119120055A4D444T	M12	55	14	30	25	12	On a part	A4	THS	Product on request
I1119120060A2D444T	M12	60	14	30	25	12	On a part	A2	THS	Product on request
I1119120060A4D444T	M12	60	14	30	25	12	On a part	A4	THS	Product on request
I1119120065A2D444T	M12	65	14	30	25	12	On a part	A2	THS	Product on request
I1119120065A4D444T	M12	65	14	30	25	12	On a part	A4	THS	Product on request
I1119120070A2D444T	M12	70	14	30	25	12	On a part	A2	THS	Product on request
I1119120070A4D444T	M12	70	14	30	25	12	On a part	A4	THS	Product on request
I1119120075A2D444T	M12	75	14	30	25	12	On a part	A2	THS	Product on request
I1119120075A4D444T	M12	75	14	30	25	12	On a part	A4	THS	Product on request
I1119120080A2D444T	M12	80	14	30	25	12	On a part	A2	THS	Product on request
I1119120080A4D444T	M12	80	14	30	25	12	On a part	A4	THS	Product on request
I1119120090A2D444T	M12	90	14	30	25	12	On a part	A2	THS	Product on request
I1119120090A4D444T	M12	90	14	30	25	12	On a part	A4	THS	Product on request
I1119120100A2D444T	M12	100	14	30	25	12	On a part	A2	THS	Product on request
I1119120100A4D444T	M12	100	14	30	25	12	On a part	A4	THS	Product on request
I1119120110A2D444T	M12	110	14	30	25	12	On a part	A2	THS	Product on request
I1119120110A4D444T	M12	110	14	30	25	12	On a part	A4	THS	Product on request
I1119120120A4D444T	M12	120	14	30	25	12	On a part	A4	THS	Product on request
I1119120130A2D444T	M12	130	14	36	25	12	On a part	A2	THS	Product on request
I1119120130A4D444T	M12	130	14	36	25	12	On a part	A4	THS	Product on request
I1119120140A2D444T	M12	140	14	36	25	12	On a part	A2	THS	Product on request
I1119120140A4D444T	M12	140	14	36	25	12	On a part	A4	THS	Product on request
I1119120150A2D444T	M12	150	14	36	25	12	On a part	A2	THS	Product on request
I1119120150A4D444T	M12	150	14	36	25	12	On a part	A4	THS	Product on request
I1119160060A2D444T	M16	60	17	38	32	16	On a part	A2	THS	Product on request
I1119160060A4D444T	M16	60	17	38	32	16	On a part	A4	THS	Product on request
I1119160065A2D444T	M16	65	17	38	32	16	On a part	A2	THS	Product on request
I1119160065A4D444T	M16	65	17	38	32	16	On a part	A4	THS	Product on request
I1119160070A2D444T	M16	70	17	38	32	16	On a part	A2	THS	Product on request
I1119160070A4D444T	M16	70	17	38	32	16	On a part	A4	THS	Product on request
I1119160075A2D444T	M16	75	17	38	32	16	On a part	A2	THS	Product on request
I1119160075A4D444T	M16	75	17	38	32	16	On a part	A4	THS	Product on request
I1119160080A2D444T	M16	80	17	38	32	16	On a part	A2	THS	Product on request
I1119160080A4D444T	M16	80	17	38	32	16	On a part	A4	THS	Product on request
I1119160090A2D444T	M16	90	17	38	32	16	On a part	A2	THS	Product on request
I1119160090A4D444T	M16	90	17	38	32	16	On a part	A4	THS	Product on request
I1119160100A2D444T	M16	100	17	38	32	16	On a part	A2	THS	Product on request
I1119160100A4D444T	M16	100	17	38	32	16	On a part	A4	THS	Product on request
I1119160110A2D444T	M16	110	17	38	32	16	On a part	A2	THS	Product on request
I1119160110A4D444T	M16	110	17	38	32	16	On a part	A4	THS	Product on request
I1119160120A2D444T	M16	120	17	38	32	16	On a part	A2	THS	Product on request
I1119160120A4D444T	M16	120	17	38	32	16	On a part	A4	THS	Product on request
I1119160130A2D444T	M16	130	17	44	32	16	On a part	A2	THS	Product on request
I1119160130A4D444T	M16	130	17	44	32	16	On a part	A4	THS	Product on request
I1119160140A2D444T	M16	140	17	44	32	16	On a part	A2	THS	Product on request
I1119160140A4D444T	M16	140	17	44	32	16	On a part	A4	THS	Product on request
I1119160150A2D444T	M16	150	17	44	32	16	On a part	A2	THS	Product on request
I1119160150A4D444T	M16	150	17	44	32	16	On a part	A4	THS	Product on request
I1119200070A2D444T	M20	70	22	46	40	18	On a part	A2	THS	Product on request
I1119200070A4D444T	M20	70	22	46	40	18	On a part	A4	THS	Product on request
I1119200075A2D444T	M20	75	22	46	40	18	On a part	A2	THS	Product on request
I1119200075A4D444T	M20	75	22	46	40	18	On a part	A4	THS	Product on request
I1119200080A2D444T	M20	80	22	46	40	18	On a part	A2	THS	Product on request
I1119200080A4D444T	M20	80	22	46	40	18	On a part	A4	THS	Product on request
I1119200090A2D444T	M20	90	22	46	40	18	On a part	A2	THS	Product on request
I1119200090A4D444T	M20	90	22	46	40	18	On a part	A4	THS	Product on request
I1119200100A2D444T	M20	100	22	46	40	18	On a part	A2	THS	Product on request
I1119200100A4D444T	M20	100	22	46	40	18	On a part	A4	THS	Product on request
I1119200110A2D444T	M20	110	22	46	40	18	On a part	A2	THS	Product on request
I1119200110A4D444T	M20	110	22	46	40	18	On a part	A4	THS	Product on request
I1119200120A2D444T	M20	120	22	46	40	18	On a part	A2	THS	Product on request
I1119200120A4D444T	M20	120	22	46	40	18	On a part	A4	THS	Product on request
I1119200130A2D444T	M20	130	22	52	40	18	On a part	A2	THS	Product on request
I1119200130A4D444T	M20	130	22	52	40	18	On a part	A4	THS	Product on request
I1119200140A2D444T	M20	140	22	52	40	18	On a part	A2	THS	Product on request
I1119200140A4D444T	M20	140	22	52	40	18	On a part	A4	THS	Product on request
I1119200150A2D444T	M20	150	22	52	40	18	On a part	A2	THS	Product on request
I1119200150A4D444T	M20	150	22	52	40	18	On a part	A4	THS	Product on request
I1119240080A2D444T	M24	80	25	54	45	22	On a part	A2	THS	Product on request
I1119240080A4D444T	M24	80	25	54	45	22	On a part	A4	THS	Product on request
I1119240090A2D444T	M24	90	25	54	45	22	On a part	A2	THS	Product on request
I1119240090A4D444T	M24	90	25	54	45	22	On a part	A4	THS	Product on request
I1119240100A2D444T	M24	100	25	54	45	22	On a part	A2	THS	Product on request
I1119240100A4D444T	M24	100	25	54	45	22	On a part	A4	THS	Product on request
I1119240110A2D444T	M24	110	25	54	45	22	On a part	A2	THS	Product on request
I1119240110A4D444T	M24	110	25	54	45	22	On a part	A4	THS	Product on request
I1119240120A2D444T	M24	120	25	54	45	22	On a part	A2	THS	Product on request
I1119240120A4D444T	M24	120	25	54	45	22	On a part	A4	THS	Product on request
I1119240130A2D444T	M24	130	25	60	45	22	On a part	A2	THS	Product on request
I1119240130A4D444T	M24	130	25	60	45	22	On a part	A4	THS	Product on request
I1119240140A2D444T	M24	140	25	60	45	22	On a part	A2	THS	Product on request
I1119240140A4D444T	M24	140	25	60	45	22	On a part	A4	THS	Product on request
I1119240150A2D444T	M24	150	25	60	45	22	On a part	A2	THS	Product on request
I1119240150A4D444T	M24	150	25	60	45	22	On a part	A4	THS	Product on request

Eye bolt, partially threaded INOX

Product inquiry form

Recommended

Product variants
