Eye bolt

63
.
13

An Eye Bolt is a fastening and connecting component used in various fields, from construction to industry and recreation. It features a threaded shaft and an additional loop (eye), which enables effective and stable attachment of different elements and facilitates load-bearing operations.

Applications:

  • Construction: Eye bolts are used in construction to secure structural elements such as beams, channels, steel lines, railings, and more. The loop allows for attaching decorative elements or lighting.
  • Industry: In industrial settings, they are used to mount and secure machine parts and equipment and organize production spaces. The eye enables the lifting and carrying of heavy loads.
  • Recreation: Eye bolts are widely used in recreational areas, especially in rope parks and climbing equipment, where the eye serves as a connection point for gear.
  • Automotive: In the automotive sector, eye bolts are used for securing roof racks, sports equipment, and other accessories. The loop allows for attaching or suspending items.
  • Other Applications: Eye bolts are also applicable in various general-use settings, DIY projects, and many other applications.

Benefits:

  • Durability: Made from stainless steel, eye bolts are exceptionally strong and resistant to damage.
  • Versatility: The additional eye provides the ability to attach elements and carry loads.
  • Corrosion Resistance: The stainless steel material ensures excellent corrosion resistance, making them suitable for various weather conditions.
DOWNLOADABLE DOCUMENTS

Recommended

Group
6313

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

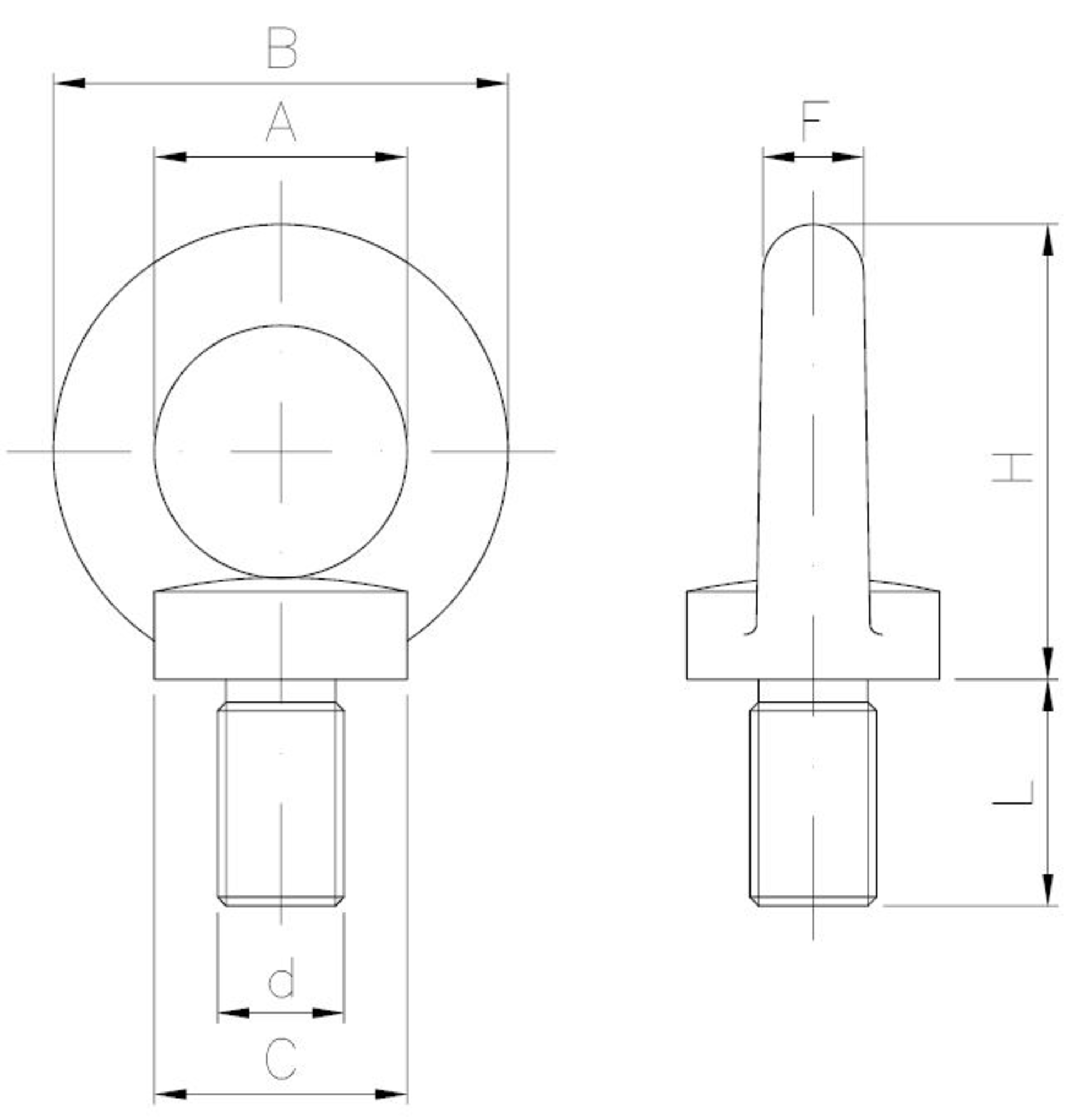

Diameter d
Length L [mm]
Inner diameter of eye A [mm]
Outer diameter of eye B [mm]
Diameter C [mm]
Ear width F [mm]
Height H [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d Length L [mm] Inner diameter of eye A [mm] Outer diameter of eye B [mm] Diameter C [mm] Ear width F [mm] Height H [mm] Unit of measure Availability Show More
6313060B580S
M6 13 16 28 17 6 31 PCS
6313060BS
M6 13 16 28 17 6 PCS
6313060S580S
M6 13 16 28 17 6 31 PCS
6313080B580S
M8 13 20 36 20 8 36 PCS
6313080BS
M8 13 20 36 20 8 PCS
6313080G580S
M8 17 20 36 20 8 36 PCS
6313080S580S
M8 17 20 36 20 8 36 PCS
6313100B580S
M10 17 25 45 25 10 45 PCS
6313100BS
M10 17 25 45 25 10 45 PCS
6313100G580S
M10 17 25 45 25 10 45 PCS
6313100S580S
M10 17 25 45 25 10 45 PCS
6313120B580S
M12 20.5 30 54 30 12 53 PCS
6313120BS
M12 20.5 30 54 30 12 53 PCS
6313120G580S
M12 20.5 30 54 30 12 53 PCS
6313120S580S
M12 20.5 30 54 30 12 53 PCS
6313140B580S
M14 20.5 35 63 35 14 62 PCS
6313140BS
M14 20.5 35 63 35 14 PCS
6313140S580S
M14 20.5 35 63 35 14 62 PCS
6313160B580S
M16 27 35 63 35 14 62 PCS
6313160BS
M16 27 35 63 35 14 PCS
6313160G580S
M16 27 35 63 35 14 62 PCS
6313160S580S
M16 27 35 63 35 14 62 PCS
6313180B580S
M18 27 40 72 40 14 62 PCS
6313180S580S
M18 27 40 72 40 14 62 PCS
6313200B580S
M20 30 40 72 40 16 71 PCS
6313200BS
M20 30 40 72 40 16 PCS
6313200G580S
M20 30 40 72 40 16 71 PCS
6313200S580S
M20 30 40 72 40 16 71 PCS
6313220B580S
M22 30 40 72 40 20 71 PCS
6313220S580S
M22 30 40 72 40 20 71 PCS
6313240B580S
M24 36 50 90 50 20 90 PCS
6313240BS
M24 36 50 90 50 20 PCS
6313240G580S
M24 36 50 90 50 20 90 PCS
6313240S580S
M24 36 50 90 50 20 90 PCS
6313270B580S
M27 45 60 108 65 24 109 PCS
6313270S580S
M27 45 60 108 65 24 109 PCS
6313300B580S
M30 45 60 108 65 24 109 PCS
6313300BS
M30 45 60 108 65 24 PCS
6313300S580S
M30 45 60 108 65 24 109 PCS
6313330B580S
M33 54 70 126 75 28 128 PCS
6313330S580S
M33 54 70 126 75 28 128 PCS
6313360B580S
M36 54 70 126 75 28 128 PCS
6313360BS
M36 54 70 126 75 28 PCS
6313360S580S
M36 54 70 126 75 28 128 PCS
6313390S580S
M39 63 80 144 85 32 147 PCS
6313420B580S
M42 63 80 144 85 32 147 PCS
6313420BS
M42 63 80 144 85 32 PCS
6313420S580S
M42 63 80 144 85 32 147 PCS
6313450S580S
M45 68 90 166 100 38 168 PCS
6313480B580S
M48 68 90 166 100 38 168 PCS
6313480S580S
M48 68 90 166 100 38 168 PCS
6313520S580S
M52 78 100 184 110 42 187 PCS
6313560B580S
M56 78 100 184 110 42 187 PCS
6313560S580S
M56 78 100 206 120 48 208 PCS
6313640B580S
M64 90 110 206 120 48 208 PCS
6313640S580S
M64 90 110 206 120 48 208 PCS
6313800B580S
M80 112 160 296 170 68 298 PCS
