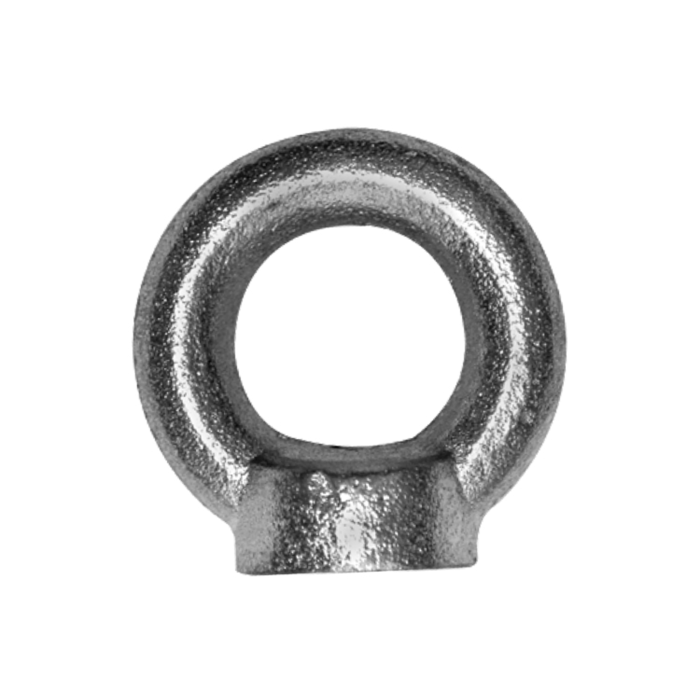

Eye nut INOX

I63

DOWNLOADABLE DOCUMENTS

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

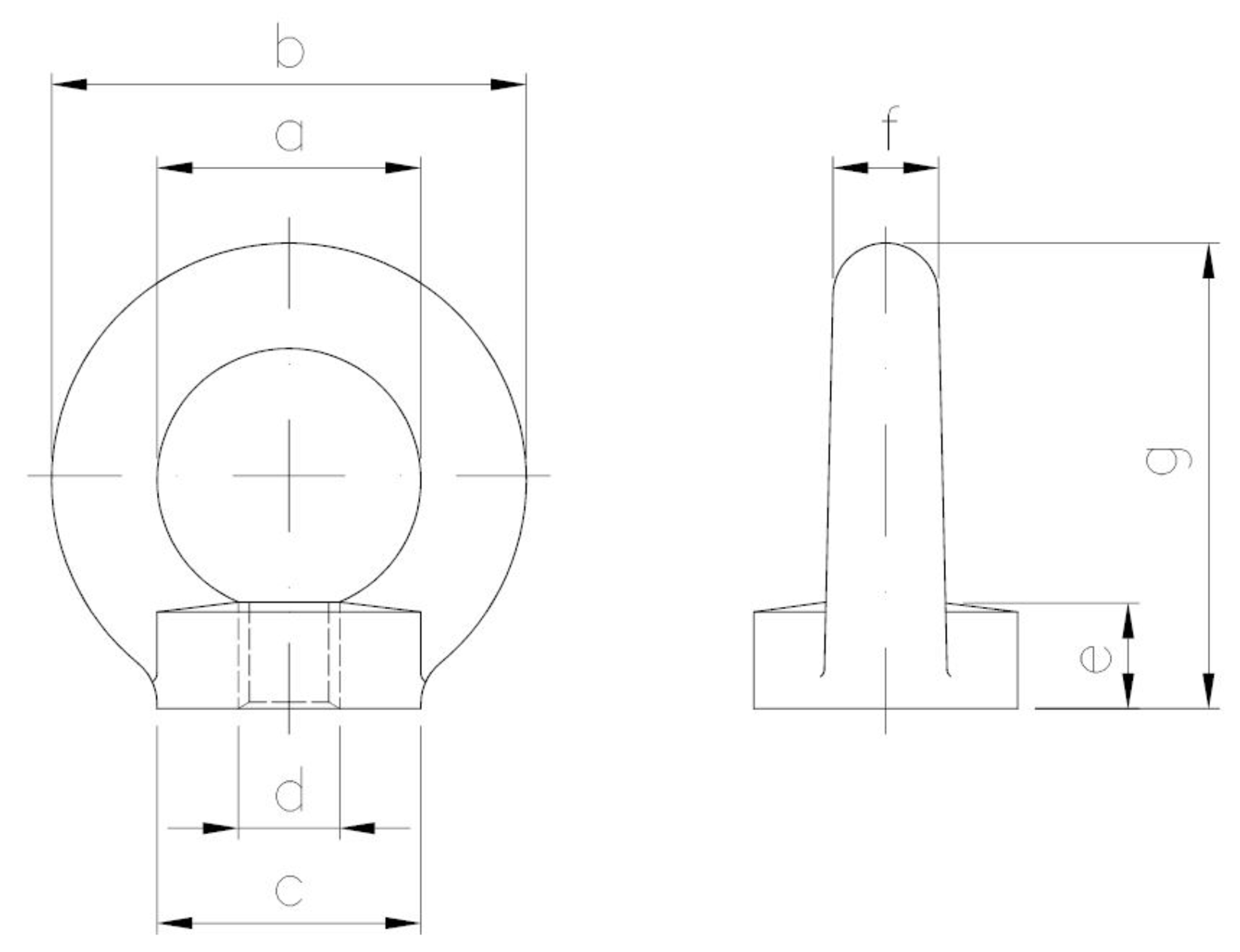

Dimension d [mm]

Material

Dimension f [mm]

Dimension g [mm]

Dimension a [mm]

Dimension b [mm]

Dimension c [mm]

Dimension e [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Material	Dimension f [mm]	Dimension g [mm]	Dimension a [mm]	Dimension b [mm]	Dimension c [mm]	Dimension e [mm]	Unit of measure	Availability

I6314060A2582S	M6	A2	8	36	20	36	20	8.5	PCS	Product on request
I6314060A4582S	M6	A4	8	36	20	36	20	8.5	PCS	The product is available
I6314060A4S	M6	A4	8	36	20	36	20	8.5	PCS	Product on request
I6314080A2582S	M8	A2	8	36	20	36	20	8.5	PCS	Product on request
I6314080A4582S	M8	A4	8	36	20	36	20	8.5	PCS	The product is available
I6314080A4S	M8	A4	8	36	20	36	20	8.5	PCS	Product on request
I6314100A2582S	M10	A2	10	45	25	45	25	10	PCS	Product on request
I6314100A4582S	M10	A4	10	45	25	45	25	10	PCS	The product is available
I6314100A4S	M10	A4	10	45	25	45	25	10	PCS	Product on request
I6314120A2582S	M12	A2	12	53	30	54	30	11	PCS	Product on request
I6314120A4582S	M12	A4	12	53	30	54	30	11	PCS	The product is available
I6314120A4S	M12	A4	12	53	30	54	30	11	PCS	Product on request
I6314160A2582S	M16	A2	14	62	35	63	35	13	PCS	Product on request
I6314160A4582S	M16	A4	14	62	35	63	35	13	PCS	The product is available
I6314200A2582S	M20	A2	16	71	40	72	40	16	PCS	Product on request
I6314200A4582S	M20	A4	16	71	40	72	40	16	PCS	Product on request
I6314240A2582S	M24	A2	20	90	50	90	50	20	PCS	Product on request
I6314240A4582S	M24	A4	20	90	50	90	50	20	PCS	Product on request
I6314270A2582S	M27	A2	24	109	60	108	65	20	PCS	Product on request
I6314270A4582S	M27	A4	24	109	60	108	65	20	PCS	Product on request
I6314300A2582S	M30	A2	24	109	60	108	65	25	PCS	Product on request
I6314300A4582S	M30	A4	24	109	60	108	65	25	PCS	Product on request
I6314360A2582S	M36	A2	28	128	70	126	75	30	PCS	Product on request
I6314360A4582S	M36	A4	28	128	70	126	75	30	PCS	Product on request
