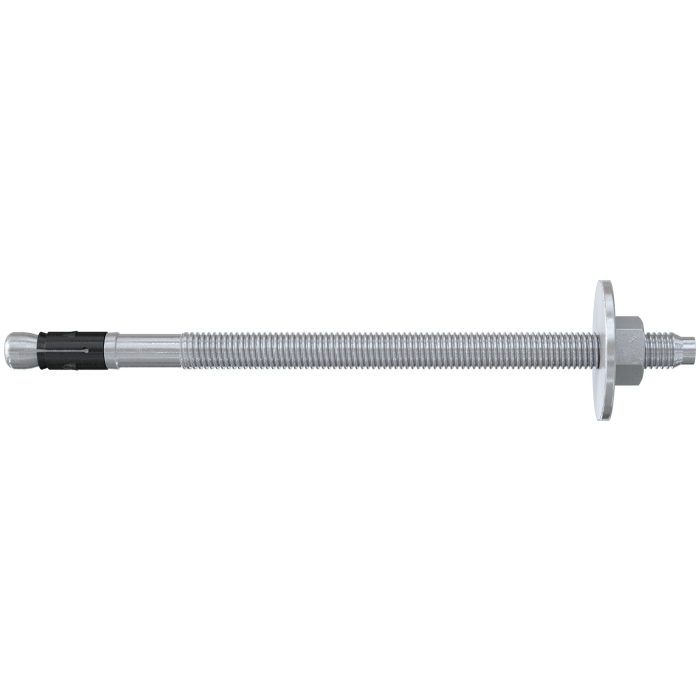

FAZ II Plus GS ZP Fischer pin anchor

With large washer. Meets the highest requirements. Strong and versatile.
Advantages
Thanks to the special washer, the FAZ II Plus GS is suitable for fastening steel elements with long holes and reduces the effort required during installation.
The significantly larger outer diameter of the washers for the FAZ II Plus 16 GS provides a larger load-bearing surface, making it suitable for use in timber construction.
Fast and easy installation without having to clean the drill hole (M8-M24).
Numerous Technical Assessments for various base materials (C12/15-C80/90 concrete, steel fibre concrete, solid sand-lime brick) increase the range of applications.
The new Technical Assessment (ETA) specifies significantly higher tensile load-bearing capacities. As a result, fewer attachment points and anchors are required.
The ETA Technical Assessment, together with other test reports (RWS, ZTV, ETK), confirms the high load-bearing capacities even under fire conditions.
An external, independent technical assessment guarantees the usability of the anchors for up to 120 years. This means that the FAZ II Plus will last a century and is ideally suited for large, long-term construction projects (M10-M16).

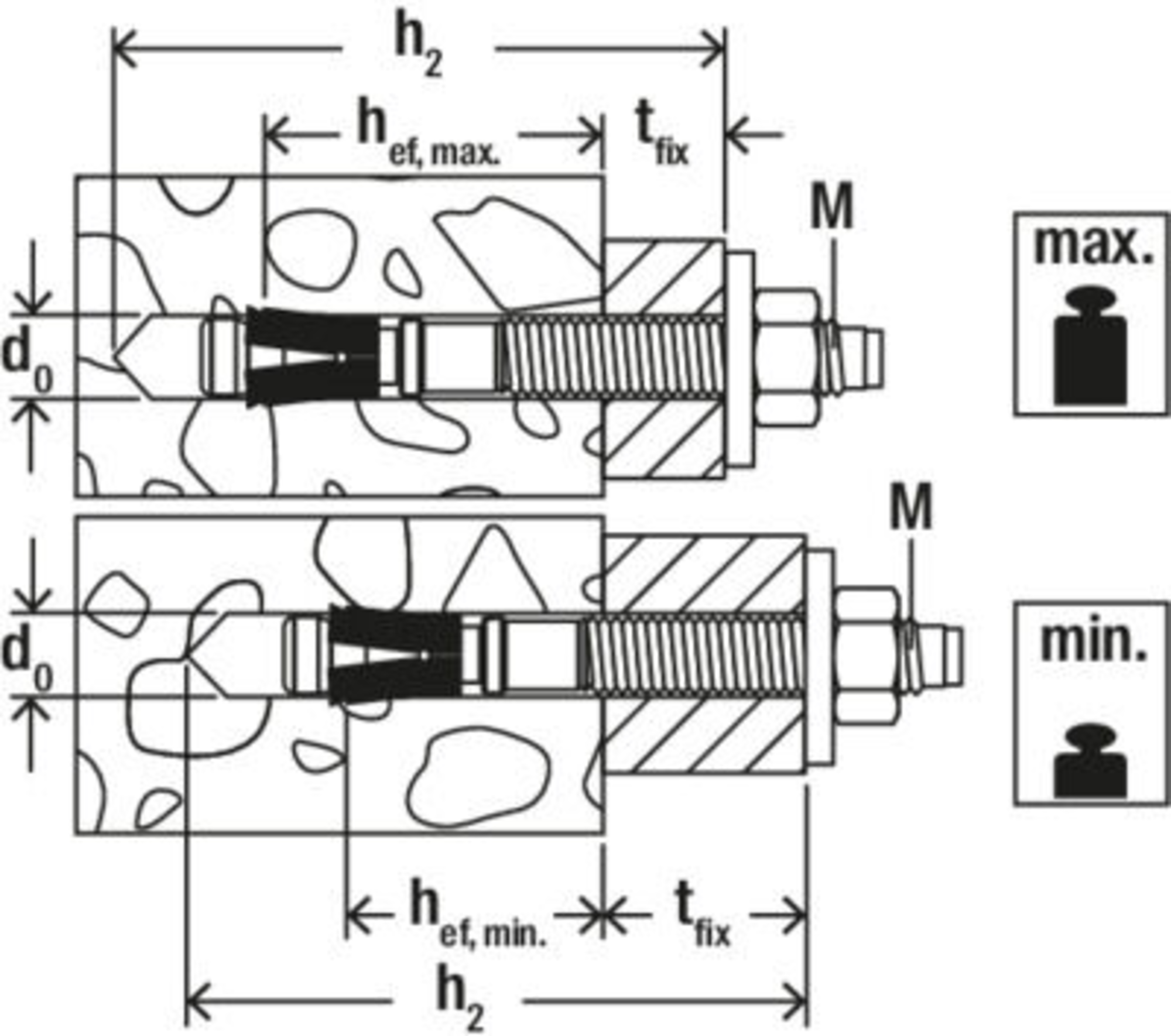

Variable anchorage depths enable precise adjustment to the load level.

The fischer FAZ II Plus GS bolt anchor with a large washer is an excellent solution, especially for anchoring timber structures. Made of galvanised or stainless steel, the anchor effectively transfers high loads to cracked and non-cracked concrete. The bolt anchor with a large washer is the ideal solution for fastening steel elements with gaps. Thanks to the adjustable anchorage depth and easy installation, the FAZ II Plus GS anchor is very versatile. The proven expansion bolt effectively transfers the loads to the concrete, ensuring the highest load-bearing capacity and safe functioning.
