FAZ II Plus HBS ZP Fischer pin anchor

With a large washer, in accordance with the timber construction standards. Meets the highest requirements. Strong and versatile.

Advantages
The FAZ II Plus HBS with an extra large washer in accordance with the timber construction standard DIN 1052, included in the set, ensures excellent load transfer, e.g. when fastening parapets and beams.
The significantly larger outer diameter of the washers than with the FAZ II Plus 16 GS anchors provides a larger contact surface and therefore allows efficient use in timber construction.

Fast and easy installation without having to clean the drill hole (M8 -M24).

Numerous ETA Technical Assessments for different base materials (concrete C12/15-C80/90, fibre-reinforced concrete, solid sand-lime brick) increase the range of applications.
The new ETA Technical Assessment shows a high tensile load-bearing capacity. As a result, fewer attachment points and anchors are required.
The ETA Technical Assessment, together with other test reports (RWS, ZTV, ETK), ensures high loads in fire conditions.

An external independent assessment confirms the usability of the anchors for up to 120 years. This means that the FAZ II Plus will last a century and is ideally suited for large, long-term construction projects (M10-M16).

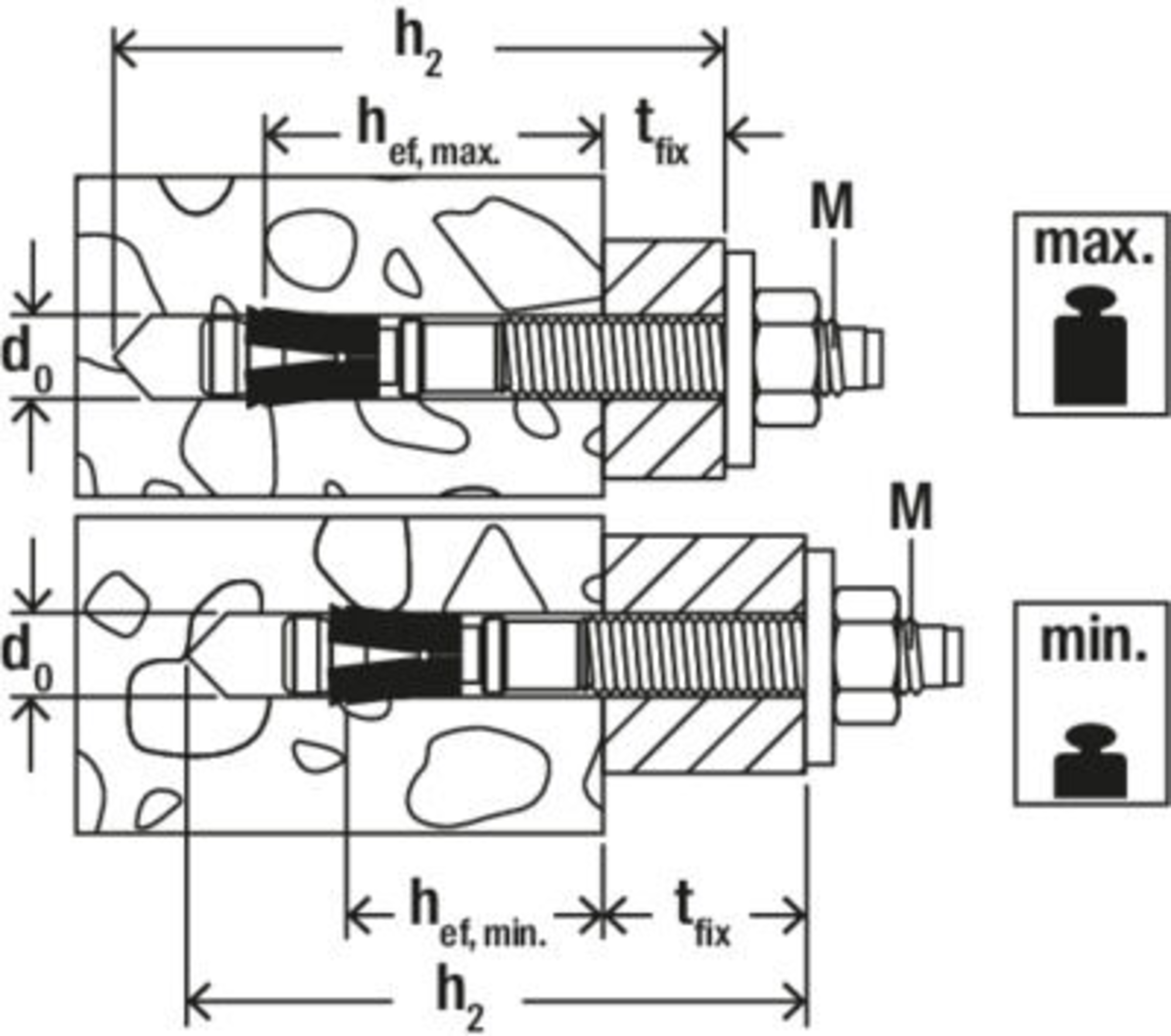

Variable anchorage depths enable precise adjustment to the load level.

The FAZ II Plus HBS bolt anchor with a large washer in accordance with DIN 1052 for timber structures is a steel anchor that meets the highest quality standards. It is characterised by a high load-bearing capacity in cracked and non-cracked concrete. Thanks to the variable anchorage depth, the FAZ II Plus HBS anchor can be used for many different types of applications. The proven expansion clip transfers the loads to the concrete in an exceptionally safe manner. The version made of galvanised steel is used for fastening timber structures. This anchor is suitable, for example, for fastening beams, parapets, etc.
