Fine pitch hex self-locking polyamide nut

Self-Locking Hex Nut with Nylon Insert and Fine Thread is a specialized type of nut that ensures secure fastening due to its nylon insert, which acts as a self-locking mechanism. The fine thread provides a precise and durable connection.

Applications:

Self-locking hex nuts with a nylon insert and fine thread are primarily used in:

Automotive Industry: For assembling chassis, engine components, and other critical parts where stable and durable connections are essential.
Construction: In the assembly of metal structures, furniture, and finishing elements, where reliable and long-lasting fastening is required.
Industrial Assembly Applications: For securing machinery, equipment, and structures, where a durable and reliable connection is needed, along with preventing loosening of the components.

Benefits:

Connection Stability: The nylon insert acts as a self-locking element, ensuring a secure hold and preventing the connection from loosening.
Durability: Made from high-quality steel, these nuts are resistant to corrosion and mechanical damage, ensuring long-term reliability of the connection.
Ease of Installation: The hex shape of the nut facilitates easy installation and removal, speeding up production and repair processes.

View in store

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

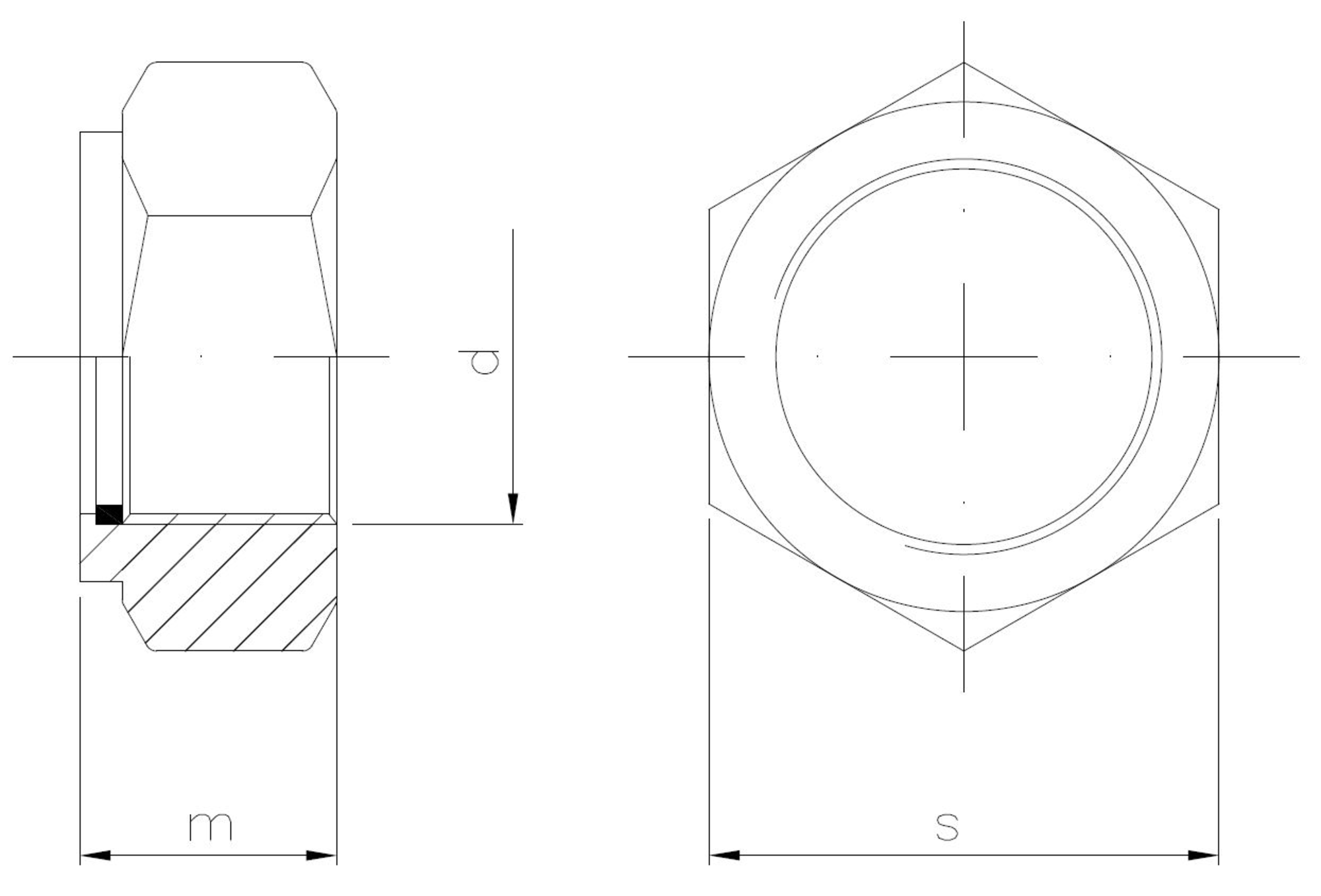

Dimension d [mm]

Dimension m [mm]

Class of mechanical properties

Variety of coating

Dimension s [mm]

Thread pitch

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Class of mechanical properties	Variety of coating	Dimension s [mm]	Thread pitch	Standard	Unit of measure	Availability

1529080100B08D985T	M8	8	8	white zinc plating	13	1.00	DIN 985	THS	Product on request
1529080100B10D985T	M8	8	10	white zinc plating	13	1.00	DIN 985	THS	Product on request
1529080100BD985T	M8	8	6	white zinc plating	13	1.00	DIN 985	THS	Product on request
1529100100B08D985T	M10	10	8	white zinc plating	17	1.00	DIN 985	THS	Product on request
1529100100B10D985T	M10	10	10	white zinc plating	17	1.00	DIN 985	THS	Product on request
1529100100BD985T	M10	10	6	white zinc plating	17	1.00	DIN 985	THS	Product on request
1529100125B08D980T	M10	10	8	white zinc plating	17	1.25	DIN 980V	THS	Product on request
1529100125B08D985T	M10	10	8	white zinc plating	17	1.25	DIN 985	THS	Product on request
1529100125B10D985T	M10	10	10	white zinc plating	17	1.25	DIN 985	THS	Product on request
1529100125BD985T	M10	10	6	white zinc plating	17	1.25	DIN 985	THS	Product on request
1529100125M08D980T	M10	10	8	brass plating	17	1.25	DIN 980V	THS	Product on request
1529120100B08D985T	M12	12	8	white zinc plating	19	1.00	DIN 985	THS	Product on request
1529120125B08D985T	M12	12	8	white zinc plating	19	1.25	DIN 985	THS	Product on request
1529120125B10D985T	M12	12	10	white zinc plating	19	1.25	DIN 985	THS	Product on request
1529120125BD985T	M12	12	6	white zinc plating	19	1.25	DIN 985	THS	Product on request
1529120150B08D985T	M12	12	8	white zinc plating	19	1.50	DIN 985	THS	Product on request
1529120150B10D985T	M12	12	10	white zinc plating	19	1.50	DIN 985	THS	Product on request
1529120150BD985T	M12	12	6	white zinc plating	19	1.50	DIN 985	THS	Product on request
1529140150B08D985T	M14	14	8	white zinc plating	22	1.50	DIN 985	THS	Product on request
1529140150B10D985T	M14	14	10	white zinc plating	22	1.50	DIN 985	THS	Product on request
1529140150BD985T	M14	14	6	white zinc plating	22	1.50	DIN 985	THS	Product on request
1529140150R08D985T	M14	14	8	geomet	22	1.50	DIN 985	THS	Product on request
1529160150B08D985T	M16	16	8	white zinc plating	24	1.50	DIN 985	THS	Product on request
1529160150B10D985T	M16	16	10	white zinc plating	24	1.50	DIN 985	THS	Product on request
1529160150BD985T	M16	16	6	white zinc plating	24	1.50	DIN 985	THS	Product on request
1529160150R10D985T	M16	16	10	geomet	24	1.50	DIN 985	THS	Product on request
1529180150B08D985T	M18	18.5	8	white zinc plating	27	1.50	DIN 985	THS	Product on request
1529180150B10D985T	M18	18.5	10	white zinc plating	27	1.50	DIN 985	THS	Product on request
1529180150BD985T	M18	18.5	6	white zinc plating	27	1.50	DIN 985	THS	Product on request
1529180150R10D985T	M18	18.5	10	geomet	27	1.50	DIN 985	THS	Product on request
1529180200B08D985T	M18	18.5	8	white zinc plating	27	2.00	DIN 985	THS	Product on request
1529200150B08D985T	M20	20	8	white zinc plating	30	1.50	DIN 985	THS	Product on request
1529200150B10D985T	M20	20	10	white zinc plating	30	1.50	DIN 985	THS	Product on request
1529200150BD985T	M20	20	6	white zinc plating	30	1.50	DIN 985	THS	Product on request
1529200200B08D985T	M20	20	8	white zinc plating	30	2.00	DIN 985	THS	Product on request
1529200200B10D985T	M20	20	10	white zinc plating	30	2.00	DIN 985	THS	Product on request
1529220150B08D985T	M22	22	8	white zinc plating	32	1.50	DIN 985	THS	Product on request
1529220150B10D985T	M22	22	10	white zinc plating	32	1.50	DIN 985	THS	Product on request
1529220150BD985T	M22	22	6	white zinc plating	32	1.50	DIN 985	THS	Product on request
1529220200B08D985T	M22	22	8	white zinc plating	32	2.00	DIN 985	THS	Product on request
1529220200R08D985T	M22	22	8	geomet	32	2.00	DIN 985	THS	Product on request
1529240150B08D985T	M24	24	8	white zinc plating	36	1.50	DIN 985	THS	Product on request
1529240150B10D985T	M24	24	10	white zinc plating	36	1.50	DIN 985	THS	Product on request
1529240150BD985T	M24	24	6	white zinc plating	36	1.50	DIN 985	THS	Product on request
1529240150R10D985T	M24	24	10	geomet	36	1.50	DIN 985	THS	Product on request
1529240200B08D985T	M24	24	8	white zinc plating	36	2.00	DIN 985	THS	Product on request
1529240200B10D985T	M24	24	10	white zinc plating	36	2.00	DIN 985	THS	Product on request
1529240200R08D985T	M24	24	8	geomet	36	2.00	DIN 985	THS	Product on request
1529270150B08D985T	M27	27	8	white zinc plating	41	1.50	DIN 985	THS	Product on request
1529270150BD985T	M27	27	6	white zinc plating	41	1.50	DIN 985	THS	Product on request
1529270200B08D985T	M27	27	8	white zinc plating	41	2.00	DIN 985	THS	Product on request
1529270200B10D985T	M27	27	10	white zinc plating	41	2.00	DIN 985	THS	Product on request
1529300150B08D985T	M30	30	8	white zinc plating	46	1.50	DIN 985	THS	Product on request
1529300200B08D985T	M30	30	8	white zinc plating	46	2.00	DIN 985	THS	Product on request
1529300200B10D985T	M30	30	10	white zinc plating	46	2.00	DIN 985	THS	Product on request
1529300200BD985T	M30	30	6	white zinc plating	46	2.00	DIN 985	THS	Product on request
1529300200R08D985T	M30	30	8	geomet	46	2.00	DIN 985	THS	Product on request
1529330150B08D985T	M33	33	8	white zinc plating	50	1.50	DIN 985	THS	Product on request
1529330200B08D985T	M33	33	8	white zinc plating	50	2.00	DIN 985	THS	Product on request
1529330200B10D985T	M33	33	10	white zinc plating	50	2.00	DIN 985	THS	Product on request
1529360200B08D985T	M36	36	8	white zinc plating	55	2.00	DIN 985	THS	Product on request
1529360300B08D985T	M36	36	8	white zinc plating	55	3.00	DIN 985	THS	Product on request
1529420300B08D985T	M42	42	8	white zinc plating	65	3.00	DIN 985	THS	Product on request
1529480300B08D985T	M48	48	8	white zinc plating	75	3.00	DIN 985	THS	Product on request
1529120100B10D985T							DIN 985	THS	Product on request
1529360300B10D985T							DIN 985	THS	Product on request
1529390300B08D985T							DIN 985	THS	Product on request
1529450300B08D985T							DIN 985	THS	Product on request
