Fischer FH II heavy duty anchor with cap nut

Strong anchor for push-through installation in cracked concrete, in the version with an enlarged nut.

Advantages
The International Technical Assessment guarantees maximum safety and the best efficiency. The European Technical Assessment allows the anchor to be used in seismic zones (C1 and C2).

The countersunk head allows the anchor to be countersunk flush with the surface.

The design of the screw and sleeve ensures high shear load-bearing capacity, so fewer fixing points are required.

The optimum geometry reduces the effort required during installation.

The Technical Assessment allows the use of drilling with dust extraction.

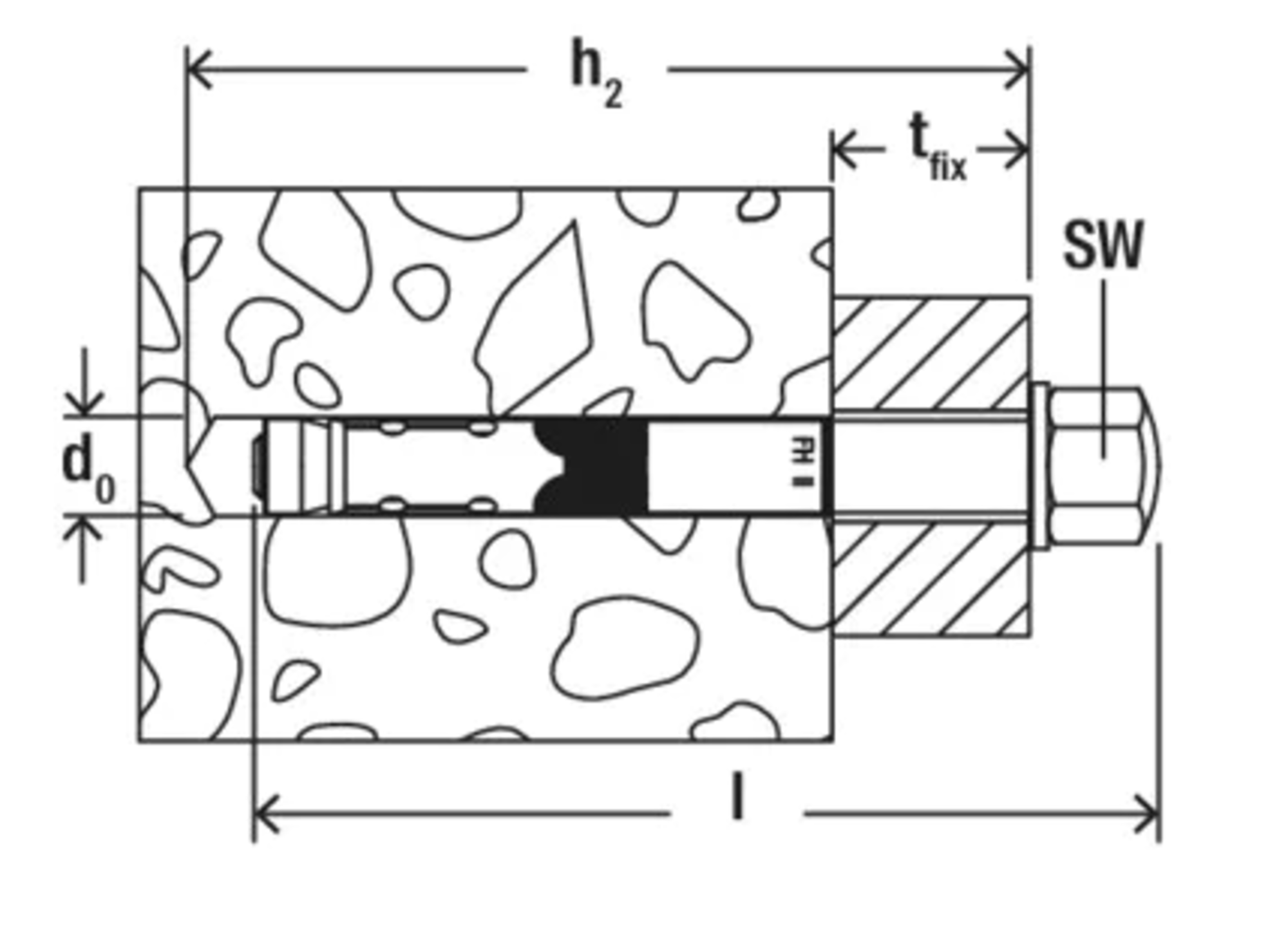

The fischer heavy-duty anchor FH II-H with cap nut is a sleeve anchor made of galvanised steel. The FH II-H is ideal for fastening high-bay racks, steel structures and supports in cracked and non-cracked concrete. The European Technical Assessment and fire resistance class R 120 guarantee functional safety. In addition, the Technical Assessment covers applications in seismic zones (C1 and C2). The anchor is installed flush with the surface, using the push-through installation principle. When the bolt is tightened, the cone is pulled into the expansion sleeve against the hole wall, which anchors it in the substrate. The black plastic ring prevents unwanted rotation of the anchor and absorbs torque slippage.
