Fischer FH II heavy-duty anchor with nut and threaded pin
Strong anchor for push-through installation in cracked concrete, in the version with protruding pin.
Advantages
The International Technical Assessment guarantees maximum safety and the best efficiency. The European Technical Assessment allows the anchor to be used in earthquake zones (seismic zones C1 and C2).
The practical fastening using a nut with washer allows the fastened element to be removed if necessary.
The anchor design ensures a high shear load-bearing capacity, which means fewer fixing points are possible.
The optimized geometry reduces the effort required during installation.
The Technical Assessment allows the use of drilling with dust extraction.

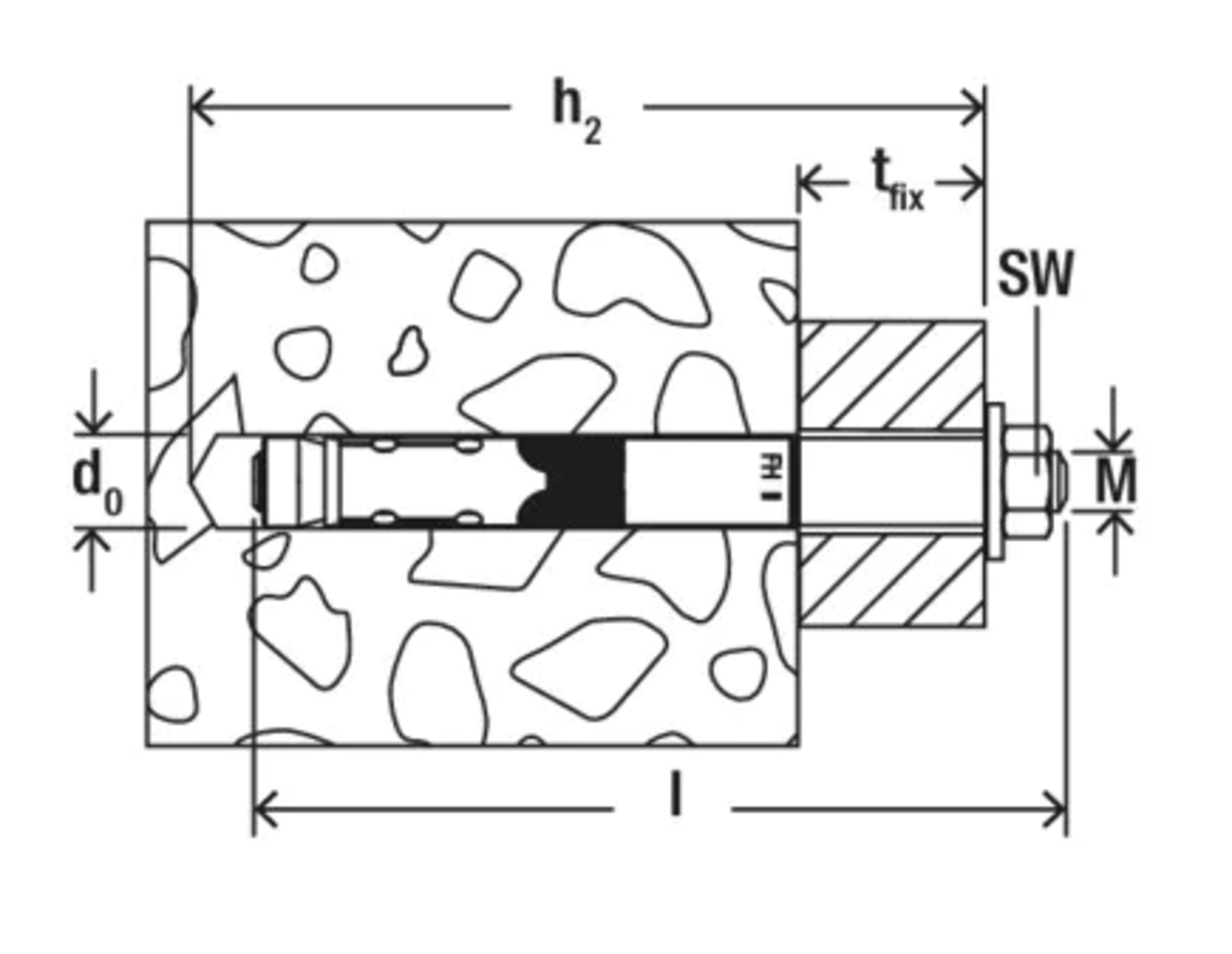

The fischer heavy-duty anchor FH II-B is a sleeve anchor made of galvanized steel. The FH II B is ideal for fastening brackets, steel structures and cable trays in cracked and non-cracked concrete. The European Technical Assessment and classification according to fire resistance class R 120 guarantee additional safety. In addition, the Technical Assessment allows use in seismic zones (cat. C1 and C2). The anchor is sunk flush with the surface, using the push-through installation principle. After tightening the nut, the cone is pulled into the expansion sleeve and expands it against the walls of the hole. This anchors in the base material. The black plastic ring prevents unwanted rotation of the anchor and absorbs torque slippage.
