Flange head self-drilling sheet metal screw

BPSMNT

Flange head self-drilling sheet metal screw is an advanced component designed for quick and secure fastening of sheets and other thin materials. The self-drilling mechanism allows the screw to penetrate the material independently, creating a durable connection without the need for pre-drilled holes.

Applications:

Flange head self-drilling sheet metal screw is ideal for use in industries such as construction, metalworking, automotive manufacturing, and many others. It is perfectly suited for fastening sheets, panels, structural elements, and any other application where a fast and reliable connection in thin materials is required.

Features and Benefits:

Self-Drilling Mechanism: Eliminates the need for pre-drilled holes.
High-Quality Construction: Ensures durability and long-lasting performance.
Quick and Efficient Fastening: Allows for rapid installation without the need for additional tools.

View in store

DOWNLOADABLE DOCUMENTS

Certificates

Znak Certyfikacji 020-UWB-0799.Z_8.pdf

Declarations of conformity

ETA

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

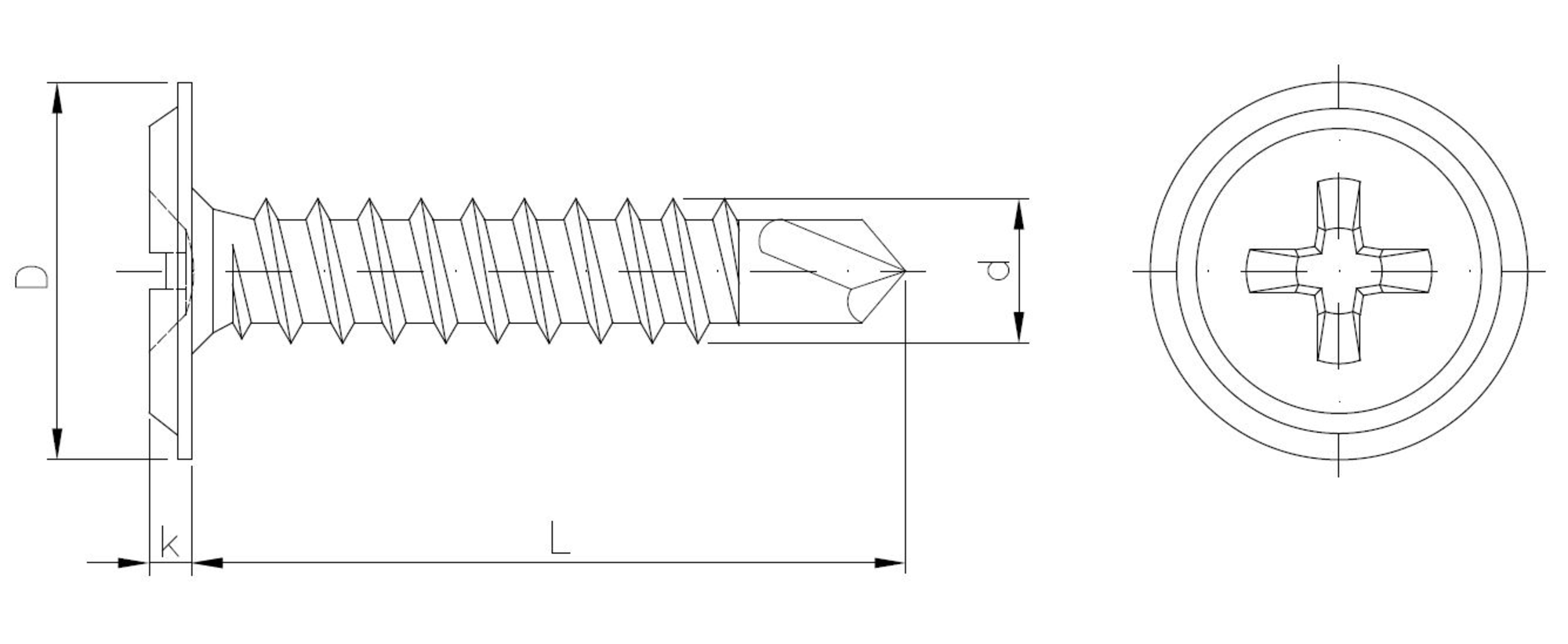

Diameter d [mm]

Length L [mm]

Colour RAL

Thread ending

Variety of coating

Socket type and size

Diameter d [mm]

Head height k [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Diameter d [mm]	Length L [mm]	Colour RAL	Thread ending	Variety of coating	Socket type and size	Diameter d [mm]	Head height k [mm]	Unit of measure	Availability

23160420130PHB910T	4.2	13	9010	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420130PHBWT	4.2	13		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420130PHFWT	4.2	13		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420160PHB716T	4.2	16	7016	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB724T	4.2	16	7024	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB735T	4.2	16	7035	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB737T	4.2	16	7037	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB902T	4.2	16	9002	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB905T	4.2	16	9005	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB906T	4.2	16	9006	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHB910T	4.2	16	9010	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHBWT	4.2	16		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHCWT	4.2	16		W	black zinc plating	PH	11.5	2.3	THS	The product is available
23160420160PHFWT	4.2	16		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420190PHB716T	4.2	19	7016	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB724T	4.2	19	7024	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB735T	4.2	19	7035	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB902T	4.2	19	9002	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB905T	4.2	19	9005	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB906T	4.2	19	9006	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHB910T	4.2	19	9010	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHBWT	4.2	19		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420190PHFWT	4.2	19		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420250PHB905T	4.2	25	9005	W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420250PHBWT	4.2	25		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420250PHFWT	4.2	25		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420250PHGB8WT	4.2	25		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420320PHBWT	4.2	32		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420320PHFWT	4.2	32		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420400PHBWT	4.2	40		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420400PHFWT	4.2	40		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420500PHBWT	4.2	50		W	white zinc plating	PH	11.5	2.3	THS	Product on request
23160420500PHFWT	4.2	50		W	phosphated coating	PH	11.5	2.3	THS	Product on request
23160420550PHBWT	4.2	55		W	white zinc plating	PH	11.5	2.3	THS	The product is available
23160420650PHBWT	4.2	65		W	white zinc plating	PH	11.5	2.3	THS	Product on request
23160420650PHFWT	4.2	65		W	phosphated coating	PH	11.5	2.3	THS	Product on request
