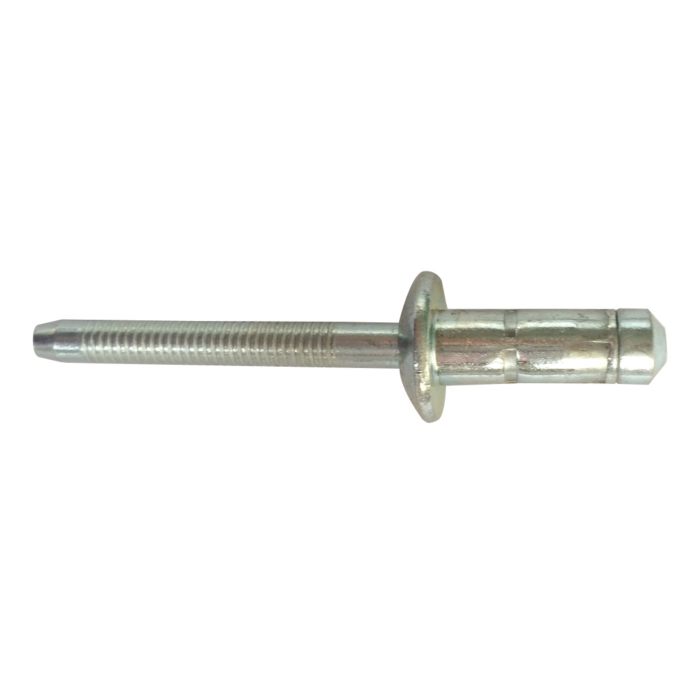

Flat head blind rivet HARDLOCK, steel-steel

24
.
12
Nit SSH

The Flat head blind rivet HARDLOCK, steel-steel is distinguished by its high resistance to shear and tensile forces. Its design ensures an extremely stable connection, even in areas exposed to vibrations. This rivet is widely used in the automotive industry, railway applications, and metal furniture manufacturing. Thanks to its construction, it perfectly fills irregular and imprecise holes, providing a large bearing surface.

View in store

Recommended

Group
2412

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

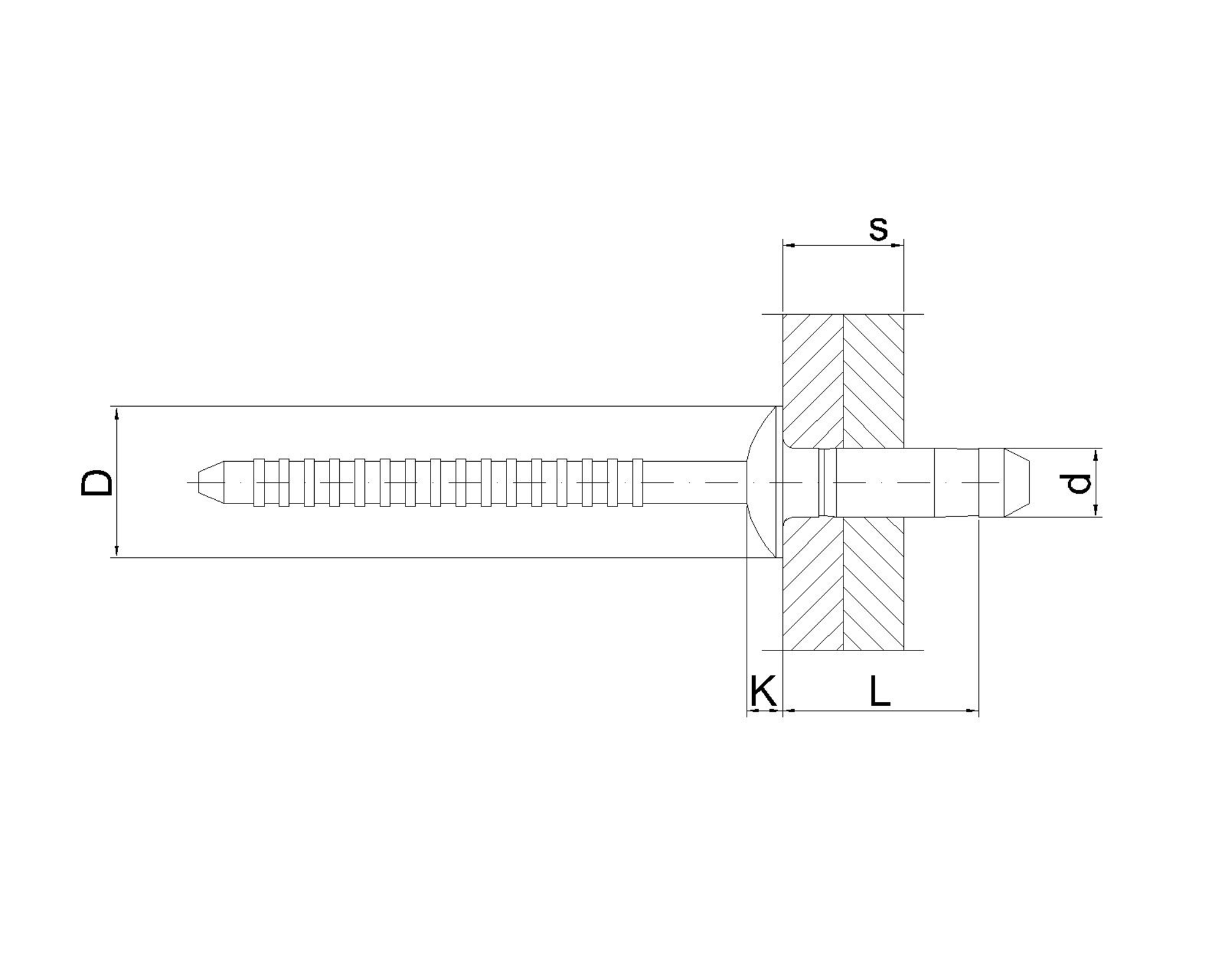

Diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Riveting range s [mm]
Flange thickness k [mm]
Combined materials
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Flange diameter D [mm] Riveting range s [mm] Flange thickness k [mm] Combined materials Unit of measure Availability Show More
2412048115AST
4.8 11.5 Steel / Steel THS
2412048145AST
4.8 14.5 Steel / Steel THS
2412064125AST
6.4 12.5 13.4 4.80-6.80 3.5 Steel / Steel THS
2412064145AST
6.4 14.5 13.4 6.80-8.80 3.5 Steel / Steel THS
2412064165AST
6.4 16.5 13.4 8.80-10.80 3.5 Steel / Steel THS
