Flat head rivet multigrip, aluminum-steel

24
.
09
Nit ASM

Flat head Multigrip rivets provide a greater range of riveting compared to standard rivets. Once installed, the hole is optimally filled by the core element.

View in store

Recommended

Group
2409

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

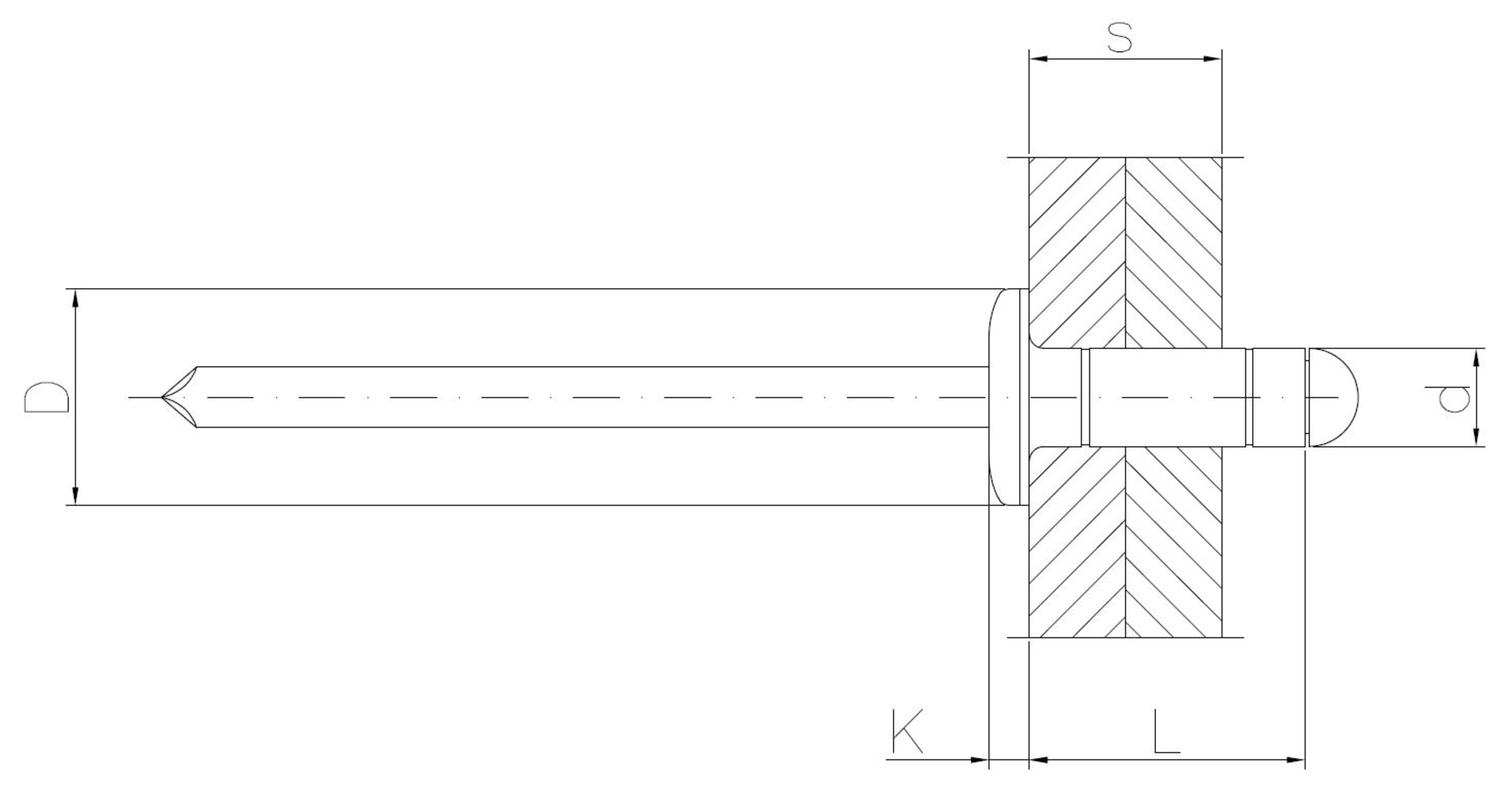

Diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Riveting range s [mm]
Flange thickness k [mm]
Combined materials
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Flange diameter D [mm] Riveting range s [mm] Flange thickness k [mm] Combined materials Unit of measure Availability Show More
2409032095ASB9005T
3.2 9.5 Alu / Steel THS
2409032110AST
3.2 11 6.7 2.5-7 1.3 Alu / Steel THS
2409040095AST
4.0 9.5 8.0 1.5-6.0 1.7 Alu / Steel THS
2409040110SST
4.0 11 Alu / Steel THS
2409040125AST
4.0 12.5 8.0 4.0-9.0 1.7 Alu / Steel THS
2409040165AST
4.0 16.5 8.0 6.5-13.0 1.7 Alu / Steel THS
2409048105AST
4.8 10.5 9.5 1.5-6 2.0 Alu / Steel THS
2409048150AST
4.8 15 9.5 3.5-9.5 2.0 Alu / Steel THS
2409048160AST
4.8 16 Alu / Steel THS
2409048165AST
4.8 16.5 9.5 6.0-11.5 2.0 Alu / Steel THS
2409048180AST
4.8 18 9.5 8.0-13.5 2.0 Alu / Steel THS
2409048195AST
4.8 19.5 9.5 10-16 2.0 Alu / Steel THS
2409048200AST
4.8 20 Alu / Steel THS
2409048245AST
4.8 24.5 Alu / Steel THS
2409048250AST
4.8 25 9.5 12.50-19.50 2.0 Alu / Steel THS
2409078135SST
7.8 13.5 Alu / Steel THS
2409078165SST
7.8 16.5 Alu / Steel THS
