Flat head self-drilling sheet metal screw INOX

I23
.
09
BS

Self-drilling Screw with Countersunk Head INOX is an innovative fastening solution designed specifically for effective and durable joining of steel components. Made from high-quality stainless steel (INOX), it combines durability, corrosion resistance, and design features tailored for demanding installation applications.

Applications:

The self-drilling screw with a countersunk head INOX is used in various industrial sectors, including:

  • Window and door manufacturing

  • Construction industry: For assembling lightweight steel structures and PVC components used for insulation purposes.

  • Furniture production: For joining steel or PVC components, ensuring strong and aesthetically pleasing connections.

Benefits:

  • Corrosion resistance: High-quality stainless steel (INOX) ensures excellent resistance to rust, which is especially important in outdoor and humid environments.

  • Countersunk head: Enables easy and neat embedding into the material, reducing the risk of damage.

  • Self-drilling: Eliminates the need for pre-drilling, speeding up the installation process and improving precision.

  • Versatility: Suitable for applications requiring secure fastening of steel and/or PVC components.

View in store

Recommended

Group
I2309

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

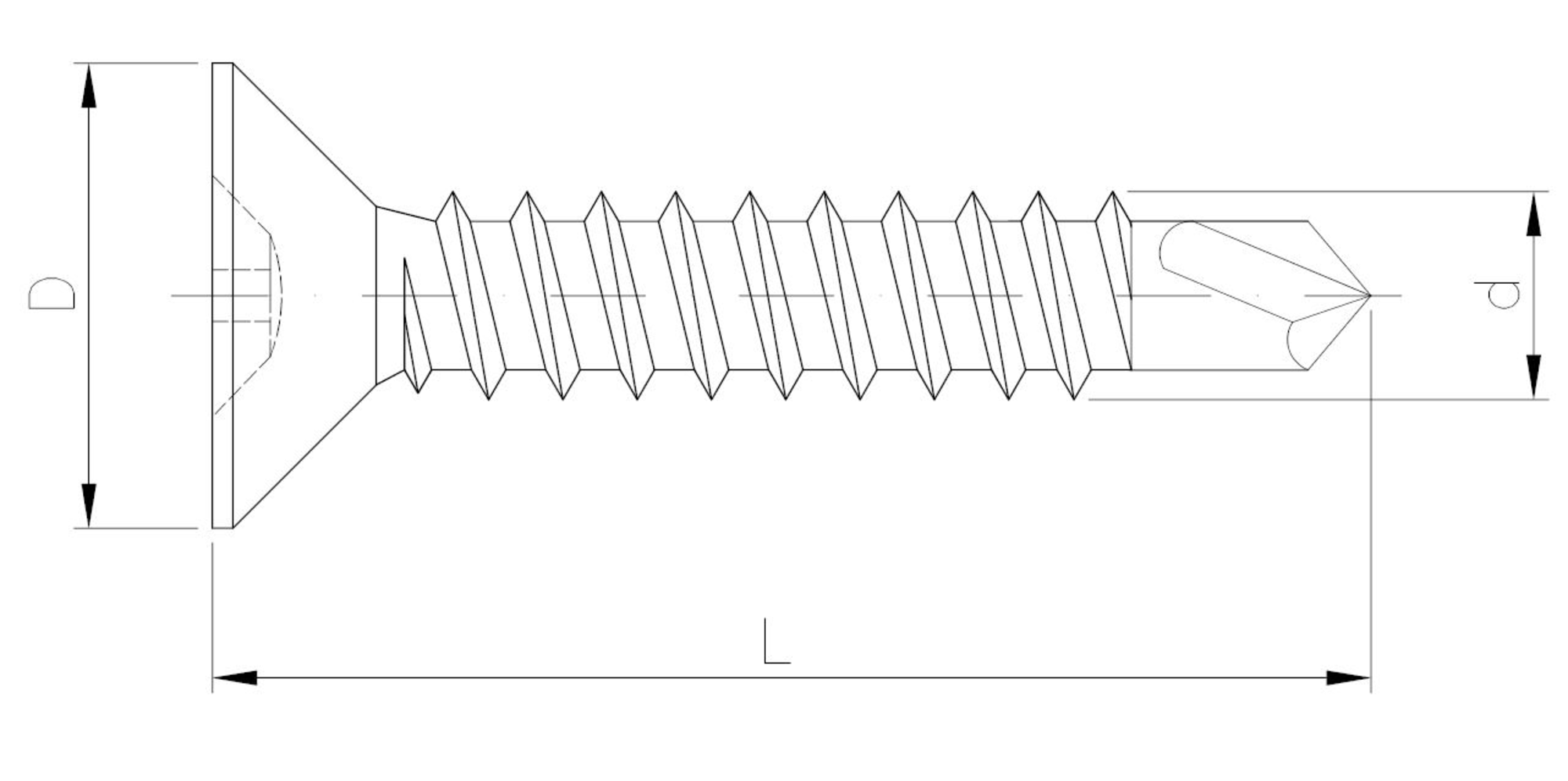

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Recess
Thread ending
Dimension D [mm]
Dimension k [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Recess Thread ending Dimension D [mm] Dimension k [mm] Standard Material Unit of measure Availability Show More
I23090290095HA24OT
2.9 9.5 PH W 5.5 1.7 DIN7504 A2 THS
I23090290095HA44OT
2.9 9.5 PH W 5.5 1.7 DIN7504 A4 THS
I23090290095TXA2OT
2.9 9.5 TX W 5.5 1.7 DIN 7504O A2 THS
I23090290095TXA4OT
2.9 9.5 TX W 5.5 1.7 DIN 7504O A4 THS
I23090290095ZA24OT
2.9 9.5 PZ W 5.5 1.7 DIN7504 A2 THS
I23090290095ZA44OT
2.9 9.5 PZ W 5.5 1.7 DIN7504 A4 THS
I23090290130HA24OT
2.9 13 PH W 5.5 1.7 DIN7504 A2 THS
I23090290130HA44OT
2.9 13 PH W 5.5 1.7 DIN7504 A4 THS
I23090290130TXA2OT
2.9 13 TX W 5.5 1.7 DIN 7504O A2 THS
I23090290130TXA4OT
2.9 13 TX W 5.5 1.7 DIN 7504O A4 THS
I23090290130ZA24OT
2.9 13 PZ W 5.5 1.7 DIN7504 A2 THS
I23090290130ZA44OT
2.9 13 PZ W 5.5 1.7 DIN7504 A4 THS
I23090290160HA24OT
2.9 16 PH W 5.5 1.7 DIN7504 A2 THS
I23090290160HA44OT
2.9 16 PH W 5.5 1.7 DIN7504 A4 THS
I23090290160TXA2OT
2.9 16 TX W 5.5 1.7 DIN 7504O A2 THS
I23090290160TXA4OT
2.9 16 TX W 5.5 1.7 DIN 7504O A4 THS
I23090290160ZA24OT
2.9 16 PZ W 5.5 1.7 DIN7504 A2 THS
I23090290160ZA44OT
2.9 16 PZ W 5.5 1.7 DIN7504 A4 THS
I23090290190HA24OT
2.9 19 PH W 5.5 1.7 DIN7504 A2 THS
I23090290190HA44OT
2.9 19 PH W 5.5 1.7 DIN7504 A4 THS
I23090290190TXA2OT
2.9 19 TX W 5.5 1.7 DIN 7504O A2 THS
I23090290190TXA4OT
2.9 19 TX W 5.5 1.7 DIN 7504O A4 THS
I23090290190ZA24OT
2.9 19 PZ W 5.5 1.7 DIN7504 A2 THS
I23090290190ZA44OT
2.9 19 PZ W 5.5 1.7 DIN7504 A4 THS
I23090350095HA24OT
3.5 9.5 PH W 7.3 2.1 DIN7504 A2 THS
I23090350095HA44OT
3.5 9.5 PH W 7.3 2.1 DIN7504 A4 THS
I23090350095TXA2OT
3.5 9.5 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350095TXA4OT
3.5 9.5 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350095ZA24OT
3.5 9.5 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350095ZA44OT
3.5 9.5 PZ W 7.3 2.1 DIN7504 A4 THS
I23090350130HA24OT
3.5 13 PH W 7.3 2.1 DIN7504 A2 THS
I23090350130HA44OT
3.5 13 PH W 7.3 2.1 DIN7504 A4 THS
I23090350130TXA2OT
3.5 13 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350130TXA4OT
3.5 13 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350130ZA24OT
3.5 13 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350130ZA44OT
3.5 13 PZ W 7.3 2.1 DIN7504 A4 THS
I23090350160HA24OT
3.5 16 PH W 7.3 2.1 DIN7504 A2 THS
I23090350160HA44OT
3.5 16 PH W 7.3 2.1 DIN7504 A4 THS
I23090350160TXA2OT
3.5 16 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350160TXA4OT
3.5 16 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350160ZA24OT
3.5 16 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350160ZA44OT
3.5 16 PZ W 7.3 2.1 DIN7504 A4 THS
I23090350190HA24OT
3.5 19 PH W 7.3 2.1 DIN7504 A2 THS
I23090350190HA44OT
3.5 19 PH W 7.3 2.1 DIN7504 A4 THS
I23090350190TXA2OT
3.5 19 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350190TXA4OT
3.5 19 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350190ZA24OT
3.5 19 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350190ZA44OT
3.5 19 PZ W 7.3 2.1 DIN7504 A4 THS
I23090350220HA24OT
3.5 22 PH W 7.3 2.1 DIN7504 A2 THS
I23090350220HA44OT
3.5 22 PH W 7.3 2.1 DIN7504 A4 THS
I23090350220TXA2OT
3.5 22 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350220TXA4OT
3.5 22 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350220ZA24OT
3.5 22 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350220ZA44OT
3.5 22 PZ W 7.3 2.1 DIN7504 A4 THS
I23090350250HA24OT
3.5 25 PH W 7.3 2.1 DIN7504 A2 THS
I23090350250HA44OT
3.5 25 PH W 7.3 2.1 DIN7504 A4 THS
I23090350250TXA2OT
3.5 25 TX W 7.3 2.1 DIN 7504O A2 THS
I23090350250TXA4OT
3.5 25 TX W 7.3 2.1 DIN 7504O A4 THS
I23090350250ZA24OT
3.5 25 PZ W 7.3 2.1 DIN7504 A2 THS
I23090350250ZA44OT
3.5 25 PZ W 7.3 2.1 DIN7504 A4 THS
I23090390130HA24OT
3.9 13 PH W 7.5 2.3 DIN7504 A2 THS
I23090390130HA44OT
3.9 13 PH W 7.5 2.3 DIN7504 A4 THS
I23090390130TXA2OT
3.9 13 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390130TXA4OT
3.9 13 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390130ZA24OT
3.9 13 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390130ZA44OT
3.9 13 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390160HA24OT
3.9 16 PH W 7.5 2.3 DIN 7504O A2 THS
I23090390160HA44OT
3.9 16 PH W 7.5 2.3 DIN7504 A4 THS
I23090390160TXA2OT
3.9 16 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390160TXA4OT
3.9 16 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390160ZA24OT
3.9 16 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390160ZA44OT
3.9 16 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390190HA24OT
3.9 19 PH W 7.5 2.3 DIN7504 A2 THS
I23090390190HA44OT
3.9 19 PH W 7.5 2.3 DIN7504 A4 THS
I23090390190TXA2OT
3.9 19 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390190TXA4OT
3.9 19 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390190ZA24OT
3.9 19 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390190ZA44OT
3.9 19 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390220HA24OT
3.9 22 PH W 7.5 2.3 DIN7504 A2 THS
I23090390220HA44OT
3.9 22 PH W 7.5 2.3 DIN7504 A4 THS
I23090390220TXA2OT
3.9 22 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390220TXA4OT
3.9 22 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390220ZA24OT
3.9 22 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390220ZA44OT
3.9 22 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390250HA24OT
3.9 25 PH W 7.5 2.3 DIN7504 A2 THS
I23090390250HA44OT
3.9 25 PH W 7.5 2.3 DIN7504 A4 THS
I23090390250TXA2OT
3.9 25 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390250TXA4OT
3.9 25 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390250ZA24OT
3.9 25 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390250ZA44OT
3.9 25 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390320HA24OT
3.9 32 PH W 7.5 2.3 DIN7504 A2 THS
I23090390320HA44OT
3.9 32 PH W 7.5 2.3 DIN7504 A4 THS
I23090390320TXA2OT
3.9 32 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390320TXA4OT
3.9 32 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390320ZA24OT
3.9 32 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390320ZA44OT
3.9 32 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390380HA24OT
3.9 38 PH W 7.5 2.3 DIN7504 A2 THS
I23090390380HA44OT
3.9 38 PH W 7.5 2.3 DIN7504 A4 THS
I23090390380TXA2OT
3.9 38 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390380TXA4OT
3.9 38 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390380ZA24OT
3.9 38 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390380ZA44OT
3.9 38 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390450HA24OT
3.9 45 PH W 7.5 2.3 DIN7504 A2 THS
I23090390450HA44OT
3.9 45 PH W 7.5 2.3 DIN7504 A4 THS
I23090390450TXA2OT
3.9 45 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390450TXA4OT
3.9 45 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390450ZA24OT
3.9 45 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390450ZA44OT
3.9 45 PZ W 7.5 2.3 DIN7504 A4 THS
I23090390500HA24OT
3.9 50 PH W 7.5 2.3 DIN7504 A2 THS
I23090390500HA44OT
3.9 50 PH W 7.5 2.3 DIN7504 A4 THS
I23090390500TXA2OT
3.9 50 TX W 7.5 2.3 DIN 7504O A2 THS
I23090390500TXA4OT
3.9 50 TX W 7.5 2.3 DIN 7504O A4 THS
I23090390500ZA24OT
3.9 50 PZ W 7.5 2.3 DIN7504 A2 THS
I23090390500ZA44OT
3.9 50 PZ W 7.5 2.3 DIN7504 A4 THS
I23090420130HA24OT
4.2 13 PH W 8.4 2.5 DIN7504 A2 THS
I23090420130HA44OT
4.2 13 PH W 8.4 2.5 DIN7504 A4 THS
I23090420130TXA2OT
4.2 13 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420130TXA4OT
4.2 13 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420130ZA24OT
4.2 13 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420130ZA44OT
4.2 13 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420160HA24OT
4.2 16 PH W 8.4 2.5 DIN7504 A2 THS
I23090420160HA44OT
4.2 16 PH W 8.4 2.5 DIN7504 A4 THS
I23090420160TXA2OT
4.2 16 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420160TXA4OT
4.2 16 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420160ZA24OT
4.2 16 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420160ZA44OT
4.2 16 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420190HA24OT
4.2 19 PH W 8.4 2.5 DIN7504 A2 THS
I23090420190HA44OT
4.2 19 PH W 8.4 2.5 DIN7504 A4 THS
I23090420190TXA2OT
4.2 19 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420190TXA4OT
4.2 19 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420190ZA24OT
4.2 19 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420190ZA44OT
4.2 19 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420220HA24OT
4.2 22 PH W 8.4 2.5 DIN7504 A2 THS
I23090420220HA44OT
4.2 22 PH W 8.4 2.5 DIN7504 A4 THS
I23090420220TXA2OT
4.2 22 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420220TXA4OT
4.2 22 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420220ZA24OT
4.2 22 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420220ZA44OT
4.2 22 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420250HA24OT
4.2 25 PH W 8.4 2.5 DIN7504 A2 THS
I23090420250HA24PT
4.2 25 PH W 8.1 2.5 DIN 7504P A2 THS
I23090420250HA44OT
4.2 25 PH W 8.4 2.5 DIN7504 A4 THS
I23090420250TC14OT
4.2 25 TX W 8.4 2.5 DIN7504 THS
I23090420250TXA2OT
4.2 25 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420250TXA4OT
4.2 25 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420250ZA24OT
4.2 25 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420250ZA44OT
4.2 25 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420320HA24OT
4.2 32 PH W 8.4 2.5 DIN7504 A2 THS
I23090420320HA44OT
4.2 32 PH W 8.4 2.5 DIN7504 A4 THS
I23090420320TXA2OT
4.2 32 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420320TXA4OT
4.2 32 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420320ZA24OT
4.2 32 PZ W 8.4 2.5 DIN 7504O A2 THS
I23090420320ZA44OT
4.2 32 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420380HA24OT
4.2 38 PH W 8.4 2.5 DIN7504 A2 THS
I23090420380HA44OT
4.2 38 PH W 8.4 2.5 DIN7504 A4 THS
I23090420380TXA2OT
4.2 38 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420380TXA4OT
4.2 38 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420380ZA24OT
4.2 38 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420380ZA44OT
4.2 38 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420450HA24OT
4.2 45 PH W 8.4 2.5 DIN7504 A2 THS
I23090420450HA44OT
4.2 45 PH W 8.4 2.5 DIN7504 A4 THS
I23090420450TXA2OT
4.2 45 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420450TXA4OT
4.2 45 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420450ZA24OT
4.2 45 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420450ZA44OT
4.2 45 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420500HA24OT
4.2 50 PH W 8.4 2.5 DIN7504 A2 THS
I23090420500HA44OT
4.2 50 PH W 8.4 2.5 DIN7504 A4 THS
I23090420500TXA2OT
4.2 50 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420500TXA4OT
4.2 50 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420500ZA24OT
4.2 50 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420500ZA44OT
4.2 50 PZ W 8.4 2.5 DIN7504 A4 THS
I23090420600HA24OT
4.2 60 PH W 8.4 2.5 DIN7504 A2 THS
I23090420600HA44OT
4.2 60 PH W 8.4 2.5 DIN7504 A4 THS
I23090420600TXA2OT
4.2 60 TX W 8.4 2.5 DIN 7504O A2 THS
I23090420600TXA4OT
4.2 60 TX W 8.4 2.5 DIN 7504O A4 THS
I23090420600ZA24OT
4.2 60 PZ W 8.4 2.5 DIN7504 A2 THS
I23090420600ZA44OT
4.2 60 PZ W 8.4 2.5 DIN7504 A4 THS
I23090480130HA24OT
4.8 13 PH W 9.3 3.0 DIN7504 A2 THS
I23090480130HA44OT
4.8 13 PH W 9.3 3.0 DIN7504 A4 THS
I23090480130TXA2OT
4.8 13 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480130TXA4OT
4.8 13 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480130ZA24OT
4.8 13 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480130ZA44OT
4.8 13 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480160HA24OT
4.8 16 PH W 9.3 3.0 DIN7504 A2 THS
I23090480160HA44OT
4.8 16 PH W 9.3 3.0 DIN7504 A4 THS
I23090480160TXA2OT
4.8 16 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480160TXA4OT
4.8 16 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480160ZA24OT
4.8 16 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480160ZA44OT
4.8 16 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480190HA24OT
4.8 19 PH W 9.3 3.0 DIN7504 A2 THS
I23090480190HA44OT
4.8 19 PH W 9.3 3.0 DIN7504 A4 THS
I23090480190TXA2OT
4.8 19 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480190TXA4OT
4.8 19 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480190ZA24OT
4.8 19 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480190ZA44OT
4.8 19 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480220HA24OT
4.8 22 PH W 9.3 3.0 DIN7504 A2 THS
I23090480220HA44OT
4.8 22 PH W 9.3 3.0 DIN7504 A4 THS
I23090480220TXA2OT
4.8 22 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480220TXA4OT
4.8 22 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480220ZA24OT
4.8 22 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480220ZA44OT
4.8 22 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480250HA24OT
4.8 25 PH W 9.3 3.0 DIN7504 A2 THS
I23090480250HA44OT
4.8 25 PH W 9.3 3.0 DIN7504 A4 THS
I23090480250TXA2OT
4.8 25 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480250TXA4OT
4.8 25 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480250ZA24OT
4.8 25 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480250ZA44OT
4.8 25 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480280HA24OT
4.8 28 PH W 9.3 3.0 DIN7504 A2 THS
I23090480280HA44OT
4.8 28 PH W 9.3 3.0 DIN7504 A4 THS
I23090480280TXA2OT
4.8 28 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480280TXA4OT
4.8 28 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480280ZA24OT
4.8 28 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480280ZA44OT
4.8 28 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480320HA24OT
4.8 32 PH W 9.3 3.0 DIN7504 A2 THS
I23090480320HA44OT
4.8 32 PH W 9.3 3.0 DIN7504 A4 THS
I23090480320TXA2OT
4.8 32 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480320TXA4OT
4.8 32 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480320ZA24OT
4.8 32 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480320ZA44OT
4.8 32 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480380HA24OT
4.8 38 PH W 9.3 3.0 DIN7504 A2 THS
I23090480380HA44OT
4.8 38 PH W 9.3 3.0 DIN7504 A4 THS
I23090480380TXA2OT
4.8 38 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480380TXA4OT
4.8 38 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480380ZA24OT
4.8 38 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480380ZA44OT
4.8 38 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480450HA24OT
4.8 45 PH W 9.3 3.0 DIN7504 A2 THS
I23090480450HA44OT
4.8 45 PH W 9.3 3.0 DIN7504 A4 THS
I23090480450TXA2OT
4.8 45 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480450TXA4OT
4.8 45 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480450ZA24OT
4.8 45 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480450ZA44OT
4.8 45 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480500HA24OT
4.8 50 PH W 9.3 3.0 DIN7504 A2 THS
I23090480500HA44OT
4.8 50 PH W 9.3 3.0 DIN7504 A4 THS
I23090480500TXA2OT
4.8 50 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480500TXA4OT
4.8 50 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480500ZA24OT
4.8 50 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480500ZA44OT
4.8 50 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480600HA24OT
4.8 60 PH W 9.3 3.0 DIN7504 A2 THS
I23090480600HA44OT
4.8 60 PH W 9.3 3.0 DIN7504 A4 THS
I23090480600TXA2OT
4.8 60 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480600TXA4OT
4.8 60 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480600ZA24OT
4.8 60 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480600ZA44OT
4.8 60 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480700HA24OT
4.8 70 PH W 9.3 3.0 DIN7504 A2 THS
I23090480700HA44OT
4.8 70 PH W 9.3 3.0 DIN7504 A4 THS
I23090480700TXA2OT
4.8 70 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480700TXA4OT
4.8 70 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480700ZA24OT
4.8 70 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480700ZA44OT
4.8 70 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480750HA24OT
4.8 75 PH W 9.3 3.0 DIN7504 A2 THS
I23090480750HA44OT
4.8 75 PH W 9.3 3.0 DIN7504 A4 THS
I23090480750TXA2OT
4.8 75 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480750TXA4OT
4.8 75 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480750ZA24OT
4.8 75 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480750ZA44OT
4.8 75 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480800HA24OT
4.8 80 PH W 9.3 3.0 DIN7504 A2 THS
I23090480800HA44OT
4.8 80 PH W 9.3 3.0 DIN7504 A4 THS
I23090480800TXA2OT
4.8 80 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480800TXA4OT
4.8 80 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480800ZA24OT
4.8 80 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480800ZA44OT
4.8 80 PZ W 9.3 3.0 DIN7504 A4 THS
I23090480900HA24OT
4.8 90 PH W 9.3 3.0 DIN7504 A2 THS
I23090480900HA44OT
4.8 90 PH W 9.3 3.0 DIN7504 A4 THS
I23090480900TXA2OT
4.8 90 TX W 9.3 3.0 DIN 7504O A2 THS
I23090480900TXA4OT
4.8 90 TX W 9.3 3.0 DIN 7504O A4 THS
I23090480900ZA24OT
4.8 90 PZ W 9.3 3.0 DIN7504 A2 THS
I23090480900ZA44OT
4.8 90 PZ W 9.3 3.0 DIN7504 A4 THS
I23090481000HA24OT
4.8 100 PH W 9.3 3.0 DIN7504 A2 THS
I23090481000HA44OT
4.8 100 PH W 9.3 3.0 DIN7504 A4 THS
I23090481000TXA2OT
4.8 100 TX W 9.3 3.0 DIN 7504O A2 THS
I23090481000TXA4OT
4.8 100 TX W 9.3 3.0 DIN 7504O A4 THS
I23090481000ZA24OT
4.8 100 PZ W 9.3 3.0 DIN7504 A2 THS
I23090481000ZA44OT
4.8 100 PZ W 9.3 3.0 DIN7504 A4 THS
I23090550190HA24OT
5.5 19 PH W 10.3 3.4 DIN7504 A2 THS
I23090550190HA44OT
5.5 19 PH W 10.3 3.4 DIN7504 A4 THS
I23090550190TXA2OT
5.5 19 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550190TXA4OT
5.5 19 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550190ZA24OT
5.5 19 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550190ZA44OT
5.5 19 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550220HA24OT
5.5 22 PH W 10.3 3.4 DIN7504 A2 THS
I23090550220HA44OT
5.5 22 PH W 10.3 3.4 DIN7504 A4 THS
I23090550220TXA2OT
5.5 22 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550220TXA4OT
5.5 22 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550220ZA24OT
5.5 22 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550220ZA44OT
5.5 22 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550250HA24OT
5.5 25 PH W 10.3 3.4 DIN7504 A2 THS
I23090550250HA44OT
5.5 25 PH W 10.3 3.4 DIN7504 A4 THS
I23090550250TXA2OT
5.5 25 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550250TXA4OT
5.5 25 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550250ZA24OT
5.5 25 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550250ZA44OT
5.5 25 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550320HA24OT
5.5 32 PH W 10.3 3.4 DIN7504 A2 THS
I23090550320HA44OT
5.5 32 PH W 10.3 3.4 DIN7504 A4 THS
I23090550320TXA2OT
5.5 32 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550320TXA4OT
5.5 32 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550320ZA24OT
5.5 32 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550320ZA44OT
5.5 32 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550380HA24OT
5.5 38 PH W 10.3 3.4 DIN7504 A2 THS
I23090550380HA44OT
5.5 38 PH W 10.3 3.4 DIN7504 A4 THS
I23090550380TXA2OT
5.5 38 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550380TXA4OT
5.5 38 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550380ZA24OT
5.5 38 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550380ZA44OT
5.5 38 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550400HA24OT
5.5 40 PH W 10.3 3.4 DIN7504 A2 THS
I23090550400HA44OT
5.5 40 PH W 10.3 3.4 DIN7504 A4 THS
I23090550400TXA2OT
5.5 40 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550400TXA4OT
5.5 40 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550400ZA24OT
5.5 40 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550400ZA44OT
5.5 40 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550450HA24OT
5.5 45 PH W 10.3 3.4 DIN7504 A2 THS
I23090550450HA44OT
5.5 45 PH W 10.3 3.4 DIN7504 A4 THS
I23090550450TXA2OT
5.5 45 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550450TXA4OT
5.5 45 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550450ZA24OT
5.5 45 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550450ZA44OT
5.5 45 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550500HA24OT
5.5 50 PH W 10.3 3.4 DIN7504 A2 THS
I23090550500HA44OT
5.5 50 PH W 10.3 3.4 DIN7504 A4 THS
I23090550500TXA2OT
5.5 50 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550500TXA4OT
5.5 50 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550500ZA24OT
5.5 50 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550500ZA44OT
5.5 50 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550600HA24OT
5.5 60 PH W 10.3 3.4 DIN7504 A2 THS
I23090550600HA44OT
5.5 60 PH W 10.3 3.4 DIN7504 A4 THS
I23090550600TXA2OT
5.5 60 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550600TXA4OT
5.5 60 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550600ZA24OT
5.5 60 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550600ZA44OT
5.5 60 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550700HA24OT
5.5 70 PH W 10.3 3.4 DIN7504 A2 THS
I23090550700HA44OT
5.5 70 PH W 10.3 3.4 DIN7504 A4 THS
I23090550700TXA2OT
5.5 70 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550700TXA4OT
5.5 70 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550700ZA24OT
5.5 70 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550700ZA44OT
5.5 70 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550750HA24OT
5.5 75 PH W 10.3 3.4 DIN7504 A2 THS
I23090550750HA44OT
5.5 75 PH W 10.3 3.4 DIN7504 A4 THS
I23090550750TXA2OT
5.5 75 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550750TXA4OT
5.5 75 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550750ZA24OT
5.5 75 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550750ZA44OT
5.5 75 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550800HA24OT
5.5 80 PH W 10.3 3.4 DIN7504 A2 THS
I23090550800HA44OT
5.5 80 PH W 10.3 3.4 DIN7504 A4 THS
I23090550800TXA2OT
5.5 80 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550800TXA4OT
5.5 80 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550800ZA24OT
5.5 80 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550800ZA44OT
5.5 80 PZ W 10.3 3.4 DIN7504 A4 THS
I23090550900HA24OT
5.5 90 PH W 10.3 3.4 DIN7504 A2 THS
I23090550900HA44OT
5.5 90 PH W 10.3 3.4 DIN7504 A4 THS
I23090550900TXA2OT
5.5 90 TX W 10.3 3.4 DIN 7504O A2 THS
I23090550900TXA4OT
5.5 90 TX W 10.3 3.4 DIN 7504O A4 THS
I23090550900ZA24OT
5.5 90 PZ W 10.3 3.4 DIN7504 A2 THS
I23090550900ZA44OT
5.5 90 PZ W 10.3 3.4 DIN7504 A4 THS
I23090551000HA24OT
5.5 100 PH W 10.3 3.4 DIN7504 A2 THS
I23090551000HA44OT
5.5 100 PH W 10.3 3.4 DIN7504 A4 THS
I23090551000TXA2OT
5.5 100 TX W 10.3 3.4 DIN 7504O A2 THS
I23090551000TXA4OT
5.5 100 TX W 10.3 3.4 DIN 7504O A4 THS
I23090551000ZA24OT
5.5 100 PZ W 10.3 3.4 DIN7504 A2 THS
I23090551000ZA44OT
5.5 100 PZ W 10.3 3.4 DIN7504 A4 THS
I23090630160HA24OT
6.3 16 PH W 10.9 3.8 DIN7504 A2 THS
I23090630160HA44OT
6.3 16 PH W 10.9 3.8 DIN7504 A4 THS
I23090630160TXA2OT
6.3 16 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630160TXA4OT
6.3 16 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630160ZA24OT
6.3 16 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630160ZA44OT
6.3 16 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630190HA24OT
6.3 19 PH W 10.9 3.8 DIN7504 A2 THS
I23090630190HA44OT
6.3 19 PH W 10.9 3.8 DIN7504 A4 THS
I23090630190TXA2OT
6.3 19 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630190TXA4OT
6.3 19 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630190ZA24OT
6.3 19 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630190ZA44OT
6.3 19 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630220HA24OT
6.3 22 PH W 10.9 3.8 DIN7504 A2 THS
I23090630220HA44OT
6.3 22 PH W 10.9 3.8 DIN7504 A4 THS
I23090630220TXA2OT
6.3 22 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630220TXA4OT
6.3 22 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630220ZA24OT
6.3 22 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630220ZA44OT
6.3 22 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630250HA24OT
6.3 25 PH W 10.9 3.8 DIN7504 A2 THS
I23090630250HA44OT
6.3 25 PH W 10.9 3.8 DIN7504 A4 THS
I23090630250TXA2OT
6.3 25 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630250TXA4OT
6.3 25 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630250ZA24OT
6.3 25 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630250ZA44OT
6.3 25 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630320HA24OT
6.3 32 PH W 10.9 3.8 DIN7504 A2 THS
I23090630320HA44OT
6.3 32 PH W 10.9 3.8 DIN7504 A4 THS
I23090630320TXA2OT
6.3 32 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630320TXA4OT
6.3 32 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630320ZA24OT
6.3 32 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630320ZA44OT
6.3 32 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630380HA24OT
6.3 38 PH W 10.9 3.8 DIN7504 A2 THS
I23090630380HA44OT
6.3 38 PH W 10.9 3.8 DIN7504 A4 THS
I23090630380TXA2OT
6.3 38 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630380TXA4OT
6.3 38 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630380ZA24OT
6.3 38 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630380ZA44OT
6.3 38 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630450HA24OT
6.3 45 PH W 10.9 3.8 DIN 7504O A2 THS
I23090630450HA44OT
6.3 45 PH W 10.9 3.8 DIN7504 A4 THS
I23090630450TXA2OT
6.3 45 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630450TXA4OT
6.3 45 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630450ZA24OT
6.3 45 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630450ZA44OT
6.3 45 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630500HA24OT
6.3 50 PH W 10.9 3.8 DIN7504 A2 THS
I23090630500HA44OT
6.3 50 PH W 10.9 3.8 DIN7504 A4 THS
I23090630500TXA2OT
6.3 50 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630500TXA4OT
6.3 50 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630500ZA24OT
6.3 50 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630500ZA44OT
6.3 50 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630600HA24OT
6.3 60 PH W 10.9 3.8 DIN7504 A2 THS
I23090630600HA44OT
6.3 60 PH W 10.9 3.8 DIN7504 A4 THS
I23090630600TXA2OT
6.3 60 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630600TXA4OT
6.3 60 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630600ZA24OT
6.3 60 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630600ZA44OT
6.3 60 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630700HA24OT
6.3 70 PH W 10.9 3.8 DIN7504 A2 THS
I23090630700HA44OT
6.3 70 PH W 10.9 3.8 DIN7504 A4 THS
I23090630700TXA2OT
6.3 70 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630700TXA4OT
6.3 70 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630700ZA24OT
6.3 70 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630700ZA44OT
6.3 70 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630800HA24OT
6.3 80 PH W 10.9 3.8 DIN7504 A2 THS
I23090630800HA44OT
6.3 80 PH W 10.9 3.8 DIN7504 A4 THS
I23090630800TXA2OT
6.3 80 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630800TXA4OT
6.3 80 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630800ZA24OT
6.3 80 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630800ZA44OT
6.3 80 PZ W 10.9 3.8 DIN7504 A4 THS
I23090630900HA24OT
6.3 90 PH W 10.9 3.8 DIN7504 A2 THS
I23090630900HA44OT
6.3 90 PH W 10.9 3.8 DIN7504 A4 THS
I23090630900TXA2OT
6.3 90 TX W 10.9 3.8 DIN 7504O A2 THS
I23090630900TXA4OT
6.3 90 TX W 10.9 3.8 DIN 7504O A4 THS
I23090630900ZA24OT
6.3 90 PZ W 10.9 3.8 DIN7504 A2 THS
I23090630900ZA44OT
6.3 90 PZ W 10.9 3.8 DIN7504 A4 THS
I23090631000HA24OT
6.3 100 PH W 10.9 3.8 DIN7504 A2 THS
I23090631000HA44OT
6.3 100 PH W 10.9 3.8 DIN7504 A4 THS
I23090631000TXA2OT
6.3 100 TX W 10.9 3.8 DIN 7504O A2 THS
I23090631000TXA4OT
6.3 100 TX W 10.9 3.8 DIN 7504O A4 THS
I23090631000ZA24OT
6.3 100 PZ W 10.9 3.8 DIN7504 A2 THS
I23090631000ZA44OT
6.3 100 PZ W 10.9 3.8 DIN7504 A4 THS
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
