FNA II H nail anchor with Fischer hook

Driven anchor with hook for multi-point attachments.

Advantages
The special operating principle of the anchor enables fast drive-in installation and shortens the setting time.

The exceptionally shallow anchorage depth prevents the reinforcement from being hit and enables trouble-free installation.

The optimised expansion clip engages the anchor as it is being inserted into the drill hole and protects it from falling out during overhead installation.

The large cross-section of the shank guarantees high load-bearing capacity and therefore an exceptionally high level of safety.

The various head shapes allow for the attachment of various structural elements.

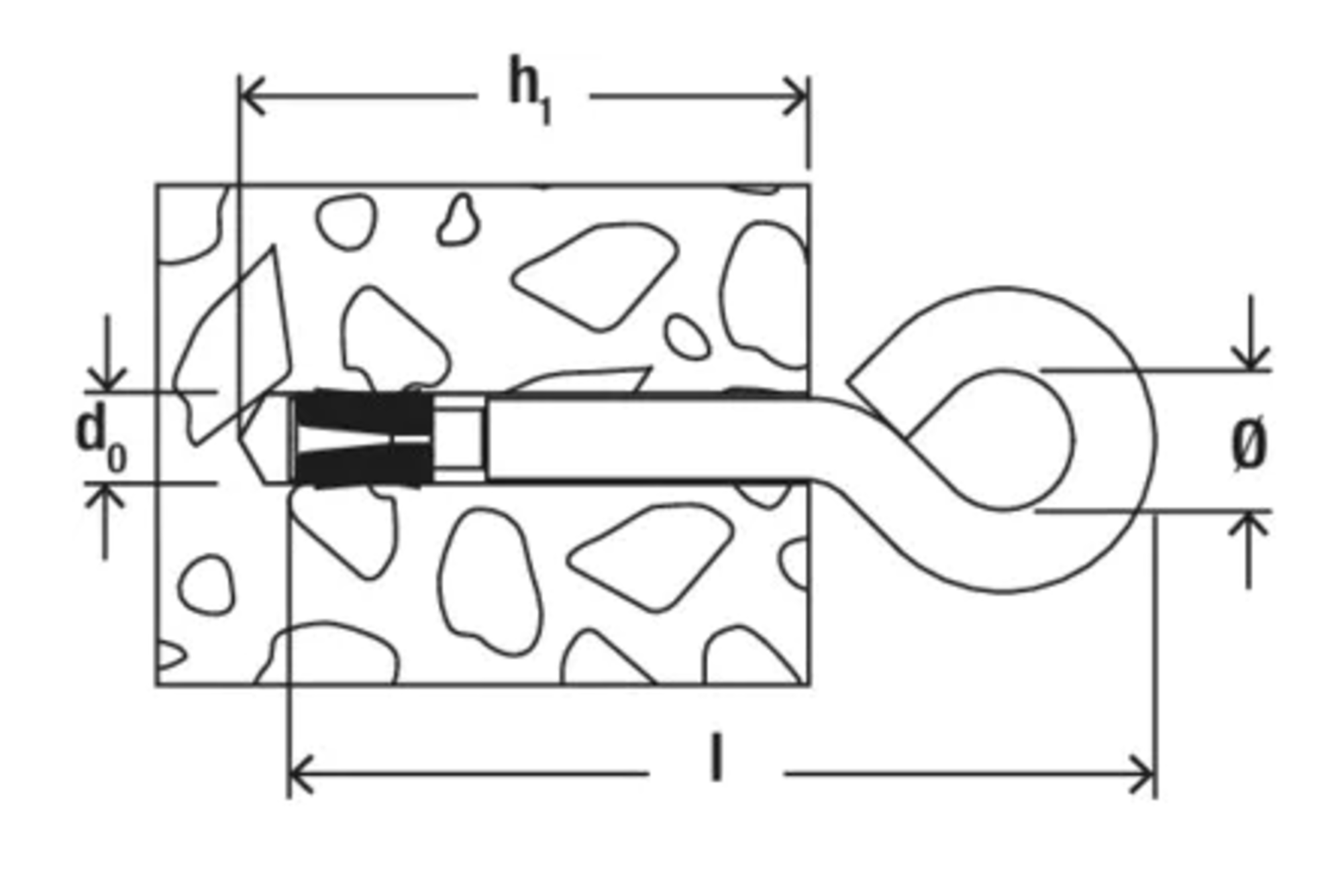

The FNA II-H nail anchor with hook is made of galvanised steel. The FNA II anchor is set with a few hammer blows in a fast push-through installation and expands automatically when the load is applied. The cone is pulled into the expansion clip and then presses against the drill hole walls. The fischer FNA II-H nail anchor with hook is mainly suitable for attaching cables or hangers inside buildings.
