Foldable single-leg pad INOX

I14
.
44

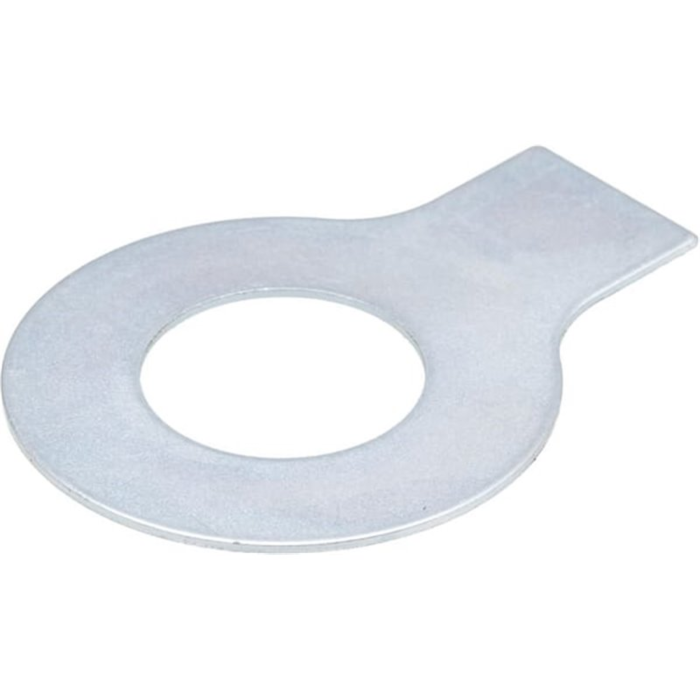

The One-tab bent washer (inox) is a specialized mounting component used in construction and industrial applications, made of high-quality stainless steel (inox). It features a unique design with a single "tab" that allows it to be easily bent and adapted to various surfaces and installation conditions.

Applications:

  • Construction: Used for mounting steel structures, railings, and suspended ceilings where precise leveling and compensation for uneven surfaces are required.
  • Industry: Employed in machine installations and metal structures where level adjustment and even load distribution are necessary.
  • Automotive: Applied in vehicle chassis and structures, particularly where stabilization and compensation for irregularities are needed.

Benefits:

  • Corrosion resistance: Made of stainless steel, the washer offers excellent resistance to rust, making it ideal for outdoor and humid environments.
  • Durability: Stainless steel ensures long-lasting strength and stability, enhancing the reliability of the assembly.
  • Installation flexibility: The one-tab design allows easy adjustment to irregular surfaces.
View in store

Recommended

Group
I1444

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

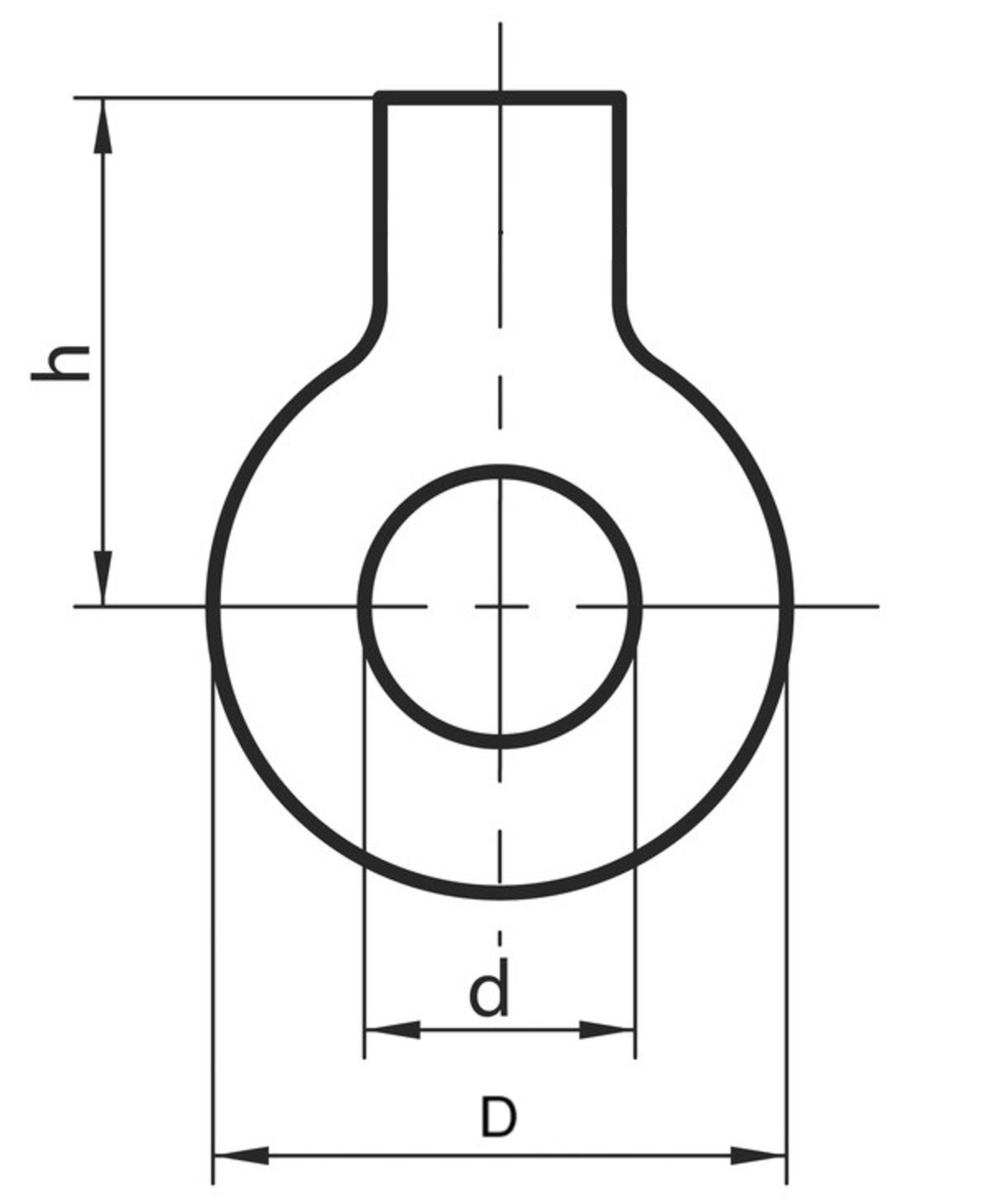

Hole diameter M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Thickness h [mm]
Standard
Material
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Hole diameter M [mm] Outer diameter D [mm] Inner diameter d [mm] Thickness h [mm] Standard Material Unit of measure Availability Show More
I1444040140A2D93T
M4 4.3 14 0.38 DIN 93 A2 THS
I1444050170A2D93T
M5 5.3 17 0.50 DIN 93 A2 THS
I1444050170A4D93T
M5 5.3 17 0.50 DIN 93 A4 THS
I1444060190A2D93T
M6 6.4 19 0.50 DIN 93 A2 THS
I1444060190A4D93T
M6 6.4 19 0.50 DIN 93 A4 THS
I1444080220A2D93T
M8 8.4 22 0.75 DIN 93 A2 THS
I1444080220A4D93T
M8 8.4 22 0.75 DIN 93 A4 THS
I1444100260A2D93T
M10 10.5 26 0.75 DIN 93 A2 THS
I1444100260A4D93T
M10 10.5 26 0.75 DIN 93 A4 THS
I1444120300A2D93T
M12 13 30 1.00 DIN 93 A2 THS
I1444120300A4D93T
M12 13 30 1.00 DIN 93 A4 THS
I1444160360A2D93T
M16 17 36 1.00 DIN 93 A2 THS
I1444160360A4D93T
M16 17 36 1.00 DIN 93 A4 THS
I1444200420A2D93T
M20 21 42 1.00 DIN 93 A2 THS
I1444200420A4D93T
M20 21 42 1.00 DIN 93 A4 THS
I1444240500A2D93T
M24 25 50 1.00 DIN 93 A2 THS
I1444240500A4D93T
M24 25 50 1.00 DIN 93 A4 THS
I1444270580A2D93T
M27 28 58 1.60 DIN 93 A2 THS
I1444270580A4D93T
M27 28 58 1.60 DIN 93 A4 THS
I1444300630A2D93T
M30 31 63 1.60 DIN 93 A2 THS
I1444300630A4D93T
M30 31 63 1.60 DIN 93 A4 THS
I1444360750A2D93T
M36 37 75 1.60 DIN 93 A2 THS
I1444360750A4D93T
M36 37 75 1.60 DIN 93 A4 THS
I1444420880A4D93T
M42 DIN 93 A4 THS
