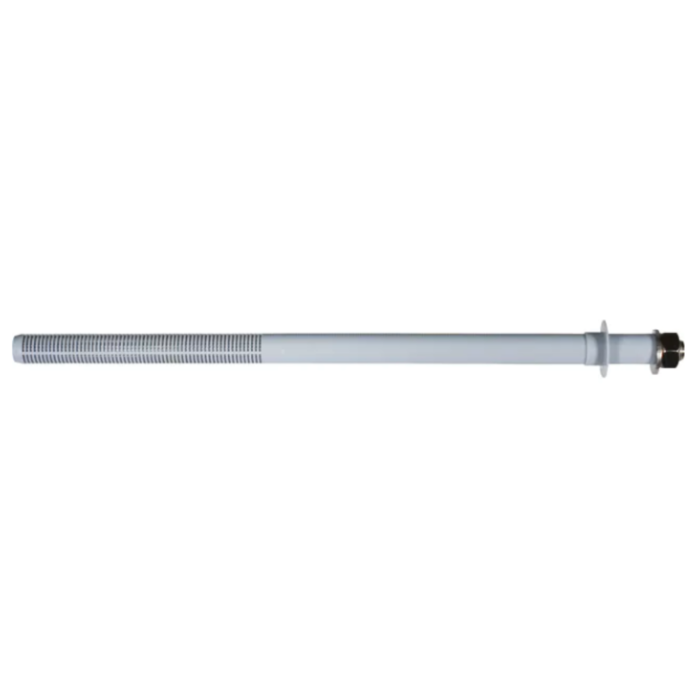

H-K plastic mesh sleeve with Fischer threaded rod

Mesh sleeve for economical mortar consumption in hollow brick walls.
Advantages
The FIS H K mesh sleeve is designed for the use of FIS V, FIS Green and FIS P Plus injection mortars and ensures lower mortar consumption while maintaining an excellent shape connection.
Centring wings in the mesh sleeve stabilize the position of threaded rods of different diameters.
The hook-shaped catches hold the sleeve in the hole and enable trouble-free overhead installation.
The geometry of the mesh sleeve enables the connection of non-load-bearing layers of the substrate, which affects the ease and convenience of installation.
The fischer FIS SET 18 x 130/200 M 12/200 mesh sleeve set for injection anchoring is used for the professional, cost-effective installation of FIS A threaded rods. The mesh sleeves are used with the injection mortars FIS V, FIS VW HIGH SPEED, FIS VS LOW SPEED, FIS VL, FIS Green, FIS P and FIS P. The optimized mesh structure saves injection mortar. When installing the threaded rod or sleeve with internal thread, the mortar is pressed through the mesh and adapts to the hollow bricks. As a result, the loads are evenly transferred to the substrate. Installation takes place using the pre-assembly method. The injection anchor sleeve can connect non-load-bearing layers.
