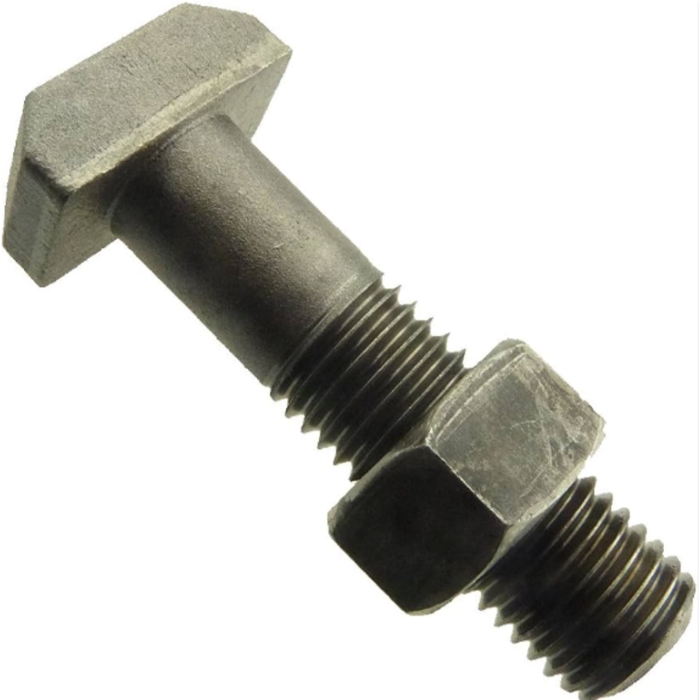

Hammer bolts, with hexagon nut dimension

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension L [mm]

Class of mechanical properties

Variety of coating

Dimension k [mm]

Dimension b [mm]

Dimension m [mm]

Dimension e [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

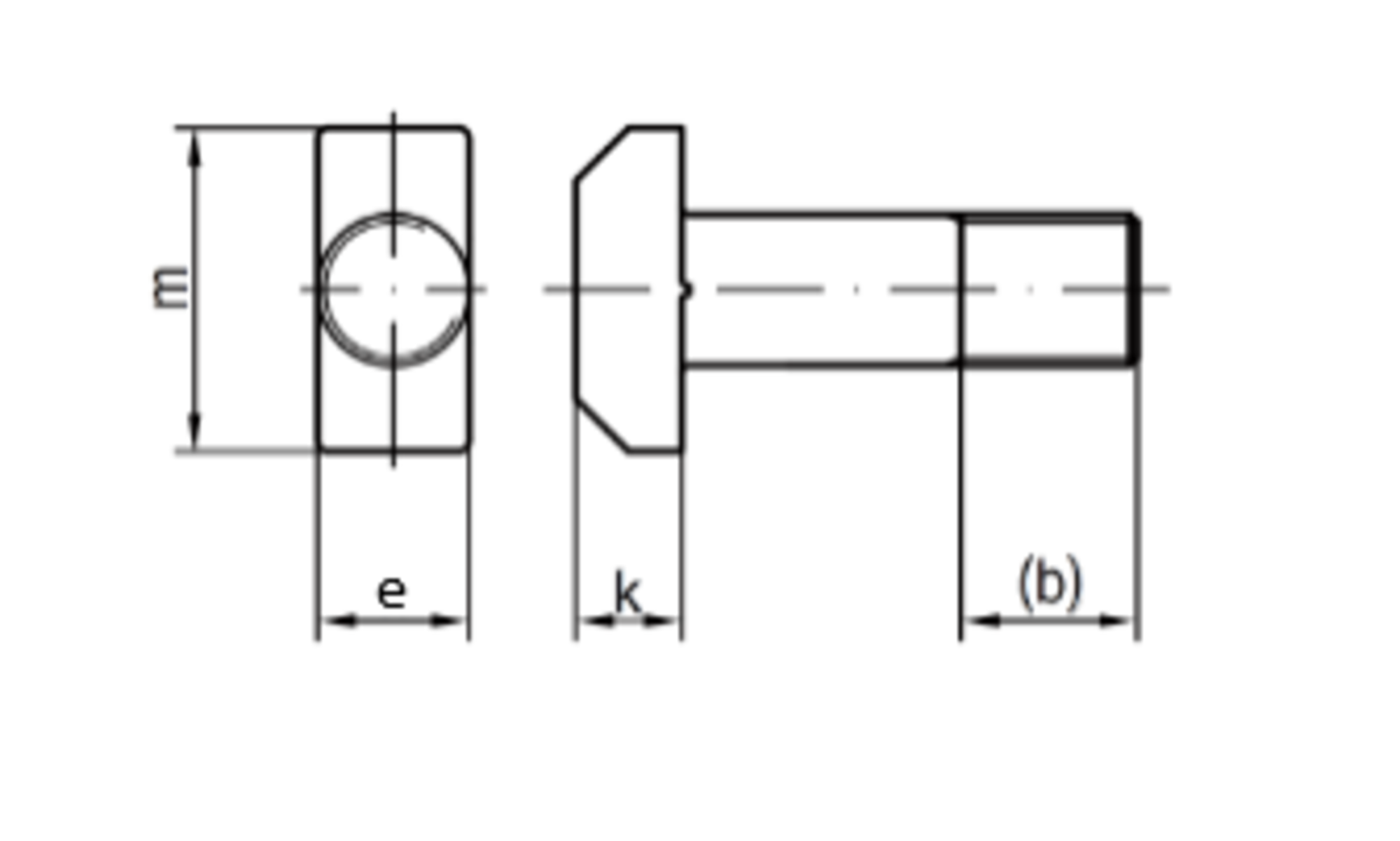

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Class of mechanical properties	Variety of coating	Dimension k [mm]	Dimension b [mm]	Dimension m [mm]	Dimension e [mm]	Unit of measure	Availability

1143080030S46D261P	M8	30	4.6	raw	5.5	22	18	8	SET	Product on request
1143100030S46D261P	M10	30	4.6	raw	7	26	21	10	SET	Product on request
1143100040S46D261P	M10	40	4.6	raw	7	26	21	10	SET	Product on request
1143100050S46D261P	M10	50	4.6	raw	7	26	21	10	SET	Product on request
1143100060S46D261P	M10	60	4.6	raw	7	26	21	10	SET	Product on request
1143120040S46D261P	M12	40	4.6	raw	8	30	26	12	SET	Product on request
1143120050S46D261P	M12	50	4.6	raw	8	30	26	12	SET	Product on request
1143120060S46D261P	M12	60	4.6	raw	8	30	26	12	SET	Product on request
1143160060S46D261P	M16	60	4.6	raw	10.5	38	30	16	SET	Product on request
1143160070S46D261P	M16	70	4.6	raw	10.5	38	30	16	SET	Product on request
1143160080S46D261P	M16	80	4.6	raw	10.5	38	30	16	SET	Product on request
1143160120S46D261P	M16	120	4.6	raw	10.5	38	30	16	SET	Product on request
1143200060S46D261P	M20	60	4.6	raw	13	46	36	20	SET	Product on request
1143200080S46D261P	M20	80	4.6	raw	13	46	36	20	SET	Product on request
1143200090S46D261P	M20	90	4.6	raw	13	46	36	20	SET	Product on request
1143240090S46D261P	M24	90	4.6	raw	15	54	43	24	SET	Product on request
