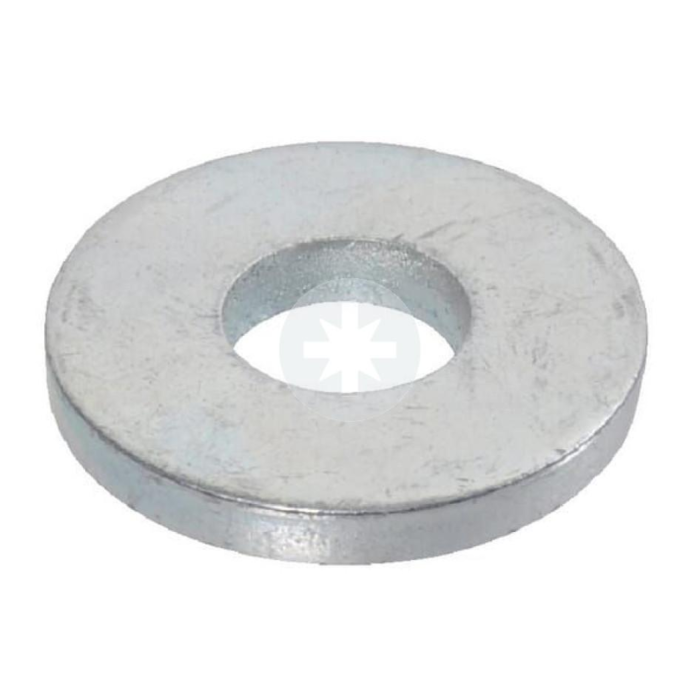

Hardened washers

Hardened washers are mounting elements with a special design and strength that find wide applications in various industries for even load distribution and stability in mechanical connections. Their hardened properties make them more resistant to compression and wear compared to standard washers, making them an ideal solution for demanding working conditions.

Applications

Hardened washers are widely used in various fields of industry, such as:

Automotive Industry: In the assembly of engines, suspensions, transmissions, etc.
Machine Industry: In the assembly of machines, industrial equipment, tools, etc.
Construction Industry: In the assembly of steel, concrete, and wooden structures, etc.

Benefits

Durability: Thanks to the hardening process, hardened washers are more durable and resistant to deformation and wear compared to standard washers.
Connection Stability: Due to their design and hardened properties, hardened washers ensure stable and durable connections, contributing to safety and reliability in operation.
Resistance to Environmental Conditions: Hardened washers are resistant to corrosion and other external factors, making them suitable for use in various environmental conditions.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

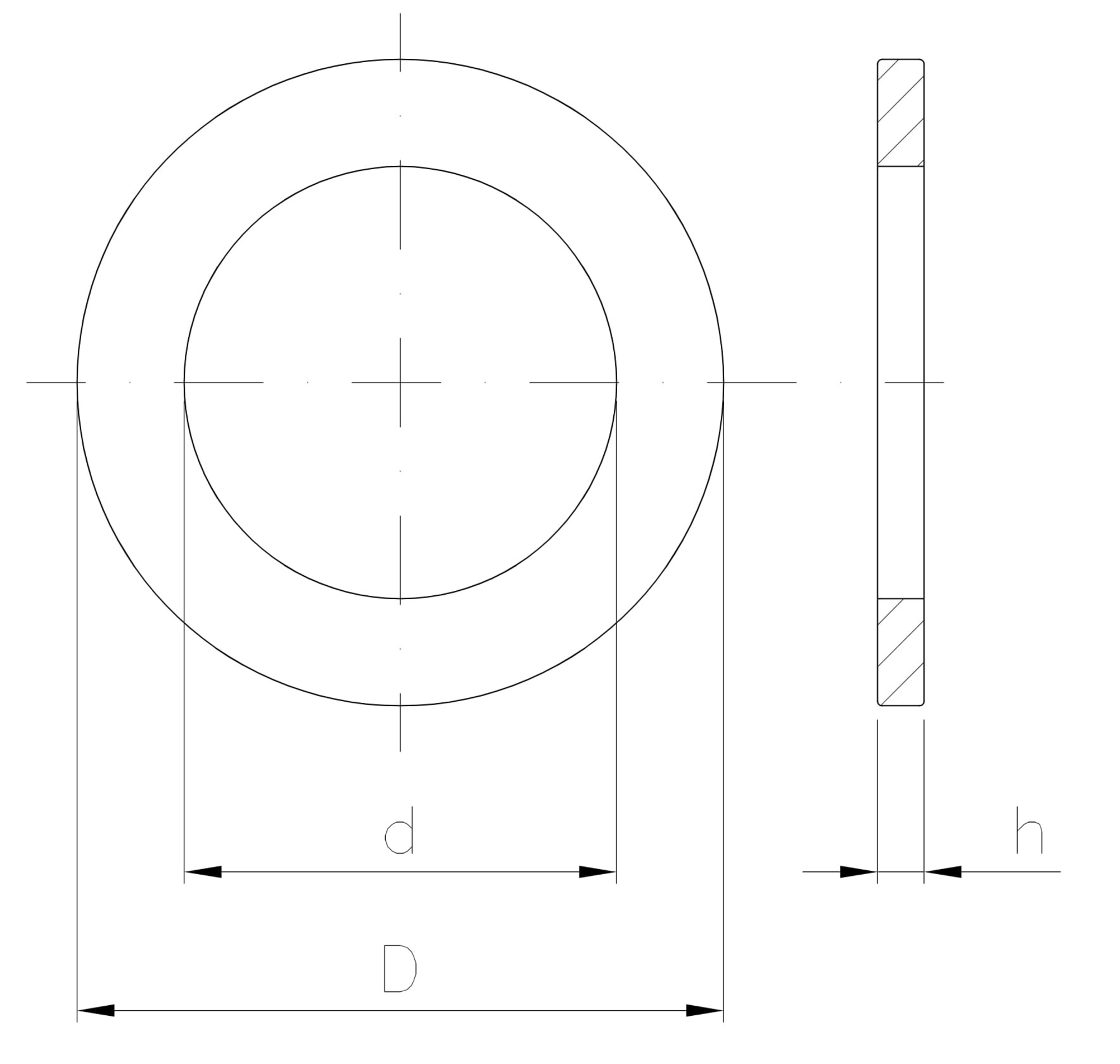

Hole diameter M [mm]

Outer diameter D [mm]

Inner diameter d [mm]

Thickness h [mm]

Variety of coating

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Hole diameter M [mm]	Outer diameter D [mm]	Inner diameter d [mm]	Thickness h [mm]	Variety of coating	Standard	Unit of measure	Availability

1424060170BD6340T	M6	17	6.4	3	white zinc plating	DIN 6340	THS	Product on request
1424060170SD6340T	M6	17	6.4	3	raw	DIN 6340	THS	Product on request
1424080230BD6340T	M8	23	8.4	4	white zinc plating	DIN 6340	THS	Product on request
1424080230SD6340T	M8	23	8.4	4	raw	DIN 6340	THS	Product on request
1424100280BT	M10	28	10.5	4	white zinc plating	DIN 6340	THS	Product on request
1424100280SD6340T	M10	28	10.5	4	raw	DIN 6340	THS	Product on request
1424120350BD6340T	M12	35	13	5	white zinc plating	DIN 6340	THS	Product on request
1424120350SD6340T	M12	35	13	5	raw	DIN 6340	THS	Product on request
1424160450BD6340T	M16	45	17	6	white zinc plating	DIN 6340	THS	Product on request
1424200500BD6340T	M20	50	21	6	white zinc plating	DIN 6340	THS	Product on request
1424240600BD6340T	M24	60	25	8	white zinc plating	DIN 6340	THS	Product on request
1424300680BD6340T	M30	68	31	10	white zinc plating	DIN 6340	THS	Product on request
