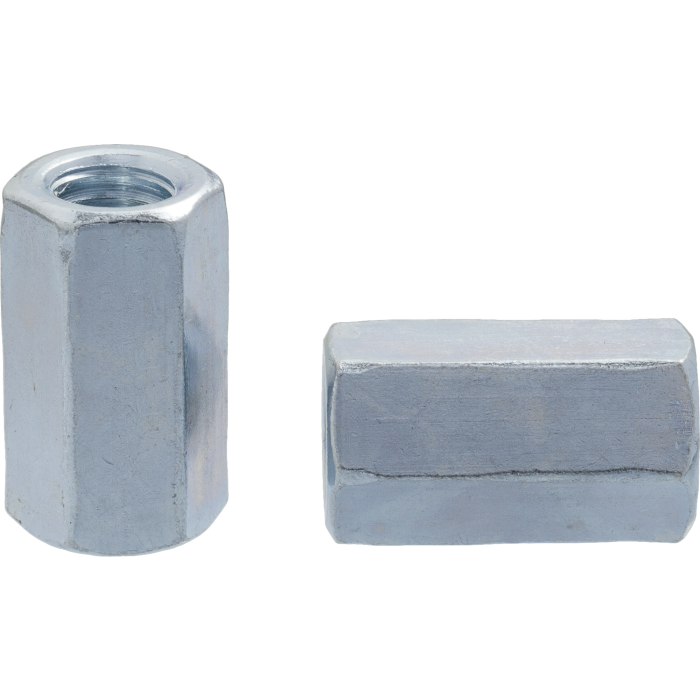

Hex coupling nuts INOX

I15
.
02
NLACZ

The hex coupling nut inox is a precisely crafted fastening component known for its exceptional durability and wide range of applications. Made from high-quality stainless steel inox, this nut is designed for complex connections, offering resistance to weather conditions and long-term durability.

Applications:
The hex coupling nut inox is ideal for constructions requiring precise and strong connections between components. It is primarily used in construction, carpentry, and projects where strength and resistance to external conditions are essential.

Benefits:

  • Durability: Made from stainless steel inox, the nut provides long-lasting strength, even in harsh environmental conditions.
  • Easy Handling: Its hexagonal shape allows for quick and efficient installation and removal, increasing work efficiency.
  • Corrosion Resistance: Stainless steel inox ensures the nut remains corrosion-free, which is crucial in moisture-exposed environments.
  • Versatile Applications: The nut is highly versatile, suitable for use in metal, wood constructions, and projects requiring precise fastening.
  • Extended Coupling Length: The specially designed coupling length of the nut makes it easier to connect components over a specific distance, enhancing its versatility.
Ask for product

Product inquiry form

Recommended

Group
I1502

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

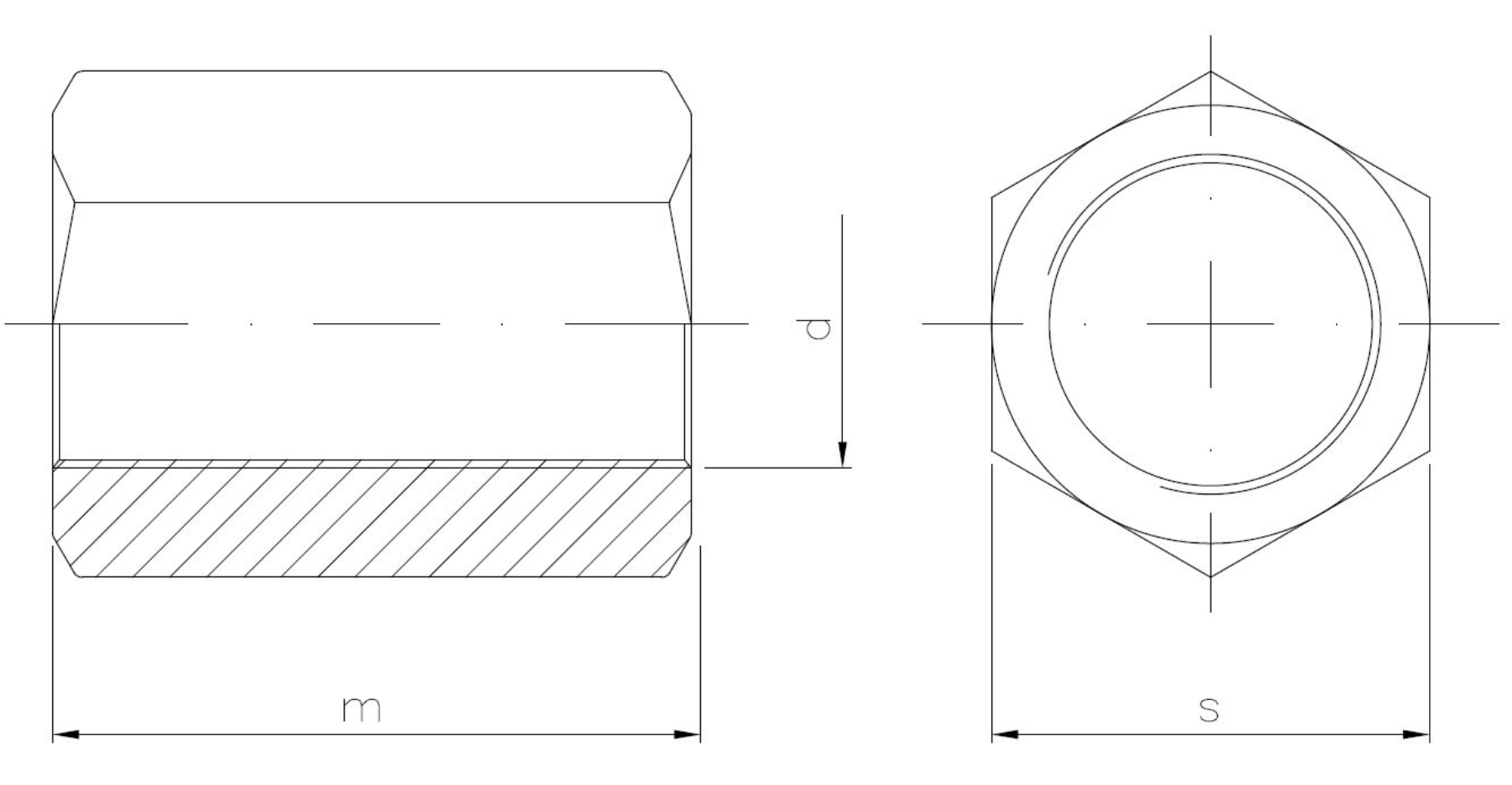

Dimension d [mm]
Dimension m [mm]
Dimension s [mm]
Material
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension m [mm] Dimension s [mm] Material Standard Unit of measure Availability Show More
I1502050A2D6334T
M5 15.0 8.0 A2 DIN6334 THS
I1502050A4D6334T
M5 15.0 8.0 A4 DIN6334 THS
I1502060A2D6334S
M6 18.0 10.0 A2 PCS
I1502060A2D6334T
M6 18.0 10.0 A2 DIN6334 THS
I1502060A4D6334T
M6 18.0 10.0 A4 DIN6334 THS
I1502080A2D6334S
M8 24.0 13.0 A2 PCS
I1502080A2D6334T
M8 24.0 13.0 A2 DIN6334 THS
I1502080A4D6334T
M8 24.0 13.0 A4 DIN6334 THS
I1502100A2D6334S
M10 30.0 16.0 A2 PCS
I1502100A2D6334T
M10 30.0 16.0 A2 DIN6334 THS
I1502100A4D6334T
M10 30.0 16.0 A4 DIN6334 THS
I1502120A2D6334T
M12 36.0 19.0 A2 DIN6334 THS
I1502120A4D6334T
M12 36.0 19.0 A4 DIN6334 THS
I1502140A2D6334T
M14 42.0 22.0 A2 DIN6334 THS
I1502140A4D6334T
M14 42.0 22.0 A4 DIN6334 THS
I1502160A2D6334T
M16 48.0 24.0 A2 DIN6334 THS
I1502160A4D6334T
M16 48.0 24.0 A4 DIN6334 THS
I1502200A2D6334T
M20 60.0 30.0 A2 DIN6334 THS
I1502200A4D6334T
M20 60.0 30.0 A4 DIN6334 THS
I1502240A2D6334T
M24 72.0 36.0 A2 DIN6334 THS
I1502240A4D6334T
M24 72.0 36.0 A4 DIN6334 THS
I1502270A2D6334T
M27 81.0 41.0 A2 DIN6334 THS
I1502270A4D6334T
M27 81.0 41.0 A4 DIN6334 THS
I1502300A2D6334T
M30 90.0 46.0 A2 DIN6334 THS
I1502300A4D6334T
M30 90.0 46.0 A4 DIN6334 THS
I1502330A2D6334T
M33 99.0 50.0 A2 DIN6334 THS
I1502330A4D6334T
M33 99.0 50.0 A4 DIN6334 THS
I1502360A2D6334T
M36 108.0 55.0 A2 DIN6334 THS
I1502360A4D6334T
M36 108.0 55.0 A4 DIN6334 THS
