Hex head carpentry screw with washer

32
.
13
HUK

The hex head carpentry screw with washer and TX drive is a specially designed fastening element that ensures secure and durable attachment of wooden components to various surfaces. It features a convenient hex head, a washer, and a TX drive, which facilitate installation and ensure a strong connection.

Applications:

This hex head carpentry screw with washer and TX drive is ideal for fastening wooden elements such as beams, posts, timber connectors, and other structural components to different surfaces. The TX drive allows for precise screwing, while the washer ensures even distribution of pressure.

Benefits:

  • Easy Installation: The hex head design allows for convenient installation.
  • Precise Driving: The TX drive provides precise screwing for a secure fit.
  • Strong Connection: The specially designed thread ensures a solid and durable bond.
  • Even Pressure Distribution: The integrated washer ensures even pressure distribution, enhancing the connection's durability.

Recommended

Group
3213

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

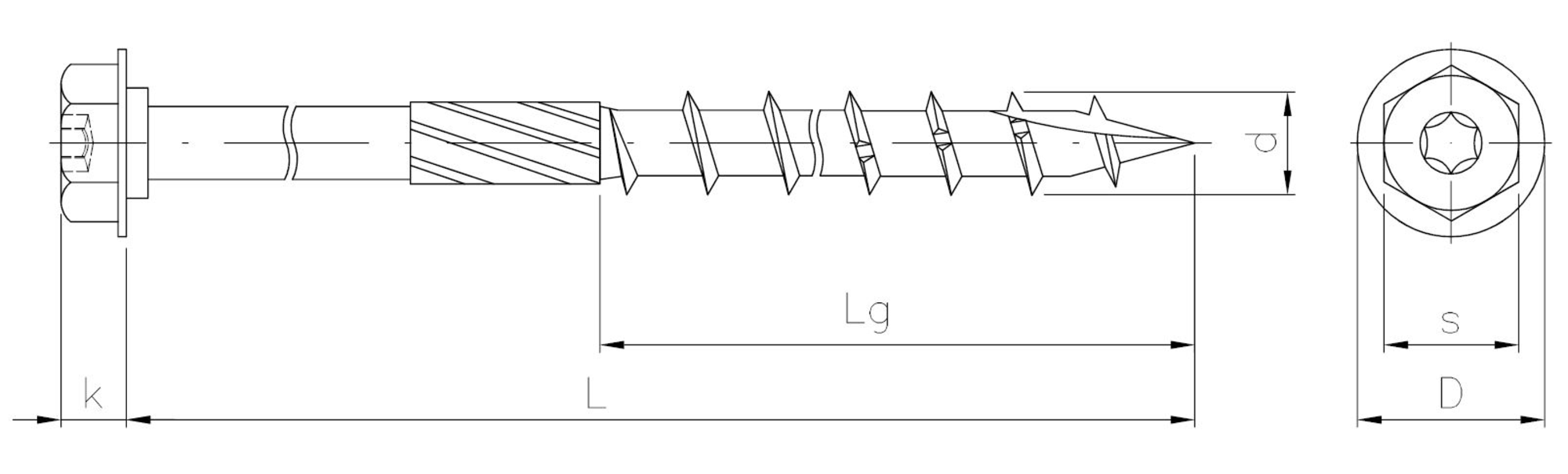

Dimension d [mm]
Dimension L [mm]
Dimension s [mm]
Dimension D [mm]
Dimension k [mm]
Dimension Lg [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension s [mm] Dimension D [mm] Dimension k [mm] Dimension Lg [mm] Variety of coating Unit of measure Availability Show More
3213080140TXAT
8.0 140 12.0 22.0 3.2 80 yellow zinc plating THS
3213080160TXAT
8.0 160 12.0 22.0 3.2 80 yellow zinc plating THS
3213080220TXAT
8.0 220 12.0 22.0 3.2 80 yellow zinc plating THS
3213080280TXAT
8.0 280 12.0 22.0 3.2 80 yellow zinc plating THS
3213100160TXAT
10.0 160 15.0 25.0 4.2 80 yellow zinc plating THS
3213100180TXAT
10.0 180 15.0 25.0 4.2 80 yellow zinc plating THS
3213100200TXAT
10.0 200 15.0 25.0 4.2 80 yellow zinc plating THS
3213100220TXAT
10.0 220 15.0 25.0 4.2 80 yellow zinc plating THS
3213100240TXAT
10.0 240 15.0 25.0 4.2 80 yellow zinc plating THS
3213100260TXAT
10.0 240 15.0 25.0 4.2 80 yellow zinc plating THS
3213100280TXAT
10.0 280 15.0 25.0 4.2 80 yellow zinc plating THS
3213100300TXAT
10.0 300 15.0 25.0 4.2 80 yellow zinc plating THS
3213100320TXAT
10.0 320 15.0 25.0 4.2 80 yellow zinc plating THS
3213100340TXAT
10.0 340 15.0 25.0 4.2 80 yellow zinc plating THS
3213100360TXAT
10.0 360 15.0 25.0 4.2 80 yellow zinc plating THS
3213100380TXAT
10.0 380 15.0 25.0 4.2 80 yellow zinc plating THS
