INOX

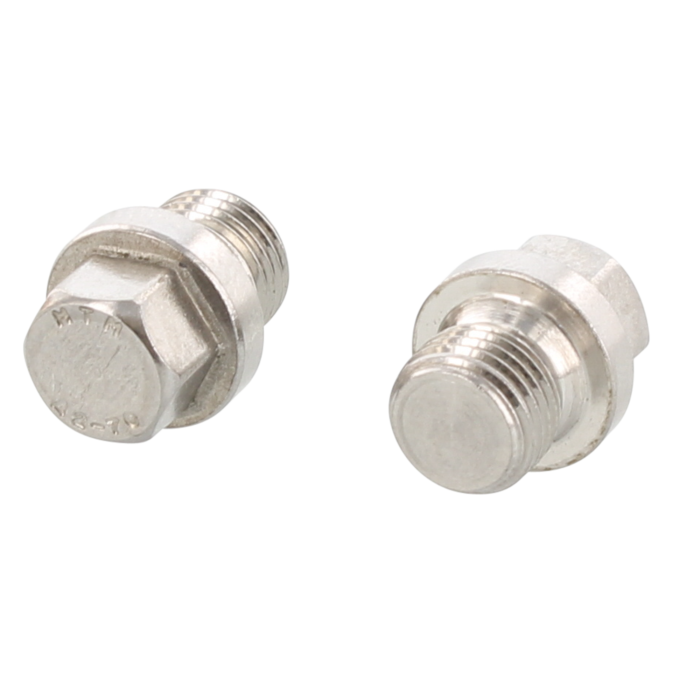

Hex head threaded plugs with collar INOX

I11

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension L [mm]

Dimension s [mm]

Dimension k [mm]

Dimension b [mm]

Dimension D [mm]

Thread pitch

Threading

Standard

Material

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Dimension s [mm]	Dimension k [mm]	Dimension b [mm]	Dimension D [mm]	Thread pitch	Threading	Standard	Material	Unit of measure	Availability

I116101226A2D910S	1/2"	26	19	8	4	26		Inch-based	DIN910	A2	PCS	Product on request
I116101226A2D910T	1/2"	26	19	8	4	26		Inch-based	DIN910	A2	THS	Product on request
I116101226A4D910S	1/2"	26	19	8	4	26		Inch-based	DIN910	A4	PCS	Product on request
I116101226A4D910T	1/2"	26	19	8	4	26		Inch-based	DIN910	A4	THS	Product on request
I116101421A2D910S	1/4"	21	13	6	3	18		Inch-based	DIN910	A2	PCS	Product on request
I116101421A2D910T	1/4"	21	13	6	3	18		Inch-based	DIN910	A2	THS	Product on request
I116101421A4D910S	1/4"	21	13	6	3	18		Inch-based	DIN910	A4	PCS	Product on request
I116101421A4D910T	1/4"	21	13	6	3	18		Inch-based	DIN910	A4	THS	Product on request
I116101817A2D910S	1/8"	17	10	6	3	14		Inch-based	DIN910	A2	PCS	Product on request
I116101817A2D910T	1/8"	17	10	6	3	14		Inch-based	DIN910	A2	THS	Product on request
I116101817A4D910S	1/8"	17	10	6	3	14		Inch-based	DIN910	A4	PCS	Product on request
I116101817A4D910T	1/8"	17	10	6	3	14		Inch-based	DIN910	A4	THS	Product on request
I1161034030A2D910S	3/4"	30	24	10	4	32		Inch-based	DIN910	A2	PCS	Product on request
I1161034030A2D910T	3/4"	30	24	10	4	32		Inch-based	DIN910	A2	THS	Product on request
I1161034030A4D910S	3/4"	30	24	10	4	32		Inch-based	DIN910	A4	PCS	Product on request
I1161034030A4D910T	3/4"	30	24	10	4	32		Inch-based	DIN910	A4	THS	Product on request
I1161038021A2D910S	3/8"	21	17	6	3	22		Inch-based	DIN910	A2	PCS	Product on request
I1161038021A2D910T	3/8"	21	17	6	3	22		Inch-based	DIN910	A2	THS	Product on request
I1161038021A4D910S	3/8"	21	17	6	3	22		Inch-based	DIN910	A4	PCS	Product on request
I1161038021A4D910T	3/8"	21	17	6	3	22		Inch-based	DIN910	A4	THS	Product on request
I1161058026A2D910S	5/8"	26	19	8	4	28		Inch-based	DIN910	A2	PCS	Product on request
I1161058026A2D910T	5/8"	26	19	8	4	28		Inch-based	DIN910	A2	THS	Product on request
I1161058026A4D910S	5/8"	26	19	8	4	28		Inch-based	DIN910	A4	PCS	Product on request
I1161058026A4D910T	5/8"	26	19	8	4	28		Inch-based	DIN910	A4	THS	Product on request
I1161100008A4100DT	M10	8	10	6	3	14	1.00	Metric	DIN 910	A4	PCS	Product on request
I1161100017A2100S	M10	17	10	6	3	14	1.00	Metric	DIN910	A2	PCS	Product on request
I1161100017A2100T	M10	17	10	6	3	14	1.00	Metric	DIN910	A2	THS	Product on request
I1161100017A4100S	M10	17	10	6	3	14	1.00	Metric	DIN910	A4	PCS	Product on request
I1161100017A4100T	M10	17	27	6	3	14	1.00	Metric	DIN 910	A4	THS	Product on request
I1161100032A2D910S	1"	32	27	11	5	39		Inch-based	DIN910	A2	PCS	Product on request
I1161100032A2D910T	1"	32	27	11	5	39		Inch-based	DIN910	A2	THS	Product on request
I1161100032A4D910S	1"	32	27	11	5	39		Inch-based	DIN910	A4	PCS	Product on request
I1161100032A4D910T	1"	32	27	11	5	39		Inch-based	DIN910	A4	THS	Product on request
I116111233A2D910S	1 1/2"	33	30	12	5	55		Inch-based	DIN910	A2	PCS	Product on request
I116111233A2D910T	1 1/2"	33	30	12	5	55		Inch-based	DIN910	A2	THS	Product on request
I116111233A4D910S	1 1/2"	33	30	12	5	55		Inch-based	DIN910	A4	PCS	Product on request
I116111233A4D910T	1 1/2"	33	30	12	5	55		Inch-based	DIN910	A4	THS	Product on request
I116111433A2D910S	1 1/4"	33	30	12	5	49		Inch-based	DIN910	A2	PCS	Product on request
I116111433A2D910T	1 1/4"	33	30	12	5	49		Inch-based	DIN910	A2	THS	Product on request
I116111433A4D910S	1 1/4"	33	30	12	5	49		Inch-based	DIN910	A4	PCS	Product on request
I116111433A4D910T	1 1/4"	33	30	12	5	49		Inch-based	DIN910	A4	THS	Product on request
I116111832A2D910S	1 1/8"	32	27	11	5	44		Inch-based	DIN910	A2	PCS	Product on request
I116111832A2D910T	1 1/8"	32	27	11	5	44		Inch-based	DIN910	A2	THS	Product on request
I116111832A4D910S	1 1/8"	32	27	11	5	44		Inch-based	DIN910	A4	PCS	Product on request
I116111832A4D910T	1 1/8"	32	27	11	5	44		Inch-based	DIN910	A4	THS	Product on request
I1161120012A4150DT	M12	12	13	6	3	17	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161120021A2150S	M12	21	13	6	3	17	1.50	Metric	DIN910	A2	PCS	Product on request
I1161120021A2150T	M12	21	13	6	3	17	1.50	Metric	DIN910	A2	THS	Product on request
I1161120021A4150S	M12	21	13	6	3	17	1.50	Metric	DIN910	A4	PCS	Product on request
I1161120021A4150T	M12	21	13	6	3	17	1.50	Metric	DIN 910	A4	THS	Product on request
I116113440A2D910S	1 3/4"	40	36	15	5	62		Inch-based	DIN910	A2	PCS	Product on request
I116113440A2D910T	1 3/4"	40	36	15	5	62		Inch-based	DIN910	A2	THS	Product on request
I116113440A4D910S	1 3/4"	40	36	15	5	62		Inch-based	DIN910	A4	PCS	Product on request
I116113440A4D910T	1 3/4"	40	36	15	5	62		Inch-based	DIN910	A4	THS	Product on request
I1161140012A4150DT	M14	12	13	6	3	19	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161140021A2150S	M14	21	13	6	3	19	1.50	Metric	DIN910	A2	PCS	Product on request
I1161140021A2150T	M14	21	13	6	3	19	1.50	Metric	DIN910	A2	THS	Product on request
I1161140021A4150S	M14	21	13	6	3	19	1.50	Metric	DIN910	A4	PCS	Product on request
I1161140021A4150T	M14	21	13	6	3	19	1.50	Metric	DIN 910	A4	THS	Product on request
I1161160012A4150DT	M16	12	17	6	3	21	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161160021A2150S	M16	21	17	6	3	21	1.50	Metric	DIN910	A2	PCS	Product on request
I1161160021A2150T	M16	21	17	6	3	21	1.50	Metric	DIN910	A2	THS	Product on request
I1161160021A4150S	M16	21	17	6	3	21	1.50	Metric	DIN910	A4	PCS	Product on request
I1161160021A4150T	M16	21	17	6	3	21	1.50	Metric	DIN 910	A4	THS	Product on request
I1161180012A4150DT	M18	12	17	8	4	23	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161180024A2150S	M18	24	17	8	4	23	1.50	Metric	DIN910	A2	PCS	Product on request
I1161180024A2150T	M18	24	17	8	4	23	1.50	Metric	DIN910	A2	THS	Product on request
I1161180024A4150S	M18	24	17	8	4	23	1.50	Metric	DIN910	A4	PCS	Product on request
I1161180024A4150T	M18	24	17	8	4	23	1.50	Metric	DIN910	A4	THS	Product on request
I1161200014A4150DT	M20	14	19	8	4	25	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161200026A2150S	M20	26	19	8	4	25	1.50	Metric	DIN910	A2	PCS	Product on request
I1161200026A2150T	M20	26	19	8	4	25	1.50	Metric	DIN910	A2	THS	Product on request
I1161200026A4150S	M20	26	19	8	4	25	1.50	Metric	DIN910	A4	PCS	Product on request
I1161200026A4150T	M20	26	19	8	4	25	1.50	Metric	DIN910	A4	THS	Product on request
I1161200040A2D910S	2"	40	36	15	5	68		Inch-based	DIN910	A2	PCS	Product on request
I1161200040A2D910T	2"	40	36	15	5	68		Inch-based	DIN910	A2	THS	Product on request
I1161200040A4D910S	2"	40	36	15	5	68		Inch-based	DIN910	A4	PCS	Product on request
I1161200040A4D910T	2"	40	36	15	5	68		Inch-based	DIN910	A4	THS	Product on request
I1161220014A4150DT	M22	14	19	8	4	27	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161220026A2150S	M22	26	19	8	4	27	1.50	Metric	DIN910	A2	PCS	Product on request
I1161220026A2150T	M22	26	19	8	4	27	1.50	Metric	DIN910	A2	THS	Product on request
I1161220026A4150S	M22	26	19	8	4	27	1.50	Metric	DIN910	A4	PCS	Product on request
I1161220026A4150T	M22	26	19	8	4	27	1.50	Metric	DIN910	A4	THS	Product on request
I1161240014A4150DT	M24	14	22	9	4	29	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161240026A4150S	M24	27	22	9	4	29	1.50	Metric	DIN910	A4	PCS	Product on request
I1161240027A2150S	M24	27	22	9	4	29	1.50	Metric	DIN910	A2	PCS	Product on request
I1161240027A2150T	M24	27	22	9	4	29	1.50	Metric	DIN910	A2	THS	Product on request
I1161240027A4150S	M24	27	22	9	4	29	1.50	Metric	DIN910	A4	PCS	Product on request
I1161260030A2150S	M26	30	24	10	4	31	1.50	Metric	DIN910	A2	PCS	Product on request
I1161260030A2150T	M26	30	24	10	4	31	1.50	Metric	DIN910	A2	THS	Product on request
I1161260030A4150S	M26	30	24	10	4	31	1.50	Metric	DIN910	A4	PCS	Product on request
I1161260030A4150T	M26	30	24	10	4	31	1.50	Metric	DIN910	A4	THS	Product on request
I1161270030A2200S	M27	30	24	10	4	32	2.00	Metric	DIN910	A2	PCS	Product on request
I1161270030A2200T	M27	30	24	10	4	32	2.00	Metric	DIN910	A2	THS	Product on request
I1161270030A4200S	M27	30	24	10	4	32	2.00	Metric	DIN910	A4	PCS	Product on request
I1161270030A4200T	M27	30	24	10	4	32	2.00	Metric	DIN910	A4	THS	Product on request
I1161300016A4150DT	M30	16	24	10	4	36	1.50	Metric	DIN 910	A4	PCS	Product on request
I1161300030A2150S	M30	30	24	10	4	36	1.50	Metric	DIN910	A2	PCS	Product on request
I1161300030A2150T	M30	30	24	10	4	36	1.50	Metric	DIN910	A2	THS	Product on request
I1161300030A2200S	M30	30	24	10	4	36	2.00	Metric	DIN910	A2	PCS	Product on request
I1161300030A2200T	M30	30	24	10	4	36	2.00	Metric	DIN910	A2	THS	Product on request
I1161300030A4150S	M30	30	24	10	4	36	1.50	Metric	DIN910	A4	PCS	Product on request
I1161300030A4150T	M30	30	24	10	4	36	1.50	Metric	DIN910	A4	THS	Product on request
I1161300030A4200S	M30	30	24	10	4	36	2.00	Metric	DIN910	A4	PCS	Product on request
I1161300030A4200T	M30	30	24	10	4	36	2.00	Metric	DIN910	A4	THS	Product on request
I1161420016A4150DT	M42	16	30	12	5	49	1.50	Metric	DIN 910	A4	PCS	Product on request
