Hex head wood screw, partially threaded, according to DIN 571

32
.
03
H6K

The wood screw with a hex head is a high-quality fastening element designed for the durable joining of wooden components. Its unique head shape provides better control during screwing and higher torque, contributing to the solidity of the connection. It is ideally suited for applications in construction, carpentry, and furniture assembly.

Applications

The wood screw with a hex head is used in various industries, including:

  • Construction: Used for fastening beams, boards, and other structural elements.
  • Carpentry: Ideal for producing furniture and interior furnishings.
  • Renovations: Utilized in repair and modernization projects involving wood.
  • External Structures: Can be used in constructions exposed to weather conditions.

Benefits

  • Hex Head: Provides a perfect fit for wrenches, allowing for better screwing and control over torque.
  • Durable Material: Made from high-quality steel, ensuring durability and resistance to loads.
  • Special Thread: Designed to minimize resistance during screwing, facilitating work with hard wood types.
  • Protective Coating: The screw may be available with a corrosion-resistant coating, enhancing its longevity and resistance to moisture.
  • Easy Installation: Simple to install using standard tools, speeding up the assembly process.

Recommended

Group
3203

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

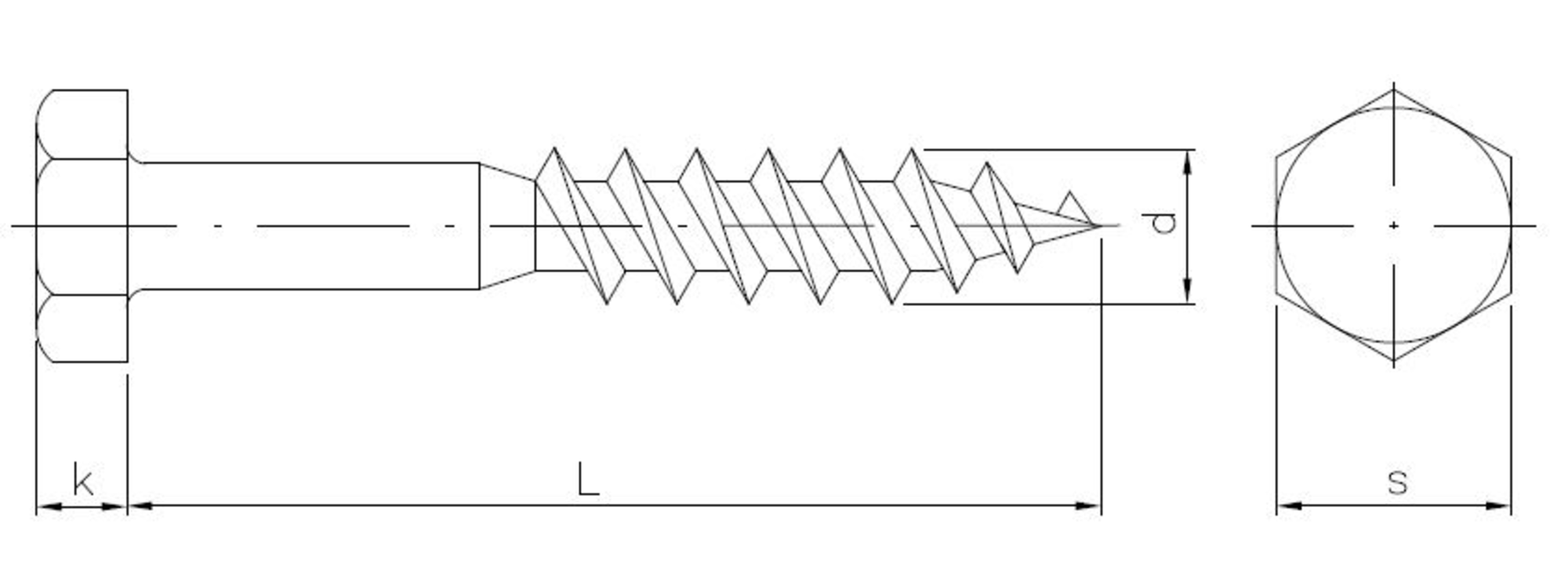

Dimension d [mm]
Dimension L [mm]
Dimension s [mm]
Dimension k [mm]
Dimension Lg [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension s [mm] Dimension k [mm] Dimension Lg [mm] Variety of coating Unit of measure Availability Show More
3203050020BD571T
5.0 20 8 3.5 12 white zinc plating THS
3203050025BD571T
5.0 25 8 3.5 15 white zinc plating THS
3203050030BD571T
5.0 30 8 3.5 18 white zinc plating THS
3203050035BD571T
5.0 35 8 3.5 21 white zinc plating THS
3203050040BD571T
5.0 40 8 3.5 24 white zinc plating THS
3203050040BPRK
5.0 40 8 3.5 24 white zinc plating KG
3203050045BD571T
5.0 45 8 3.5 27 white zinc plating THS
3203050050BD571T
5.0 50 8 3.5 30 white zinc plating THS
3203050050BPRK
5.0 50 8 3.5 30 white zinc plating KG
3203050060BD571T
5.0 60 8 3.5 36 white zinc plating THS
3203050060BPRK
5.0 60 8 3.5 36 white zinc plating KG
3203050070BPRK
5.0 70 8 3.5 42 white zinc plating KG
3203060020BD571T
6.0 20 10 4.0 12 white zinc plating THS
3203060025BD571T
6.0 25 10 4.0 15 white zinc plating THS
3203060030BD571T
6.0 30 10 4.0 18 white zinc plating THS
3203060030BPRK
6.0 30 10 4.0 18 white zinc plating KG
3203060030SD571T
6.0 35 10 4.0 21 white zinc plating THS
3203060035BD571T
6.0 35 10 4.0 21 white zinc plating THS
3203060035GD571T
6.0 35 10 4.0 21 hot-dip galvanized THS
3203060040BD571T
6.0 40 10 4.0 24 white zinc plating THS
3203060040BPRK
6.0 40 10 4.0 24 white zinc plating KG
3203060040GD571T
6.0 40 10 4.0 24 hot-dip galvanized THS
3203060040SD571T
6.0 40 10 4.0 24 white zinc plating THS
3203060045BD571T
6.0 45 10 4.0 27 white zinc plating THS
3203060050BD571T
6.0 50 10 4.0 30 white zinc plating THS
3203060050BPRK
6.0 50 10 4.0 30 white zinc plating KG
3203060050GD571T
6.0 50 10 4.0 30 hot-dip galvanized THS
3203060050SD571T
6.0 50 10 4.0 30 white zinc plating THS
3203060055BD571T
6.0 55 10 4.0 33 white zinc plating THS
3203060060BD571T
6.0 60 10 4.0 36 white zinc plating THS
3203060060BK
6.0 60 10 4.0 36 white zinc plating KG
3203060060BPRK
6.0 60 10 4.0 36 white zinc plating KG
3203060060SD571T
6.0 60 10 4.0 36 white zinc plating THS
3203060065BD571T
6.0 65 10 4.0 39 white zinc plating THS
3203060070BD571T
6.0 70 10 4.0 42 white zinc plating THS
3203060070BPRK
6.0 70 10 4.0 42 white zinc plating KG
3203060075BD571T
6.0 75 10 4.0 45 white zinc plating THS
3203060080BD571T
6.0 80 10 4.0 48 white zinc plating THS
3203060080BK
6.0 80 10 4.0 48 white zinc plating KG
3203060080BPRK
6.0 80 10 4.0 48 white zinc plating KG
3203060090BD571T
6.0 90 10 4.0 54 white zinc plating THS
3203060090BPRK
6.0 90 10 4.0 54 white zinc plating KG
3203060100BD571T
6.0 100 10 4.0 60 white zinc plating THS
3203060100BK
6.0 100 10 4.0 60 white zinc plating KG
3203060100BPRK
6.0 100 10 4.0 60 white zinc plating KG
3203060110BD571T
6.0 110 10 4.0 66 white zinc plating THS
3203060120BD571T
6.0 120 10 4.0 72 white zinc plating THS
3203060120BPRK
6.0 120 10 4.0 72 white zinc plating KG
3203060120BT
6.0 120 10 4.0 72 white zinc plating THS
3203060140BD571T
6.0 140 10 4.0 84 white zinc plating THS
3203060140BPRK
6.0 140 10 4.0 84 white zinc plating KG
3203070060GD571T
7.0 60 12 5.0 36 hot-dip galvanized THS
3203070070GD571T
7.0 70 12 5.0 42 hot-dip galvanized THS
3203070080GD571T
7.0 80 12 5.0 48 hot-dip galvanized THS
3203070090GD571T
7.0 90 12 5.0 54 hot-dip galvanized THS
3203070100GD571T
7.0 100 12 5.0 60 hot-dip galvanized THS
3203070110GD571T
7.0 110 12 5.0 66 hot-dip galvanized THS
3203070120GD571T
7.0 120 12 5.0 72 hot-dip galvanized THS
3203070130GD571T
7.0 130 12 5.0 78 hot-dip galvanized THS
3203080025BD571T
8.0 25 13 5.3 15 white zinc plating THS
3203080030BD571T
8.0 30 13 5.3 18 white zinc plating THS
3203080030BPRK
8.0 30 13 5.3 18 white zinc plating KG
3203080030SD571T
8.0 30 13 5.3 18 white zinc plating THS
3203080035BD571T
8.0 35 13 5.3 21 white zinc plating THS
3203080040BD571T
8.0 40 13 5.3 24 white zinc plating THS
3203080040BPRK
8.0 40 13 5.3 24 white zinc plating KG
3203080040GD571T
8.0 40 13 5.3 24 hot-dip galvanized THS
3203080040SD571T
8.0 40 13 5.3 24 white zinc plating THS
3203080045BD571T
8.0 45 13 5.3 27 white zinc plating THS
3203080050BD571T
8.0 50 13 5.3 30 white zinc plating THS
3203080050BPRK
8.0 50 13 5.3 30 white zinc plating KG
3203080050GD571T
8.0 50 13 5.3 30 hot-dip galvanized THS
3203080050SD571T
8.0 50 13 5.3 30 white zinc plating THS
3203080055BD571T
8.0 55 13 5.3 33 white zinc plating THS
3203080060BD571T
8.0 60 13 5.3 36 white zinc plating THS
3203080060BK
8.0 60 13 5.3 36 white zinc plating KG
3203080060BPRK
8.0 60 13 5.3 36 white zinc plating KG
3203080060GD571T
8.0 60 13 5.3 36 hot-dip galvanized THS
3203080060SD571T
8.0 60 13 5.3 36 white zinc plating THS
3203080065BD571T
8.0 65 13 5.3 39 white zinc plating THS
3203080065GD571T
8.0 65 13 5.3 39 hot-dip galvanized THS
3203080070BD571T
8.0 70 13 5.3 42 white zinc plating THS
3203080070BK
8.0 70 13 5.3 42 white zinc plating KG
3203080070BPRK
8.0 70 13 5.3 42 white zinc plating KG
3203080070GD571T
8.0 70 13 5.3 42 hot-dip galvanized THS
3203080070SD571T
8.0 70 13 5.3 42 white zinc plating THS
3203080075BD571T
8.0 75 13 5.3 45 white zinc plating THS
3203080080BD571T
8.0 80 13 5.3 48 white zinc plating THS
3203080080BK
8.0 80 13 5.3 48 white zinc plating KG
3203080080BPRK
8.0 80 13 5.3 48 white zinc plating KG
3203080080GD571T
8.0 80 13 5.3 48 hot-dip galvanized THS
3203080090BD571T
8.0 90 13 5.3 54 white zinc plating THS
3203080090BPRK
8.0 90 13 5.3 54 white zinc plating KG
3203080100BD571T
8.0 100 13 5.3 60 white zinc plating THS
3203080100BK
8.0 100 13 5.3 60 white zinc plating KG
3203080100BPRK
8.0 100 13 5.3 60 white zinc plating KG
3203080100GD571T
8.0 100 13 5.3 60 hot-dip galvanized THS
3203080110BD571T
8.0 110 13 5.3 66 white zinc plating THS
3203080120BD571T
8.0 120 13 5.3 72 white zinc plating THS
3203080120BK
8.0 120 13 5.3 72 white zinc plating KG
3203080120BPRK
8.0 120 13 5.3 72 white zinc plating KG
3203080130BD571T
8.0 130 13 5.3 78 white zinc plating THS
3203080140BD571T
8.0 140 13 5.3 84 white zinc plating THS
3203080140BK
8.0 140 13 5.3 84 white zinc plating KG
3203080140BPRK
8.0 140 13 5.3 84 white zinc plating KG
3203080140GD571T
8.0 140 13 5.3 84 hot-dip galvanized THS
3203080150BD571T
8.0 150 13 5.3 90 white zinc plating THS
3203080150BPRK
8.0 150 13 5.3 90 white zinc plating KG
3203080160BD571T
8.0 160 13 5.3 96 white zinc plating THS
3203080160BK
8.0 160 13 5.3 96 white zinc plating KG
3203080160BPRK
8.0 160 13 5.3 96 white zinc plating KG
3203080180BD571T
8.0 180 13 5.3 108 white zinc plating THS
3203080180BK
8.0 180 13 5.3 108 white zinc plating KG
3203080180BPRK
8.0 180 13 5.3 108 white zinc plating KG
3203080200BD571T
8.0 200 13 5.3 120 white zinc plating THS
3203080200BK
8.0 200 13 5.3 120 white zinc plating KG
3203080200BPRK
8.0 200 13 5.3 120 white zinc plating KG
3203080220BK
8.0 220 13 5.3 132 white zinc plating KG
3203080220BPRK
8.0 220 13 5.3 132 white zinc plating KG
3203080240BPRK
8.0 240 13 5.3 144 white zinc plating KG
3203080260BK
8.0 260 13 5.3 156 white zinc plating KG
3203080260BPRK
8.0 260 13 5.3 156 white zinc plating KG
3203080280BPRK
8.0 280 13 5.3 168 white zinc plating KG
3203080300BPRK
8.0 300 13 5.3 180 white zinc plating KG
3203100030BD571T
10.0 30 17 6.8 18 white zinc plating THS
3203100035BD571T
10.0 35 17 6.8 21 white zinc plating THS
3203100040BD571T
10.0 40 17 6.8 24 white zinc plating THS
3203100040BPRK
12.0 40 17 8.0 24 white zinc plating KG
3203100040GD571T
10.0 40 17 6.8 24 hot-dip galvanized THS
3203100045BD571T
10.0 45 17 6.8 27 white zinc plating THS
3203100050BD571T
10.0 50 17 6.8 30 white zinc plating THS
3203100050BPRK
10.0 50 17 6.8 30 white zinc plating KG
3203100050GD571T
10.0 50 17 6.8 30 hot-dip galvanized THS
3203100050SD571T
10.0 50 17 6.8 30 white zinc plating THS
3203100055BD571T
10.0 55 17 6.8 33 white zinc plating THS
3203100060BD571T
10.0 60 17 6.8 36 white zinc plating THS
3203100060BPRK
10.0 60 17 6.8 36 white zinc plating KG
3203100060GD571T
10.0 60 17 6.8 36 hot-dip galvanized THS
3203100060GT
10.0 60 17 6.8 36 hot-dip galvanized THS
3203100060SD571T
10.0 60 17 6.8 36 white zinc plating THS
3203100065BD571T
10.0 65 17 6.8 39 white zinc plating THS
3203100070BD571T
10.0 70 17 6.8 42 white zinc plating THS
3203100070BPRK
10.0 70 17 6.8 42 white zinc plating KG
3203100070GD571T
10.0 70 17 6.8 42 hot-dip galvanized THS
3203100070GT
10.0 70 17 6.8 42 hot-dip galvanized THS
3203100070SD571T
10.0 70 17 6.8 42 white zinc plating THS
3203100075BD571T
10.0 75 17 6.8 45 white zinc plating THS
3203100080BD571T
10.0 80 17 6.8 48 white zinc plating THS
3203100080BK
10.0 80 17 6.8 48 white zinc plating KG
3203100080BPRK
10.0 80 17 6.8 48 white zinc plating KG
3203100080GD571T
10.0 80 17 6.8 48 hot-dip galvanized THS
3203100080SD571T
10.0 80 17 6.8 48 white zinc plating THS
3203100090BD571T
10.0 90 17 6.8 54 white zinc plating THS
3203100090BPRK
10.0 90 17 6.8 54 white zinc plating KG
3203100090GD571T
10.0 90 17 6.8 54 hot-dip galvanized THS
3203100100BD571T
10.0 100 17 6.8 60 white zinc plating THS
3203100100BK
10.0 100 17 6.8 60 white zinc plating KG
3203100100BPRK
10.0 100 17 6.8 60 white zinc plating KG
3203100100GD571T
10.0 100 17 6.8 60 hot-dip galvanized THS
3203100100SD571T
10.0 100 17 6.8 60 white zinc plating THS
3203100110BD571T
10.0 110 17 6.8 66 white zinc plating THS
3203100120BD571T
10.0 120 17 6.8 72 white zinc plating THS
3203100120BK
10.0 120 17 6.8 72 white zinc plating KG
3203100120BPRK
10.0 120 17 6.8 72 white zinc plating KG
3203100120GD571T
10.0 120 17 6.8 72 hot-dip galvanized THS
3203100120SD571T
10.0 120 17 6.8 72 white zinc plating THS
3203100130BD571T
10.0 130 17 6.8 78 white zinc plating THS
3203100140BD571T
10.0 140 17 6.8 84 white zinc plating THS
3203100140BK
10.0 140 17 6.8 84 white zinc plating KG
3203100140BPRK
10.0 140 17 6.8 84 white zinc plating KG
3203100140GD571T
10.0 140 17 6.8 84 hot-dip galvanized THS
3203100150BD571T
10.0 150 17 6.8 90 white zinc plating THS
3203100150BPRK
10.0 150 17 6.8 90 white zinc plating KG
3203100150GD571T
10.0 150 17 6.8 90 hot-dip galvanized THS
3203100160BD571T
10.0 160 17 6.8 96 white zinc plating THS
3203100160BK
10.0 160 17 6.8 96 white zinc plating KG
3203100160BPRK
10.0 160 17 6.8 96 white zinc plating KG
3203100180BD571T
10.0 180 17 6.8 108 white zinc plating THS
3203100180BPRK
10.0 180 17 6.8 108 white zinc plating KG
3203100200BD571T
10.0 200 17 6.8 120 white zinc plating THS
3203100200BPRK
10.0 200 17 6.8 120 white zinc plating KG
3203100220BD571T
10.0 220 17 6.8 132 white zinc plating THS
3203100220BPRK
10.0 220 17 6.8 132 white zinc plating KG
3203100240BD571T
10.0 240 17 6.8 144 white zinc plating THS
3203100240BPRK
10.0 240 17 6.8 144 white zinc plating KG
3203100260BD571T
10.0 260 17 6.8 156 white zinc plating THS
3203100260BPRK
10.0 260 17 6.8 156 white zinc plating KG
3203100260BT
10.0 260 17 6.8 156 white zinc plating THS
3203100280BD571T
10.0 280 17 6.8 168 white zinc plating THS
3203100280BPRK
10.0 280 17 6.8 168 white zinc plating KG
3203100300BD571T
10.0 300 17 6.8 180 white zinc plating THS
3203100300BPRK
10.0 300 17 6.8 180 white zinc plating KG
3203120040BD571T
12.0 40 19 8.0 24 white zinc plating THS
3203120045BD571T
12.0 45 19 8.0 27 white zinc plating THS
3203120050BD571T
12.0 50 19 8.0 30 white zinc plating THS
3203120060BD571T
12.0 60 19 8.0 36 white zinc plating THS
3203120060BPRK
12.0 60 19 8.0 36 white zinc plating KG
3203120065BD571T
12.0 65 19 8.0 39 white zinc plating THS
3203120070BD571T
12.0 70 19 8.0 42 white zinc plating THS
3203120070GD571T
12.0 70 19 8.0 42 hot-dip galvanized THS
3203120075BD571T
12.0 75 19 8.0 45 white zinc plating THS
3203120080BD571T
12.0 80 19 8.0 48 white zinc plating THS
3203120080BPRK
12.0 80 19 8.0 48 white zinc plating KG
3203120080BS
12.0 80 19 8.0 48 white zinc plating PCS
3203120080GD571T
12.0 80 19 8.0 48 hot-dip galvanized THS
3203120090BD571T
12.0 90 19 8.0 54 white zinc plating THS
3203120090BPRK
12.0 90 19 8.0 54 white zinc plating KG
3203120100BD571T
12.0 100 19 8.0 60 white zinc plating THS
3203120100BPRK
12.0 100 19 8.0 60 white zinc plating KG
3203120100BS
12.0 100 19 8.0 60 white zinc plating PCS
3203120100GD571T
12.0 100 19 8.0 60 hot-dip galvanized THS
3203120100GT
12.0 100 19 8.0 60 hot-dip galvanized THS
3203120110BD571T
12.0 110 19 8.0 66 white zinc plating THS
3203120120BD571T
12.0 120 19 8.0 72 white zinc plating THS
3203120120BPRK
12.0 120 19 8.0 72 white zinc plating KG
3203120120BS
12.0 120 19 8.0 72 white zinc plating PCS
3203120120GD571T
12.0 120 19 8.0 72 hot-dip galvanized THS
3203120130BD571T
12.0 130 19 8.0 78 white zinc plating THS
3203120140BD571T
12.0 140 19 8.0 84 white zinc plating THS
3203120140BPRK
12.0 140 19 8.0 84 white zinc plating KG
3203120140GD571T
12.0 140 19 8.0 84 hot-dip galvanized THS
3203120150BD571T
12.0 150 19 8.0 90 white zinc plating THS
3203120150GD571T
12.0 150 19 8.0 90 hot-dip galvanized THS
3203120160BD571T
12.0 160 19 8.0 96 white zinc plating THS
3203120160BPRK
12.0 160 19 8.0 96 white zinc plating KG
3203120180BD571T
12.0 180 19 8.0 108 white zinc plating THS
3203120180BPRK
12.0 180 19 8.0 108 white zinc plating KG
3203120180GD571T
12.0 180 19 8.0 108 hot-dip galvanized THS
3203120200BD571T
12.0 200 19 8.0 120 white zinc plating THS
3203120200BPRK
12.0 200 19 8.0 120 white zinc plating KG
3203120220BD571T
12.0 220 19 8.0 132 white zinc plating THS
3203120220BPRK
12.0 220 19 8.0 132 white zinc plating KG
3203120240BD571T
12.0 240 19 8.0 144 white zinc plating THS
3203120240BPRK
12.0 240 19 8.0 144 white zinc plating KG
3203120260BD571T
12.0 260 19 8.0 156 white zinc plating THS
3203120260BPRK
12.0 260 19 8.0 156 white zinc plating KG
3203120280BD571T
12.0 280 19 8.0 168 white zinc plating THS
3203120280BPRK
12.0 280 19 8.0 168 white zinc plating KG
3203120300BD571T
12.0 300 19 8.0 180 white zinc plating THS
3203120300BPRK
12.0 300 19 8.0 180 white zinc plating KG
3203120320BD571T
12.0 320 19 8.0 192 white zinc plating THS
3203120340BD571T
12.0 340 19 8.0 204 white zinc plating THS
3203120360BD571T
12.0 360 19 8.0 216 white zinc plating THS
3203120380BD571T
12.0 380 19 8.0 228 white zinc plating THS
3203160060BD571T
16.0 60 24 10.0 36 white zinc plating THS
3203160070BD571T
16.0 70 24 10.0 42 white zinc plating THS
3203160080BD571T
16.0 80 24 10.0 48 white zinc plating THS
3203160080BT
16.0 80 24 10.0 48 white zinc plating THS
3203160090BD571T
16.0 90 24 10.0 54 white zinc plating THS
3203160100BD571T
16.0 100 24 10.0 60 white zinc plating THS
3203160110BD571T
16.0 110 24 10.0 66 white zinc plating THS
3203160120BD571T
16.0 120 24 10.0 72 white zinc plating THS
3203160130BD571T
16.0 130 24 10.0 78 white zinc plating THS
3203160140BD571T
16.0 140 24 10.0 84 white zinc plating THS
3203160150BD571T
16.0 150 24 10.0 90 white zinc plating THS
3203160160BD571T
16.0 160 24 10.0 96 white zinc plating THS
3203160180BD571T
16.0 180 24 10.0 108 white zinc plating THS
3203160200BD571T
16.0 200 24 10.0 120 white zinc plating THS
3203160220BD571T
16.0 220 24 10.0 132 white zinc plating THS
3203160240BD571T
16.0 240 24 10.0 144 white zinc plating THS
3203160260BD571T
16.0 260 24 10.0 156 white zinc plating THS
3203160280BD571T
16.0 280 24 10.0 168 white zinc plating THS
3203160300BD571T
16.0 300 24 10.0 180 white zinc plating THS
3203200080BD571T
20.0 80 30 13.0 48 white zinc plating THS
3203200090BD571T
20.0 90 30 13.0 54 white zinc plating THS
3203200100BD571T
20.0 100 30 13.0 60 white zinc plating THS
3203200110BD571T
20.0 110 30 13.0 66 white zinc plating THS
3203200120BD571T
20.0 120 30 13.0 72 white zinc plating THS
3203200130BD571T
20.0 130 30 13.0 78 white zinc plating THS
3203200140BD571T
20.0 140 30 13.0 84 white zinc plating THS
3203200150BD571T
20.0 150 30 13.0 90 white zinc plating THS
3203200160BD571T
20.0 160 30 13.0 96 white zinc plating THS
3203200180BD571T
20.0 180 30 13.0 108 white zinc plating THS
3203200200BD571T
20.0 200 30 13.0 120 white zinc plating THS
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
