Hex nut

15
.
01
N6K

A hexagonal nut is a classic fastening element widely used in bolted connections. Its hexagonal shape allows for easy installation and removal, ensuring stable and durable connections in various applications.

Applications:

The hexagonal nut is used across various industries, including manufacturing, construction, automotive, electronics, and many others. It is utilized in bolted connections where ensuring a stable and lasting connection is crucial.

Features and Benefits:

  • The classic hexagonal design facilitates easy installation and removal.
  • Provides stable, durable, and secure connections.
  • Made from robust material, ensuring resistance to loads and environmental conditions.
  • Available in various sizes and strength grades to suit different applications.
  • Easy to install and integrate with other fastening elements.
  • Excellent craftsmanship and durability.
View in store
DOWNLOADABLE DOCUMENTS
Declarations of conformity
Karty Charakterystyki

Recommended

Group
1501

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

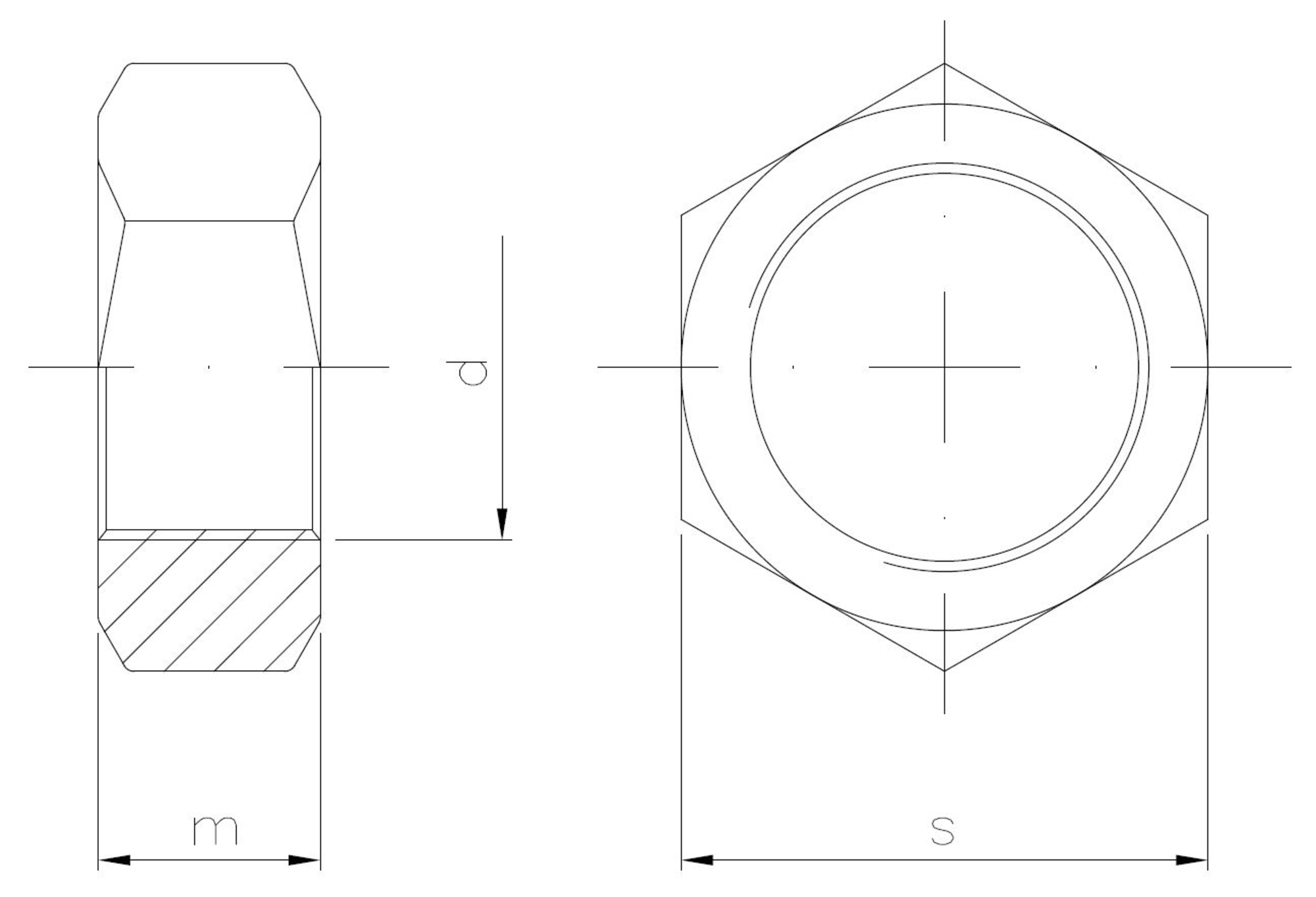

Diameter d [mm]
Height m [mm]
Thread direction
Class of mechanical properties
Variety of coating
Key size s [mm]
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Height m [mm] Thread direction Class of mechanical properties Variety of coating Key size s [mm] Standard Unit of measure Availability Show More
1501020BD934T
M2 1.6 Clockwise 6 white zinc plating 4 DIN 934 THS
1501025B08D934T
M2.5 2.0 Clockwise 8 white zinc plating 5 DIN 934 THS
1501025BD934T
M2.5 2.0 Clockwise 6 white zinc plating 5 DIN 934 THS
1501030B06D934T
M3 2.4 Clockwise 6 white zinc plating 5.5 DIN 934 THS
1501030B06I4032T
M3 2.4 Clockwise 6 white zinc plating 5.5 ISO 4032 THS
1501030BD934K
M3 2.4 Clockwise 6 white zinc plating 5.5 DIN 934 KG
1501030BD934T
M3 2.4 Clockwise 6 white zinc plating 5.5 DIN 934 THS
1501030MD934T
M3 2.4 Clockwise 6 brass plating 5.5 DIN 934 THS
1501030S06D934T
M3 2.4 Clockwise 6 raw 5.5 DIN 934 THS
1501030SD934K
M3 2.4 Clockwise 6 raw DIN 934 KG
1501035BD934T
M3.5 2.8 Clockwise 6 white zinc plating 5 DIN 934 THS
1501040B06D934T
M4 3.2 Clockwise 6 white zinc plating 7 DIN 934 THS
1501040B06I4032T
M4 3.2 Clockwise 6 white zinc plating 7 ISO 4032 THS
1501040B08D934T
M4 3.2 Clockwise 8 white zinc plating 7 DIN 934 THS
1501040B08I4032T
M4 3.2 Clockwise 8 white zinc plating 7 ISO 4032 THS
1501040BD934K
M4 3.2 Clockwise 6 white zinc plating 7 DIN 934 KG
1501040BD934T
M4 3.2 Clockwise 6 white zinc plating 7 DIN 934 THS
1501040CD934K
M4 3.2 Clockwise 6 black zinc plating 7 DIN 934 KG
1501040CUD934T
M4 3.2 Clockwise 6 black zinc plating 7 DIN 934 THS
1501040MD934T
M4 3.2 Clockwise 6 brass plating 7 DIN 934 THS
1501040S06D934T
M4 3.2 Clockwise 6 raw 7 DIN 934 THS
1501040S10D934T
M4 3.2 Clockwise 10 raw 7 DIN 934 THS
1501040S10I4032T
M4 3.2 Clockwise 10 raw 7 ISO 4032 THS
1501040SD934T
M4 3.2 Clockwise 6 raw 7 DIN 934 THS
1501050B06D934T
M5 4.0 Clockwise 6 white zinc plating 8 DIN 934 THS
1501050B08D934K
M5 4.0 Clockwise 8 white zinc plating 8 DIN 934 KG
1501050B08D934T
M5 4.0 Clockwise 8 white zinc plating 8 DIN 934 THS
1501050B08I4032T
M5 4.0 Clockwise 8 white zinc plating 8 ISO 4032 THS
1501050B10D934T
M5 4.0 Clockwise 10 white zinc plating 8 DIN 934 THS
1501050B10I4032T
M5 4.0 Clockwise 10 white zinc plating 8 ISO 4032 THS
1501050B8D934T
M5 4.0 Clockwise 8 white zinc plating 8 DIN 934 THS
1501050B8LD934T
M5 4.0 Counterclockwise 8 white zinc plating 8 DIN 934 THS
1501050BD934K
M5 4.0 Clockwise 6 white zinc plating 8 DIN 934 KG
1501050BD934T
M5 4.0 Clockwise 6 white zinc plating 8 DIN 934 THS
1501050MD934T
M5 4.0 Clockwise 6 brass plating 8 DIN 934 THS
1501050RC8D934T
M5 4.0 Clockwise 8 RC - black flake 8 DIN 934 THS
1501050S06D934T
M5 4.0 Clockwise 6 raw 8 DIN 934 THS
1501050S08D934T
M5 4.0 Clockwise 8 raw 8 DIN 934 THS
1501050S08I4032T
M5 4.0 Clockwise 8 raw 8 ISO 4032 THS
1501050S10D934T
M5 4.0 Clockwise 10 raw 8 DIN 934 THS
1501050S10I4032T
M5 4.0 Clockwise 10 raw 8 ISO 4032 THS
1501050SD934T
M5 4.0 Clockwise 6 raw 8 DIN 934 THS
1501060B08D934K
M6 5.0 Clockwise 8 white zinc plating 10 DIN 934 KG
1501060B08D934T
M6 5.0 Clockwise 8 white zinc plating 10 DIN 934 THS
1501060B08I4032T
M6 5.0 Clockwise 8 white zinc plating 10 ISO 4032 THS
1501060B10D934T
M6 5.0 Clockwise 10 white zinc plating 10 DIN 934 THS
1501060B10I4032T
M6 5.0 Clockwise 10 white zinc plating 10 ISO 4032 THS
1501060B8D934T
M6 5.0 Clockwise 8 white zinc plating 10 DIN 934 THS
1501060B8LD934T
M6 5.0 Counterclockwise 8 white zinc plating 10 DIN 934 THS
1501060BD934F03T
M6 5.0 Clockwise 6 white zinc plating 10 DIN 934 THS
1501060BD934K
M6 5.0 Clockwise 6 white zinc plating 10 DIN 934 KG
1501060BD934T
M6 5.0 Clockwise 6 white zinc plating 10 DIN 934 THS
1501060MD934T
M6 5.0 Clockwise 6 brass plating 10 DIN 934 THS
1501060R8D934T
M6 5.0 Clockwise 8 geomet 10 DIN 934 THS
1501060RC8D934T
M6 5.0 Clockwise 8 RC - black flake 10 DIN 934 THS
1501060S08D934K
M6 5.0 Clockwise 8 raw 10 DIN 934 KG
1501060S08D934T
M6 5.0 Clockwise 8 raw 10 DIN 934 THS
1501060S08I4032T
M6 5.2 Clockwise 8 raw 10 ISO 4032 THS
1501060S10D934T
M6 5.0 Clockwise 10 raw 10 DIN 934 THS
1501060S10I4032T
M6 5.2 Clockwise 10 raw 10 ISO 4032 THS
1501060SD934K
M6 5.0 Clockwise 6 raw 10 DIN 934 KG
1501060SD934T
M6 5.0 Clockwise 6 raw 10 DIN 934 THS
1501070B08D934T
M7 5.5 Clockwise 8 white zinc plating 11 DIN 934 THS
1501070B8D934T
M7 5.5 Clockwise 8 white zinc plating 11 DIN 934 THS
1501070S08I4032T
M7 5.5 Clockwise 8 raw 11 ISO 4032 THS
1501080B08D934K
M8 6.5 Clockwise 8 white zinc plating 13 DIN 934 KG
1501080B08D934T
M8 6.5 Clockwise 8 white zinc plating 13 DIN 934 THS
1501080B08I4032T
M8 6.8 Clockwise 8 white zinc plating 13 ISO 4032 THS
1501080B10D934T
M8 6.5 Clockwise 10 white zinc plating 13 DIN 934 THS
1501080B10I4032T
M8 6.5 Clockwise 10 white zinc plating 13 ISO 4032 THS
1501080B8D934T
M8 6.5 Clockwise 8 white zinc plating 13 DIN 934 THS
1501080B8LD934T
M8 6.5 Counterclockwise 8 white zinc plating 13 DIN 934 THS
1501080BD934K
M8 6.5 Clockwise 6 white zinc plating 13 DIN 934 KG
1501080BD934T
M8 6.5 Clockwise 6 white zinc plating 13 DIN 934 THS
1501080G08D934T
M8 6.5 Clockwise 8 hot-dip galvanized 13 DIN 934 THS
1501080GD934K
M8 6.5 Clockwise 6 hot-dip galvanized 13 DIN 934 KG
1501080GF08D934T
M8 6.5 Clockwise 8 hot-dip galvanized 13 DIN 934 THS
1501080MD934T
M8 6.5 Clockwise 6 brass plating 13 DIN 934 THS
1501080R10D934T
M8 6.5 Clockwise 10 geomet 13 DIN 934 THS
1501080R8D934T
M8 6.5 Clockwise 8 geomet 13 DIN 934 THS
1501080RC8D934T
M8 6.5 Clockwise 8 RC - black flake 13 DIN 934 THS
1501080S08D934T
M8 6.5 Clockwise 8 raw 13 DIN 934 THS
1501080S08I4032T
M8 6.8 Clockwise 8 raw 13 ISO 4032 THS
1501080S10D934T
M8 6.5 Clockwise 10 raw 13 DIN 934 THS
1501080S10I4032T
M8 6.8 Clockwise 10 raw 13 ISO 4032 THS
1501080S12D934T
M8 6.5 Clockwise 12 raw 13 DIN 934 THS
1501080SD934K
M8 6.5 Clockwise 6 raw 13 DIN 934 KG
1501080SD934T
M8 6.5 Clockwise 6 raw 13 DIN 934 THS
15011000S08D934T
M100 80.0 Clockwise 8 raw 145 DIN 934 THS
1501100B08D934K
M10 8.0 Clockwise 8 white zinc plating 17 DIN 934 KG
1501100B08D934T
M10 8.0 Clockwise 8 white zinc plating 17 DIN 934 THS
1501100B08I4032T
M10 8.0 Clockwise 8 white zinc plating 17 ISO 4032 THS
1501100B10D934K
M10 8.0 Clockwise 10 white zinc plating 17 DIN 934 KG
1501100B10D934T
M10 8.0 Clockwise 10 white zinc plating 17 DIN 934 THS
1501100B10I4032T
M10 8.0 Clockwise 10 white zinc plating 17 ISO 4032 THS
1501100B8D934T
M10 8.0 Clockwise 8 white zinc plating 17 DIN 934 THS
1501100B8LD934T
M10 8.0 Counterclockwise 8 white zinc plating 17 DIN 934 THS
1501100BD934K
M10 8.0 Clockwise 6 white zinc plating 17 DIN 934 KG
1501100BD934T
M10 8.0 Clockwise 6 white zinc plating 17 DIN 934 THS
1501100G08D934T
M10 8.0 Clockwise 8 hot-dip galvanized 17 DIN 934 THS
1501100GF08D934S
M10 8.0 Clockwise 8 hot-dip galvanized 16 DIN 934 PCS
1501100GF08D934T
M10 8.0 Clockwise 8 hot-dip galvanized 17 DIN 934 THS
1501100MD934T
M10 8.0 Clockwise 6 brass plating 17 DIN 934 THS
1501100R10D934T
M10 8.0 Clockwise 10 geomet 17 DIN 934 THS
1501100R12D934T
M10 8.0 Clockwise 12 geomet 17 DIN 934 THS
1501100R8D934T
M10 8.0 Clockwise 8 geomet 17 DIN 934 THS
1501100R908D934T
M10 8.0 Clockwise 8 geomet 17 DIN 934 THS
1501100RC8D934T
M10 8.0 Clockwise 8 RC - black flake 17 DIN 934 THS
1501100S08D934K
M10 8.0 Clockwise 8 raw 17 DIN 934 KG
1501100S08D934T
M10 8.0 Clockwise 8 raw 17 DIN 934 THS
1501100S08I4032T
M10 8.4 Clockwise 8 raw 17 ISO 4032 THS
1501100S10D934T
M10 8.0 Clockwise 10 raw 17 DIN 934 THS
1501100S10I4032T
M10 8.4 Clockwise 10 raw 17 ISO 4032 THS
1501100S10LD934T
M10 Counterclockwise 10 raw DIN 934 THS
1501100S12D934T
M10 8.0 Clockwise 12 raw 17 DIN 934 THS
1501100SD934K
M10 8.0 Clockwise 6 raw 17 DIN 934 KG
1501100SD934T
M10 8.0 Clockwise 6 raw 17 DIN 934 THS
150110B08ZNNID934T
M10 8.0 Clockwise 8 white zinc plating 17 DIN 934 THS
1501120B08D934K
M12 10.0 Clockwise 8 white zinc plating 19 DIN 934 KG
1501120B08D934T
M12 10.0 Clockwise 8 white zinc plating 19 DIN 934 THS
1501120B08I4032T
M12 10.8 Clockwise 8 white zinc plating 19 ISO 4032 THS
1501120B10D934T
M12 10.0 Clockwise 10 white zinc plating 19 DIN 934 THS
1501120B10I4032T
M12 10.0 Clockwise 10 white zinc plating 19 ISO 4032 THS
1501120B8LD934T
M12 10.0 Counterclockwise 8 white zinc plating 19 DIN 934 THS
1501120BD934K
M12 10.0 Clockwise 6 white zinc plating 19 DIN 934 KG
1501120BD934T
M12 10.0 Clockwise 6 white zinc plating 19 DIN 934 THS
1501120G08D934T
M12 10.0 Clockwise 8 hot-dip galvanized 19 DIN 934 THS
1501120G08I4032T
M12 10.8 Clockwise 8 hot-dip galvanized 19 ISO 4032 THS
1501120GF08D934K
M12 10.0 Clockwise 8 hot-dip galvanized 19 DIN 934 KG
1501120GF08D934S
M12 10.0 Clockwise 8 hot-dip galvanized 19 DIN 934 PCS
1501120GF08D934T
M12 10.0 Clockwise 8 hot-dip galvanized 19 DIN 934 THS
1501120MD934T
M12 10.0 Clockwise 6 brass plating 19 DIN 934 THS
1501120R10D934T
M12 10.0 Clockwise 10 geomet 19 DIN 934 THS
1501120R12D934T
M12 10.0 Clockwise 12 geomet 19 DIN 934 THS
1501120R8D934T
M12 10.0 Clockwise 8 geomet 19 DIN 934 THS
1501120RC8D934T
M12 10.0 Clockwise 8 RC - black flake 19 DIN 934 THS
1501120S08D934K
M12 10.0 Clockwise 8 raw 19 DIN 934 KG
1501120S08D934T
M12 10.0 Clockwise 8 raw 19 DIN 934 THS
1501120S08I4032T
M12 10.0 Clockwise 8 raw 19 ISO 4032 THS
1501120S10D934T
M12 10.0 Clockwise 10 raw 19 DIN 934 THS
1501120S10I4032T
M12 10.0 Clockwise 10 raw 19 ISO 4032 THS
1501120S12D934T
M12 10.0 Clockwise 12 raw 19 DIN 934 PCS
1501120S12DIN934T
M12 10.0 Clockwise 12 raw DIN 934 THS
1501120SD934K
M12 10.0 Clockwise 6 raw 19 DIN 934 KG
1501120SD934T
M12 10.0 Clockwise 6 raw 19 DIN 934 THS
1501140B08D934K
M14 11.0 Clockwise 8 white zinc plating 22 DIN 934 KG
1501140B08D934T
M14 11.0 Clockwise 8 white zinc plating 22 DIN 934 THS
1501140B08I4032T
M14 11.0 Clockwise 8 white zinc plating 22 ISO 4032 THS
1501140B10D934T
M14 11.0 Clockwise 10 white zinc plating 22 DIN 934 THS
1501140B10I4032T
M14 11.0 Clockwise 10 white zinc plating 22 ISO 4032 THS
1501140B8LD934T
M14 11.0 Counterclockwise 8 white zinc plating 22 DIN 934 THS
1501140BD934K
M14 11.0 Clockwise 6 white zinc plating 22 DIN 934 KG
1501140BD934T
M14 11.0 Clockwise 6 white zinc plating 22 DIN 934 THS
1501140MD934T
M14 11.0 Clockwise 6 brass plating 22 DIN 934 THS
1501140R10D934T
M14 11.0 Clockwise 10 geomet 22 DIN 934 THS
1501140R8D934T
M14 11.0 Clockwise 8 geomet 22 DIN 934 THS
1501140S08D934K
M14 11.0 Clockwise 8 raw DIN 934 KG
1501140S08D934T
M14 11.0 Clockwise 8 raw 22 DIN 934 THS
1501140S08I4032T
M14 11.0 Clockwise 8 raw 22 ISO 4032 THS
1501140S10D934T
M14 11.0 Clockwise 10 raw 22 DIN 934 THS
1501140S10I4032T
M14 11.0 Clockwise 10 raw 22 ISO 4032 THS
1501140S12D934T
M14 11.0 Clockwise 12 raw 22 DIN 934 THS
1501140SD934K
M14 11.0 Clockwise 6 raw 22 DIN 934 KG
1501160B08D934K
M16 13.0 Clockwise 8 white zinc plating 24 DIN 934 KG
1501160B08D934T
M16 13.0 Clockwise 8 white zinc plating 24 DIN 934 THS
1501160B08I4032T
M16 14.8 Clockwise 8 white zinc plating 24 ISO 4032 THS
1501160B10D934K
M16 13.0 Clockwise 10 white zinc plating 24 DIN 934 KG
1501160B10D934T
M16 13.0 Clockwise 10 white zinc plating 24 DIN 934 THS
1501160B10I4032T
M16 14.8 Clockwise 10 white zinc plating 24 ISO 4032 THS
1501160B8D934T
M16 14.8 Clockwise 8 white zinc plating 24 DIN 934 THS
1501160B8LD934T
M16 13.0 Counterclockwise 8 white zinc plating 24 DIN 934 THS
1501160BD934K
M16 13.0 Clockwise 6 white zinc plating 24 DIN 934 KG
1501160BD934OC12K
M16 13.0 Clockwise 6 white zinc plating 24 DIN 934 KG
1501160BD934T
M16 13.0 Clockwise 6 white zinc plating 24 DIN 934 THS
1501160G08D934T
M16 13.0 Clockwise 8 hot-dip galvanized 24 DIN 934 THS
1501160GF08D934K
M16 13.0 Clockwise 8 hot-dip galvanized 24 DIN 934 KG
1501160GF08D934S
M16 13.0 Clockwise 8 hot-dip galvanized 24 DIN 934 PCS
1501160GF08D934T
M16 13.0 Clockwise 8 hot-dip galvanized 24 DIN 934 THS
1501160GFD934K
M16 13.0 Clockwise 6 hot-dip galvanized 24 DIN 934 KG
1501160MD934T
M16 13.0 Clockwise 6 brass plating 24 DIN 934 THS
1501160R10D934T
M16 13.0 Clockwise 10 geomet 24 DIN 934 THS
1501160R12D934T
M16 13.0 Clockwise 12 geomet 24 DIN 934 THS
1501160R8D934T
M16 13.0 Clockwise 8 geomet 24 DIN 934 THS
1501160S08D934K
M16 13.0 Clockwise 8 raw 24 DIN 934 KG
1501160S08D934T
M16 13.0 Clockwise 8 raw 24 DIN 934 THS
1501160S08I4032T
M16 14.8 Clockwise 8 raw 24 ISO 4032 THS
1501160S10D934T
M16 13.0 Clockwise 10 raw 24 DIN 934 THS
1501160S10I4032T
M16 14.8 Clockwise 10 raw 24 ISO 4032 THS
1501160S12D934T
M16 13.0 Clockwise 12 raw 24 DIN 934 THS
1501160SD934K
M16 13.0 Clockwise 6 raw 24 DIN 934 KG
1501180B08D934K
M18 15.0 Clockwise 8 white zinc plating 27 DIN 934 KG
1501180B08D934S
M18 15.0 Clockwise 8 white zinc plating 27 DIN 934 PCS
1501180B08D934T
M18 15.0 Clockwise 8 white zinc plating 27 DIN 934 THS
1501180B08I4032T
M18 15.0 Clockwise 8 white zinc plating 27 ISO 4032 THS
1501180B10D934S
M18 15.0 Clockwise 10 white zinc plating 27 DIN 934 PCS
1501180B10D934T
M18 15.0 Clockwise 10 white zinc plating 27 DIN 934 THS
1501180B8D934T
M18 15.0 Clockwise 8 white zinc plating 27 DIN 934 THS
1501180B8LD934T
M18 15.0 Counterclockwise 8 white zinc plating 27 DIN 934 THS
1501180BD934K
M18 15.0 Clockwise 6 white zinc plating 27 DIN 934 KG
1501180BD934T
M18 15.0 Clockwise 6 white zinc plating 27 DIN 934 THS
1501180G08D934T
M18 15.0 Clockwise 8 hot-dip galvanized 27 DIN 934 THS
1501180R10D934T
M18 15.0 Clockwise 10 geomet 27 DIN 934 THS
1501180S08D934K
M18 15.0 Clockwise 8 raw 27 DIN 934 KG
1501180S08D934T
M18 15.0 Clockwise 8 raw 27 DIN 934 THS
1501180S10D934T
M18 15.0 Clockwise 10 raw 27 DIN 934 THS
1501180S10I4032T
M18 15.0 Clockwise 10 raw 27 ISO 4032 THS
1501180S12D934T
M18 15.0 Clockwise 12 raw 27 DIN 934 THS
1501180SD934K
M18 15.0 Clockwise 6 raw 27 DIN 934 KG
1501200B08D934K
M20 16.0 Clockwise 8 white zinc plating 30 DIN 934 KG
1501200B08D934T
M20 16.0 Clockwise 8 white zinc plating 30 DIN 934 THS
1501200B08I4032T
M20 18.0 Clockwise 8 white zinc plating 30 ISO 4032 THS
1501200B10D934K
M20 16.0 Clockwise 10 white zinc plating 30 DIN 934 KG
1501200B10D934S
M20 16.0 Clockwise 10 white zinc plating 30 DIN 934 PCS
1501200B10D934T
M20 16.0 Clockwise 10 white zinc plating 30 DIN 934 THS
1501200B8D934T
M20 16.0 Clockwise 8 white zinc plating 30 DIN 934 THS
1501200B8LD934T
M20 16.0 Counterclockwise 8 white zinc plating 30 DIN 934 THS
1501200BD934K
M20 16.0 Clockwise 6 white zinc plating 30 DIN 934 KG
1501200BD934T
M20 16.0 Clockwise 6 white zinc plating 30 DIN 934 THS
1501200G08D934T
M20 16.0 Clockwise 8 hot-dip galvanized 30 DIN 934 THS
1501200G08I4032S
M20 18.0 Clockwise 8 hot-dip galvanized 30 ISO 4032 PCS
1501200G10I4032S
M20 18.0 Clockwise 10 hot-dip galvanized 30 ISO -4032 PCS
1501200GF08D934S
M20 16.0 Clockwise 8 hot-dip galvanized 30 DIN 934 PCS
1501200MD934T
M20 16.0 Clockwise 6 brass plating 30 DIN 934 THS
1501200R10D934T
M20 16.0 Clockwise 10 geomet 30 DIN 934 THS
1501200R12D934T
M20 16.0 Clockwise 12 geomet 30 DIN 934 THS
1501200R8D934T
M20 16.0 Clockwise 8 geomet 30 DIN 934 THS
1501200S08D934T
M20 16.0 Clockwise 8 raw 30 DIN 934 THS
1501200S10D934S
M20 16.0 Clockwise 10 raw 30 DIN 934 PCS
1501200S10D934T
M20 16.0 Clockwise 10 raw 30 DIN 934 THS
1501200S10I4032T
M20 18.0 Clockwise 10 raw 30 ISO 4032 THS
1501200S12D934T
M20 16.0 Clockwise 12 raw 30 DIN 934 THS
1501200SD934K
M20 16.0 Clockwise 6 raw 30 DIN 934 KG
1501220B08D934K
M22 18.0 Clockwise 8 white zinc plating 32 DIN 934 KG
1501220B08D934S
M22 18.0 Clockwise 8 white zinc plating 32 DIN 934 PCS
1501220B08D934T
M22 18.0 Clockwise 8 white zinc plating 32 DIN 934 THS
1501220B08I4032T
M22 18.0 Clockwise 8 white zinc plating 32 ISO 4032 THS
1501220B10D934T
M22 18.0 Clockwise 10 white zinc plating 32 DIN 934 THS
1501220B8D934T
M22 18.0 Clockwise 8 white zinc plating 32 DIN 934 THS
1501220B8LD934T
M22 18.0 Counterclockwise 8 white zinc plating 32 DIN 934 THS
1501220BD934K
M22 18.0 Clockwise 6 white zinc plating 32 DIN 934 KG
1501220GF08D934S
M22 18.0 Clockwise 8 hot-dip galvanized 32 DIN 934 PCS
1501220R10D934T
M22 18.0 Clockwise 10 geomet 32 DIN 934 THS
1501220S08D934K
M22 18.0 Clockwise 8 raw 32 DIN 934 KG
1501220S08D934T
M22 18.0 Clockwise 8 raw 32 DIN 934 THS
1501220S10D934T
M22 18.0 Clockwise 10 raw 32 DIN 934 THS
1501220S10I4032T
M22 18.0 Clockwise 10 raw 32 ISO 4032 THS
1501220S12D934T
M22 18.0 Clockwise 12 raw 32 DIN 934 THS
1501220SD934K
M22 18.0 Clockwise 6 raw 32 DIN 934 KG
1501240B08D934K
M24 19.0 Clockwise 8 white zinc plating 36 DIN 934 KG
1501240B08D934T
M24 19.0 Clockwise 8 white zinc plating 36 DIN 934 THS
1501240B08I4032T
M24 21.5 Clockwise 8 white zinc plating 36 ISO 4032 THS
1501240B10D934S
M24 19.0 Clockwise 10 white zinc plating 36 DIN 934 PCS
1501240B10D934T
M24 19.0 Clockwise 10 white zinc plating 36 DIN 934 THS
1501240B8D934T
M24 19.0 Clockwise 8 white zinc plating 36 DIN 934 THS
1501240B8LD934T
M24 19.0 Counterclockwise 8 white zinc plating 36 DIN 934 THS
1501240BD934K
M24 19.0 Clockwise 6 white zinc plating 36 DIN 934 KG
1501240BD934T
M24 19.0 Clockwise 6 white zinc plating 36 DIN 934 THS
1501240G08D934T
M24 19.0 Clockwise 8 hot-dip galvanized 36 DIN 934 THS
1501240GF08D934K
M24 19.0 Clockwise 8 hot-dip galvanized 36 DIN 934 KG
1501240GF08D934S
M24 19.0 Clockwise 8 hot-dip galvanized 36 DIN 934 PCS
1501240GFD934K
M24 19.0 Clockwise 6 hot-dip galvanized 36 DIN 934 KG
1501240MD934T
M24 19.0 Clockwise 6 brass plating 36 DIN 934 THS
1501240R10D934T
M24 19.0 Clockwise 10 geomet 36 DIN 934 THS
1501240R12D934T
M24 19.0 Clockwise 12 geomet 36 DIN 934 THS
1501240R8D934T
M24 19.0 Clockwise 8 geomet 36 DIN 934 THS
1501240S08D934T
M24 19.0 Clockwise 8 raw 36 DIN 934 THS
1501240S08I4032T
DIN 934 THS
1501240S10D934S
M24 19.0 Clockwise 10 raw 36 DIN 934 PCS
1501240S10D934T
M24 19.0 Clockwise 10 raw 36 DIN 934 THS
1501240S10I4032T
M24 19.0 Clockwise 10 raw 36 ISO 4032 THS
1501240S12D934T
M24 19.0 Clockwise 12 raw 36 DIN 934 THS
1501240SD934K
M24 19.0 Clockwise 6 raw 36 DIN 934 KG
1501270B08D934K
M27 22.0 Clockwise 8 white zinc plating 41 DIN 934 KG
1501270B08D934S
M27 22.0 Clockwise 8 white zinc plating 41 DIN 934 PCS
1501270B08D934T
M27 22.0 Clockwise 8 white zinc plating 41 DIN 934 THS
1501270B08I4032T
M27 22.0 Clockwise 8 white zinc plating 41 ISO 4032 THS
1501270B10D934T
M27 22.0 Clockwise 10 white zinc plating 41 DIN 934 THS
1501270B8D934T
M27 22.0 Clockwise 8 white zinc plating 41 DIN 934 THS
1501270B8LD934T
M27 22.0 Counterclockwise 8 white zinc plating 41 DIN 934 THS
1501270BD934K
M27 22.0 Clockwise 6 white zinc plating 41 DIN 934 KG
1501270G08D934T
M27 22.0 Clockwise 8 hot-dip galvanized 41 DIN 934 THS
1501270GF08D934S
M27 22.0 Clockwise 8 hot-dip galvanized 41 DIN 934 PCS
1501270R10D934T
M27 22.0 Clockwise 10 geomet 41 DIN 934 THS
1501270R8D934T
M27 22.0 Clockwise 8 geomet 41 DIN 934 THS
1501270S08D934K
M27 22.0 Clockwise 8 raw 41 DIN 934 KG
1501270S08D934T
M27 22.0 Clockwise 8 raw 41 DIN 934 THS
1501270S10D934T
M27 22.0 Clockwise 10 raw 41 DIN 934 THS
1501270S10I4032T
M27 22.0 Clockwise 10 raw 41 ISO 4032 THS
1501270S12D934T
M27 22.0 Clockwise 12 raw 41 DIN 934 THS
1501270SD934K
M27 22.0 Clockwise 6 raw 41 DIN 934 KG
1501300B08D934K
M30 24.0 Clockwise 8 white zinc plating 46 DIN 934 KG
1501300B08D934S
M30 24.0 Clockwise 8 white zinc plating 46 DIN 934 PCS
1501300B08D934T
M30 24.0 Clockwise 8 white zinc plating 46 DIN 934 THS
1501300B08I4032T
M30 25.6 Clockwise 8 white zinc plating 46 ISO 4032 THS
1501300B10D934K
M30 24.0 Clockwise 10 white zinc plating 46 DIN 934 KG
1501300B10D934S
M30 24.0 Clockwise 10 white zinc plating 46 DIN 934 PCS
1501300B10D934T
M30 24.0 Clockwise 10 white zinc plating 46 DIN 934 THS
1501300B8D934T
M30 24.0 Clockwise 8 white zinc plating 46 DIN 934 THS
1501300B8LD934T
M30 24.0 Counterclockwise 8 white zinc plating 46 DIN 934 THS
1501300BD934K
M30 24.0 Clockwise 6 white zinc plating 46 DIN 934 KG
1501300BD934S
M30 24.0 Clockwise 6 white zinc plating 46 DIN 934 PCS
1501300G08D934T
M30 24.0 Clockwise 8 hot-dip galvanized 46 DIN 934 THS
1501300G10I4032S
M30 25.6 Clockwise 10 hot-dip galvanized 46 ISO -4032 PCS
1501300GF08D934S
M30 24.0 Clockwise 8 hot-dip galvanized 46 DIN 934 PCS
1501300R10D934T
M30 24.0 Clockwise 10 geomet 46 DIN 934 THS
1501300R12D934T
M30 24.0 Clockwise 12 geomet 46 DIN 934 THS
1501300S08D934K
M30 24.0 Clockwise 8 raw 46 DIN 934 KG
1501300S08D934T
M30 24.0 Clockwise 8 raw 46 DIN 934 THS
1501300S10D934S
M30 24.0 Clockwise 10 raw 46 DIN 934 PCS
1501300S10D934T
M30 24.0 Clockwise 10 raw 46 DIN 934 THS
1501300S10I4032T
M30 24.0 Clockwise 10 raw 46 ISO 4032 THS
1501300S12D934T
M30 24.0 Clockwise 12 raw 46 DIN 934 THS
1501300SD934K
M30 24.0 Clockwise 6 raw 46 DIN 934 KG
1501330B08D934K
M33 26.0 Clockwise 8 white zinc plating 50 DIN 934 KG
1501330B08D934S
M33 26.0 Clockwise 8 white zinc plating 50 DIN 934 PCS
1501330B08D934T
M33 26.0 Clockwise 8 white zinc plating 50 DIN 934 THS
1501330B10D934T
M33 26.0 Clockwise 10 white zinc plating 50 DIN 934 THS
1501330B8D934T
M33 26.0 Clockwise 8 white zinc plating 50 DIN 934 THS
1501330BD934K
M33 26.0 Clockwise 6 white zinc plating 50 DIN 934 KG
1501330BD934S
M33 26.0 Clockwise 6 white zinc plating 50 DIN 934 PCS
1501330G08D934T
M33 26.0 Clockwise 8 hot-dip galvanized 50 DIN 934 THS
1501330R10D934T
M33 26.0 Clockwise 10 geomet 50 DIN 934 THS
1501330S08D934K
M33 26.0 Clockwise 8 raw 50 DIN 934 KG
1501330S08D934T
M33 26.0 Clockwise 8 raw 50 DIN 934 THS
1501330S10D934T
M33 26.0 Clockwise 10 raw 50 DIN 934 THS
1501330S12D934T
M33 26.0 Clockwise 12 raw 50 DIN 934 THS
1501330SD934K
M33 26.0 Clockwise 6 raw 50 DIN 934 KG
1501360B08D934K
M36 29.0 Clockwise 8 white zinc plating 55 DIN 934 KG
1501360B08D934S
M36 29.0 Clockwise 8 white zinc plating 55 DIN 934 PCS
1501360B08D934T
M36 29.0 Clockwise 8 white zinc plating 55 DIN 934 THS
1501360B08I4032T
M36 31.0 Clockwise 8 white zinc plating 55 ISO 4032 THS
1501360B10D934K
M36 29.0 Clockwise 10 white zinc plating 55 DIN 934 KG
1501360B10D934S
M36 29.0 Clockwise 10 white zinc plating 55 DIN 934 PCS
1501360B10D934T
M36 29.0 Clockwise 10 white zinc plating 55 DIN 934 THS
1501360B8D934T
M36 29.0 Clockwise 8 white zinc plating 55 DIN 934 THS
1501360B8LD934T
M36 29.0 Counterclockwise 8 white zinc plating 55 DIN 934 THS
1501360BD934K
M36 29.0 Clockwise 6 white zinc plating 55 DIN 934 KG
1501360BD934S
M36 29.0 Clockwise 6 white zinc plating 55 DIN 934 PCS
1501360G08D934T
M36 29.0 Clockwise 8 hot-dip galvanized 55 DIN 934 THS
1501360R10D934T
M36 29.0 Clockwise 10 geomet 55 DIN 934 THS
1501360R12D934T
M36 29.0 Clockwise 12 geomet 55 DIN 934 THS
1501360S08D934K
M36 29.0 Clockwise 8 raw 55 DIN 934 KG
1501360S08D934T
M36 29.0 Clockwise 8 raw 55 DIN 934 THS
1501360S10D934S
M36 29.0 Clockwise 10 raw 55 DIN 934 PCS
1501360S10D934T
M36 29.0 Clockwise 10 raw 55 DIN 934 THS
1501360S10I4032T
M36 29.0 Clockwise 10 raw 55 ISO 4032 THS
1501360S12D934T
M36 29.0 Clockwise 12 raw 55 DIN 934 THS
1501360SD934K
M36 29.0 Clockwise 6 raw 55 DIN 934 KG
1501390B08D934T
M39 31.0 Clockwise 8 white zinc plating 60 DIN 934 THS
1501390B8D934T
M39 31.0 Clockwise 8 white zinc plating 60 DIN 934 THS
1501390BD934K
M39 31.0 Clockwise 6 white zinc plating 60 DIN 934 KG
1501390R10D934T
M39 31.0 Clockwise 10 geomet 60 DIN 934 THS
1501390S08D934T
M39 31.0 Clockwise 8 raw 60 DIN 934 THS
1501390S10D934T
M39 31.0 Clockwise 10 raw 60 DIN 934 THS
1501390S12D934T
M39 31.0 Clockwise 12 raw 60 DIN 934 THS
1501390SD934K
M39 31.0 Clockwise 6 raw 60 DIN 934 KG
1501420B08D934T
M42 34.0 Clockwise 8 white zinc plating 65 DIN 934 THS
1501420B8D934T
M42 34.0 Clockwise 8 white zinc plating 65 DIN 934 THS
1501420BD934K
M42 34.0 Clockwise 8 white zinc plating 65 DIN 934 KG
1501420R10D934T
M42 34.0 Clockwise 10 geomet 65 DIN 934 THS
1501420R12D934T
M42 34.0 Clockwise 12 geomet 65 DIN 934 THS
1501420S08D934T
M42 34.0 Clockwise 8 raw 65 DIN 934 THS
1501420S10D934T
M42 34.0 Clockwise 10 raw 65 DIN 934 THS
1501420S12D934T
M42 34.0 Clockwise 12 raw 65 DIN 934 THS
1501420SD934K
M42 34.0 Clockwise 6 raw 65 DIN 934 KG
1501450B08D934T
M45 36.0 Clockwise 8 white zinc plating 70 DIN 934 THS
1501450B8D934T
M45 36.0 Clockwise 8 white zinc plating 70 DIN 934 THS
1501450S08D934T
M45 36.0 Clockwise 8 raw 70 DIN 934 THS
1501450S10D934T
M45 36.0 Clockwise 10 raw 70 DIN 934 THS
1501480B08D934T
M48 38.0 Clockwise 8 white zinc plating 75 DIN 934 THS
1501480B8D934T
M48 38.0 Clockwise 8 white zinc plating 75 DIN 934 THS
1501480BD934K
M48 38.0 Clockwise 6 white zinc plating 75 DIN 934 KG
1501480S08D934T
M48 38.0 Clockwise 8 raw 75 DIN 934 THS
1501480S10D934T
M48 38.0 Clockwise 10 raw 75 DIN 934 THS
1501480SD934K
M48 38.0 Clockwise 6 raw 75 DIN 934 KG
1501520B8D934T
M52 42.0 Clockwise 8 white zinc plating 80 DIN 934 THS
1501520S08D934T
M52 42.0 Clockwise 8 raw 80 DIN 934 THS
1501520S10D934T
M52 42.0 Clockwise 10 raw 80 DIN 934 THS
1501560B8D934T
M56 45.0 Clockwise 8 white zinc plating 85 DIN 934 THS
1501560S08D934T
M56 45.0 Clockwise 8 raw 85 DIN 934 THS
1501560S10D934T
M56 45.0 Clockwise 10 raw 85 DIN 934 THS
1501600B8D934T
M60 48.0 Clockwise 8 white zinc plating 90 DIN 934 THS
1501600S08D934T
M60 48.0 Clockwise 8 raw 90 DIN 934 THS
1501640B8D934T
M64 51.0 Clockwise 8 white zinc plating 95 DIN 934 THS
1501640S08D934T
M64 51.0 Clockwise 8 raw 95 DIN 934 THS
1501640S10D934T
M64 51.0 Clockwise 10 raw 95 DIN 934 THS
1501720B8D934T
M72 58.0 Clockwise 8 white zinc plating 105 DIN 934 THS
1501720S08D934T
M72 58.0 Clockwise 8 raw 105 DIN 934 THS
1501720S10D934T
M72 58.0 Clockwise 10 raw 105 DIN 934 THS
1501760S08D934T
M76 61.0 Clockwise 8 raw 110 DIN 934 THS
1501800S08D934T
M80 64.0 Clockwise 8 raw 115 DIN 934 THS
1501900S08D934T
M90 72.0 Clockwise 8 raw 130 DIN 934 THS
1501020B06D934T
DIN 934 KG
1501023MD934T
DIN 934 KG
1501025B06D934T
DIN 934 KG
1501025MD934T
DIN 934 KG
1501025S06D934T
DIN 934 KG
1501026MD934T
DIN 934 KG
1501040B10D934T
DIN 934 KG
1501060S12D934T
DIN 934 KG
1501180MD934T
DIN 934 KG
1501220MD934T
DIN 934 KG
1501270MD934T
DIN 934 KG
1501300MD934T
DIN 934 KG
1501330MD934T
DIN 934 KG
1501360MD934T
DIN 934 KG
1501390B10D934T
DIN 934 KG
1501420B10D934T
DIN 934 KG
1501420MD934T
DIN 934 KG
1501480B10D934T
DIN 934 KG
1501520B08D934T
DIN 934 KG
1501520B10D934T
DIN 934 KG
1501560B08D934T
DIN 934 KG
1501600B08D934T
DIN 934 KG
1501640B08D934T
DIN 934 KG
1501680B08D934T
DIN 934 KG
1501020B08I4032T
DIN 934 KG
1501025B08I4032T
DIN 934 KG
1501025S08I4032T
DIN 934 KG
1501030B08I4032T
DIN 934 KG
1501030S08I4032T
DIN 934 KG
1501040B10I4032T
DIN 934 KG
1501040S08I4032T
DIN 934 KG
1501060S12I4032T
DIN 934 KG
1501070B08I4032T
DIN 934 KG
1501080S12I4032T
DIN 934 KG
1501100S12I4032T
DIN 934 KG
1501120S12I4032T
DIN 934 KG
1501160S12I4032T
DIN 934 KG
1501180B10I4032T
DIN 934 KG
1501180S08I4032T
DIN 934 KG
1501200B10I4032T
DIN 934 KG
1501200S08I4032T
DIN 934 KG
1501200S12I4032T
DIN 934 KG
1501220B10I4032T
DIN 934 KG
1501220S08I4032T
DIN 934 KG
1501240B10I4032T
DIN 934 KG
1501240S12I4032T
DIN 934 KG
1501270B10I4032T
DIN 934 KG
1501270S08I4032T
DIN 934 KG
1501270S12I4032T
DIN 934 KG
1501300B10I4032T
DIN 934 KG
1501300S08I4032T
DIN 934 KG
1501300S12I4032T
DIN 934 KG
1501330B08I4032T
DIN 934 KG
1501330B10I4032T
DIN 934 KG
1501330S08I4032T
DIN 934 KG
1501330S10I4032T
DIN 934 KG
1501360B10I4032T
DIN 934 KG
1501360S08I4032T
DIN 934 KG
1501360S12I4032T
DIN 934 KG
1501390B08I4032T
DIN 934 KG
1501390B10I4032T
DIN 934 KG
1501390S08I4032T
DIN 934 KG
1501390S10I4032T
DIN 934 KG
1501420B08I4032T
DIN 934 KG
1501420B10I4032T
DIN 934 KG
1501420S08I4032T
DIN 934 KG
1501420S10I4032T
DIN 934 KG
1501450B08I4032T
DIN 934 KG
1501450S08I4032T
DIN 934 KG
1501450S10I4032T
DIN 934 KG
1501480B08I4032T
DIN 934 KG
1501480B10I4032T
DIN 934 KG
1501480S08I4032T
DIN 934 KG
1501480S10I4032T
DIN 934 KG
1501520B08I4032T
DIN 934 KG
1501520B10I4032T
DIN 934 KG
1501520S08I4032T
DIN 934 KG
1501520S10I4032T
DIN 934 KG
1501560B08I4032T
DIN 934 KG
1501560S08I4032T
DIN 934 KG
1501600B08I4032T
DIN 934 KG
1501600S08I4032T
DIN 934 KG
1501640B08I4032T
DIN 934 KG
1501640S08I4032T
DIN 934 KG
1501680B08I4032T
DIN 934 KG
1501060CD934OC08T
DIN 934 KG
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
