Hex self-locking nylon nut INOX

I15
.
04
N6S

The hex self-locking nylon nut inox is an innovative fastening solution, combining the durability of stainless steel with self-locking properties through a nylon insert. This precisely engineered component is ideal for applications where secure and lasting fastening is required, effectively preventing self-loosening.

Applications:
The hex self-locking nylon nut inox is perfect for use in areas where connections are subject to loosening due to vibrations or dynamic loads. It is especially suited for mechanical constructions, machinery, and any situation where reliable fastening is necessary without the need for regular maintenance.

Benefits:

  • Durability: Made from stainless steel inox, the nut offers long-lasting durability even in harsh environmental conditions.
  • Self-Locking Insert: The nylon insert prevents self-loosening, which is critical in environments exposed to vibrations or dynamic loads.
  • Easy Handling: The hexagonal shape allows for quick and efficient installation and removal, increasing work efficiency.
  • Corrosion Resistance: Stainless steel inox ensures the nut remains corrosion-free, particularly important in moisture-exposed environments.
  • Versatile Applications: The nut is suitable for various uses, including metal and wood constructions, as well as projects requiring precise and secure fastening.

Recommended

Group
I1504

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

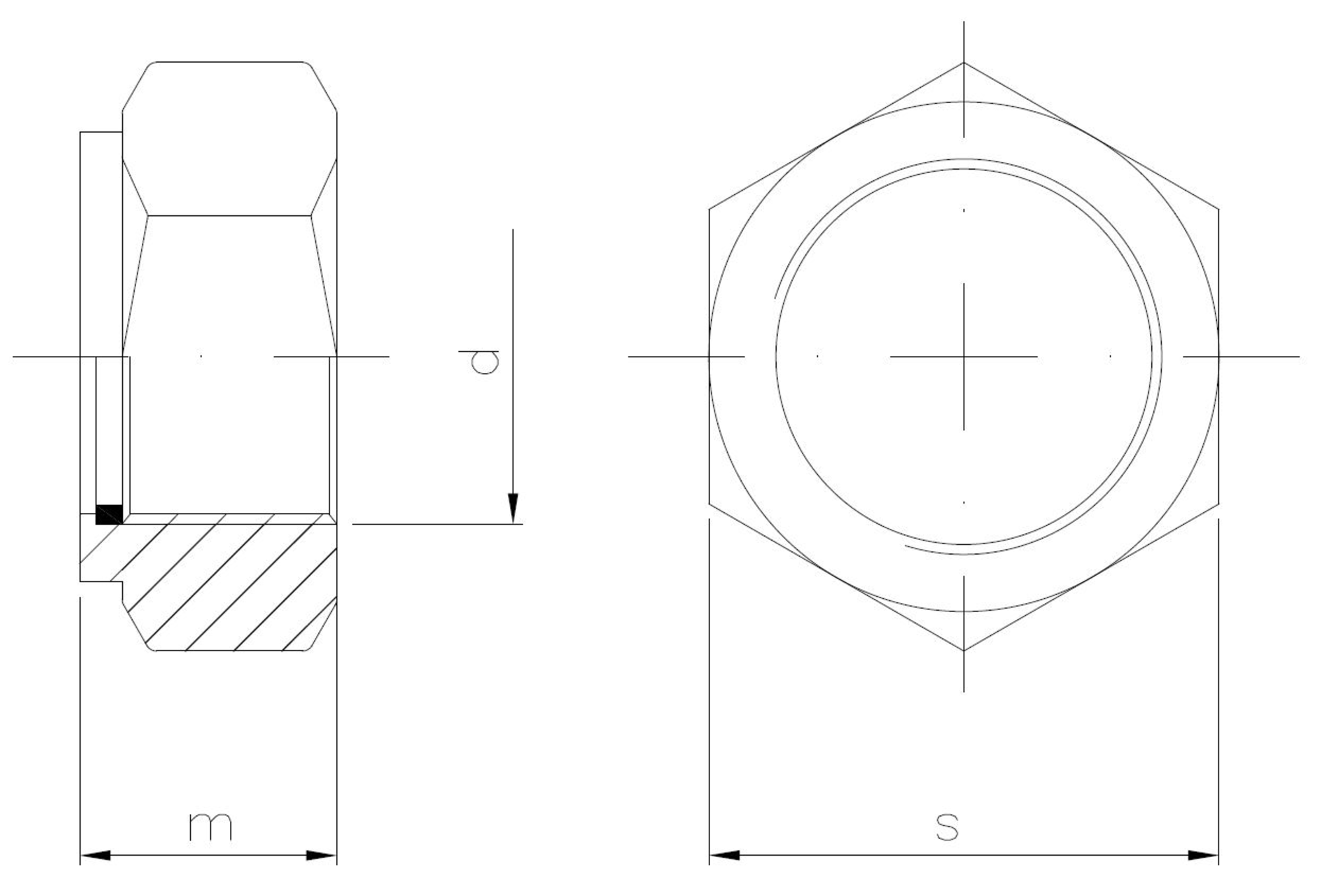

Dimension d [mm]
Dimension m [mm]
Dimension s [mm]
Material
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes
Dimension d [mm] Dimension m [mm] Dimension s [mm] Material Standard Unit of measure Availability Show More
I1504020A25985T
M2 3.2 4.0 A2-50 DIN985 THS
I1504020A45985T
M2 3.2 4.0 A4-50 DIN985 THS
I1504025A25985T
M2.5 3.5 5.0 A2-50 DIN985 THS
I1504025A45985T
M2.5 3.5 5.0 A4-50 DIN985 THS
I1504030A25985T
M3 4.0 5.5 A2-50 DIN985 THS
I1504030A2985T
M3 4.0 5.5 A2 DIN 985 THS
I1504030A2D985T
M3 4.0 5.5 A2 DIN 985 THS
I1504030A45985T
M3 4.0 5.5 A4-50 DIN985 THS
I1504030A4985T
M3 4.0 5.5 A4 DIN 985 THS
I1504040A25985T
M4 5.0 7.0 A2-50 DIN985 THS
I1504040A2985T
M4 5.0 7.0 A2 DIN 985 THS
I1504040A2D980T
M4 5.0 7.0 A2 DIN 980 THS
I1504040A2D982T
M4 5.0 7.0 A2 DIN 985 THS
I1504040A2D985T
M4 5.0 7.0 A2 DIN985 THS
I1504040A45985T
M4 5.0 7.0 A4-50 DIN985 THS
I1504040A4985T
M4 5.0 7.0 A4 DIN 985 THS
I1504040A4D982T
M4 5.0 7.0 A4 DIN 985 THS
I1504050A27982T
M5 5.0 8.0 A2-70 DIN 985 THS
I1504050A27985T
M5 5.0 8.0 A2-70 DIN985 THS
I1504050A2D980T
M5 5.0 8.0 A2 DIN 980 THS
I1504050A2D982T
M5 5.0 8.0 A2 DIN 982 THS
I1504050A2D985T
M5 5.0 8.0 A2 DIN985 THS
I1504050A48982T
M5 5.0 8.0 A4-80 DIN 985 THS
I1504050A48985T
M5 5.0 8.0 A4-80 DIN 985 THS
I1504050A4D980T
M5 5.0 8.0 A4 DIN 980 THS
I1504050A4D982T
M5 5.0 8.0 A4 DIN 982 THS
I1504060A27982T
M6 6.0 10.0 A2-70 DIN 985 THS
I1504060A27985T
M6 6.0 10.0 A2-70 DIN985 THS
I1504060A2D982T
M6 6.0 10.0 A2 DIN982 THS
I1504060A2D985T
M6 6.0 10.0 A2 DIN985 THS
I1504060A48982T
M6 6.0 10.0 A4-80 DIN 985 THS
I1504060A48985T
M6 6.0 10.0 A4-80 DIN 985 THS
I1504060A4D982T
M6 6.0 10.0 A4 DIN 982 THS
I1504060A4D985T
M6 6.0 10.0 A4 DIN985 THS
I1504080A27982T
M8 8.0 13.0 A2-70 DIN 985 THS
I1504080A27985T
M8 8.0 13.0 A2-70 DIN 985 THS
I1504080A2D982T
M8 8.0 13.0 A2 DIN982 THS
I1504080A2D985T
M8 8.0 13.0 A2 DIN985 THS
I1504080A48982T
M8 8.0 13.0 A4-80 DIN 985 THS
I1504080A48985T
M8 8.0 13.0 A4-80 DIN 985 THS
I1504080A4D982T
M8 8.0 13.0 A4 DIN 982 THS
I1504080A4D985T
M8 8.0 13.0 A4 DIN985 THS
I1504100A270D985T
M10 10.0 17.0 A2-70 DIN 985 THS
I1504100A27982T
M10 10.0 17.0 A2-70 DIN 985 THS
I1504100A27985T
M10 10.0 17.0 A2-70 DIN 985 THS
I1504100A2D980T
M10 10.0 17.0 A2 DIN980 THS
I1504100A2D982T
M10 10.0 17.0 A2 DIN 982 THS
I1504100A2D985T
M10 10.0 17.0 A2 DIN985 THS
I1504100A48982T
M10 10.0 17.0 A4-80 DIN 985 THS
I1504100A48985T
M10 10.0 17.0 A4-80 DIN 985 THS
I1504100A4D982T
M10 10.0 17.0 A4 DIN 982 THS
I1504100A4D985S
M10 10.0 17.0 A4 DIN985 PCS
I1504120A27982T
M12 12.0 19.0 A2-70 DIN 985 THS
I1504120A27985T
M12 12.0 19.0 A2-70 DIN 985 THS
I1504120A2D982T
M12 12.0 19.0 A2 DIN 982 THS
I1504120A2D985T
M12 12.0 19.0 A2 DIN985 THS
I1504120A48982T
M12 12.0 19.0 A4-80 DIN 985 THS
I1504120A48985T
M12 12.0 19.0 A4-80 DIN 985 THS
I1504120A48D982T
M12 12.0 19.0 A4-80 DIN982 THS
I1504120A4D982T
M12 12.0 19.0 A4 DIN 982 THS
I1504140A27982T
M14 14.0 22.0 A2-70 DIN 985 THS
I1504140A27985T
M14 14.0 22.0 A2-70 DIN 985 THS
I1504140A48982T
M14 14.0 22.0 A4-80 DIN 985 THS
I1504140A48985T
M14 14.0 22.0 A4-80 DIN985 THS
I1504160A27982T
M16 16.0 24.0 A2-70 DIN 985 THS
I1504160A27985T
M16 16.0 24.0 A2-70 DIN 985 THS
I1504160A2D980T
M16 16.0 24.0 A2 DIN980 THS
I1504160A2D982T
M16 16.0 24.0 A2 DIN 982 THS
I1504160A2D985T
M16 16.0 24.0 A2 DIN985 THS
I1504160A48982T
M16 16.0 24.0 A4-80 DIN 985 THS
I1504160A48985T
M16 16.0 24.0 A4-80 DIN 985 THS
I1504160A4D982T
M16 16.0 24.0 A4 DIN 982 THS
I1504180A27985T
M18 18.5 27.0 A2-70 DIN985 THS
I1504180A48985T
M18 18.5 27.0 A4-80 DIN985 THS
I1504200A27982T
M20 20.0 30.0 A2-70 DIN 985 THS
I1504200A27985T
M20 20.0 30.0 A2-70 DIN 985 THS
I1504200A2D982T
M20 20.0 30.0 A2 DIN 982 THS
I1504200A48982T
M20 20.0 30.0 A4-80 DIN 985 THS
I1504200A48985T
M20 20.0 30.0 A4-80 DIN 985 THS
I1504200A48D985T
M20 20.0 30.0 A4-80 DIN985 THS
I1504200A4D982T
M20 20.0 30.0 A4 DIN 982 THS
I1504220A27985T
M22 22.0 32.0 A2-70 DIN985 THS
I1504220A48985T
M22 22.0 32.0 A4-80 DIN985 THS
I1504240A27982T
M24 24.0 36.0 A2-70 DIN 985 THS
I1504240A27985T
M24 24.0 36.0 A2-70 DIN 985 THS
I1504240A47982T
M24 24.0 36.0 A4-70 DIN 985 THS
I1504240A47985T
M24 24.0 36.0 A4-70 DIN985 THS
I1504240A48985T
M24 24.0 36.0 A4-80 DIN 985 THS
I1504240A4D982T
M24 24.0 36.0 A4 DIN 982 THS
I1504270A25985T
M27 27.0 41.0 A2-50 DIN985 THS
I1504270A45985T
M27 27.0 41.0 A4-50 DIN985 THS
I1504300A25985T
M30 30.0 46.0 A2-50 DIN985 THS
I1504300A45985T
M30 30.0 46.0 A4-50 DIN985 THS
I1504330A25985T
M33 33.0 50.0 A2-50 DIN985 THS
I1504330A45985T
M33 33.0 50.0 A4-50 DIN985 THS
I1504360A25985T
M36 36.0 55.0 A2-50 DIN985 THS
I1504360A2D985T
M36 36.0 55.0 A2 DIN 985 THS
I1504360A45985T
M36 36.0 55.0 A4-50 DIN985 THS
