Hex self-locking nylon nut

15
.
04
N6S

Hex self-locking nylon nut The self-locking hex nut with a nylon insert is an advanced fastening element designed to provide a self-locking connection in bolted joints. The nylon insert adds an extra layer of functionality, enhancing the nut's ability to maintain tension and eliminating the need for additional locking components.

Applications:

The self-locking hex nut with a nylon insert is ideal for applications requiring the maintenance of tension in bolted connections. It is widely used in industries such as manufacturing, construction, mechanics, and other sectors where a stable, durable, and secure connection is essential.

Features and Benefits:

  • The nylon insert provides a self-locking connection.
  • The durable material of the nut and insert ensures longevity and load resistance.
  • Eliminates the need for additional locking components.
  • Provides stable, durable, and secure connections in various constructions.
  • Available in different sizes and strength grades to suit various applications.
  • Easy to install and integrate with other fastening components.
  • High-quality craftsmanship and durability.

Recommended

Group
1504

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

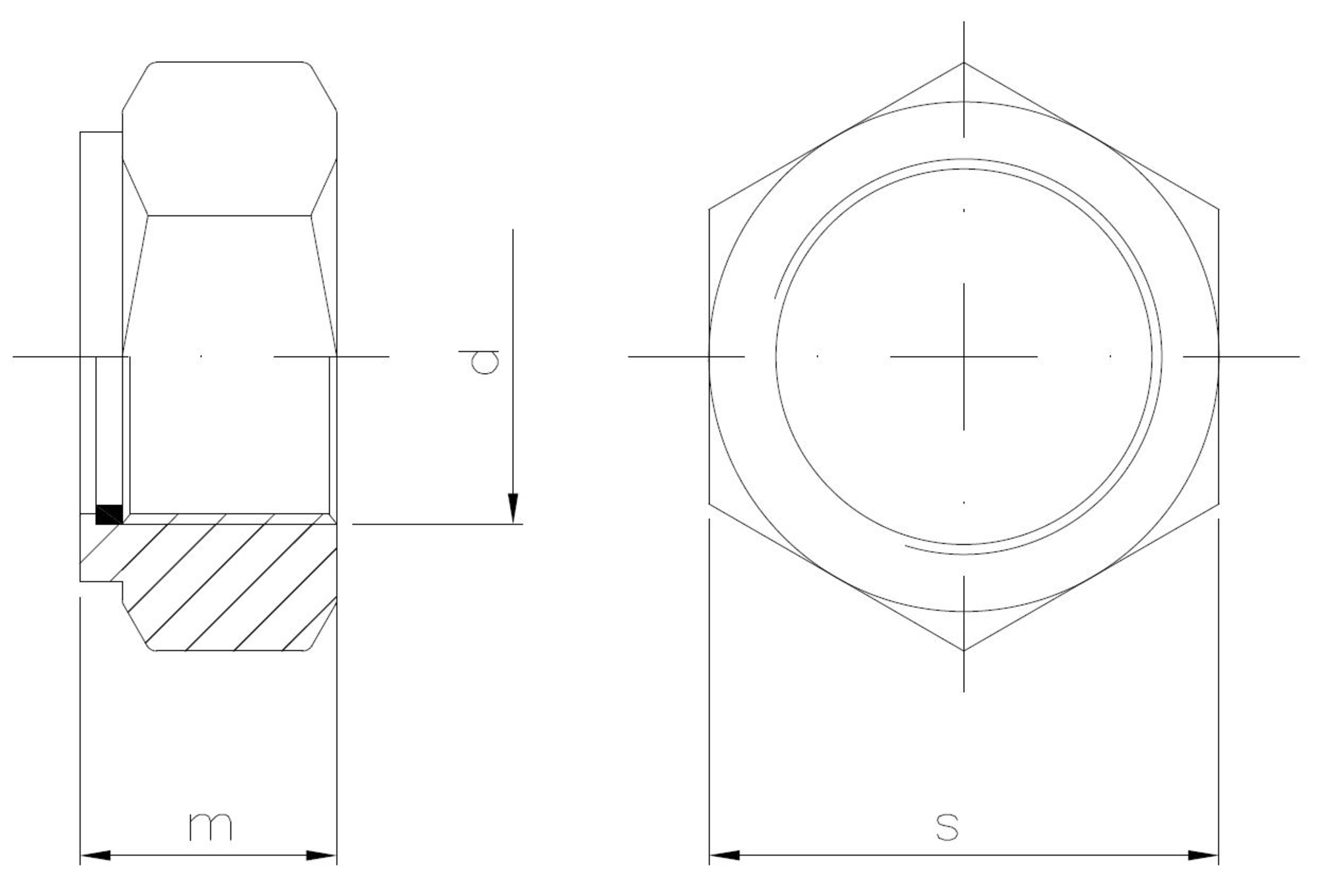

Diameter d [mm]
Height m [mm]
Class of mechanical properties
Variety of coating
Key size s [mm]
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Height m [mm] Class of mechanical properties Variety of coating Key size s [mm] Standard Unit of measure Availability Show More
1504025BD985T
M2.5 white zinc plating DIN 985 THS
1504030BD985T
M3 4.0 6 white zinc plating 5.5 DIN 985 THS
1504040B06D985T
M4 5.0 6 white zinc plating 7.0 DIN 985 THS
1504040B08D982T
M4 5.0 8 white zinc plating 7.0 DIN 982 THS
1504040BD985F03T
M4 5.0 6 white zinc plating 7.0 DIN 985 THS
1504040BD985K
M4 5.0 6 white zinc plating 7.0 DIN 985 KG
1504040BD985T
M4 5.0 6 white zinc plating 7.0 DIN 985 THS
1504040RC08D985T
M4 5.0 8 RC - black flake 7.0 DIN 985 THS
1504050B06D985T
M5 5.0 6 white zinc plating 8.0 DIN 985 THS
1504050B08D982T
M5 5.0 8 white zinc plating 8.0 DIN 982 THS
1504050B10D985T
M5 5.0 10 white zinc plating 8.0 DIN 985 THS
1504050BD985K
M5 5.0 6 white zinc plating 8.0 DIN 985 KG
1504050BD985T
M5 5.0 6 white zinc plating 8.0 DIN 985 THS
1504060B08D982T
M6 8.0 8 white zinc plating 10.0 DIN 982 THS
1504060B08D985T
M6 6.0 8 white zinc plating 10.0 DIN 985 THS
1504060B10D982T
M6 8.0 10 white zinc plating 10.0 DIN 982 THS
1504060B10D985T
M6 6.0 10 white zinc plating 10.0 DIN 985 THS
1504060BD985K
M6 6.0 6 white zinc plating 10.0 DIN 985 KG
1504060BD985T
M6 6.0 6 white zinc plating 10.0 DIN 985 THS
1504060GB12D985T
M6 6.0 white zinc plating 10.0 DIN 985 THS
1504060GB12T2D985T
M6 6.0 white zinc plating 10.0 DIN 985 THS
1504060R08D982T
M6 8.0 geomet 10.0 DIN 982 THS
1504060R08D985T
M6 6.0 8 geomet 10.0 DIN 985 THS
1504060R10D985T
M6 6.0 10 geomet 10.0 DIN 985 THS
1504060RC08D985T
M6 6.0 8 RC - black flake 10.0 DIN 985 THS
1504060RC10D985T
M6 6.0 10 RC - black flake 10.0 DIN 985 THS
1504070B08D985T
M7 7.5 8 white zinc plating 11.0 DIN 985 THS
1504080B08D982T
M8 9.5 8 white zinc plating 13.0 DIN 982 THS
1504080B08D985T
M8 8.0 8 white zinc plating 13.0 DIN 985 THS
1504080B10D982T
M8 9.5 10 white zinc plating 13.0 DIN 982 THS
1504080B10D985T
M8 8.0 10 white zinc plating 13.0 DIN 985 THS
1504080BD982T
M8 9.5 6 white zinc plating 13.0 DIN 982 THS
1504080BD985K
M8 8.0 6 white zinc plating 13.0 DIN 985 KG
1504080BD985T
M8 8.0 6 white zinc plating 13.0 DIN 985 THS
1504080R08D985T
M8 8.0 8 geomet 13.0 DIN 985 THS
1504080R10D982T
M8 9.5 geomet 13.0 DIN 982 THS
1504080R10D985T
M8 8.0 10 geomet 13.0 DIN 985 THS
1504080RC08D985T
M8 8.0 8 RC - black flake 13.0 DIN 985 THS
1504080RC10D985T
M8 8.0 10 RC - black flake 13.0 DIN 985 THS
1504100B08D982T
M10 11.5 8 white zinc plating 17.0 DIN 982 THS
1504100B08D985T
M10 10.0 8 white zinc plating 17.0 DIN 985 THS
1504100B10D982T
M10 11.5 10 white zinc plating 17.0 DIN 982 THS
1504100B10D985T
M10 10.0 10 white zinc plating 17.0 DIN 985 THS
1504100BD982T
M10 11.5 6 white zinc plating 17.0 DIN 982 THS
1504100BD985K
M10 10.0 6 white zinc plating 17.0 DIN 985 KG
1504100BD985T
M10 10.0 6 white zinc plating 17.0 DIN 985 THS
1504100R08D985T
M10 10.0 8 geomet 17.0 DIN 985 THS
1504100R10D982T
M10 11.5 10 geomet 17.0 DIN 982 THS
1504100R10D985T
M10 10.0 10 geomet 17.0 DIN 985 THS
1504100RC08D985T
M10 10.0 8 RC - black flake 17.0 DIN 985 THS
1504100RC10D985T
M10 10.0 10 RC - black flake 17.0 DIN 985 THS
1504120B08D982T
M12 14.0 8 white zinc plating 19.0 DIN 982 THS
1504120B08D985T
M12 12.0 8 white zinc plating 19.0 DIN 985 THS
1504120B10D982T
M12 14.0 10 white zinc plating 19.0 DIN 982 THS
1504120B10D985T
M12 12.0 10 white zinc plating 19.0 DIN 985 THS
1504120BD982T
M12 14.0 6 white zinc plating 19.0 DIN 982 THS
1504120BD985K
M12 12.0 6 white zinc plating 19.0 DIN 985 KG
1504120BD985T
M12 12.0 6 white zinc plating 19.0 DIN 985 THS
1504120G08D980VT
M12 12.0 8 hot-dip galvanized 19.0 DIN 982 THS
1504120R08D985T
M12 12.0 8 geomet 19.0 DIN 985 THS
1504120R10D982T
M12 14.0 10 geomet 19.0 DIN 982 THS
1504120R10D985T
M12 12.0 10 geomet 19.0 DIN 985 THS
1504120RC08D985T
M12 12.0 8 RC - black flake 19.0 DIN 985 THS
1504120RC10D985T
M12 12.0 10 RC - black flake 19.0 DIN 985 THS
1504140B08D982T
M14 16.0 8 white zinc plating 22.0 DIN 982 THS
1504140B08D985T
M14 14.0 8 white zinc plating 22.0 DIN 985 THS
1504140B10D982T
M14 16.0 10 white zinc plating 22.0 DIN 982 THS
1504140B10D985T
M14 14.0 10 white zinc plating 22.0 DIN 985 THS
1504140BD985K
M14 14.0 6 white zinc plating 22.0 DIN 985 KG
1504140BD985T
M14 14.0 6 white zinc plating 22.0 DIN 985 THS
1504140R08D985T
M14 14.0 8 geomet 22.0 DIN 985 THS
1504140R10D982T
M14 16.0 10 geomet 22.0 DIN 982 THS
1504140R10D985T
M14 14.0 10 geomet 22.0 DIN 985 THS
1504140RC10D985T
M14 14.0 10 RC - black flake 22.0 DIN 985 THS
1504160B08D982T
M16 18.0 8 white zinc plating 24.0 DIN 982 THS
1504160B08D985T
M16 16.0 8 white zinc plating 24.0 DIN 985 THS
1504160B10D982T
M16 18.0 10 white zinc plating 24.0 DIN 982 THS
1504160B10D985T
M16 16.0 10 white zinc plating 24.0 DIN 985 THS
1504160BD985K
M16 16.0 6 white zinc plating 24.0 DIN 985 KG
1504160BD985T
M16 16.0 6 white zinc plating 24.0 DIN 985 THS
1504160R08D985T
M16 16.0 8 geomet 24.0 DIN 985 THS
1504160R10D982T
M16 18.0 geomet 24.0 DIN 982 THS
1504160R10D985T
M16 16.0 10 geomet 24.0 DIN 985 THS
1504160RC10D985T
M16 16.0 10 RC - black flake 24.0 DIN 985 THS
1504180B08D982T
M18 20.0 8 white zinc plating 27.0 DIN 982 THS
1504180B08D985T
M18 18.5 8 white zinc plating 27.0 DIN 985 THS
1504180B10D982T
M18 20.0 10 white zinc plating 27.0 DIN 982 THS
1504180B10D985T
M18 18.5 10 white zinc plating 27.0 DIN 985 THS
1504180BD985K
M18 18.5 6 white zinc plating 27.0 DIN 985 KG
1504180BD985T
M18 18.5 6 white zinc plating 27.0 DIN 985 THS
1504180R10D982T
M18 20.0 geomet 27.0 DIN 982 THS
1504180R10D985T
M18 18.5 10 geomet 27.0 DIN 985 THS
1504180RC10D985T
M18 18.5 10 RC - black flake 27.0 DIN 985 THS
1504200B08D982T
M20 22.0 8 white zinc plating 30.0 DIN 982 THS
1504200B08D985T
M20 20.0 8 white zinc plating 30.0 DIN 985 THS
1504200B10D982T
M20 22.0 10 white zinc plating 30.0 DIN 982 THS
1504200B10D985S
M20 20.0 10 white zinc plating 30.0 DIN 985 PCS
1504200B10D985T
M20 20.0 10 white zinc plating 30.0 DIN 985 THS
1504200BD982S
M20 22.0 6 white zinc plating 30.0 DIN 982 PCS
1504200BD985K
M20 20.0 6 white zinc plating 30.0 DIN 985 KG
1504200BD985T
M20 20.0 6 white zinc plating 30.0 DIN 985 THS
1504200R10D982T
M20 22.0 geomet 30.0 DIN 982 THS
1504200R10D985T
M20 20.0 10 geomet 30.0 DIN 985 THS
1504200RC10D985T
M20 20.0 10 RC - black flake 30.0 DIN 985 THS
1504220B08D982T
M22 25.0 8 white zinc plating 32.0 DIN 982 THS
1504220B08D985T
M22 22.0 8 white zinc plating 32.0 DIN 985 THS
1504220B10D982T
M22 25.0 10 white zinc plating 32.0 DIN 982 THS
1504220B10D985T
M22 22.0 10 white zinc plating 32.0 DIN 985 THS
1504220BD985K
M22 22.0 6 white zinc plating 32.0 DIN 985 KG
1504220BD985S
M22 22.0 6 white zinc plating 32.0 DIN 985 PCS
1504240B08D982T
M24 28.0 8 white zinc plating 36.0 DIN 982 THS
1504240B08D985T
M24 24.0 8 white zinc plating 36.0 DIN 985 THS
1504240B10D982T
M24 28.0 10 white zinc plating 36.0 DIN 982 THS
1504240B10D985T
M24 24.0 10 white zinc plating 36.0 DIN 985 THS
1504240BD985K
M24 24.0 6 white zinc plating 36.0 DIN 985 KG
1504240BD985T
M24 24.0 6 white zinc plating 36.0 DIN 985 THS
1504240R10D982T
M24 28.0 geomet 36.0 DIN 982 THS
1504240R10D985T
M24 24.0 10 geomet 36.0 DIN 985 THS
1504240RC10D985T
M24 24.0 10 RC - black flake 36.0 DIN 985 THS
1504270B08D982T
M27 8 white zinc plating DIN 982 PCS
1504270B08D985T
M27 27.0 8 white zinc plating 41.0 DIN 985 THS
1504270B10D985T
M27 27.0 10 white zinc plating 41.0 DIN 985 THS
1504270BD985K
M27 27.0 6 white zinc plating 41.0 DIN 985 KG
1504270BD985T
M27 27.0 6 white zinc plating 27.0 DIN 985 THS
1504300B08D982T
M30 8 white zinc plating DIN 982 PCS
1504300B08D985T
M30 30.0 8 white zinc plating 46.0 DIN 985 THS
1504300B10D985T
M30 30.0 10 white zinc plating 46.0 DIN 985 THS
1504300BD985K
M30 30.0 6 white zinc plating 46.0 DIN 985 KG
1504300BD985T
M30 30.0 6 white zinc plating 46.0 DIN 985 THS
1504330B08D985T
M33 33.0 8 white zinc plating 50.0 DIN 985 THS
1504330B10D985T
M33 33.0 10 white zinc plating 50.0 DIN 985 THS
1504330BD985T
M33 33.0 6 white zinc plating 50.0 DIN 985 THS
1504360B08D985T
M36 36.0 8 white zinc plating 55.0 DIN 985 THS
1504360B10D985T
M36 36.0 10 white zinc plating 55.0 DIN 985 THS
1504360BD985T
M36 36.0 6 white zinc plating 55.0 DIN 985 THS
1504390B08D985T
M39 39.0 8 white zinc plating 60.0 DIN 985 THS
1504390B10D985T
M39 39.0 10 white zinc plating 60.0 DIN 985 THS
1504420B08D985T
M42 42.0 8 white zinc plating 65.0 DIN 985 THS
1504420B10D985T
M42 42.0 10 white zinc plating 65.0 DIN 985 THS
1504420BD985T
M42 42.0 white zinc plating 65.0 DIN 985 THS
1504450B08D985T
M45 45.0 8 white zinc plating 70.0 DIN 985 THS
1504450BD985T
M45 45.0 white zinc plating 70.0 DIN 985 THS
1504480B08D985T
M48 48.0 8 white zinc plating 75.0 DIN 985 THS
1504480B10D985T
M48 48.0 10 white zinc plating 75.0 DIN 985 THS
1504480BD985T
M48 48.0 6 white zinc plating 75.0 DIN 985 THS
