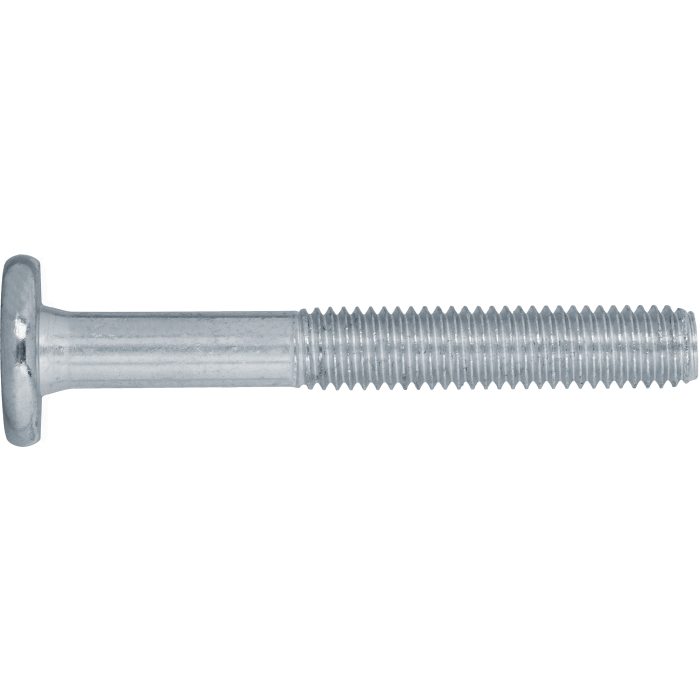

Hex socket pan head furniture screw, partially threaded with dogpoint

13
.
17
WWIM

A metric screw with a cylindrical head and an Allen recess is an advanced fastening component that combines a simple, cylindrical head shape with the functionality of an Allen recess.

Thanks to these features, it enables efficient fastening and facilitates easy tightening and loosening using an Allen wrench.


Intended use:
The metric screw with a cylindrical head and an Allen recess is used in projects where secure fastening and the ability for easy and precise screwing and unscrewing are important.

It works well in constructions, furniture assembly, and anywhere an Allen wrench is the preferred tool.


Features and benefits:
• The simple shape of the cylindrical head facilitates and streamlines screwing into the material.
• The Allen recess allows easy tightening and loosening using an Allen wrench.
• Solid construction and high-quality material ensure reliability.
• Availability in various sizes and strength classes tailored to specific needs.
• Excellent craftsmanship and durability.
• Easy installation using standard tools.

DOWNLOADABLE DOCUMENTS

Recommended

Group
1317

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

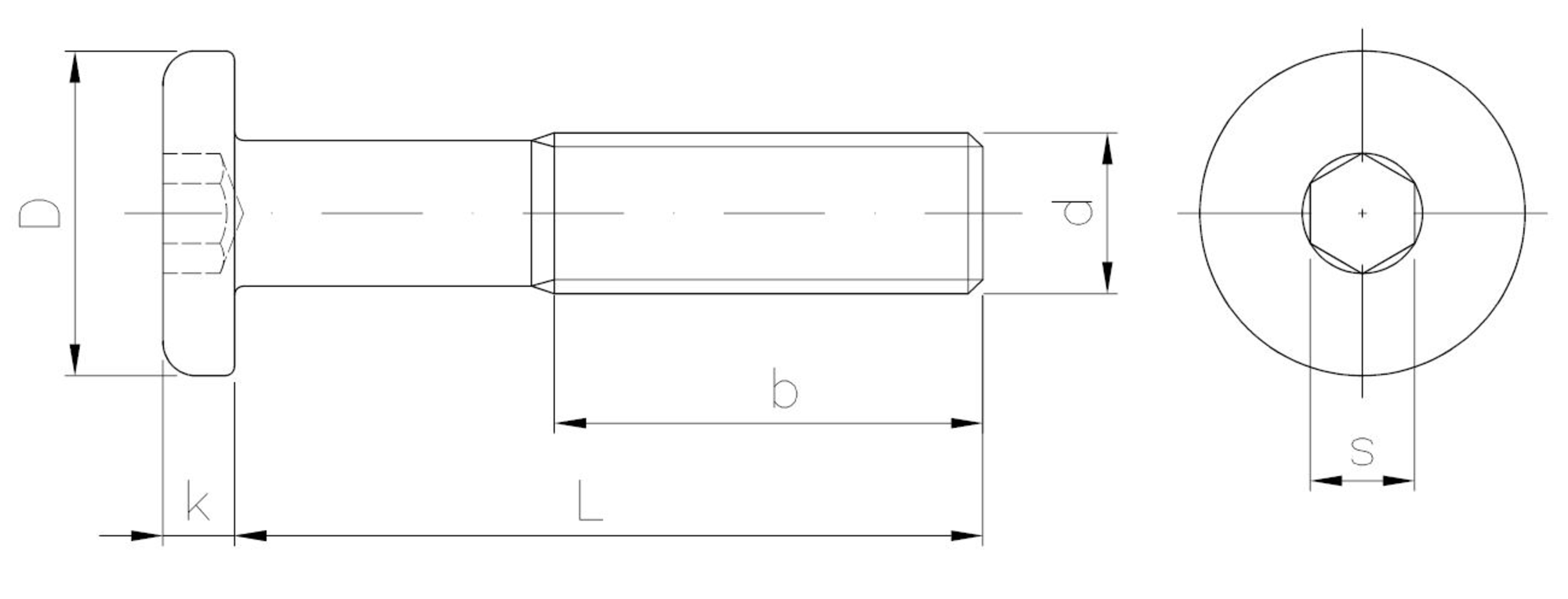

Thread diameter d
Length L [mm]
Class of mechanical properties
Variety of coating
Threading
Nest
Thread ending
Head diameter D [mm]
Head height k [mm]
Dimension s [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Thread diameter d Length L [mm] Class of mechanical properties Variety of coating Threading Nest Thread ending Head diameter D [mm] Head height k [mm] Dimension s [mm] Unit of measure Availability Show More
1317060045IMAT
M6 45 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060045IMBT
M6 45 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060050IMAT
M6 50 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060050IMBT
M6 50 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060055IMAT
M6 55 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060055IMAVT
M6 55 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060055IMBT
M6 55 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060055IMBVT
M6 55 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060060IMAT
M6 60 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060060IMAVT
M6 60 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060060IMBT
M6 60 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060060IMBVF03T
4.8 IM Cut THS
1317060060IMBVT
M6 60 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060065IMAT
M6 65 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060065IMBT
M6 65 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060065IMBVT
M6 65 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060070IMAT
M6 70 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060070IMAVT
M6 70 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060070IMBT
M6 70 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060070IMBVT
M6 70 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060075IMAT
M6 75 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060075IMAVT
M6 75 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060075IMBT
M6 75 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060080IMAT
M6 80 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060080IMAVT
M6 80 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060080IMBT
M6 80 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060080IMBVT
M6 80 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060090IMAT
M6 90 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060090IMAVT
M6 90 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060090IMBT
M6 90 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060090IMBVT
M6 90 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060100IMAT
M6 100 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060100IMAVT
M6 100 4.8 yellow zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060100IMBT
M6 100 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060100IMBVT
M6 100 4.8 white zinc plating On a part IM 4 With pilot 14.5 2.2 4 THS
1317060110IMAT
M6 110 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060110IMBT
M6 110 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060110IMBVT
4.8 IM Cut THS
1317060120IMAT
M6 120 4.8 yellow zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060120IMBT
M6 120 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060130IMBT
M6 130 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317060140IMBT
M6 140 4.8 white zinc plating On a part IM 4 Cut 14.5 2.2 4 THS
1317080045IMBT
M8 45 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080050IMBT
M8 50 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080055IMBT
M8 55 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080055IMBVT
M8 55 4.8 white zinc plating On a part IM 5 With pilot 18.0 4.0 5 THS
1317080060IMBT
M8 60 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080070IMBT
M8 70 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080080IMBT
M8 80 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080090IMBT
M8 90 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080100IMBT
M8 100 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080110IMBT
M8 110 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080120IMBT
M8 120 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080140IMBT
M8 140 4.8 white zinc plating On a part IM 5 Cut 18.0 4.0 5 THS
1317080140IMBVT
M8 140 4.8 white zinc plating IM 5 With pilot 18.0 4.0 5 THS
