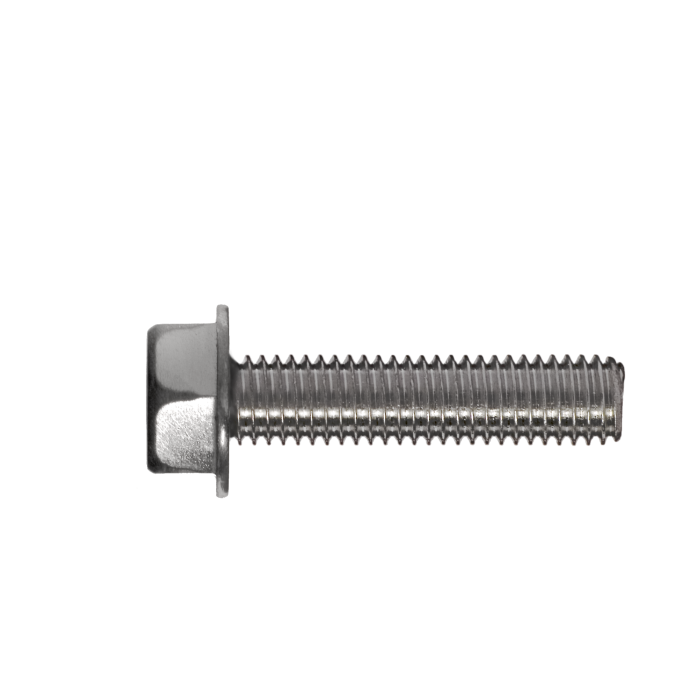

Hex washer head thread-forming bolt

21
.
02
F6P

Self-forming hex head washer screws are advanced fastening elements that combine the functions of fastening and washer support. Their design makes them ideal for creating secure and durable connections while ensuring stability and even load distribution.

Application:

Self-forming hex head washer screws are used where secure fastening and additional washer support are necessary. They are well-suited for wood, metal, plastics, and other materials.

Features and Benefits:

  • Hex Head Design: The hex head facilitates installation using a suitably sized wrench.
  • Self-Forming Thread: This allows for quick and secure fastening without the need for pre-drilling holes in the material.
  • Washer Support: The washer under the head provides stability and even load distribution.
  • Effective Fastening: The screw can be driven in by simply screwing it in, ensuring a solid hold.
  • Durable Material: Made from robust materials, these screws are resistant to loads and weather conditions.
  • Variety of Sizes and Finishes: Available in different sizes and finishes to suit various applications.
  • Excellent Quality and Durability: High manufacturing standards ensure reliability and longevity.
DOWNLOADABLE DOCUMENTS
Declarations of conformity

Recommended

Group
2102

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

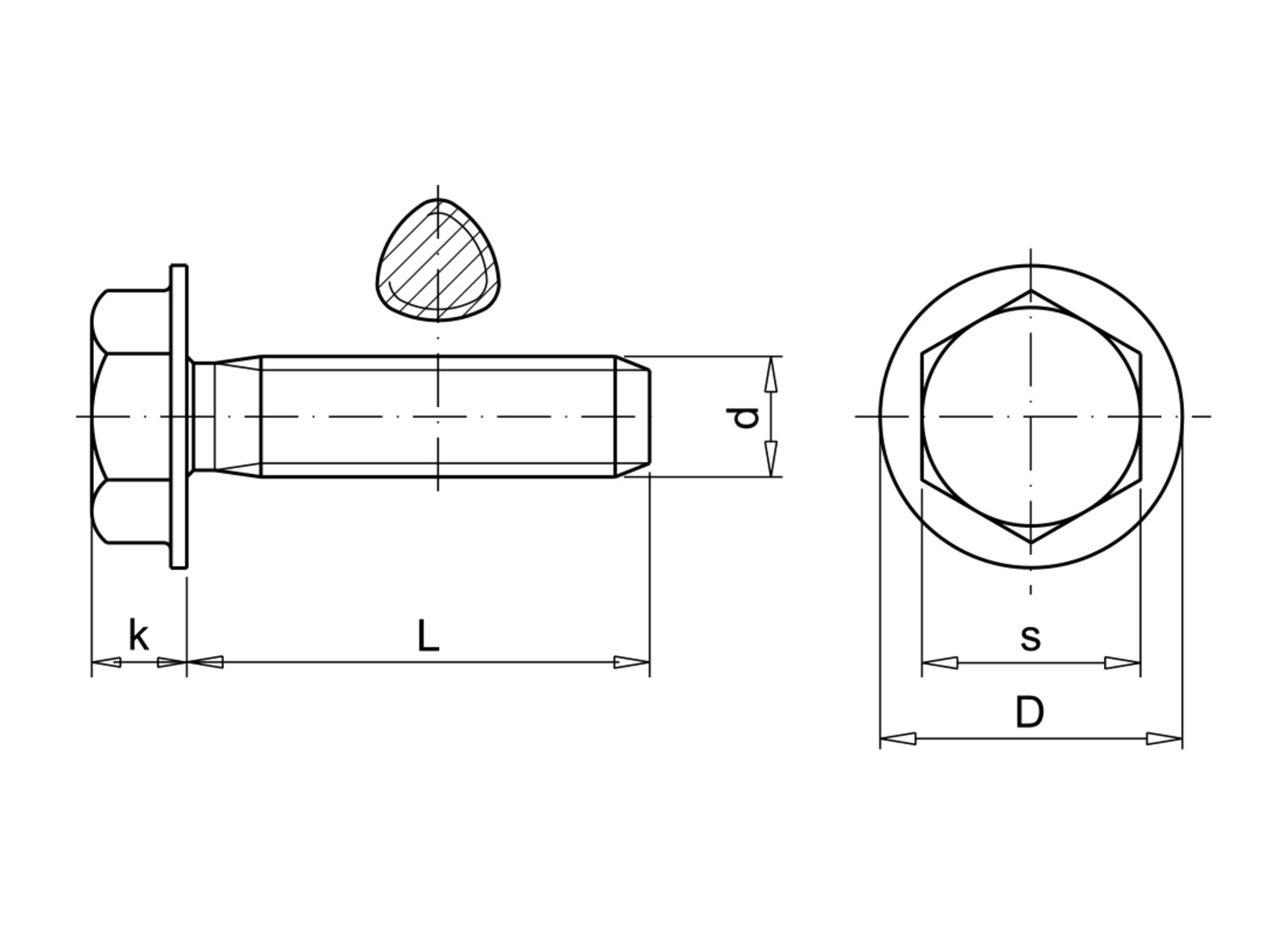

Dimension d [mm]
Dimension k [mm]
Dimension L [mm]
Dimension s [mm]
Dimension D [mm]
Thread ending
Head
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension k [mm] Dimension L [mm] Dimension s [mm] Dimension D [mm] Thread ending Head Variety of coating Unit of measure Availability Show More
2102030006BT
M3 2.7 6 5.5 7.1 Cut 6P white zinc plating THS
2102030008BT
M3 2.7 8 5.5 7.1 Cut 6P white zinc plating THS
2102030010BT
M3 2.7 10 5.5 7.1 Cut 6P white zinc plating THS
2102030012BT
M3 2.7 12 5.5 7.1 Cut 6P white zinc plating THS
2102040006BT
M4 2.7 6 7 9.1 Cut 6P white zinc plating THS
2102040008BT
M4 2.7 8 7 9.1 Cut 6P white zinc plating THS
2102040010BT
M4 3.7 10 7 9.1 Cut 6P white zinc plating THS
2102040012BT
M4 3.7 12 7 9.1 Cut 6P white zinc plating THS
2102040016BT
M4 2.7 16 7 9.1 Cut 6P white zinc plating THS
2102040020BT
M4 2.7 20 7 9.1 Cut 6P white zinc plating THS
2102040025BT
M4 3.7 25 7 9.1 Cut 6P white zinc plating THS
2102040030BT
M4 3.7 30 7 9.1 Cut 6P white zinc plating THS
2102050008BT
M5 4.5 8 8 10.1 Cut 6P white zinc plating THS
2102050010BT
M5 4.5 10 8 10.1 Cut 6P white zinc plating THS
2102050012BT
M5 4.5 12 8 10.1 Cut 6P white zinc plating THS
2102050016BT
M5 4.5 16 8 10.1 Cut 6P white zinc plating THS
2102050020BT
M5 4.5 20 8 10.1 Cut 6P white zinc plating THS
2102050025BT
M5 4.5 25 8 10.1 Cut 6P white zinc plating THS
2102050030BT
M5 4.5 30 8 10.1 Cut 6P white zinc plating THS
2102060008BT
M6 5.2 8 8 12.6 Cut 6P white zinc plating THS
2102060010BT
M6 5.2 10 10 12.6 Cut 6P white zinc plating THS
2102060012BT
M6 5.2 12 10 12.6 Cut 6P white zinc plating THS
2102060016BT
M6 5.2 16 10 12.6 Cut 6P white zinc plating THS
2102060020BT
M6 5.2 20 10 12.6 Cut 6P white zinc plating THS
2102060025BT
M6 5.2 25 10 12.6 Cut 6P white zinc plating THS
2102060030BT
M6 5.2 30 10 12.6 Cut 6P white zinc plating THS
2102060035BT
M6 5.2 35 10 12.6 Cut 6P white zinc plating THS
2102060040BT
M6 5.2 40 10 12.6 Cut 6P white zinc plating THS
2102060050BT
M6 5.2 50 10 12.6 Cut 6P white zinc plating THS
2102080012BT
M8 7.2 12 13 17.1 Cut 6P white zinc plating THS
2102080016BT
M8 7.2 16 13 17.1 Cut 6P white zinc plating THS
2102080020BT
M8 7.2 20 13 17.1 Cut 6P white zinc plating THS
2102080025BT
M8 7.2 25 13 17.1 Cut 6P white zinc plating THS
2102080030BT
M8 7.2 30 13 17.1 Cut 6P white zinc plating THS
2102080035BT
M8 7.2 35 13 17.1 Cut 6P white zinc plating THS
2102080040BT
M8 7.2 40 13 17.1 Cut 6P white zinc plating THS
2102080050BT
M8 7.2 50 13 17.1 Cut 6P white zinc plating THS
2102100016BT
M10 8.5 16 17 21.0 Cut 6P white zinc plating THS
2102100020BT
M10 8.5 20 17 21.0 Cut 6P white zinc plating THS
2102100025BT
M10 8.5 25 17 21.0 Cut 6P white zinc plating THS
2102100030BT
M10 8.5 30 17 21.0 Cut 6P white zinc plating THS
2102100040BT
M10 8.5 40 17 21.0 Cut 6P white zinc plating THS
2102100050BT
M10 8.5 50 17 21.0 Cut 6P white zinc plating THS
