Hex washer serrated head bolt

11
.
05

A hex head bolt with a locking washer is an advanced fastening solution designed to provide secure and durable connections while offering additional protection against self-loosening. This innovative bolt combines the functionality of a standard bolt with a washer and a locking mechanism, making it ideal for applications that require strong and secure connections.

Applications:

The hex head bolt with a locking washer is perfect for situations where not only a strong connection is essential but also protection against self-loosening. It is ideal for use in metal, wooden, and other material constructions that demand secure and reliable fastening.

Features and Benefits:

  • Robust construction and high-quality material ensure reliability
  • Hex head shape facilitates easy tightening and loosening of the bolt
  • Unique design with a washer provides additional connection stability
  • Integrated locking mechanism prevents self-loosening
  • Partial thread allows for secure fastening
  • Available in various sizes and strength grades to suit different applications
  • Easy installation with standard tools

Recommended

Group
1105

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

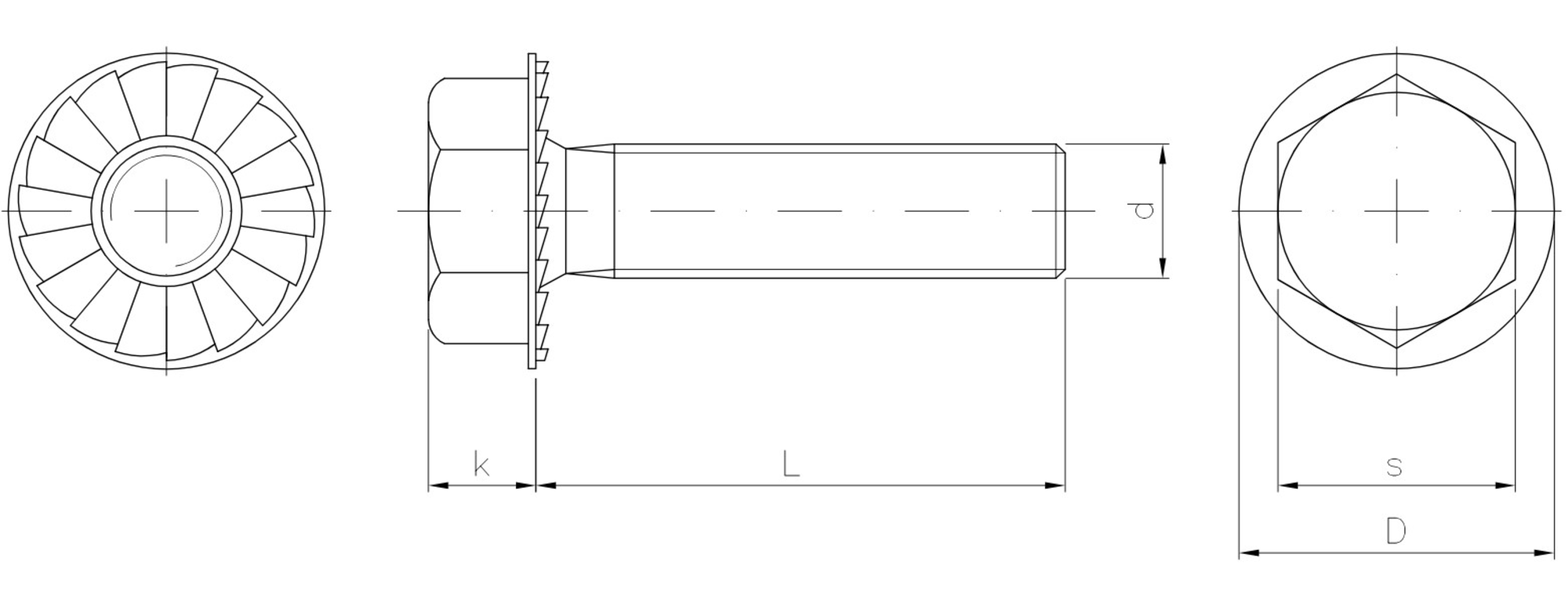

Dimension d [mm]
Dimension L [mm]
Class of mechanical properties
Variety of coating
Thread pitch
Dimension s [mm]
Dimension k [mm]
Dimension b [mm]
Dimension D [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Class of mechanical properties Variety of coating Thread pitch Dimension s [mm] Dimension k [mm] Dimension b [mm] Dimension D [mm] Unit of measure Availability Show More
1105050010B88D692T
M5 10 8.8 white zinc plating 8.0 5.4 10 11.8 THS
1105050012B88D692T
M5 12 8.8 white zinc plating 8.0 5.4 12 11.8 THS
1105050016B88D692T
M5 16 8.8 white zinc plating 8.0 5.4 16 11.8 THS
1105050020B88D692T
M5 20 8.8 white zinc plating 8.0 5.4 16 11.8 THS
1105050025B88D692T
M5 25 8.8 white zinc plating 8.0 5.4 16 11.8 THS
1105050030B88D692T
M5 30 8.8 white zinc plating 8.0 5.4 16 11.8 THS
1105060010B88D692T
M6 10 8.8 white zinc plating 10.0 6.6 14.2 THS
1105060010R10D692T
M6 10 10.9 geomet 10.0 6.6 14.2 THS
1105060012B88D692T
M6 12 8.8 white zinc plating 10.0 6.6 14.2 THS
1105060012R10D692T
M6 12 10.9 geomet 10.0 6.6 14.2 THS
1105060014BT
M6 14 5.8 white zinc plating 10.0 6.6 14.2 THS
1105060016B88D692T
M6 16 8.8 white zinc plating 10.0 6.6 14.2 THS
1105060016R10D692T
M6 16 10.9 geomet 10.0 6.6 14.2 THS
1105060020B88D692T
M6 8.8 white zinc plating 10.0 6.6 18 14.2 THS
1105060020R10D692T
M6 20 10.9 geomet 10.0 6.6 18 14.2 THS
1105060025B88D692T
M6 25 8.8 white zinc plating 10.0 6.6 18 14.2 THS
1105060025R10D692T
M6 25 10.9 geomet 10.0 6.6 18 14.2 THS
1105060025R10D69T
M6 25 10.9 geomet 10.0 6.6 18 14.2 THS
1105060030B88D692T
M6 30 8.8 white zinc plating 10.0 6.6 18 14.2 THS
1105060030CT
M6 30 5.8 black zinc plating 10.0 6.6 18 14.2 THS
1105060035B88D692T
M6 35 8.8 white zinc plating 10.0 6.6 18 14.2 THS
1105060040B88D692T
M6 40 8.8 white zinc plating 10.0 6.6 18 14.2 THS
1105080012B88D692T
M8 12 8.8 white zinc plating 13.0 8.1 18.0 THS
1105080012R10D692T
M8 12 10.9 geomet 13.0 8.1 18.0 THS
1105080016B88D692T
M8 16 8.8 white zinc plating 13.0 8.1 18.0 THS
1105080016R10D692T
M8 16 10.9 geomet 13.0 8.1 18.0 THS
1105080020B88D692T
M8 20 8.8 white zinc plating 13.0 8.1 18.0 THS
1105080020R10D692T
M8 20 10.9 geomet 13.0 8.1 18.0 THS
1105080025B88D692T
M8 25 8.8 white zinc plating 13.0 8.1 22 18.0 THS
1105080025R10D692T
M8 25 10.9 geomet 13.0 8.1 22 18.0 THS
1105080030B88D692T
M8 30 8.8 white zinc plating 13.0 8.1 22 18.0 THS
1105080035B88D692T
M8 35 8.8 white zinc plating 13.0 8.1 22 18.0 THS
1105080040B88D692T
M8 40 8.8 white zinc plating 13.0 8.1 22 18.0 THS
1105100016B88D692T
M10 16 8.8 white zinc plating THS
1105100020B88D692T
M10 20 8.8 white zinc plating 15.0 9.2 22.3 THS
1105100020B88T
M10 20 8.8 white zinc plating 15.0 9.2 22.3 THS
1105100020R10D692T
M10 20 10.9 geomet 15.0 9.2 22.3 THS
1105100025B88D692T
M10 25 8.8 white zinc plating 15.0 9.2 22.3 THS
1105100025R10D692T
M10 25 10.9 geomet 15.0 9.2 22.3 THS
1105100025R10T
M10 25 10.9 geomet 15.0 9.2 22.3 THS
1105100030B88D692T
M10 30 8.8 white zinc plating 15.0 9.2 26 22.3 THS
1105100030R10D692T
M10 30 10.9 geomet 15.0 9.2 26 22.3 THS
1105100035B88D692T
M10 35 8.8 white zinc plating 15.0 9.2 26 22.3 THS
1105100035R10D692T
M10 35 10.9 geomet 15.0 9.2 26 22.3 THS
1105100035R10D69T
M10 35 10.9 geomet 15.0 9.2 26 22.3 THS
1105100040B88D692T
M10 40 8.8 white zinc plating 15.0 9.2 26 22.3 THS
1105100040R10D692T
M10 40 10.9 geomet 15.0 9.2 26 22.3 THS
1105100040R10T
M10 40 10.9 geomet 15.0 9.2 26 22.3 THS
1105100045B88D692T
M10 45 8.8 white zinc plating 15.0 9.2 26 22.3 THS
1105100050B88D692T
M10 50 8.8 white zinc plating 15.0 9.2 26 22.3 THS
1105120020R10D692T
M12 20 10.9 geomet 16.0 11.5 26.6 THS
1105120025B88D692T
M12 25 8.8 white zinc plating 16.0 11.5 26.6 THS
1105120025R10D692T
M12 25 10.9 geomet 16.0 11.5 26.6 THS
1105120030B88D692T
M12 30 8.8 white zinc plating 16.0 11.5 30 26.6 THS
1105120030R10150T
M12 30 10.9 geomet 1.50 16.0 11.5 30 26.6 THS
1105120030R10D692T
M12 30 10.9 geomet 16.0 11.5 30 26.6 THS
1105120035B88D692T
M12 35 8.8 white zinc plating 16.0 11.5 30 26.6 THS
1105120035R10150T
M12 35 10.9 geomet 16.0 11.5 30 26.6 THS
1105120035R10D692T
M12 35 10.9 geomet 16.0 11.5 30 26.6 THS
1105120040B88D692T
M12 40 8.8 white zinc plating 16.0 11.5 30 26.6 THS
1105120040R10150T
M12 40 10.9 geomet 1.5 16.0 11.5 30 26.6 THS
1105120040R10D692T
M12 40 10.9 geomet 16.0 11.5 30 26.6 THS
1105120045B88D692T
M12 45 8.8 white zinc plating 16.0 11.5 30 THS
1105120045R10D692T
M12 45 10.9 geomet 16.0 11.5 30 26.6 THS
1105120050B88D692T
M12 50 8.8 white zinc plating 16.0 11.5 30 THS
1105120050R10150T
M12 50 10.9 geomet 1.50 16.0 11.5 30 26.6 THS
1105120050R10D692T
M12 50 10.9 geomet 16.0 11.5 30 26.6 THS
1105120055R10D692T
M12 55 10.9 geomet 16.0 11.5 30 26.6 THS
1105140030R10150T
M14 30 10.9 geomet 1.50 18.0 12.8 30 30.5 THS
1105140035R10150T
M14 35 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105140035R10D692T
M14 35 10.9 geomet 18.0 12.8 34 30.5 THS
1105140040R10150T
M14 40 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105140045R10D692T
M14 45 10.9 geomet 18.0 12.8 34 30.5 THS
1105140050R10150T
M14 50 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105140055R10150T
M14 55 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105140060R10150T
M14 60 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105160050R10D692T
M16 50 10.9 geomet 21.0 14.4 35.0 THS
1105160060R10D692T
M16 60 10.9 geomet 21.0 14.4 35.0 THS
1105080030R10D692T
M8 25 10.9 geomet 13.0 8.1 18.0 THS
1105080035R10D692T
M8 35 10.9 geomet 13.0 8.1 22 18.0 THS
1105080040R10D692T
M8 40 10.9 geomet 13.0 8.1 22 18.0 THS
1105100050R10D692T
M10 50 10.9 geomet 15.0 9.2 26 22.3 THS
1105100060R10D692T
M10 60 10.9 geomet 15.0 9.2 26 22.3 THS
1105140045R10150T
M14 45 10.9 geomet 1.50 18.0 12.8 30.5 THS
1105140060R10D692T
M14 60 10.9 geomet 18.0 12.8 34 30.5 THS
1105140070R10150T
M14 70 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105140080R10150T
M14 80 10.9 geomet 1.50 18.0 12.8 34 30.5 THS
1105160040R10150T
M16 40 10.9 geomet 1.50 21.0 14.4 35.0 THS
1105160050R10150T
M16 50 10.9 geomet 1.50 21.0 14.4 35.0 THS
1105160060R10150T
M16 60 10.9 geomet 1.50 21.0 14.4 35.0 THS
1105200060R10D692T
M20 60 10.9 geomet THS
