Hex washer serrated head self-tapping sheet metal screw

23
.
04
B6Pz

Hex washer serrated head self-tapping sheet metal screw is an advanced fastening element specifically designed for securely fastening sheets and other materials to various surfaces. It features a distinctive hexagonal head and a washer that provides stability and even load distribution. Additionally, this screw is equipped with a locking mechanism that ensures a durable and safe connection.

Applications:

Hex washer serrated head self-tapping sheet metal screw is used wherever reliable and durable fastening of sheets and other materials to various surfaces is necessary. It can be employed in construction, manufacturing, carpentry, and many other fields where connection reliability is crucial.

Features and Benefits:

  • Locking Mechanism: Ensures a durable and safe connection.
  • Hex Head: Facilitates secure and effective fastening using a hex wrench.
  • Washer: Provides even load distribution and stability of the connection.
  • High Quality: Excellent workmanship and durability of the material.
  • Variety of Sizes: Available in different sizes tailored to various applications.

Recommended

Group
2304

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Diameter d [mm]
Length L [mm]
Thread ending
Variety of coating
Diameter d [mm]
Head height k [mm]
Key size s [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

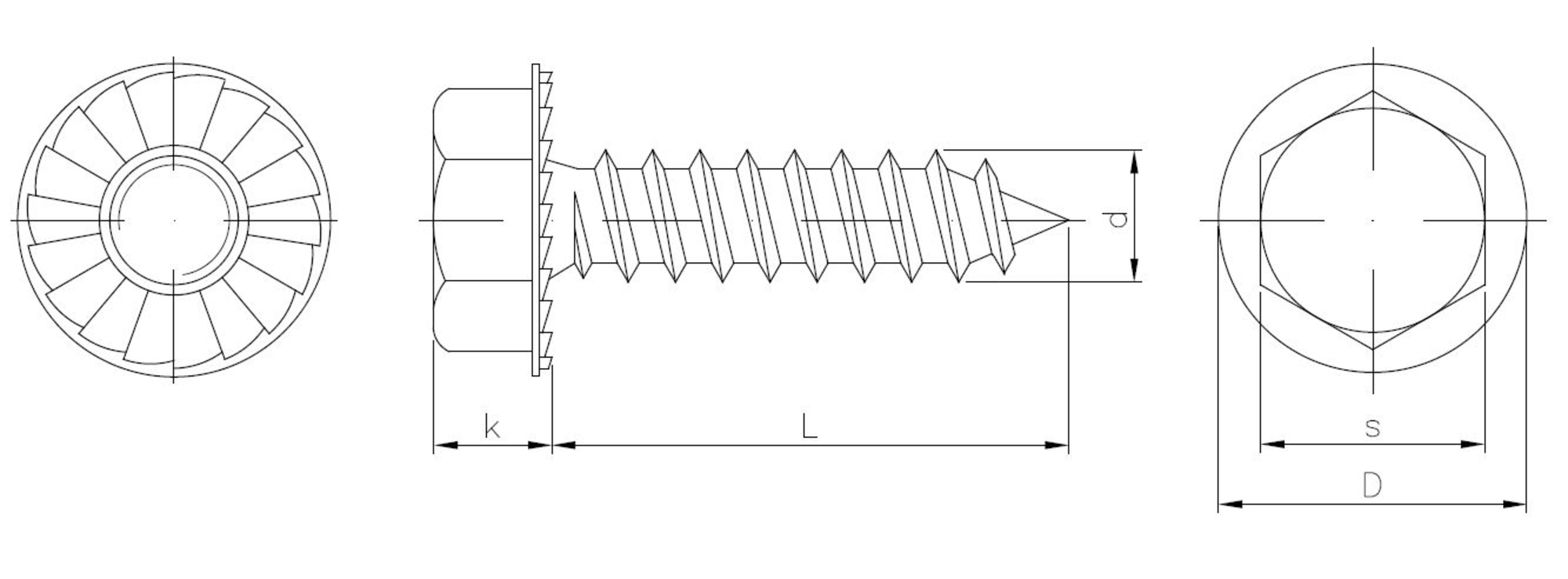

Diameter d [mm] Length L [mm] Thread ending Variety of coating Diameter d [mm] Head height k [mm] Key size s [mm] Unit of measure Availability Show More
23040420130BT
4.2 13 O (sharp) white zinc plating 8.8 4.1 7 THS
23040420160BT
4.2 16 O (sharp) white zinc plating 8.8 4.1 7 THS
23040420190BT
4.2 19 O (sharp) white zinc plating 8.8 4.1 7 THS
23040480160BT
4.8 16 O (sharp) white zinc plating 10.5 4.3 8 THS
23040480190BT
4.8 19 O (sharp) white zinc plating 10.5 4.3 8 THS
23040480250BT
4.8 25 O (sharp) white zinc plating 10.5 4.3 8 THS
23040550160BT
5.5 16 O (sharp) white zinc plating 11.0 5.4 8 THS
23040550190BT
5.5 19 O (sharp) white zinc plating 11.0 5.4 8 THS
23040550220BT
5.5 22 O (sharp) white zinc plating 11.0 5.4 8 THS
23040550250BT
5.5 25 O (sharp) white zinc plating 11.0 5.4 8 THS
23040550320BT
5.5 32 O (sharp) white zinc plating 11.0 5.4 8 THS
23040630160BT
6.3 16 O (sharp) white zinc plating 14.0 5.8 10 THS
23040630190BT
6.3 19 O (sharp) white zinc plating 14.0 5.8 10 THS
23040630250BT
6.3 25 O (sharp) white zinc plating 14.0 5.8 10 THS
23040630320BT
6.3 32 O (sharp) white zinc plating 14.0 5.8 10 THS
23040630350BT
6.3 35 O (sharp) white zinc plating 14.0 5.8 10 THS
23040630380BT
6.3 38 O (sharp) white zinc plating 14.0 5.8 10 THS
