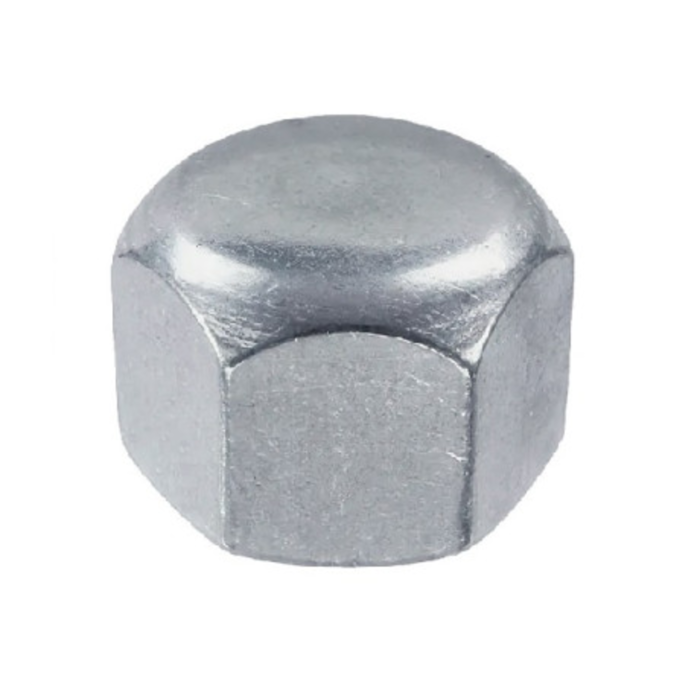

Hexagon Cup Nuts

Name: Hexagon Cup Nuts
Price: 1 PLN
Availability: InStock

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension m [mm]

Variety of coating

Dimension s [mm]

Standard

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension m [mm]	Variety of coating	Dimension s [mm]	Standard	Unit of measure	Availability

1538040BD917T	M4	5.5	white zinc plating	7	DIN 917	THS	Product on request
1538040MD917T	M4	5.5	brass plating	7	DIN 917	THS	Product on request
1538040SD917T	M4	5.5	raw	7	DIN 917	THS	Product on request
1538050BD917T	M5	7	white zinc plating	8	DIN 917	THS	Product on request
1538050MD917T	M5	7	brass plating	8	DIN 917	THS	Product on request
1538050SD917T	M5	7	raw	8	DIN 917	THS	Product on request
1538060BD917T	M6	9	white zinc plating	10	DIN 917	THS	Product on request
1538060MD917T	M6	9	brass plating	10	DIN 917	THS	Product on request
1538060SD917T	M6	9	raw	10	DIN 917	THS	Product on request
1538080BD917T	M8	12	white zinc plating	13	DIN 917	THS	Product on request
1538080MD917T	M8	12	brass plating	13	DIN 917	THS	Product on request
1538080SD917T	M8	12	raw	13	DIN 917	THS	Product on request
1538100BD917T	M10	14	white zinc plating	17	DIN 917	THS	Product on request
1538100MD917T	M10	14	brass plating	17	DIN 917	THS	Product on request
1538100SD917T	M10	14	raw	17	DIN 917	THS	Product on request
1538120BD917T	M12	16	white zinc plating	19	DIN 917	THS	Product on request
1538120MD917T	M12	16	brass plating	19	DIN 917	THS	Product on request
1538120SD917T	M12	16	raw	19	DIN 917	THS	Product on request
1538140BD917T	M14	18	white zinc plating	22	DIN 917	THS	Product on request
1538160BD917T	M16	20	white zinc plating	24	DIN 917	THS	Product on request
1538160MD917T	M16	20	brass plating	24	DIN 917	THS	Product on request
1538160SD917T	M16	20	raw	24	DIN 917	THS	Product on request
1538200BD917T	M20	25	white zinc plating	30	DIN 917	THS	Product on request
1538200MD917T	M20	25	brass plating	30	DIN 917	THS	Product on request
1538200SD917T	M20	25	raw	30	DIN 917	THS	Product on request
1538240BD917T	M24	30	white zinc plating	36	DIN 917	THS	Product on request
1538240SD917T	M24	30	raw	36	DIN 917	THS	Product on request
1538300BD917T	M30	34	white zinc plating	46	DIN 917	THS	Product on request
1538300SD917T	M30	34	raw	46	DIN 917	THS	Product on request
1538360BD917T	M36	44	white zinc plating	55	DIN 917	THS	Product on request
1538360SD917T	M36	44	raw	55	DIN 917	THS	Product on request
