Hexagon domed cap nut INOX

I15
.
09

The hexagon domed cap nut inox is a high-quality fastening component crafted from durable stainless steel inox. It is designed with both aesthetics and functionality in mind, meeting the requirements for durability and resistance to weather conditions.

Applications:
The hexagon domed cap nut inox is an ideal solution for mounting hubcaps on various vehicles, including cars and vans. It is also suitable for bicycles, motorcycles, and other vehicles where appearance plays a significant role.

Benefits:

  • Aesthetics: The domed cap nut inox adds elegance and a polished look to hubcaps, enhancing their overall appearance.
  • Durability: Made from stainless steel inox, the nut ensures long-lasting performance, even in harsh environmental conditions.
  • Universal Fit: The standard domed shape of the nut fits various types of hubcaps, making installation easier.
  • Corrosion Resistance: Stainless steel inox ensures that the nut remains rust-resistant, even with frequent exposure to the elements.
  • Easy Handling: Quick and efficient installation and removal make managing hubcaps hassle-free for users.
View in store
DOWNLOADABLE DOCUMENTS
Declarations of conformity

Recommended

Group
I1509

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

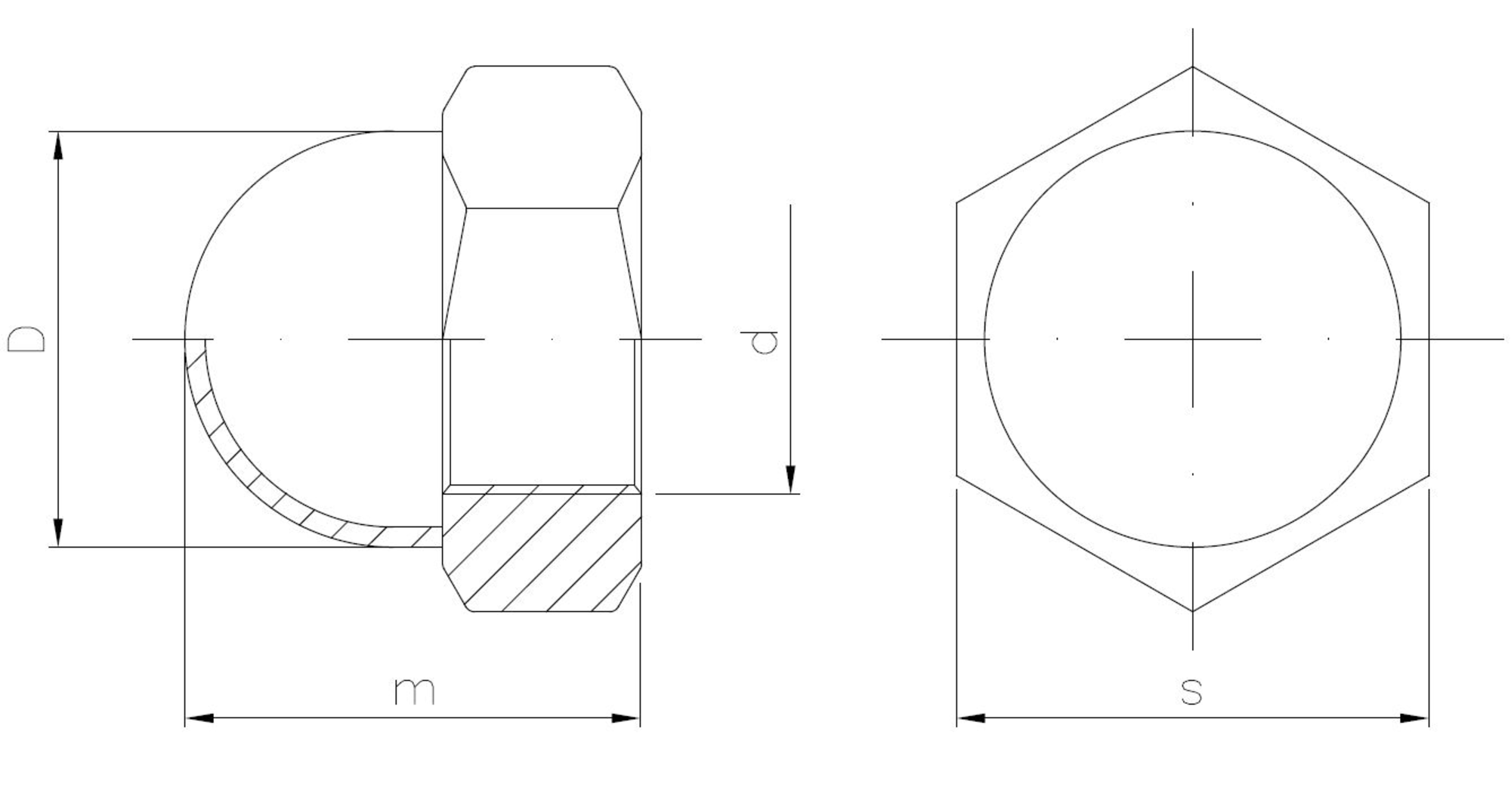

Dimension d [mm]
Dimension m [mm]
Dimension D [mm]
Dimension s [mm]
Material
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension m [mm] Dimension D [mm] Dimension s [mm] Material Standard Unit of measure Availability Show More
I1509030A251587T
M3 6.0 5.8 5.5 A2-50 DIN1587 THS
I1509030A451587T
M3 6.0 5.8 5.5 A4-50 DIN1587 THS
I1509040A251587T
M4 8.0 6.5 7.0 A2-50 DIN1587 THS
I1509040A271587T
M4 8.0 6.5 7.0 A2-70 DIN 1587 THS
I1509040A2D1587T
M4 8.0 6.5 7.0 A2 DIN1587 THS
I1509040A2D917T
M4 8.0 6.5 7.0 A2 DIN917 THS
I1509040A451587T
M4 8.0 6.5 7.0 A4-50 DIN1587 THS
I1509040A481587T
M4 8.0 6.5 7.0 A4-80 DIN 1587 THS
I1509050A271587T
M5 10.0 7.5 8.0 A2-70 DIN 1587 THS
I1509050A2D1587T
M5 10.0 7.5 8.0 A2 DIN1587 THS
I1509050A481587T
M5 10.0 7.5 8.0 A4-80 DIN 1587 THS
I1509050A4D1587T
M5 10.0 7.5 8.0 DIN 1587 THS
I1509060A271587T
M6 12.0 9.5 10.0 A2-70 DIN 1587 THS
I1509060A2D1587T
M6 12.0 9.5 10.0 A2 DIN1587 THS
I1509060A2D917T
M6 12.0 9.5 10.0 A2 DIN 917 THS
I1509060A481587T
M6 12.0 9.5 10.0 A4-80 DIN 1587 THS
I1509060A4D1587T
M6 DIN 1587 THS
I1509080A271587T
M8 15.0 12.5 13.0 A2-70 DIN 1587 THS
I1509080A2D1587T
M8 15.0 12.5 13.0 A2 DIN1587 THS
I1509080A2D917T
M8 15.0 12.5 13.0 DIN 917 THS
I1509080A481587T
M8 15.0 12.5 13.0 A4-80 DIN 1587 THS
I1509100A271587T
M10 18.0 16.0 17.0 A2-70 DIN 1587 THS
I1509100A2D1587T
M10 18.0 16.0 17.0 A2 DIN1587 THS
I1509100A481587T
M10 18.0 16.0 17.0 A4-80 DIN 1587 THS
I1509120A271587T
M12 22.0 18.0 19.0 A2-70 DIN 1587 THS
I1509120A2BD986T
M12 22.0 18.0 19.0 A2 DIN986 THS
I1509120A2D1587S
M12 22.0 18.0 19.0 A2 DIN1587 PCS
I1509120A2D1587T
M12 DIN 1587 THS
I1509120A2D917T
M12 22.0 18.0 19.0 A2 DIN917 THS
I1509120A481587T
M12 22.0 18.0 19.0 A4-80 DIN 1587 THS
I1509120A4D1587S
M12 22.0 18.0 19.0 A4 DIN 1587 PCS
I1509140A271587T
M14 25.0 20.0 22.0 A2-70 DIN 1587 THS
I1509140A481587T
M14 25.0 20.0 22.0 A4-80 DIN 1587 THS
I1509160A271587T
M16 28.0 23.0 24.0 A2-70 DIN 1587 THS
I1509160A2D1587S
M16 28.0 23.0 24.0 A2 DIN1587 PCS
I1509160A2D917T
M16 DIN 917 THS
I1509160A481587T
M16 28.0 23.0 24.0 A4-80 DIN 1587 THS
I1509180A271587T
M18 32.0 26.0 27.0 A2-70 DIN1587 THS
I1509180A481587T
M18 32.0 26.0 27.0 A4-80 DIN1587 THS
I1509200A271587T
M20 34.0 28.0 30.0 A2-70 DIN 1587 THS
I1509200A481587T
M20 34.0 28.0 30.0 A4-80 DIN1587 THS
I1509220A271587T
M22 39.0 33.0 32.0 A2-70 DIN1587 THS
I1509220A481587T
M22 39.0 33.0 32.0 A4-80 DIN1587 THS
I1509240A271587T
M24 42.0 34.0 36.0 A2-70 DIN1587 THS
I1509240A481587T
M24 42.0 34.0 36.0 A4-80 DIN1587 THS
I1509270A271587T
M27 45.0 39.0 41.0 A2-70 DIN1587 THS
I1509270A471587T
M27 45.0 39.0 41.0 A4-70 DIN1587 THS
I1509300A271587T
M30 50.0 44.0 46.0 A2-70 DIN1587 THS
I1509300A471587T
M30 50.0 44.0 46.0 A4-70 DIN1587 THS
I1509330A271587T
M33 54.0 47.0 50.0 A2-70 DIN1587 THS
I1509330A471587T
M33 54.0 47.0 50.0 A4-70 DIN1587 THS
I1509360A271587T
M36 63.0 53.0 55.0 A2-70 DIN1587 THS
I1509360A471587T
M36 63.0 53.0 55.0 A4-70 DIN1587 THS
